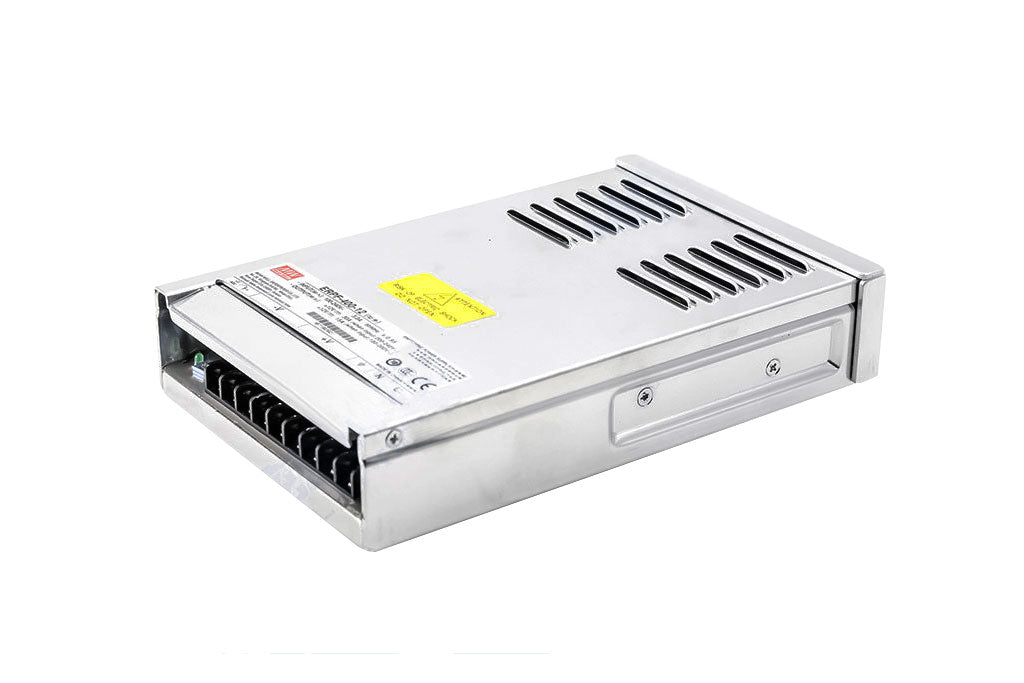

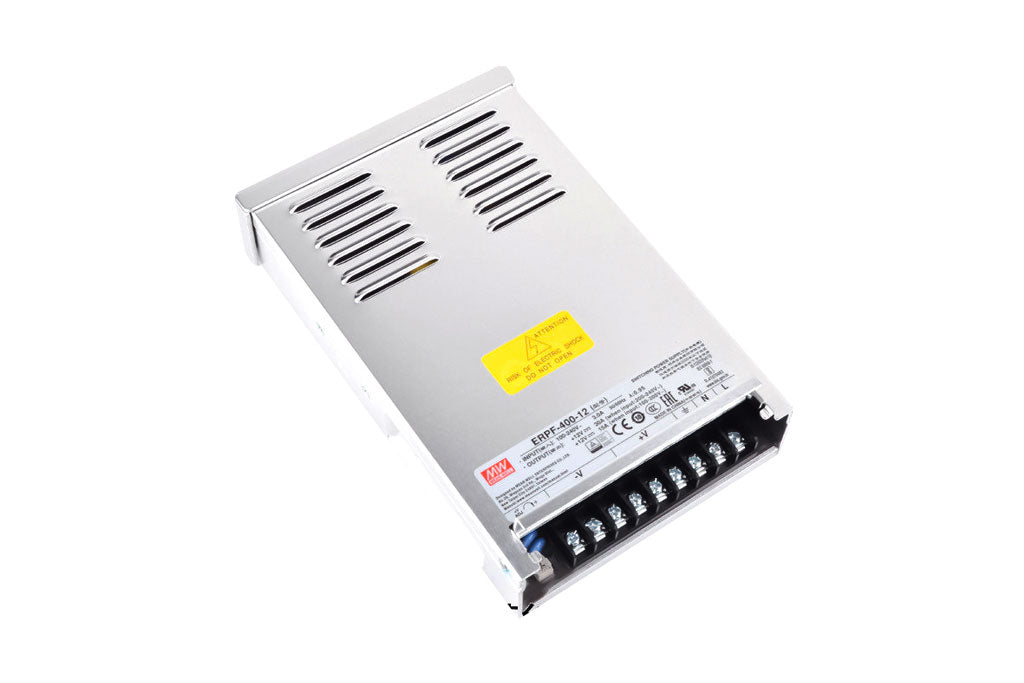

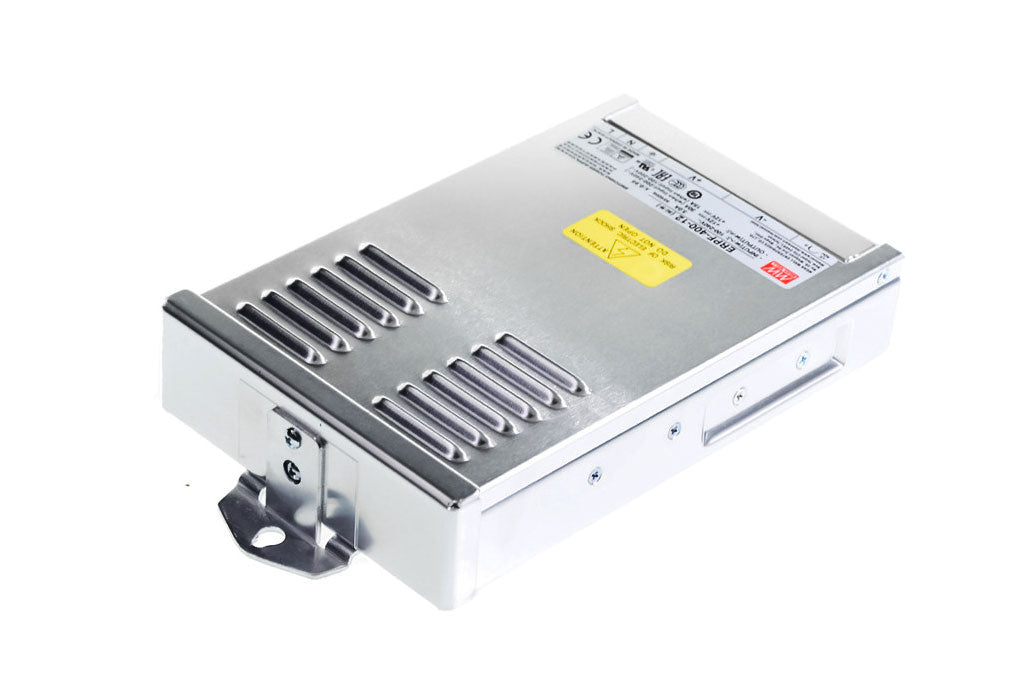

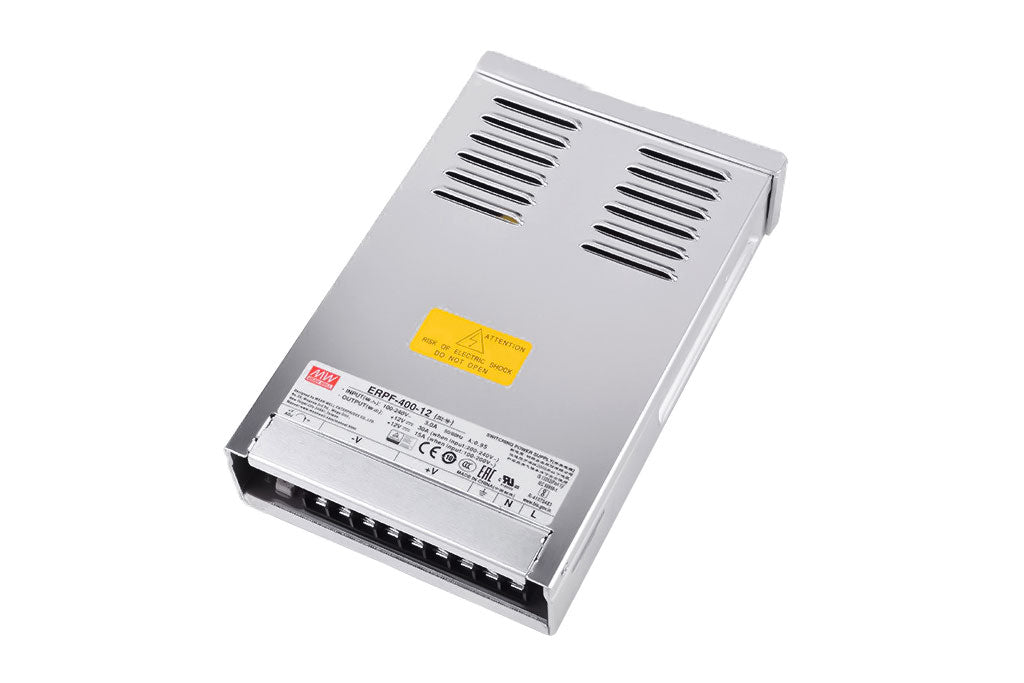

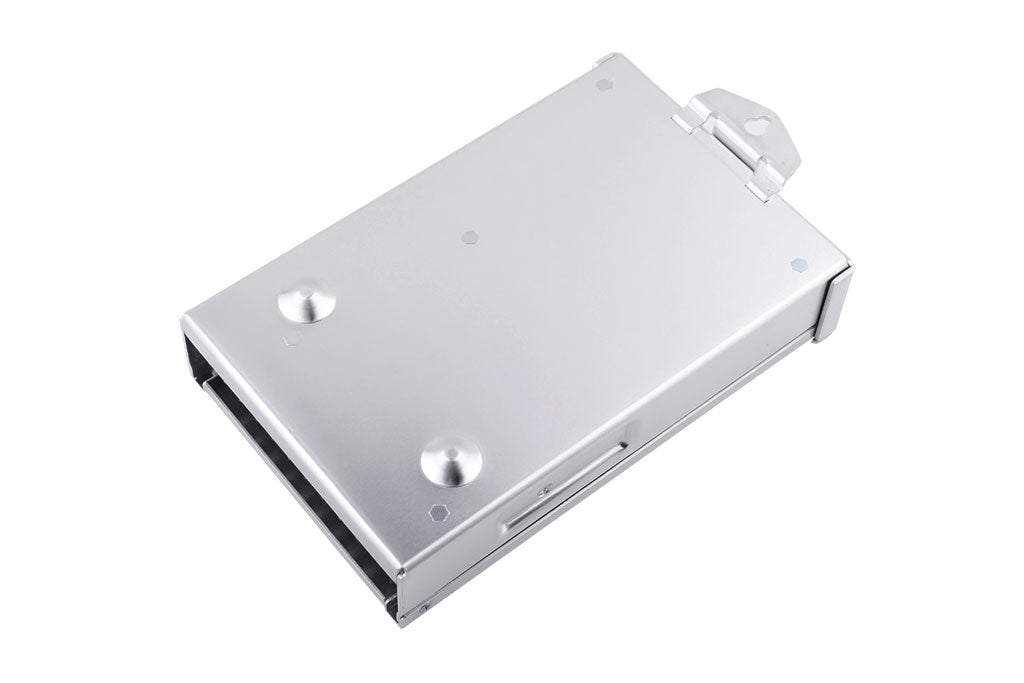

Meanwell ERPF-400 Series ERPF-400-12 ERPF-400-24 LED Displays Power Supply

ERPF-400 series is a 400W single output enclosed type AC/DC power supply with the active PFC design.It adopts an aluminium case and the interior is semi-potted, protecting the internal electronic components from rain splash and dust.With the complete protection functions, ERPF-400 series is suitable for external applications such as outdoor LED channel letters, billboards and commercial signs.

• Universal AC input / full range (withstand 300VAC surge input for 5 seconds)
• Built-in active PFC function
• High efficiency up to 91%
• Design against rain splash
• Protections: short circuit / overload / over voltage / over temperature
• Cooling by free air convection
• LED indicator for power on
• Low cost, high reliability
• 100% full load burn-in test
• 90~264VAC full range input
• Dimension (L x W x H): 220.4 x 130 x 48 mm
• Comply with CCC/CB/CE complete approvals
• Working temperature: -30~+60℃
• 3 years warranty
