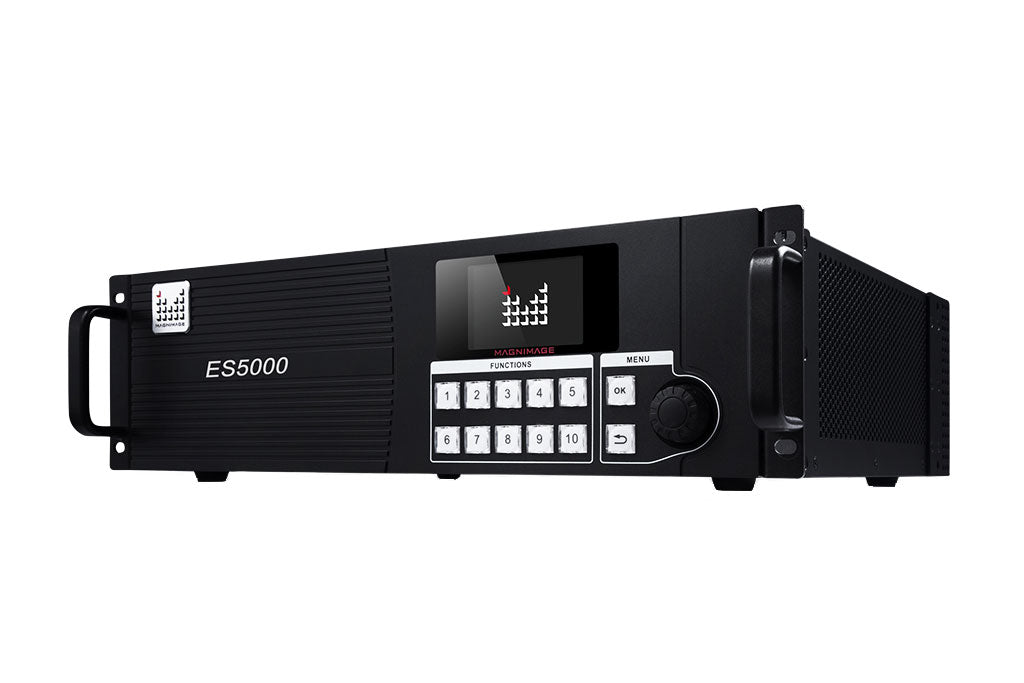

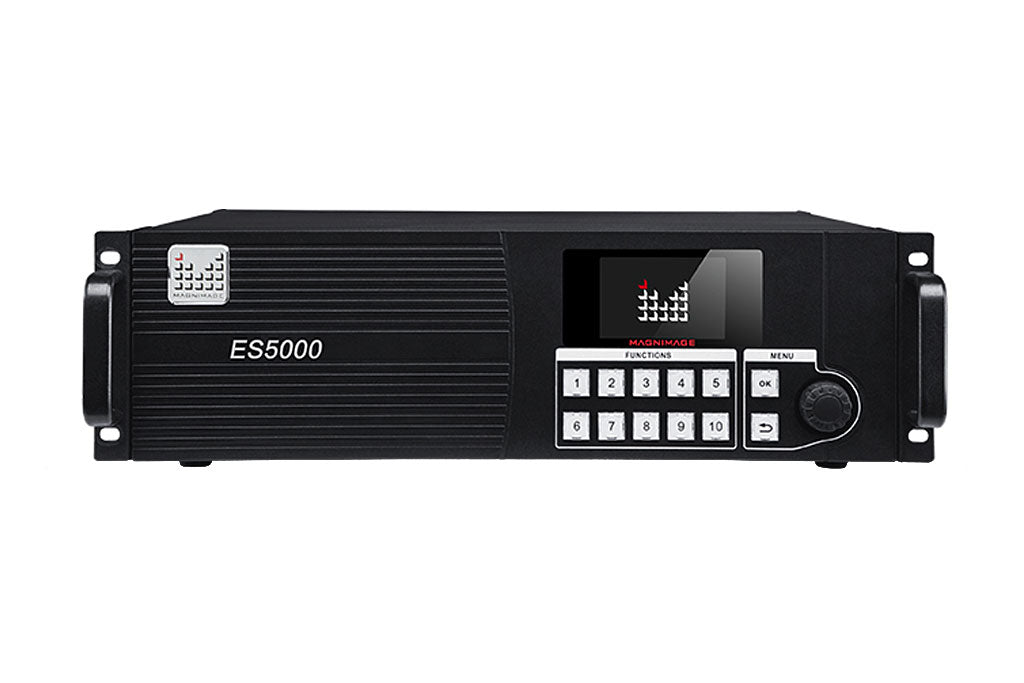

Magnimage MIG-ES5000 Series Video Seamless Switcher
Magnimage MIG-ES5000 Series Video Seamless Switcher
MIG-ES5000(V5) is the latest Magnimage high performance video seamless switcher, using a large storage high speed FPGA and hardware structure with high speed digital bus matrix, which is RBG 24bits/60Hz processing inside.
Built-in a high performance zoom core, MIG-ES5000(MIG-V5) supports Multiple screens output seamless splicing, makes output signal clearer, delicate, colorful and ensures the output signal synchronous and no latency. It adopts mixed matrix input, various 4K, 2K input customized module options, supports 4K*2K/60Hz 4:4:4 input, 8Kx1K /60Hz input and real-time preview to the input and output signal via multi-screen preview output.
Cooperates with consoles like MIG-HS, MIG-EH6000, it can realize fade-in/out switching among multiple layers and scenes, it was widely used in carexhibition, business conference and stage show, etc.
Functions and features:
MIG-V5 Series Video Seamless Switcher

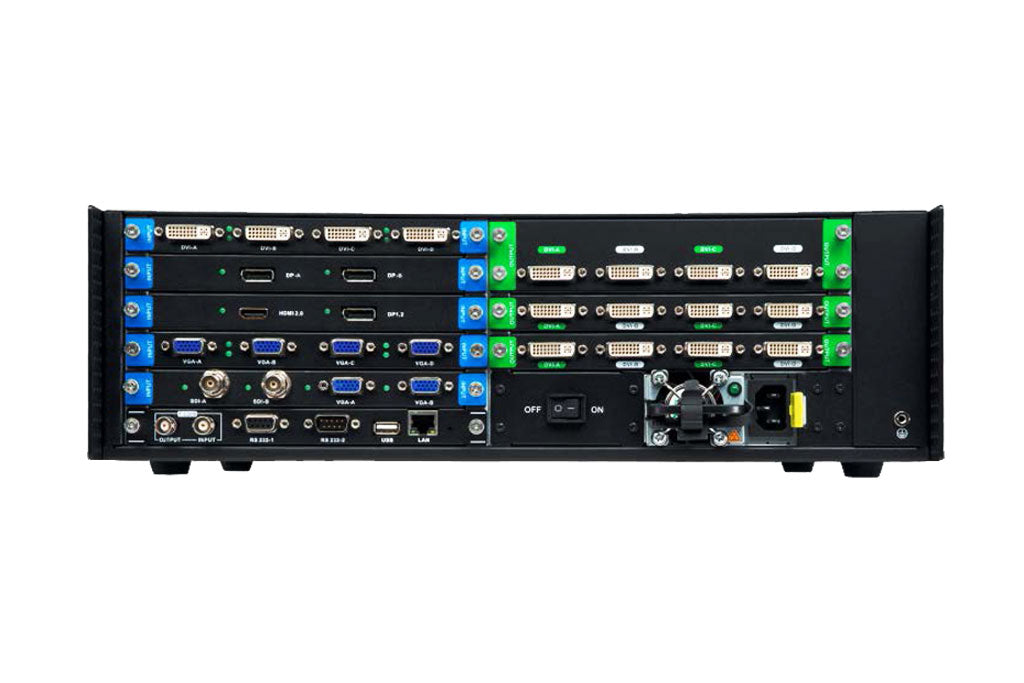

- Input ports
The 5 input slots allow you to build the machine based on your application. 2K options include DVI, HDMI, VGA, SDI and VGA/SDI mixed card. 4K options include DP card and DP/HDMI mixed card.
- Output ports
- ES5000 cooperates with computer
- ES5000 cooperates with EH6000
- ES5000 cooperates with MIG-EXK200
- ES5000 projection blending mosaic
Each output port's blending size, position, blending direction, gamma rate can be setup separately,it's applicable for both program output and aux output;
each ES5000 supports maximum 8 projectors for blending mosaic.
Specification
Power voltage:100-240V
Power frequency:50/60Hz
Operation temperature:0~45℃
Chasis N.M.(KG):9.6
Overall power consumption(W):180
Dimension(mm):482.6×371×133
Accessories
Power cable X 1 DVI cable X 1 LAN cable X 1 USB disk X1 User manual X1
Quality certificate X 1
