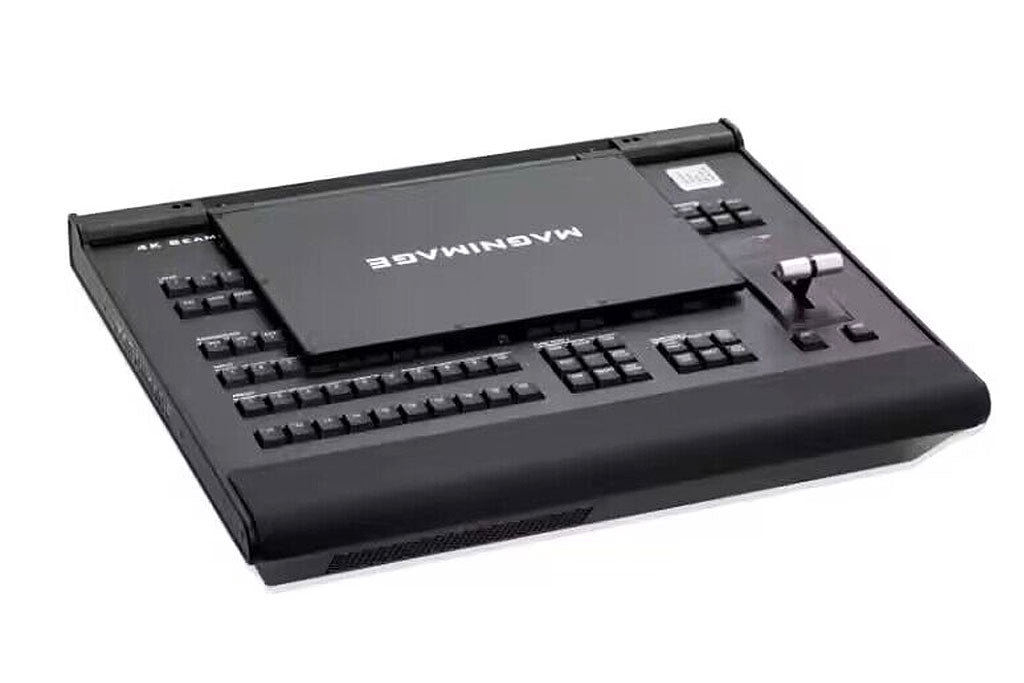

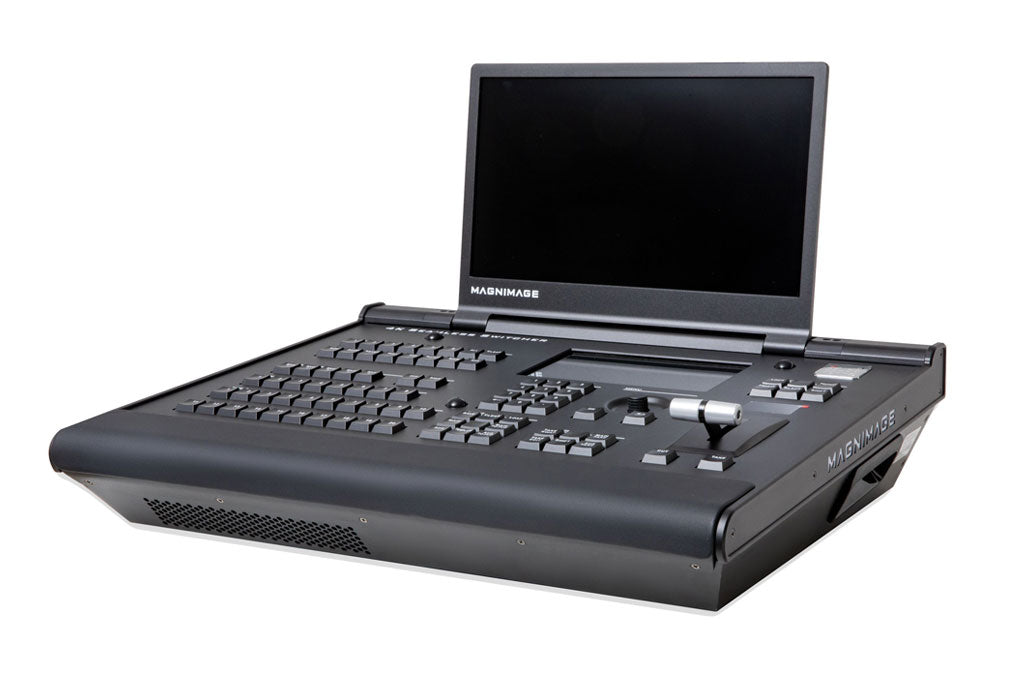

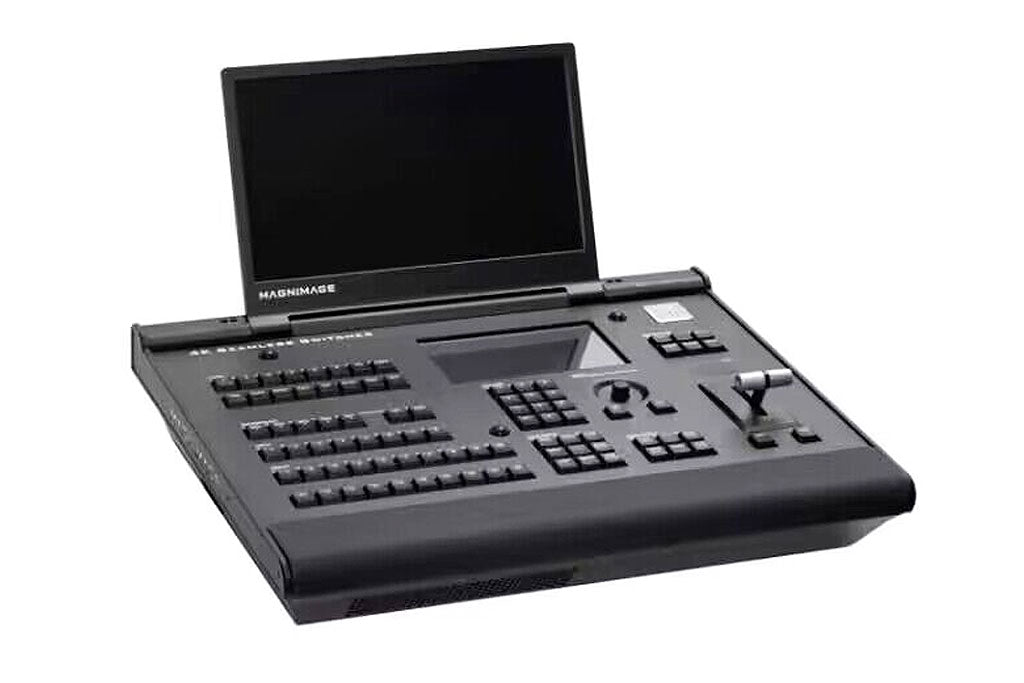

Magnimage MIG-EC90 Pro 4K Seamless Switcher Led Video Processor Console

MIG-EC90 Pro Series 4K Seamless Switcher

MIG-EC90 Pro series is a video console with multiple 4K inputs/outputs, multi-layer processing and control integration, the internal 4K/60Hz 4:4:4 image processing technology, built-in 4K matrix, support for multi-channel 4K output splicing and multi-channel 4K input fade switching.
MIG-EC90 Pro series is equipped with one 13-size pre-monitor monitor, one touch screen, support for quick menu navigation and parameter adjustment; knob to precisely adjust the parameters of the layer, compact size, powerful, easy to use, is the current rental.

Support 2 Program outputs (mosaic), 2 AUX outputs (mosaic)
4K*2K/60Hz Program and AUX output
Customized input & output resolution
HDMl2.0 & DPt .2 input
12GSDlinput
Support Program 6 layers & AUX fade switching
Support 8 4K*2K/60Hz input
Support HDCP1 .4&2.2
Support save and load up to 5 BKG
Layer shadow effect
Layer mirror effect
Layer border effect
ChromaKey
Virtual output
Support ZOOM and image crop
Support preview interface customize edit and input source rename
Support save and load user preset up to 20
Support touch screen, slide LOGO to unlock and enter menu
T-bar switch

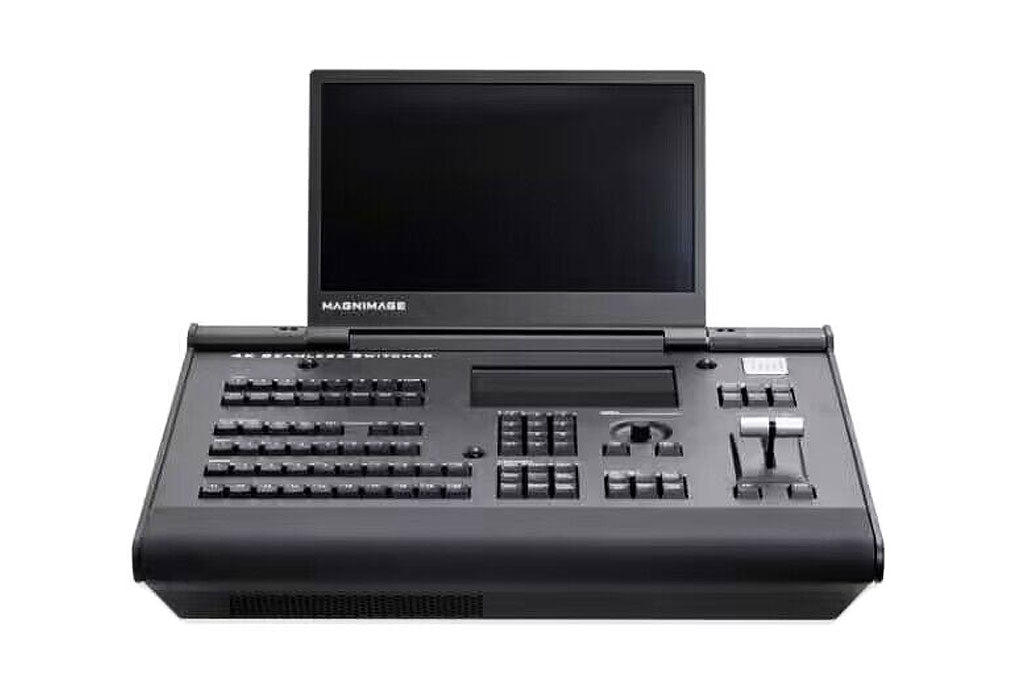

Equipped with a 13-inch preview monitor

Magnimage MIG-EC90 Pro 4K Seamless Switcher

• 8x4K x2K@60Hz Input, 4x 4Kx2K@60Hz Output



4-channel output includes 2-channel 4K main output and 2-channel 4K auxiliary output, supports customized output resolution, independent output or mosaic output.

• Multi-layers, seamless switching


• Various Layer Effects


Main output supports a variety of layer effects such as layer scenes, customize border effects, shadow functions, etc.

• Support 12G SDI Input


Lossless transmission standard 4K@60Hz video signal input, making the picture quality more high-definition, meeting the high-demand video signal transmission needs of the broadcasting and television industry.

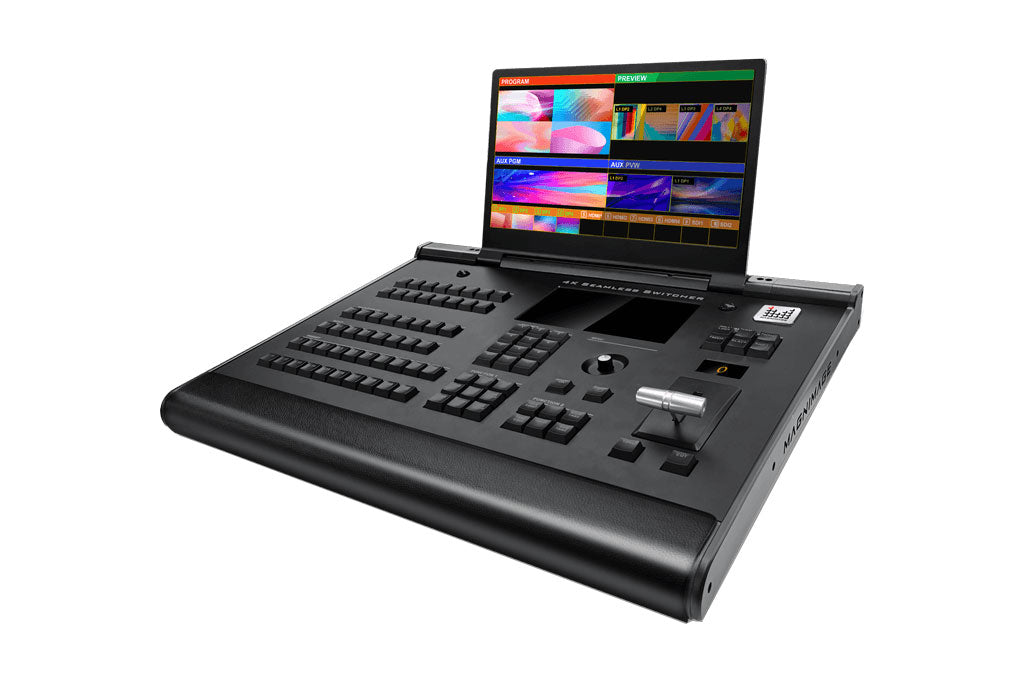

• Multi-window preview


All input and output signals can be real-time monitored, modify the name and remarks, and ensure that the activities are safe.

• Multiple Preview Layouts


Provides 5 fixed layouts and 1 custom layout, which are convenient for users to customize settings according to their own preferences, helps to improve the efficiency.

• Virtual output


The two main outputs support virtual screen settings, and the resolution of the preview interface is virtualized to the actual resolution of the LED screen, which is convenient to complete the layer parameter settings quickly and accurately.

• 4K Ultra-long Distance Lossless Transmission


Work with MOPT401-T/R 4K fiber optic extender to achieve 4Kx2K@60Hz ultra-long distance lossless transmission.

• Various Control Methods

Touched screen control, T-bar switching control and keyboard control

Input indication

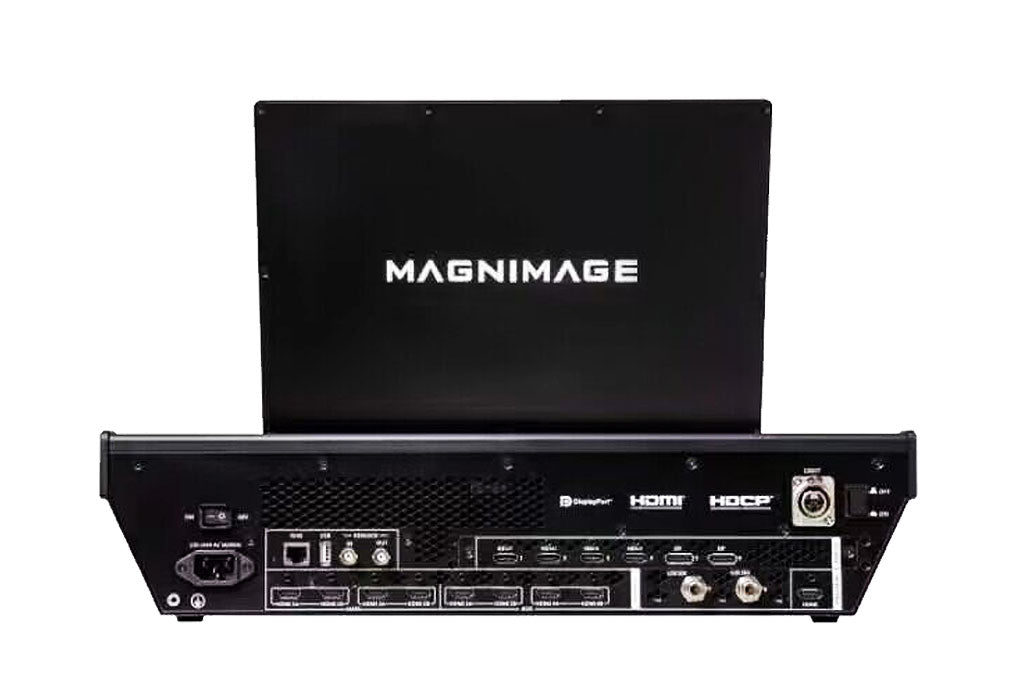

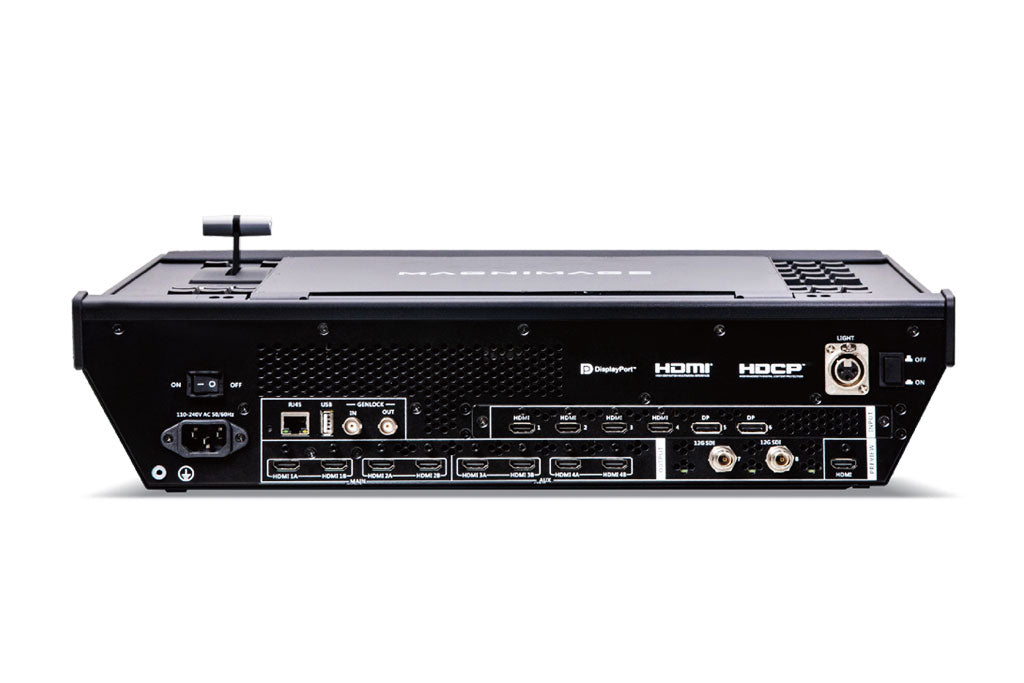

Output indication

*2x2：3 groups of output each includes 2 duplicate ports.
