Magnimage MIG-EC80 4K Seamless Switcher Led Video Processor Console

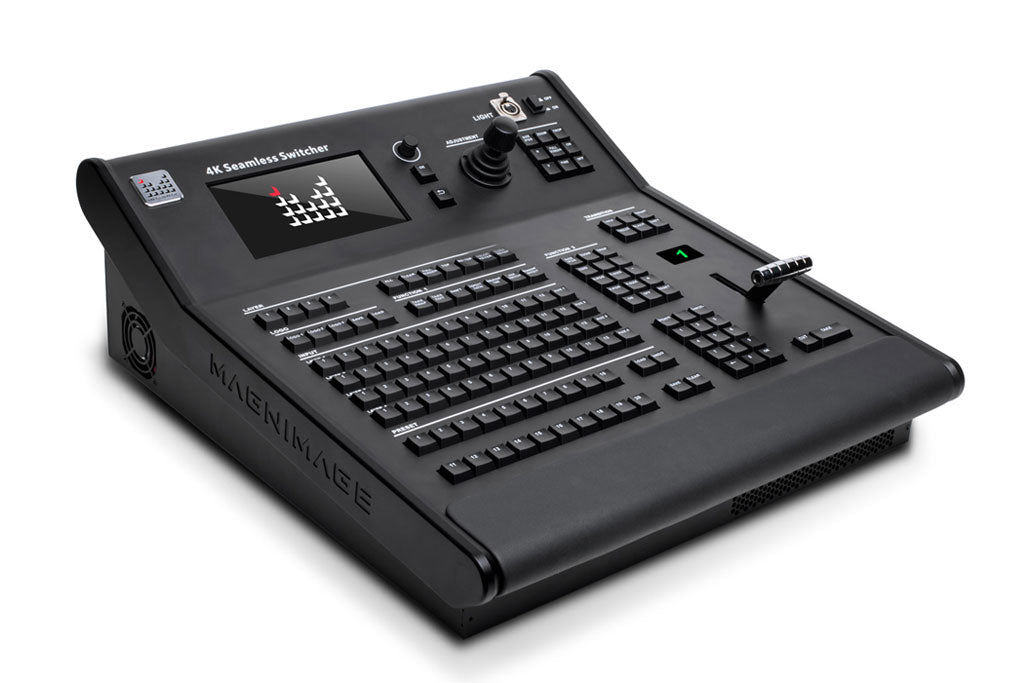

MIG-EC80 Series 4K Seamless Switcher

The MIG-EC80 series is a new 4K video seamless switcher from Maipu Vision. It is a single-machine integrated design with video processing and switching multi-purpose functions.4K/60Hz 4:4:4 image processing technology, built-in 4K seamless switching matrix, powerful, easy to use, cost-effective,It is one of the video processing equipments that are indispensable for current rental activities.

Functions and features:

Magnimage MIG-EC80 4K Seamless Switcher

• Multi-purpose machine with 4K video processing and switching function

•  Full 4K output and input

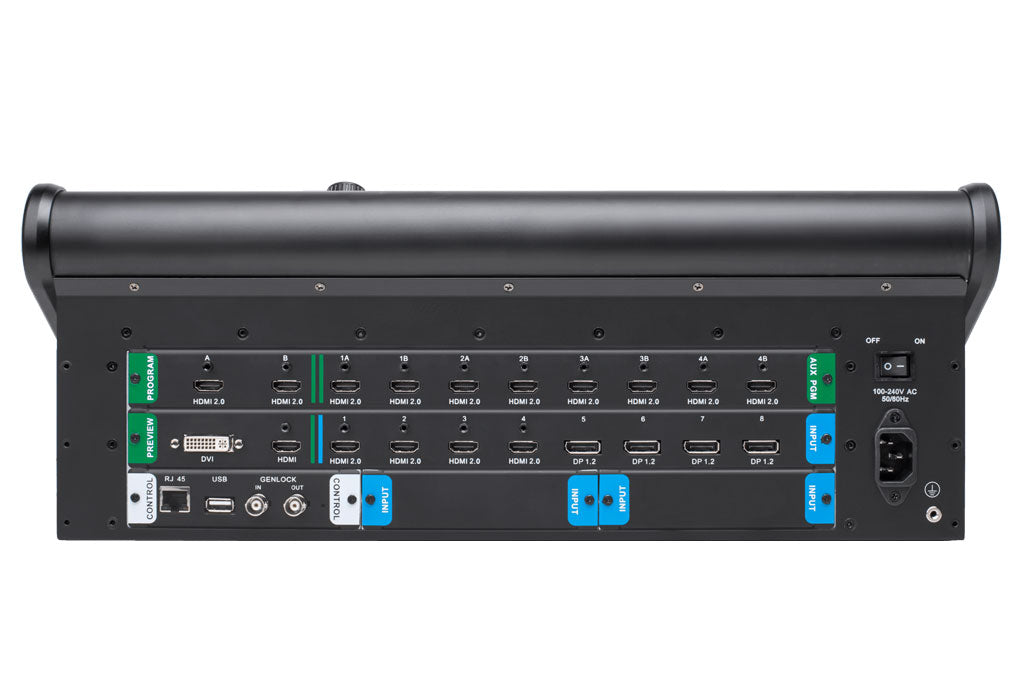

MIG-EC80 series supports 1 main output and 4 auxiliary outputs. The main output and auxiliary output fully support 4Kx2K@60Hz output, and 1 multi-preview output.

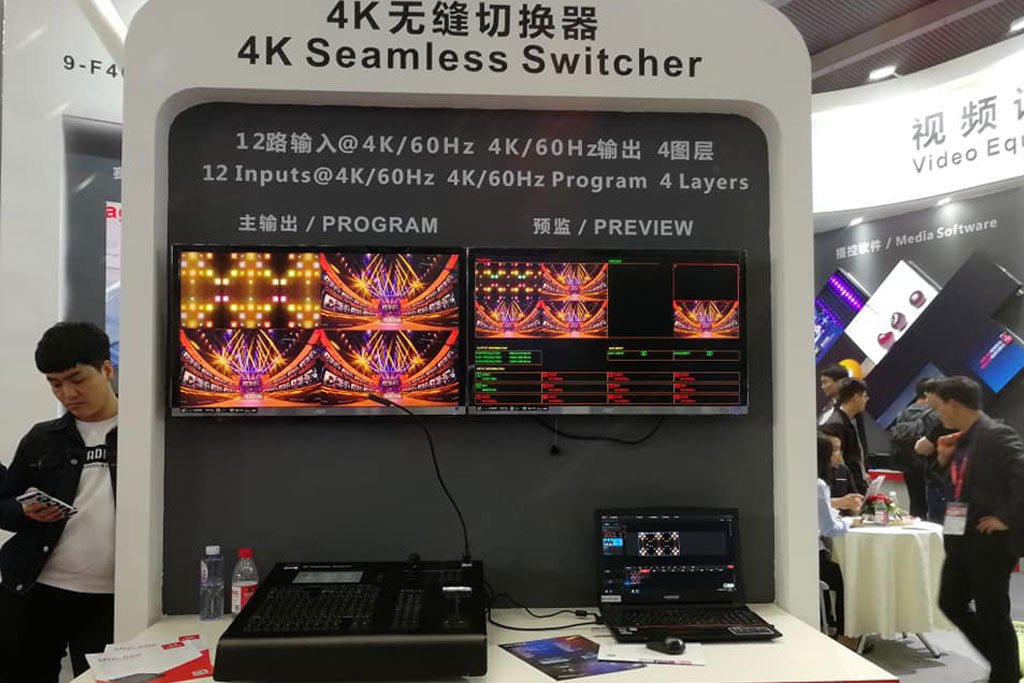

Supports up to 12 channels of 4Kx2K@60Hz input;

• Support multi-layer seamless switching

• Support layer shadow bay window effect

• Support window cloning function
• Support Windows and Mac PC management

• Multiple control methods

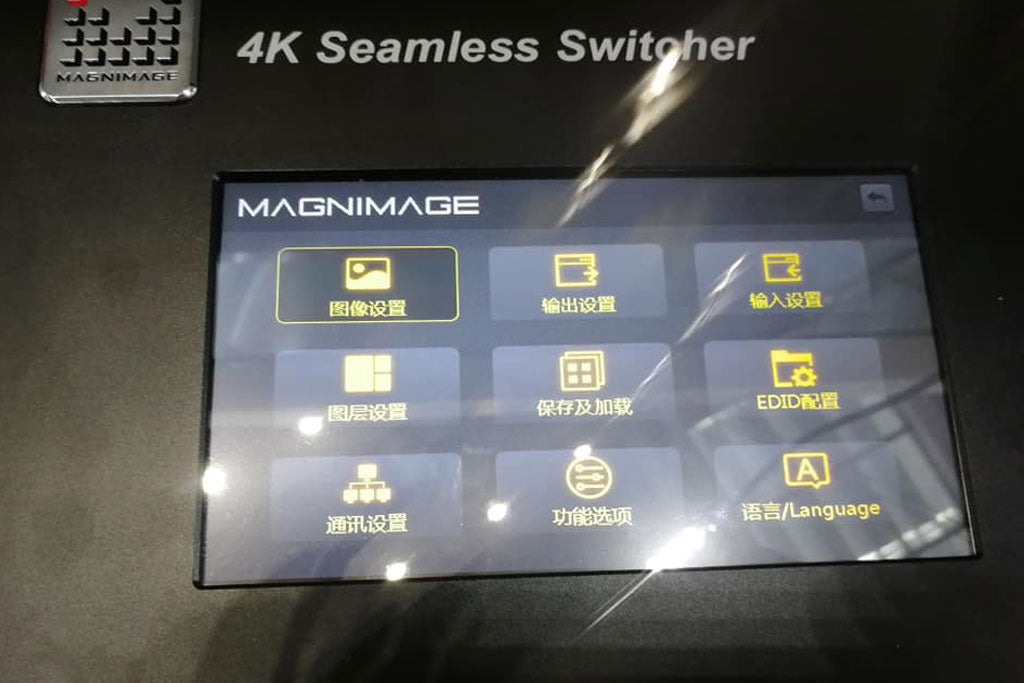

Touch screen control, T-BAR switching, keyboard control

It also has the following features:
Support for custom input & output resolution
Support for saving 20 user presets
Layer and Logo support chroma key function
Support for Logo capture and recall, 3 logos can be saved in a single machine
USB port support software upgrade
