Magnimage MIG-630C Series Video Seamless Switcher LED Screen Controller

Magnimage MIG-630C Series Video Seamless Switcher LED Screen Controller

Regular price $3,600.00 USD
Regular price Sale price $3,600.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number
MIG-630C series products are the video processors that focus on large LED display system, which used the most advanced image processing chip with 12 bits digital processing to make more distinct image and abundant color.
The advanced interlaced scanning self-adoption technology, it caneliminate the trailing and flaw in the motion of video.For the normal PAL/NTSC video, the output image will be more clearly. While for the HD 1 OBOi signal, it can enrich the detail of image and color, and make the quality of image as the leading level in the industry.

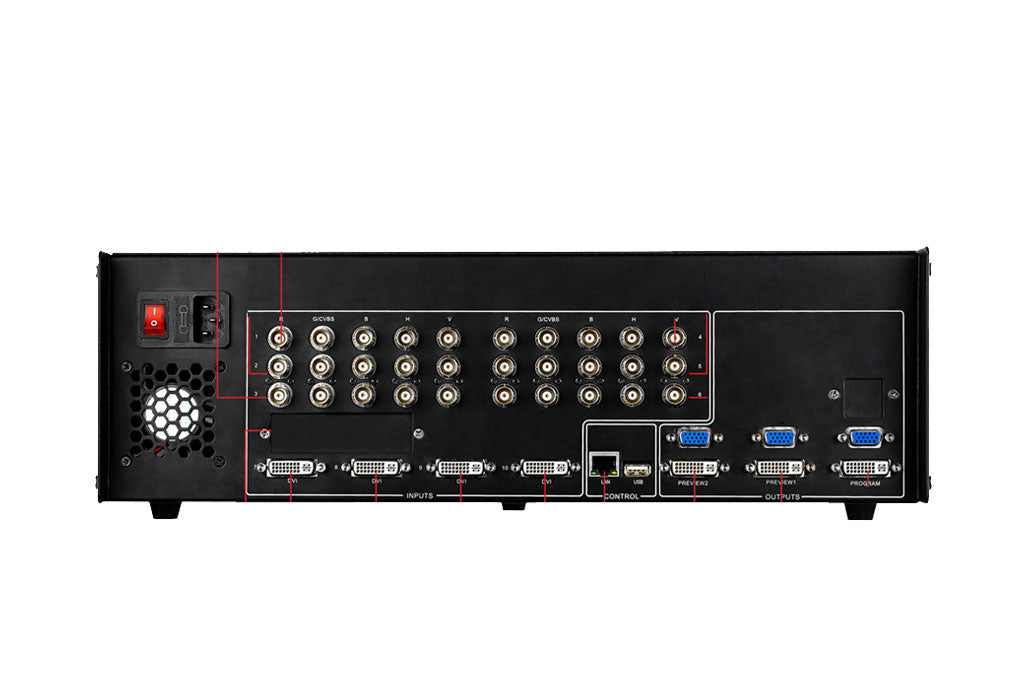

Complete video image input and output ports, which involve 6xVGA/CVBS ,4xDVI, one SDI extended port,one digital signal extend po「t, 3 sets of signal output port and each set contains 1 channel DVI and VGA output. It achieves multiple analog and digital signal compound and separated input. Furthermore, it supports manifold switch effects, such as: short cut, fade in/out, Marginal dissolution etc, and it can adjust the effect time to satisfy the various requirements.
It has internal image layer processing technology that can run 3 synchronous images, which support adding LOGO, black screen and freezing image. Furthermore, chroma key are also available, which can finish Caption overlay and image amalgamation.
Human-machine interface makes the operation easier and more simply completed hardware architecture makes it Stable and reliable.

Functions and features:

MIG-630C Series Video Seamless SwitcherMagnimage MIG-630C Series Video Seamless SwitcherMagnimage MIG-630C Series Video Seamless Switcher

  • Preview Switching
MIG-630C supports 12 input signals and preview switching among 12 input signals.
It has 16 switching effects, including cut, fade, slide, and there is no black when switching.Magnimage MIG-630C Series Video Seamless Switcher
  • Three Layers Output + 1 HD Logo
MIG-630C supports PIP/POP of dual pictures or three pictures by setting the size and position of layers.
And it also supports saving 8 logos at maximum to any output.Magnimage MIG-630C Series Video Seamless Switcher
  • Preset Function
Preset function allows user to save presets and load them when doing a live show.
This is a quick access to switching operation.Magnimage MIG-630C Series Video Seamless Switcher
  • LogoFunction
In a corporate event, user can save a background into MIG-630C in advance and load it by LOGO button.
This function is a guarantee to the event, even though the input source is broken down.Magnimage MIG-630C Series Video Seamless Switcher

Specification
Power Supply 100~240VAC,50/60Hz
Consumption 80W
Operating Temperature 0~45℃
Product Dimension 482.0 X 402.0 X 133.4mm
Net Weight 5.7Kg

MIG-630C Series
Magnimage MIG-630C Series Video Seamless Switcher t000

Accessories

 Instruction X 1     Certification X 1      Power Cable X 1      AV Cable X 1

Disk X 1                 DVI Cable X 1         USB Cable X1          VGA to 5-BNC CableX1
