Magnimage Sapphire Series LED Receiving Card LED-M62S M52S M52 DDR2 LED Display Controller
Magnimage Sapphire Series LED Receiving Card LED-M62S M52S M52 DDR2 LED Display Controller
Couldn't load pickup availability
LED-M62S/M52S/M52 is a small pitch receiver card launched by Magnimage, using DDR2 Goldfinger interface, a single card with a maximum of 192K/128K (384/256*512) pixels, to ensure the reliability of the display effect, more stable and reliable, with the use of CLINK software.

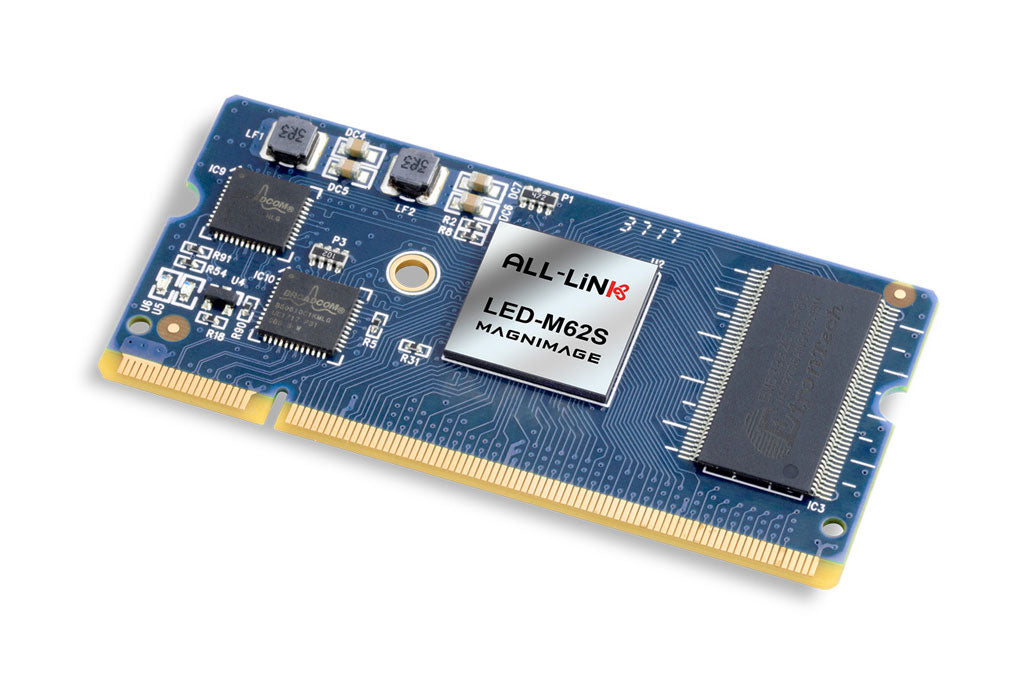

LED-M62S
1) Adopt DDR2 interface
2) Support 32 groups of RGB signals parallel output.
3) Single card can carry 192K (384*512) pixels.
4) Safety upgrade, support mainstream chip upgrade free debugging
5) Support readback of receiving card parameters, support readback of firmware.
6) With network cable hot backup function, supports dual card backup.
7) Support receiving card preset screen
8) Support display 90° multiplier rotation
9) Support all receiver card parameter monitoring functions
10) Support point by point correction, support for fast light and dark line repair
11) Support automatic data search
12) Support for intelligent sequencing
13) Support network port error monitoring
14) Support for contour smoothing techniques
15) Low latency support
16) Supports HDR10
17) RoHS compliant
18) Comply with CE-EMC standards

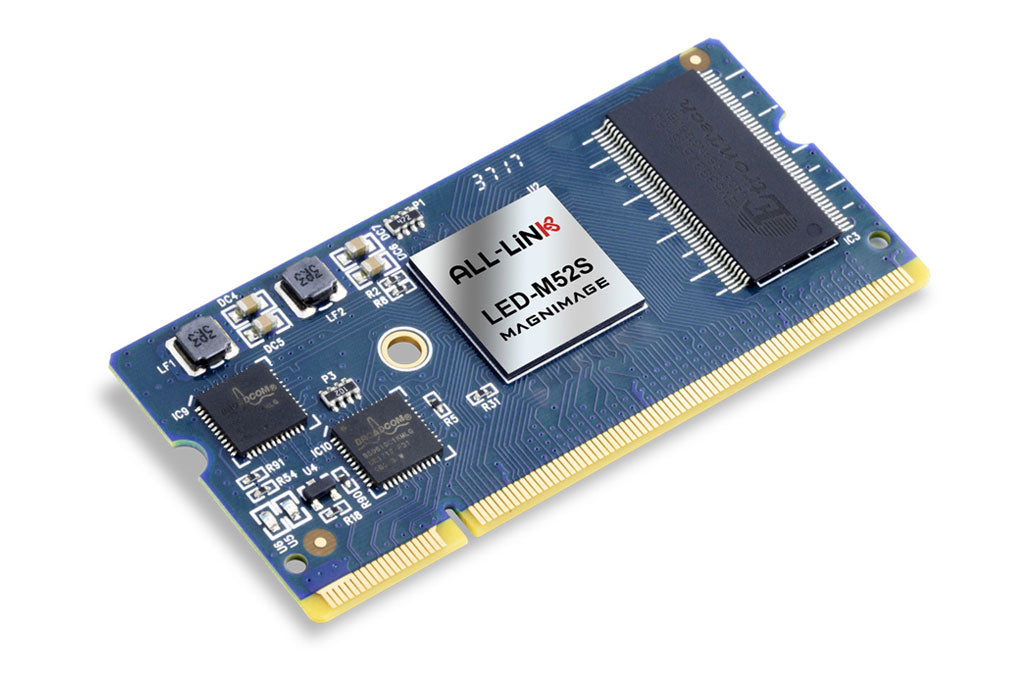

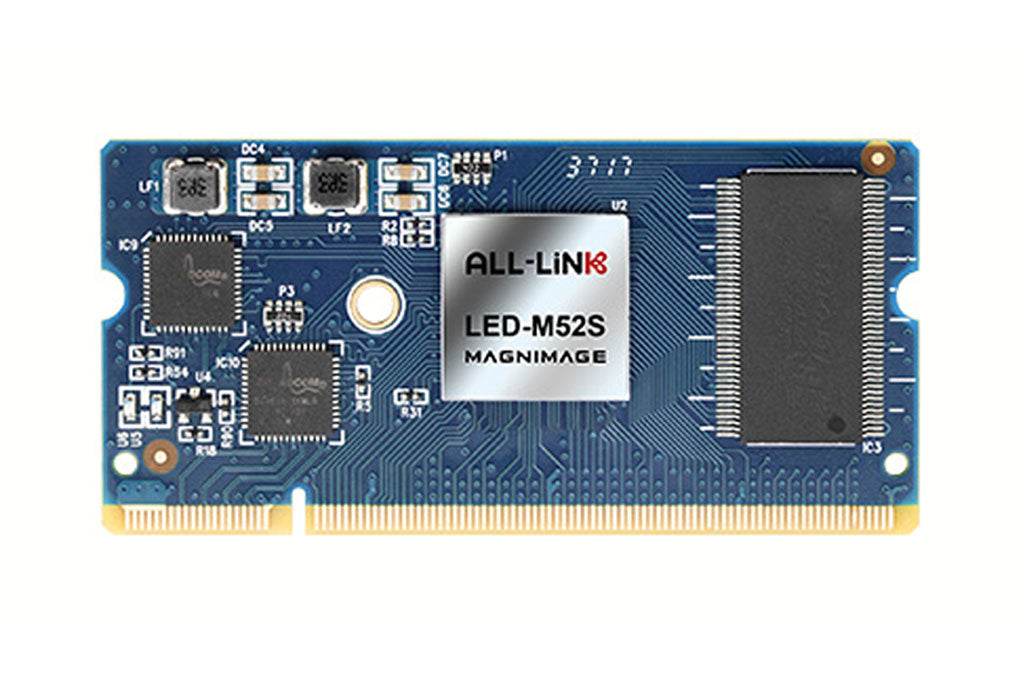

LED-M52S
1) Adopt DDR2 interface
2) Support 32 groups of RGB signals parallel output.
3) 128K (256*512) pixels on a single card
4) Safety upgrade, support mainstream chip upgrade free debugging
5) Support readback of receiving card parameters, support readback of firmware.
6) With network cable hot backup function, supports dual card backup.
7) Support receiving card preset screen
8) Support display 90° multiplier rotation
9) Support all receiver card parameter monitoring functions
10) Support point by point correction, support for fast light and dark line repair
11) Support automatic data search
12) Support for intelligent sequencing
13) Support network port error monitoring
14) RoHS compliant
15) Comply with CE-EMC standards

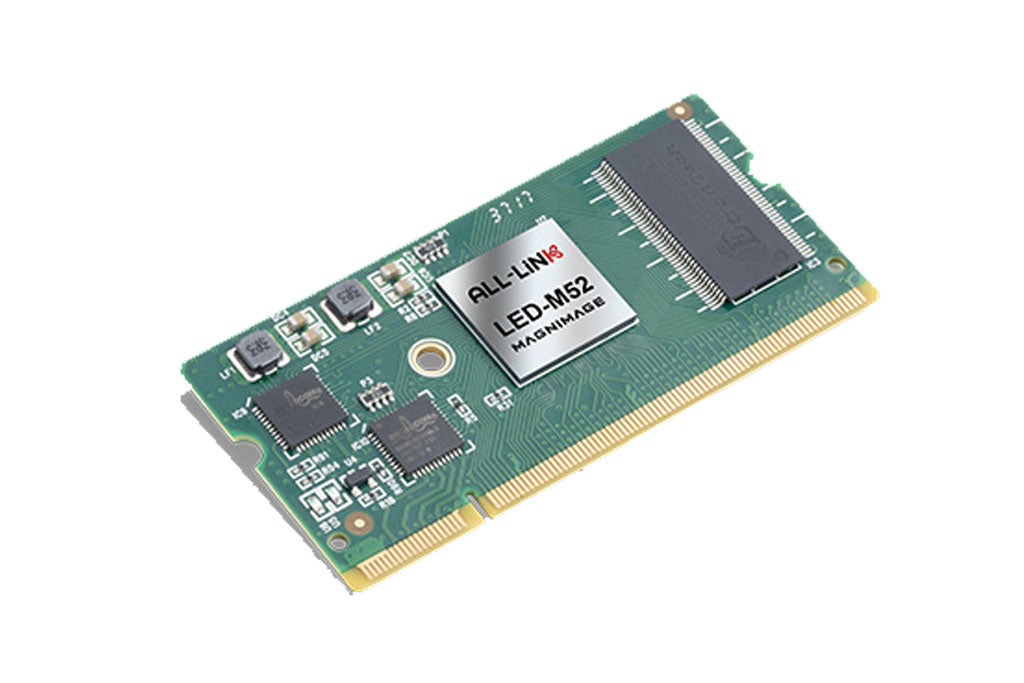

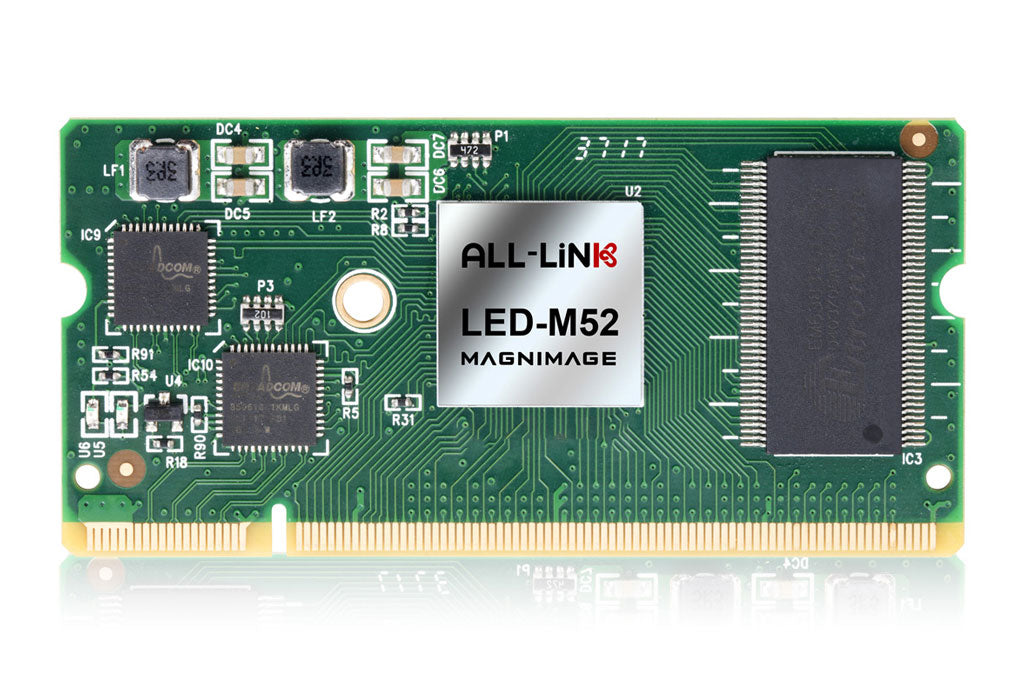

LED-M52 LED Receiving Card Features
- 32 groups of RGB output
- DDR2 port
- Input image support two mode (8/10 BIT) of grey level
- Up to 128K(256×512) pixels
- High refresh, high brightness, high grey levels
- Receiving card parameter backward reading
- LAN cable, DVI hot backup
- LAN cable communication status detection
- Support brightness, chroma point by point correction
- Low grey compensation correction
- External environment monitoring (customized)
- Support on - board charging
- RoHS standard
- CE-EMC standard
LED-M52 LED Receiving Card Parameters
RGB parallel data | 32 groups |
Serial data | 80 groups |
Load | Maximum load 256*384 |
Number of cascading cards | ≤1000PCS |
Input level | 8bit、10bit |
Support for scanning lines | 1—32 scanning |
Power consumption | 1.5W |
Input voltage | DC3.5-5.5V |
Operating temperature | -20℃ - 70℃ |
Working humidity | 10%RH-90%RH |
