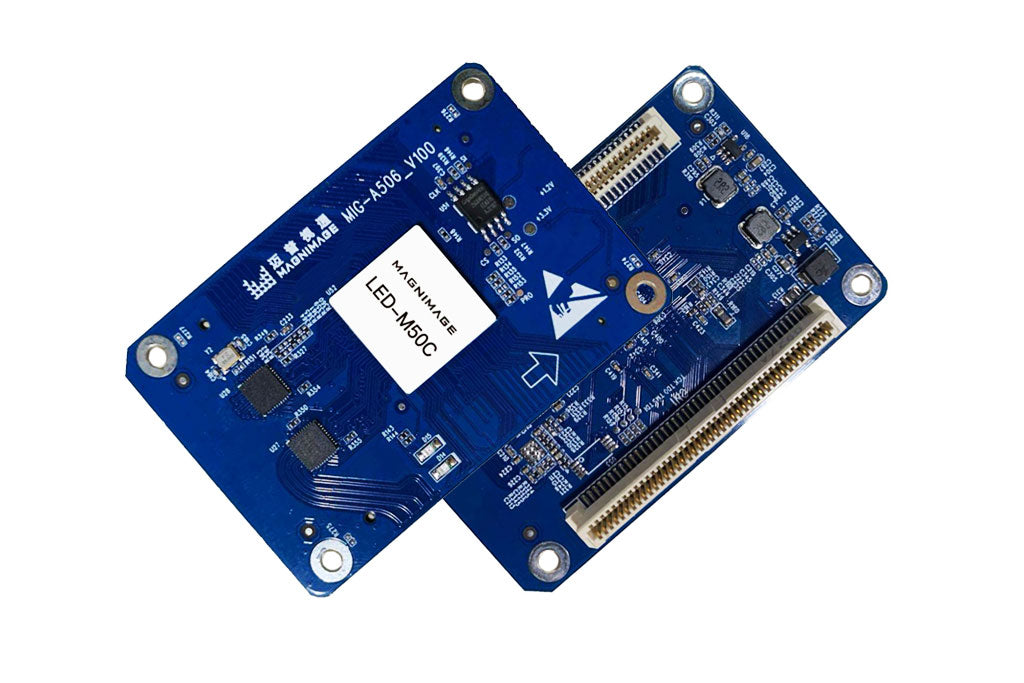

Magnimage Sapphire Series LED Receiving Card LED-M50C LED Display Controller

LED-M50C is a transparent screen receiver card launched by Magnimage, with high precision interface, single card with a maximum load of 192K pixels, supports up to 32 groups of RGB parallel data, supports 96 groups of RGB serial data, supports up to 64 sweeps, and supports point-by-point brightness chroma correction, fast bright and dark line repair, bandwidth expansion, free alignment, no upgrade without dead card, RGB custom Gamma adjustment It also supports module Flash management, intelligent module support, module auto-correction, color restoration, contour smoothing, low latency and other functions to ensure the reliability of the display effect, more stable and reliable, used with CLINK software.

LED-M50C LED Receiving Card Features

• 32 groups of RGB output
• Support 192K(512×384)pixels
• High refresh, high brightness, high grey levels
• Receiving card parameter backward reading, configuration backup
• Receiving card, LAN cable hot backup
• Screen cabinet temperature, power supply voltage monitor(customized)
• Smart power supply (customized)
• Brightness, chroma point by point correction
• All receiving card parameter monitoring
• External environment monitoring (customized)
• RoHS standard
• CE-EMC standard

 LED-M50C LED Receiving Card Parameters
