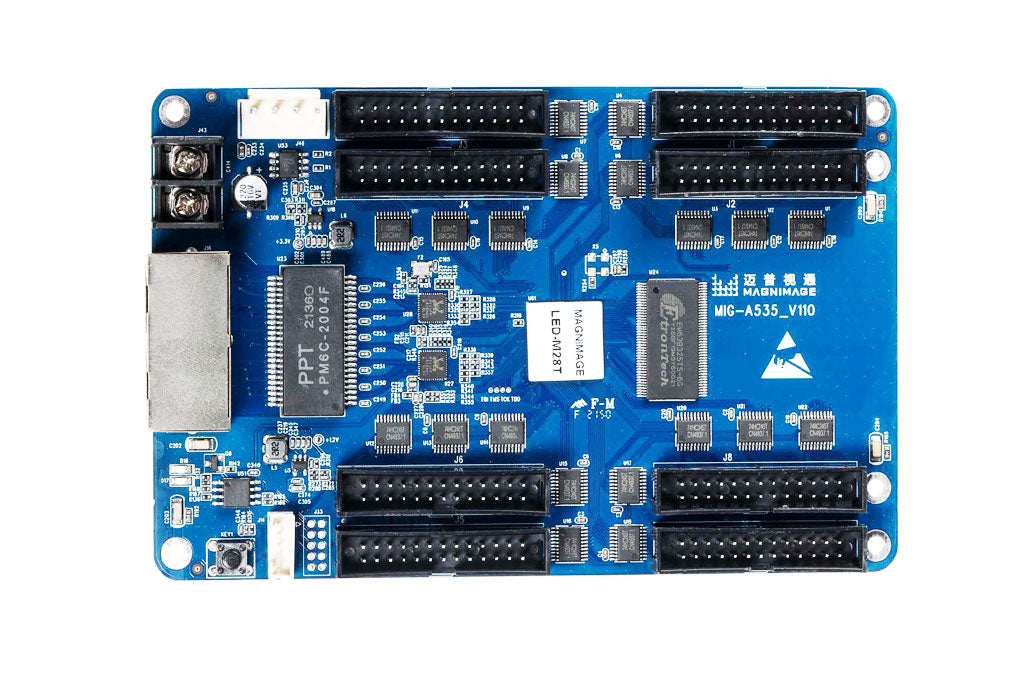

Magnimage Sapphire Series LED Receiving Card LED-M28T LED Display Controller

LED-M28T is a universal receiver card from Magnimage, which integrates 8 HUB320 (26-pin) interfaces and can carry up to 192K (384*512) pixels in a single card, ensuring a reliable display effect and more stable and reliable use with C-LINK software.

1) Integrated 8 x 26-pin cable routing interface. 2) Single card can output 32 groups of RGB data, with a maximum of 192K (384*512) pixels.
2) Single card can output 32 groups of RGB data, with a maximum of 192K (384*512) pixels on a single card.
3) Conventional chip with high refresh, high brightness and high grayscale. 4) Supports the physical address display of the receiving card.
4) Support receiving card physical address display.
5) Support communication bit error rate monitoring.
6) Support receiving card parameter readback and firmware readback.
7) Support network cable hot backup function.
8) Support point-by-point correction of brightness and chromaticity.
9) Support receiving card parameter monitoring function.
10) Upgrade-free and secure upgrade of mainstream chips.
11) Support for intelligent sequencing.
12) Support data search
13) RoHS compliant.
14) Complies with CE-EMC standards.
