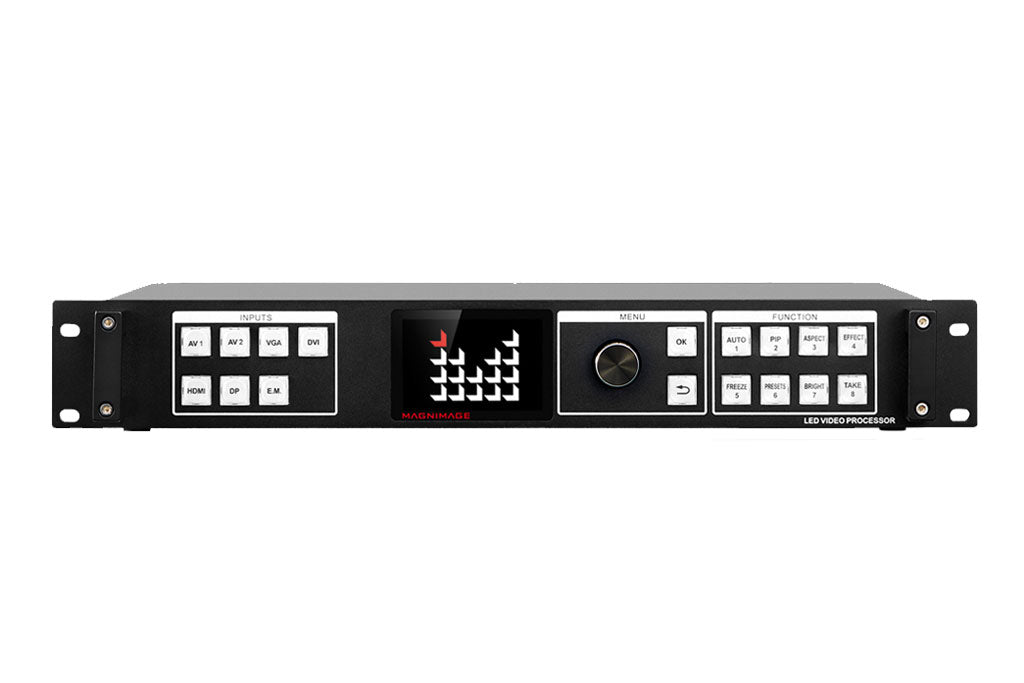

Magnimage LED Display Controller 580F 580FS 4K LED Video Processor

Magnimage LED Display Controller 580F 580FS 4K LED Video Processor

Regular price $1,300.00 USD
Regular price $3,000.00 USD Sale price $1,300.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

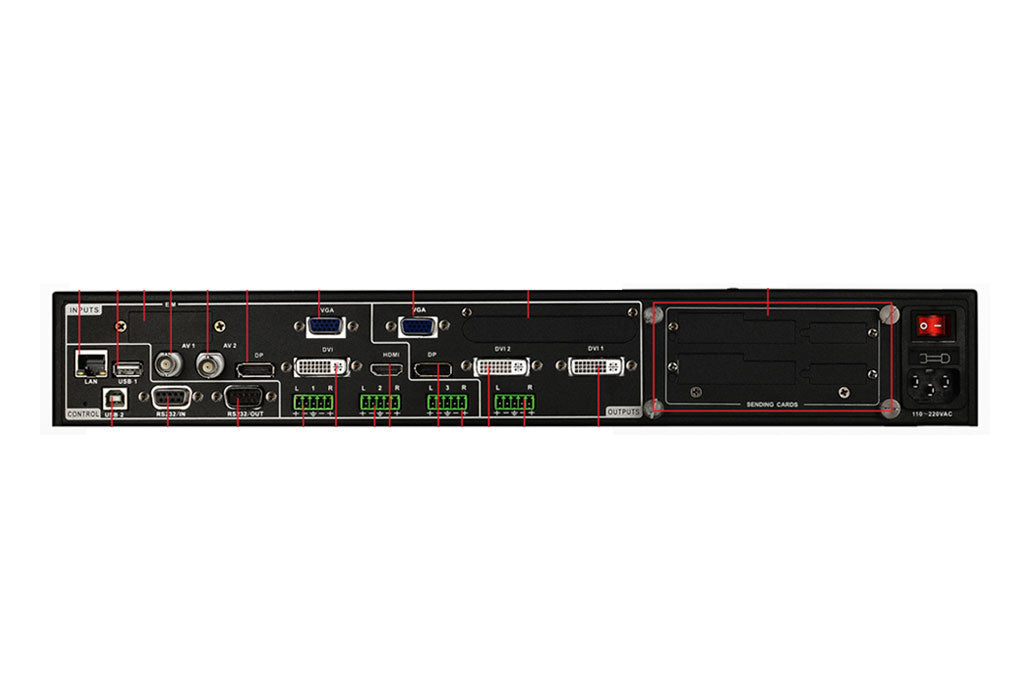

Magnimage LED 580F 4K UHD LED Screen Video Processor is a high performance processor which has various input and output plugs, including Dual link DVI, DVI, HDMI, DP, VGA and CVBS, etc input plugs and audio input output plugs.
LED-580F series video processor supports 4Kx2k input, which can realize pixel to pixel and zoom scaling display with simplifies operating. It supports preview, hot backup, multi-machine cascade, customized output resolution, SDI output, Dual link DVI output, DP output, fade, seamless switch and schedule function.
LED-580F series video processor is used in stage shows, conference, exhibition, press conference, command & control center, surveillance center, stadium, airport.

Functions and features:

580F Video Processor

  • Single Machine Supports Pixel to Pixel Splicing within 4K
Two DVI output ports,split function, customized output resolution,this is how LED-580F supports any size of pixel to pixel splicing within 4K.
580F 580FS 4K LED Video Processor
  • Multi-machine 4K*2K Pixel to Pixel Splicing
Using one LED-580F as a main control, another 2 pcs of LED-580F cascading through DP loop,this is a perfect solution for 4K*2K pixel to pixel display.
  • Preview Switching
It has a seamless switching from preview to program without black.
  • Monitoring
Adding an extended monitor module,LED-580F will transmit signal to the monitor display and realize the real time monitoring.

Technical Specification

Input Indicators

Port

Amount

Resolution Standard

AV

2

PAL、NTSC、SECAM

VGA

1

VESA

DVI

1

VESA

HDMI

1

EIA/CEA-861,HDMI-1.3/1.4

DP

1

DisplayPort 1.1、1.2

SDI*

1

480i/60Hz 、576i/50Hz 、720p/60HZ 、1080i/50Hz、1080i/60Hz、1080p/60Hz(3G SDI)



Output Indicators

Port

Amount

Resolution











*VGA











1

2K×1K :

1024×768/60Hz               1280×1024/60Hz

1280×720/50Hz/60Hz     1440×900/60Hz

1600×1200/60Hz             1600×1200/60Hz-Reduced

1680×1050/60Hz             1920×1080/60Hz

1920×1200/60Hz              2048×1152/60Hz

1536×1536/60Hz



2K×2K :

 2560×1024/60Hz             2560×1440/60Hz

3840×1080/60Hz             1920×1080/100Hz

1920×1080/50Hz              2560×816/60Hz

2304×1152/60Hz              1024×1280/60Hz

2560×1600/60Hz              1080×3840/60Hz

1920×1080/120Hz



Customized output resolution(bandwidth optimization): maximum width is 3840 and maximum height is 3840

DVI

2





DP





1





SDI*





1

 480i/59.94Hz       480i/60Hz

 576i/50Hz 720p/50Hz 720p/60Hz

 1080i/50Hz          1080i/59.94Hz 1080i/60Hz

 1080p/23.94Hz   1080p/24Hz

 1080p/25Hz         1080p/29.97Hz

 1080p/30Hz         1080p/50Hz

 1080p/59.94Hz    1080p/60Hz

*VGA only support 2K×1K resolution



Unit Specification

Power Supply

100~240VAC,50/60Hz

Consumption

40W

Operating Temperature

0~45℃

Product Dimension

482.6 X 301.3 X 66.8mm

Packing Dimension

555.0 X 430.0 X 145.0mm

Net Weight

4.5Kg

Gross Weight

6.5Kg



LED-580F Series

Model

Input

Extended Input

Extended Output

Remark

LED-580F

AVx2;VGAx1;DVIx1;HDMIx1;DPx1







LED-580FS

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

SDIx1





LED-580FD

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

DVIx1





LED-580FV

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

VGAx1





LED-582F

AVx2;VGAx1;DVIx1;HDMIx1;DPx1



DVIx2(DVI3,DVI4)

DVI3=DVI1;DVI4=DVI2

LED-582FS

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

SDIx1

DVIx2(DVI3,DVI4)

DVI3=DVI1;DVI4=DVI2

LED-582FD

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

DVIx1

DVIx2(DVI3,DVI4)

DVI3=DVI1;DVI4=DVI2

LED-582FV

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

VGAx1

DVIx2(DVI3,DVI4)

DVI3=DVI1;DVI4=DVI2

LED-583F

AVx2;VGAx1;DVIx1;HDMIx1;DPx1



VGAx1(Extended)+DVIx1(Extended)

VGA(Extended)= DVI(Extended)=(DVI1+DVI2 Scaled)

LED-583FS

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

SDIx1

VGAx1(Extended)+DVIx1(Extended)

VGA(Extended)= DVI(Extended)=(DVI1+DVI2 Scaled)

LED-583FD

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

DVIx1

VGAx1Extended)+DVIx1(Extended)

VGA(Extended)= DVI(Extended)=(DVI1+DVI2 Scaled)

LED-583FV

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

VGAx1

VGAx1(Extended)+DVIx1(Extended)

VGA(Extended)= DVI(Extended)=(DVI1+DVI2 Scaled)

LED-585F

AVx2;VGAx1;DVIx1;HDMIx1;DPx1



SDIx1(Extended)

SDI Extended=(DVI1+DVI2 Scaled)

LED-585FS

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

SDIx1

SDIx1(Extended)

SDI Extended=(DVI1+DVI2 Scaled)

LED-585FD

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

DVIx1

SDIx1(Extended)

SDI Extended=(DVI1+DVI2 Scaled)

LED-585FV

AVx2;VGAx1;DVIx1;HDMIx1;DPx1

VGAx1

SDIx1(Extended)

SDI Extended=(DVI1+DVI2 Scaled)



Accessories

Instruction X 1     Power Cable X 1     AV CableX 1     Disk X 1

RS232 Serial Cable X 1     Screw X 4     DVI Cable X 1     Certification X1

USB Cable X1 Disk X 1     Audio Port X 4     Copper Bar X 4     DP Cable X 1

DP-Mini DP Cable X 1
