Magnimage

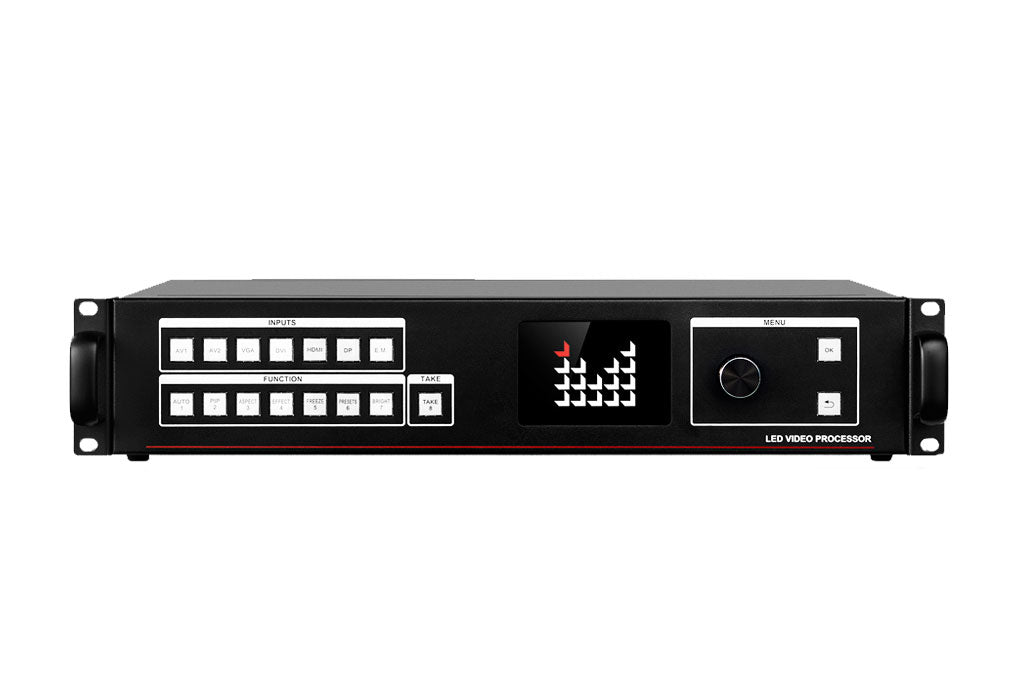

Magnimage LED Display Controller 570E LED Video Processor

Magnimage LED Display Controller 570E LED Video Processor

$960.00 USD
$960.00 USD
Sale Sold out
Shipping calculated at checkout.

LED-570E LED Video Processor

  • Single Machine Supports Pixel to Pixel Splicing within 4K
Two DVI output ports,split function,customized output resolution, this is how LED-570E supports any size of pixel to pixel splicing within 4K.
570E LED Video Processor
  • Multi-machine 4K*2K Pixel to Pixel Splicing
Using one LED-570E as a main control, another 2 pcs of LED-570E cascading through DP loop,this is a perfect solution for 4K*2K pixel to pixel display.
  • Preview Switching
It has a seamless switching from preview to program without black.
  • Monitoring
Adding an extended monitor module,LED-570E will transmit signal to the monitor display and realize the real time monitoring.

Technical Specification

Input Indicators

Port

Amount

Resolution Standard

AV

2

PAL、NTSC、SECAM

VGA

1

VESA

DVI

1

VESA

HDMI

1

EIA/CEA-861，HDMI-1.3/1.4

DP

1

DisplayPort 1.1、1.2

SDI*

1

480i/60Hz 、576i/50Hz 、720p/60HZ 、1080i/50Hz、1080i/60Hz、1080p/60Hz（3G SDI）



Output Indicators

Port

Amount

Resolution Standard











*VGA











1

2K×1K ：

1024×768/60Hz               1280×1024/60Hz

1280×720/50Hz/60Hz     1440×900/60Hz

1600×1200/60Hz             1600×1200/60Hz-Reduced

1680×1050/60Hz             1920×1080/60Hz

1920×1200/60Hz              2048×1152/60Hz

1536×1536/60Hz



2K×2K ：

 2560×1024/60Hz             2560×1440/60Hz

3840×1080/60Hz             1920×1080/100Hz

1920×1080/50Hz              2560×816/60Hz

2304×1152/60Hz              1024×1280/60Hz

2560×1600/60Hz              1080×3840/60Hz

1920×1080/120Hz



Customized output resolution（bandwidth optimization）： maximum width is 3840 and maximum height is 3840

DVI

2





DP





1





SDI*





1

 480i/59.94Hz       480i/60Hz

 576i/50Hz 720p/50Hz 720p/60Hz

 1080i/50Hz          1080i/59.94Hz 1080i/60Hz

 1080p/23.94Hz   1080p/24Hz

 1080p/25Hz         1080p/29.97Hz

 1080p/30Hz         1080p/50Hz

 1080p/59.94Hz    1080p/60Hz

*VGA is 2K x 1K standard resolution, SDI is a expansion port

Unit Specification

Power Supply

100～240VAC，50/60Hz

Consumption

40W

Operating Temperature

0~45℃

Product Dimension

482.6 X 304.0 X 88.0mm

Net Weight

4.5Kg



Materials
