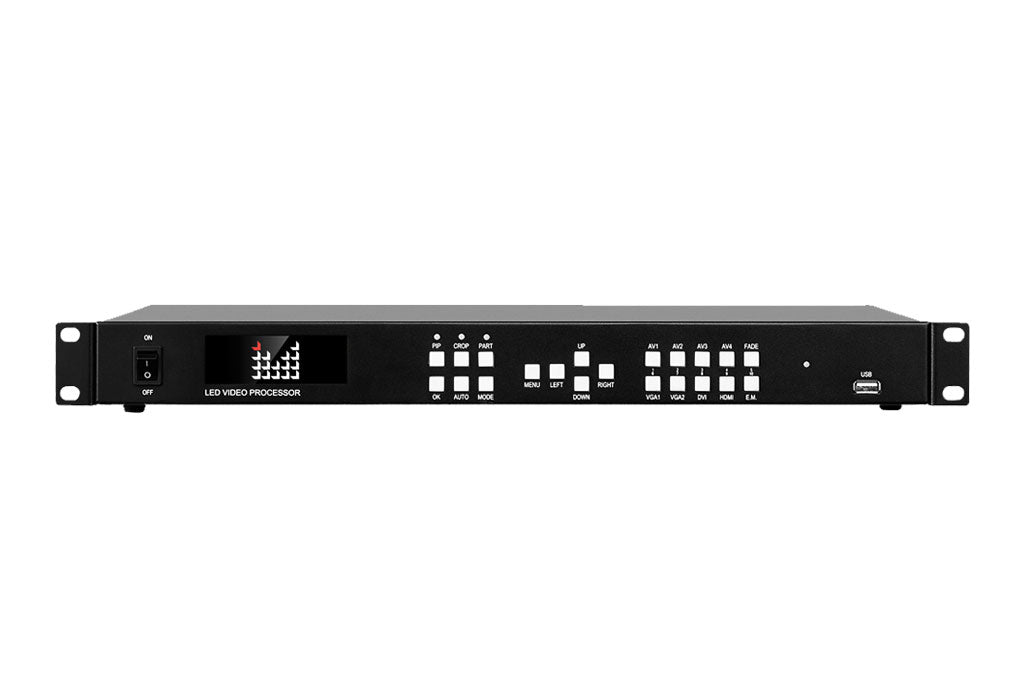

Magnimage LED Display Controller 540C 540CS LED Video Processor

Magnimage LED Display Controller 540C 540CS LED Video Processor

$300.00 USD
$300.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Magnimage LED-540CS Video processor

*The LED-540CS has been discontinued, please use the LED-550DS instead.
High performance full color LED-540CS series video processor uses intelligent super size LED display seamless splicing technology, users just need a simple setting to realize the image splicing of LED screen. The unique synchronous follow-up technology ensures the image is fluent and no dislocation and trailing . It makes picture more clear and fluent, powerful. It supports the function of super LED screen seamless splicing, dual picture signal switching real-time processing, fade in/fade out, text overlay, multi-template setting, multi-machine cascade,and hot backup ect.
LED-540Cs is suitable for stage show, conference, large events, exhibition,command, surveillan
540CS LED Video Processor

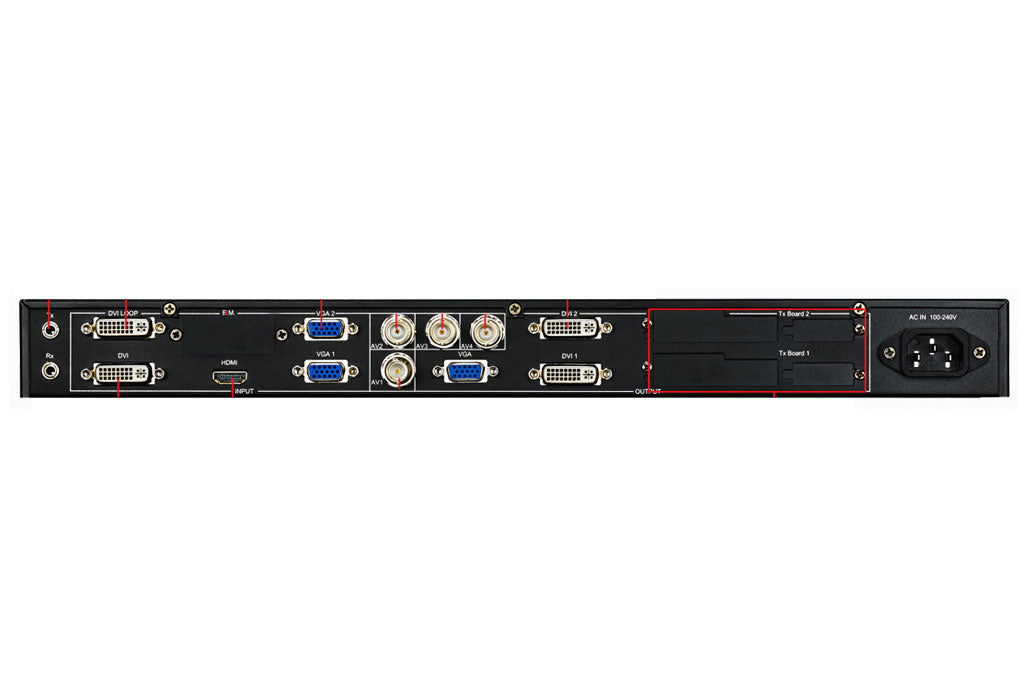

Input: 4 AV +2 VGA+DVI+HDMI
Output: 2 DVI + VGA + DVI Loop+Cascade
Power Supply: 110-240VAC 50/60HZ
Power: 25W
Size: 482*282*44.5mm
Weight: 3500G

Can install 2 PCS of Sending card.

Product Function:
Seamless splicing / Switching / Fade in,fade out / Image Crop / Image Freeze
Dual Pictures / Template setting / Multi-machine cascade / Text Overlay / Accurate Brightness Control
Hot backup / User friendly Operation
Single Machine Maximun Output resolution: 2560*816/60HZ ; 2304*1152/60HZ ; 1536*1536/60HZ
540CS LED Video Processor
  • Seamless Splicing
Using one 540C as master control to control 2 units of 540C,it is able to realize seamless splicing for LED video wall.
  • Fade in/ Fade out
LED-540C has fade in /fade out seamless switching function to avoid the black screen when switching the dual pic signals.

Technical Specification

Input Indicators

Port

Amount

Resolution Standard

AV

4

PAL、NTSC、SECAM

VGA

2（support two extended）

VESA

DVI

1（support one extended）

VESA（support 1080i）

HDMI

1

HDMI-1.3

SDI*

1（support one extended）

480i、576i、720p、1080i/p（3G SDI）



Output Indicators

Port

Amount

Resolution

DVI Loop

1

Same as DVI input

VGA

1

1024×768/60Hz/75Hz/85Hz/100Hz/120Hz DVI 2

1280×1024/60Hz           1440×900/60Hz

1680×1050/60Hz           1600×1200/60Hz

1600×1200/60Hz – Reduced

1920×1080/60Hz/50Hz     2560×816/60Hz

2048×640/60Hz                1920×1200/60Hz

2304×1152/60Hz              2048×1152/60Hz

1024×1280/60Hz             1536×1536/60Hz





DVI





2

SDI Loop*

1

480i、576i、720p、1080i/p（3G SDI）

*Extended



Unit Specification

Power Supply

100～240VAC，50/60Hz

Consumption

25W

Operating Temperature

0~45℃

Product Dimension

482.0 X 282.0 X 44.5mm

Packing Dimension

555.0 X 395.0 X 125.0mm

Net Weight

3.5Kg

Gross Weight

5.1Kg



LED-540C Series

Model

Description

LED-540C

Standard Unit

LED-540CD

Standard Unit+Extended DVI Input

LED-540CS

Standard Unit+Extended SDI Input

LED-540CV

Standard Unit+Extended VGA Input
