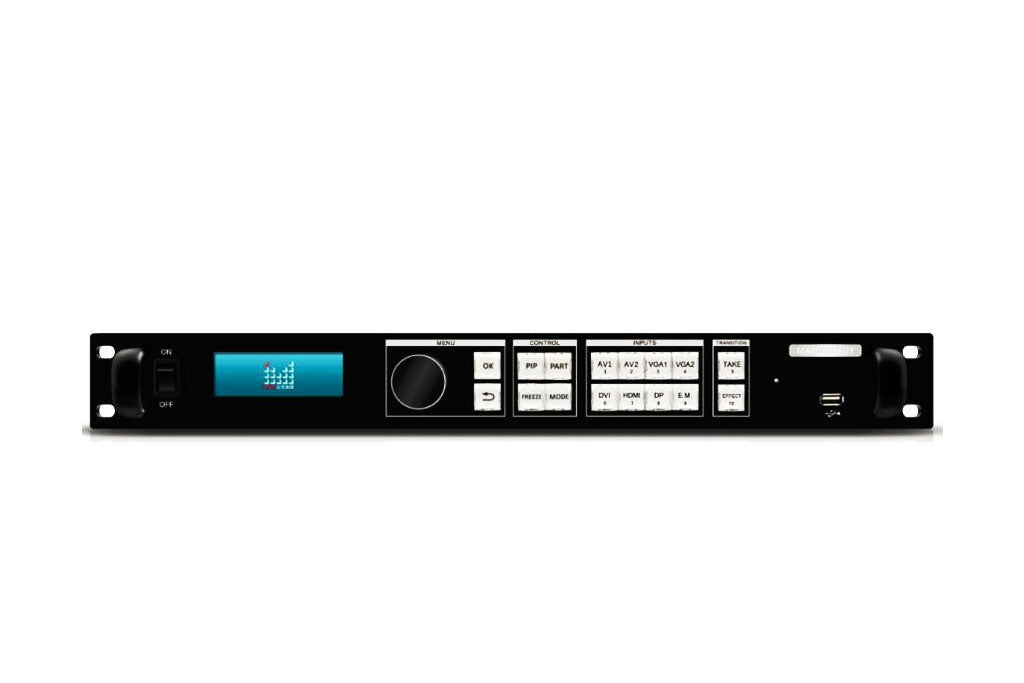

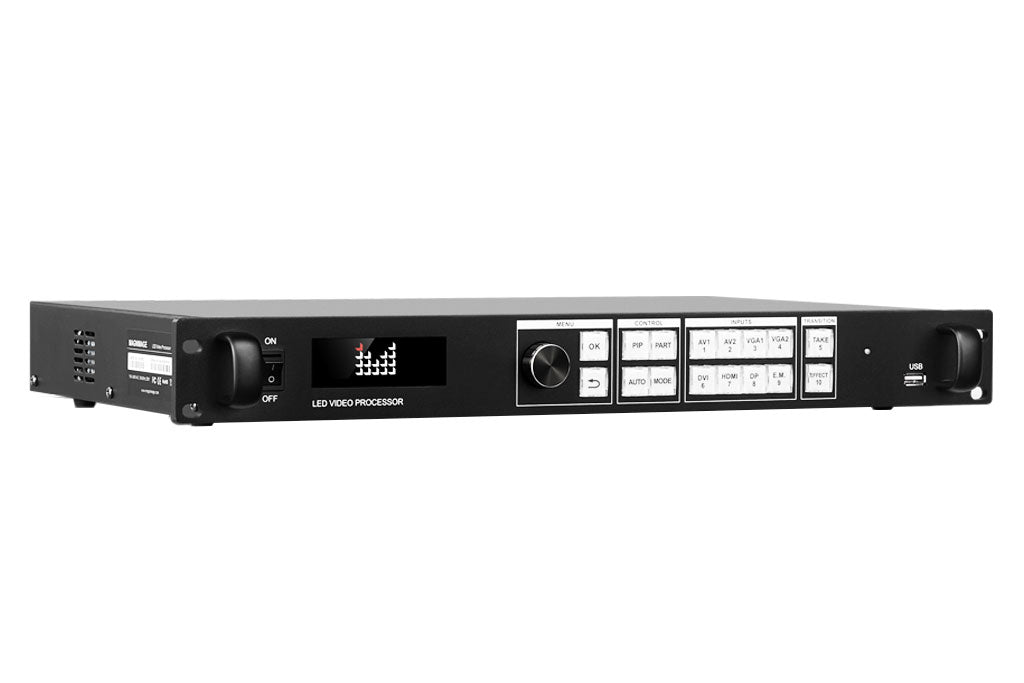

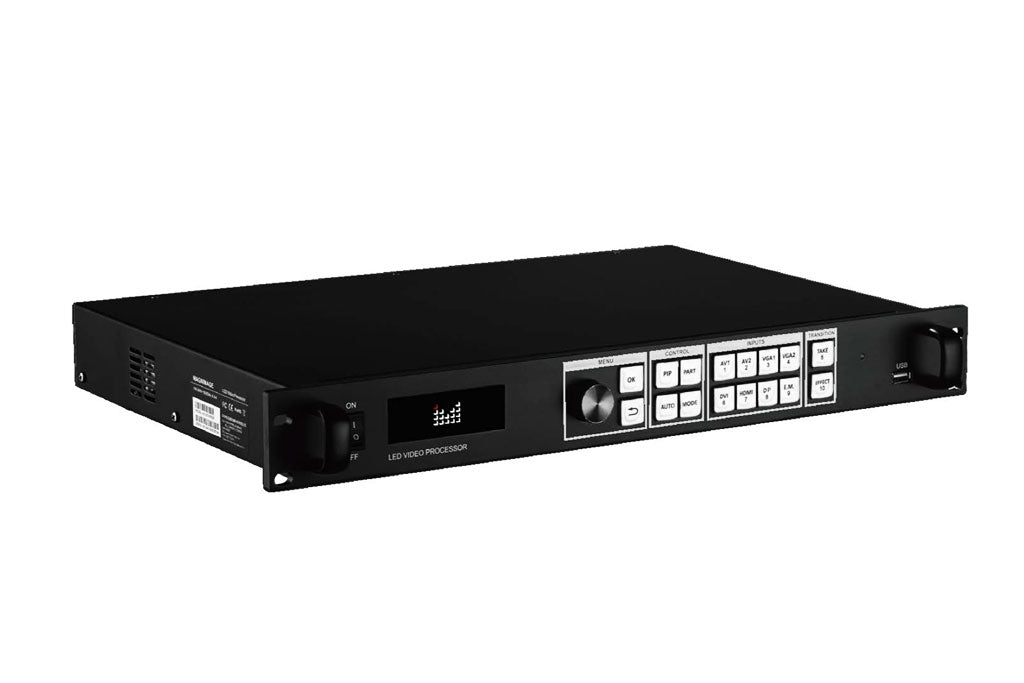

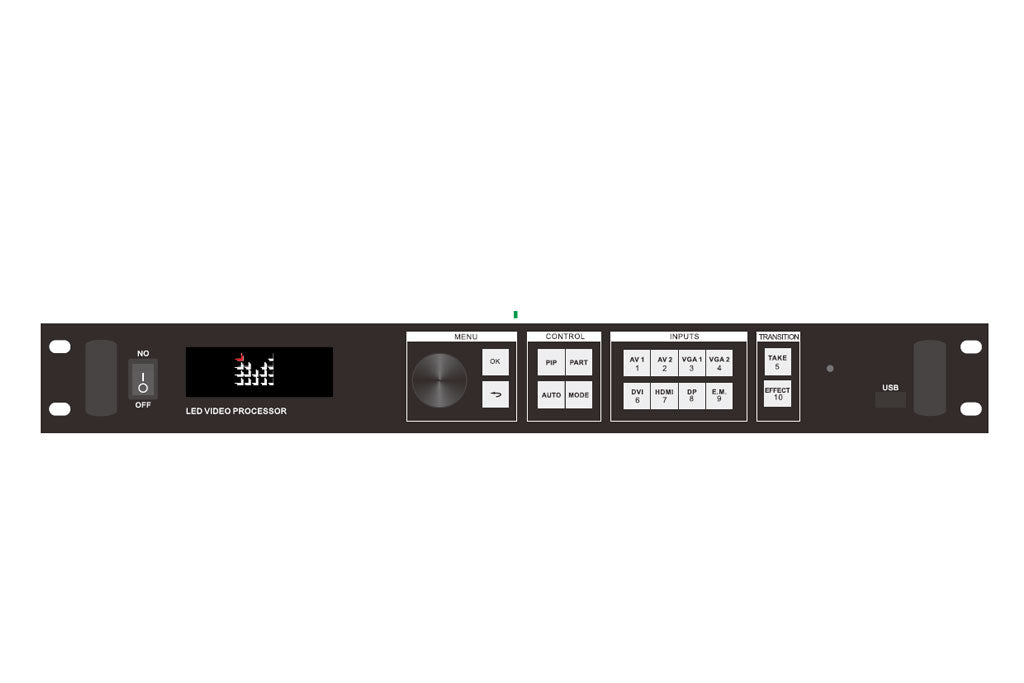

Magnimage LED-550D Series LED Display Controller 550D 550DS LED Video Processor

The LED-550D series is a video processor developed for LED large-screen display systems. It uses the industry's top image processing chip, internal 12-bit digital processing, clearer images and richer colors. Advanced interlaced motion image adaptive processing technology eliminates video image motion tailing and aliasing. For ordinary PAL/NT SC video, the output country image is more clear and delicate. For HD 1080i signals, the output image is rich in detail and full of color. Image quality is at the leading level in the industry. Advanced image scaling technology, support custom output resolution, stand-alone output horizontal resolution up to 3840 pixels, vertical resolution up to 1920 pixels, refresh rate up to 120Hz, greatly improving the output signal bandwidth utilization; In addition, you can also use the traditional standard output resolution, and then scale the output circle image point by point according to the actual size of the LED display. Accurate dual-image input image capture for easy point-to-point display and material blending.
Intelligent large-size LED display seamless splicing technology, easy to achieve multi-send card image splicing, up to 24576x24576 pixel dot matrix LED display; unique synchronous follow-up technology to ensure high-speed movement of solid surface smooth, no misplacement, Trailing phenomenon. Complete video image input interface, including 2xVGA, 1xDP, 1xDVI (expandable to 2xDVI simultaneous input), 1xHDMI, 2xVideo (PAL/NTSC), 1xSDI (optional), support for full HD signal input, and a variety of audio, video Device interconnection. Supports seamless switching between different input sources and picture-in-picture functionality.

The machine is compatible with different send card structures, and the send card can be built into the machine. The pure hardware architecture of the whole machine is stable and reliable.

Functions and features:

LED-550D Video Processor

• Customize Input/Output Resolution

Customize DVI input and output 2K*1K resolution by LED-550D,to complete 2K*1K pixel to pixel display easily.

• Seamless Splicing

LED-550D supports infinite DVI loop. Using one 550D uses as master control,the other units of 550D can complete any type of splicing.

• Fade in/Fade out

mig 550ds has 16 switching effects avoid the black screen when switching signals.

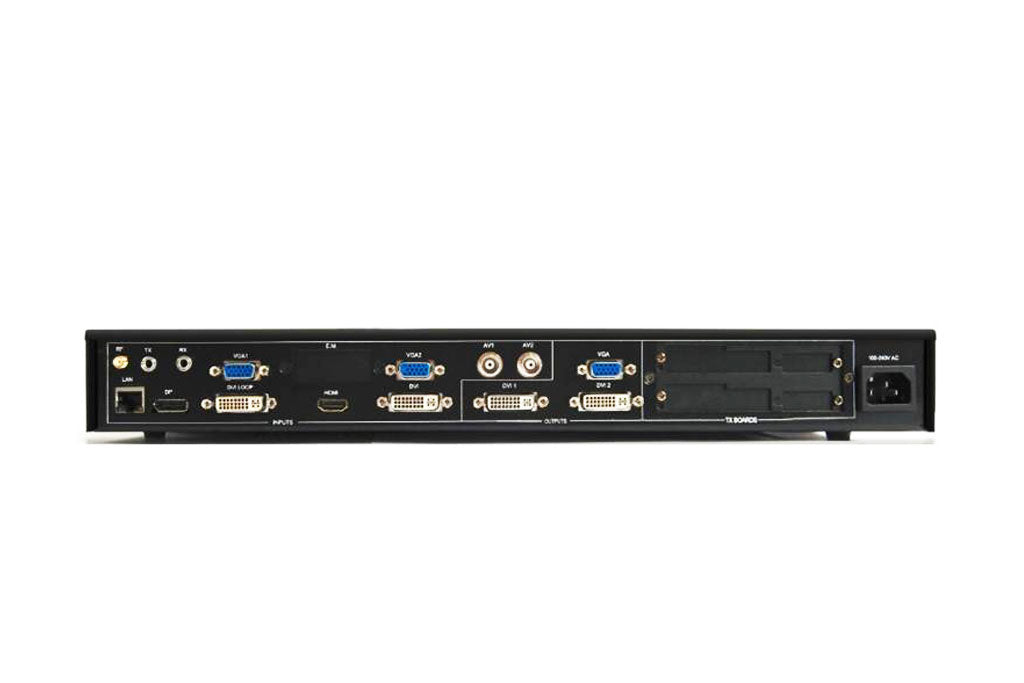

Technical Specification

Input Indicators


Port	Amount	Resolution Standard
AV	2	PAL、NTSC
VGA	2+1（support 1extended）	VESA
DVI	1+1（support 1extended）	VESA（support 1080i）
HDMI	1	EIA/CEA-861，HDMI-1.3/1.4
DP	1	DisplayPort 1.1、1.2
SDI*	1（support 1extended）	480i、576i、720p、1080i/p（3G SDI）

Output Indicators

Port	Amount	Resolution
DVI Loop	1	Same as DVI input
VGA	1	1024×768/60Hz/75Hz/85Hz/100Hz/120Hz DVI 2 1280×1024/60Hz          1440×900/60Hz 1680×1050/60Hz          1600×1200/60Hz 1600×1200/60Hz – Reduced 1920×1080/60Hz/50Hz 2     560×816/60Hz 2048×640/60Hz             1920×1200/60Hz 2304×1152/60Hz            2048×1152/60Hz 1024×1280/60Hz          1536×1536/60Hz   Customized output resolution（bandwidth optimization）： maximum width is 3840 and maximum height is 1920
DVI	2
SDI Input & Loop	1	480i、576i、720p、1080i/p（3G SDI）

Unit Specification

Power Supply	100～240VAC，50/60Hz
Consumption	20W
Operating Temperature	0~45℃
Product Dimension	484.0 X 288.0 X 54.5mm
Packing Dimension	555.0 X 395.0 X 125.0mm
Net Weight	2.6Kg
Gross Weight	4.1Kg

LED-550D Series

Name	Model	Description
Standard Unit	LED-550D	Standard Unit
+DVI Extended Module	LED-550DD	The extended input port is DVI
+SDI Extended Module	LED-550DS	The extended input port is SDI+Loop
+VGA Extended Module	LED-550DV	The extended input port is VGA
Audio Output Port	Customized	Audio Output Port
RF Module	Customized	RF Module

Accessories

Instruction X 1     Cascade Cable X 1     Power Cable X 1      Copper Bar X 4

AV Cable X 2     Screw X 4     DVI Cable X 1     Certification X1     Disk X 1     USB Cable X1
