Magnimage 3-in-1 LED Video Processor F816 F808 F806 F804 F802 LED Display Controller
Magnimage 3-in-1 LED Video Processor F816 F808 F806 F804 F802 LED Display Controller
Regular price
$115.00 USD
Regular price
$300.00 USD
Sale price
$115.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

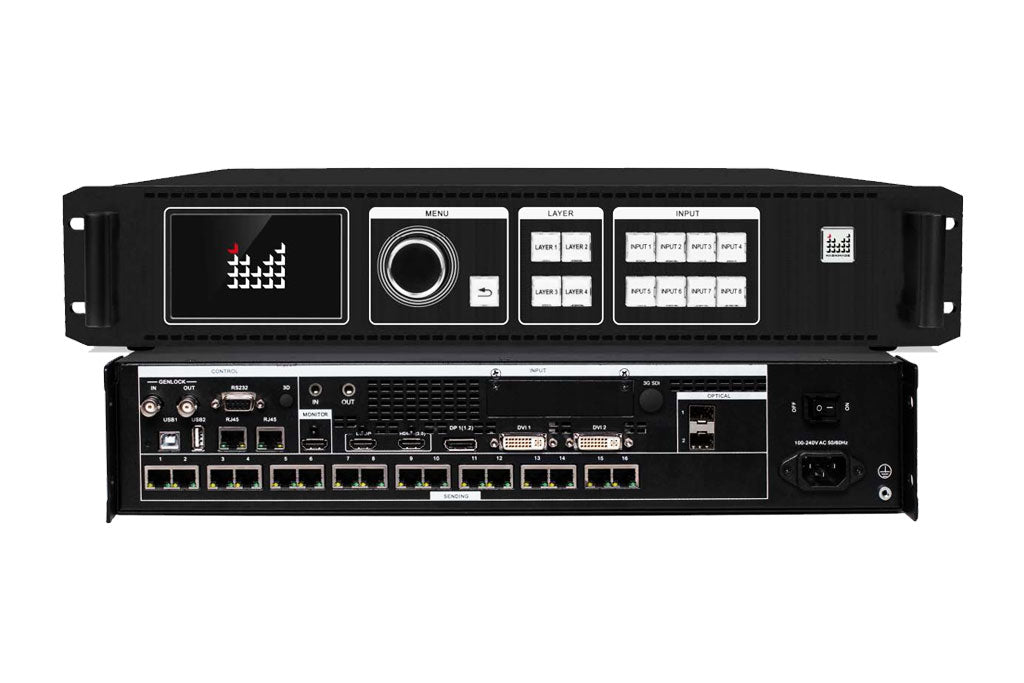

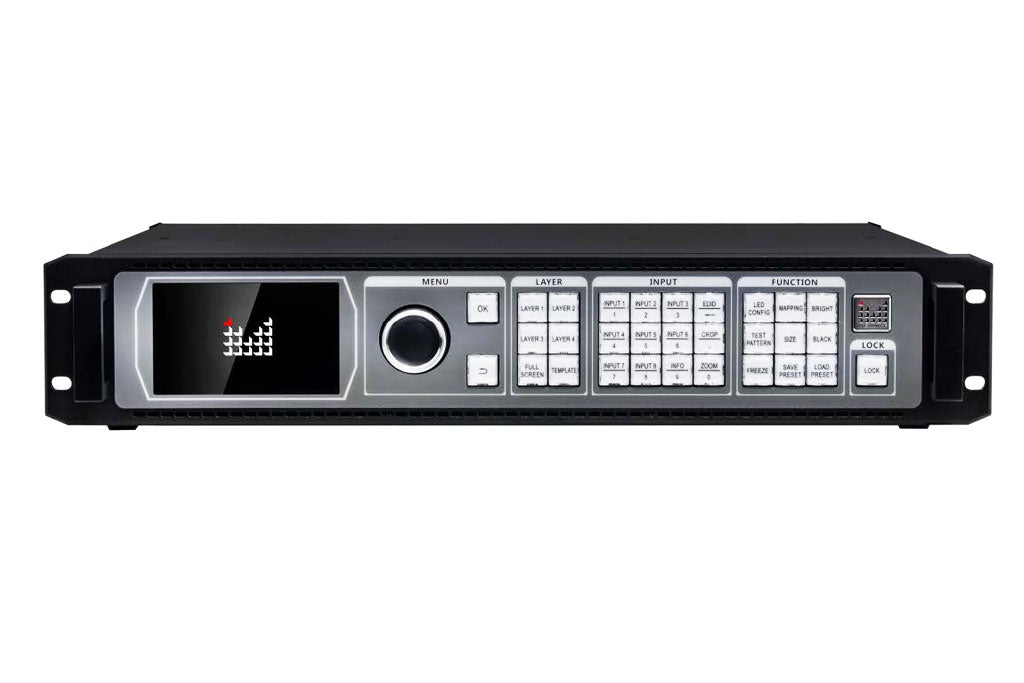

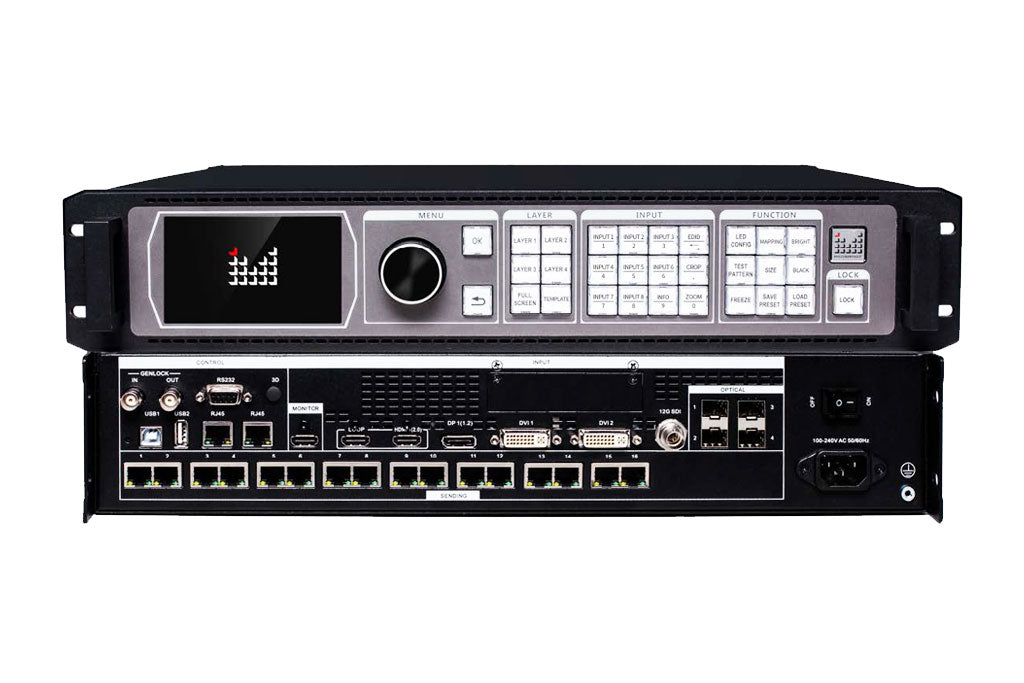

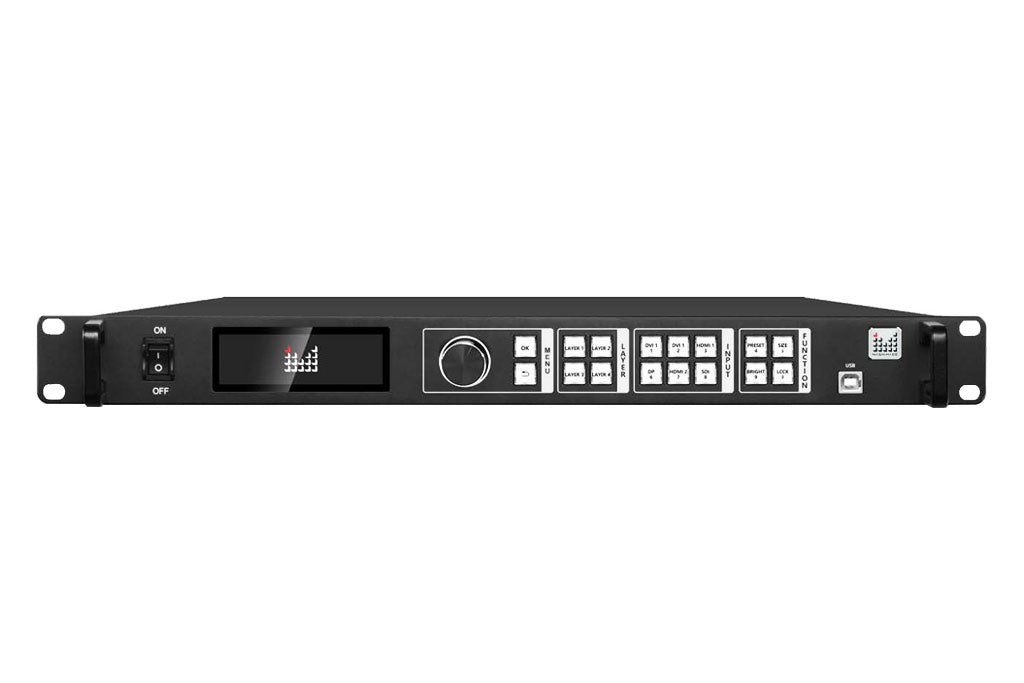

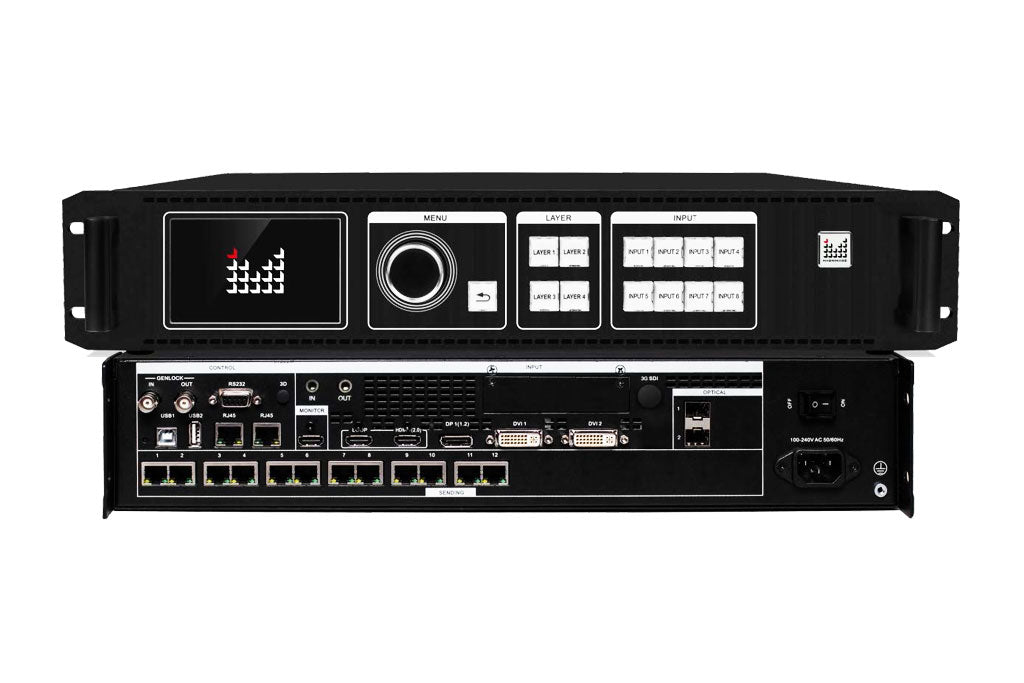

LED-F816/F812/F810/F808/F806 is an all-in-one video controller from Magnimage With a complete video image input interface, including 1 × HDMI2.0, 1 × DP1.2, 2 × DVI, audio × 1, can also be extended 3G SDI × 1, DVI × 2 or HDMI2.0 + DP1.2, output support for 16 Gigabit network ports, 2 10G fiber input / output (for network port backup between two devices), 1 × HDMI ring out, 1 × HDMI ring out, 1 × HDMI2.0 + DP1.2, the output support 16 Gigabit network ports, 2 10G fiber input / output (for network port backup between two devices), 1 × HDMI ring out, 1 × HDMI ring out, 1 × HDMI ring out, 1 × HDMI2.0 + DP1.2.
The output supports 16 Gigabit LAN ports, 2 10G optical inputs/outputs (for network port backup between two devices), 1×HDMI ring-out, 1×HDMI monitoring; the standard bandwidth of a single machine is 1040W, and the widest horizontal resolution of the whole machine can reach 8192, and the highest vertical resolution can reach 3840, with the receiver card supporting bandwidth expansion technology.
The single network port carries 100W, and the whole machine carries 16 million (60Hz).
LED-F816/F812/F810/F808/F806 support quick screen function, no computer software configuration screen connection, greatly simplify the site debugging steps.
The output supports 16 Gigabit LAN ports, 2 10G optical inputs/outputs (for network port backup between two devices), 1×HDMI ring-out, 1×HDMI monitoring; the standard bandwidth of a single machine is 1040W, and the widest horizontal resolution of the whole machine can reach 8192, and the highest vertical resolution can reach 3840, with the receiver card supporting bandwidth expansion technology.
The single network port carries 100W, and the whole machine carries 16 million (60Hz).
LED-F816/F812/F810/F808/F806 support quick screen function, no computer software configuration screen connection, greatly simplify the site debugging steps.

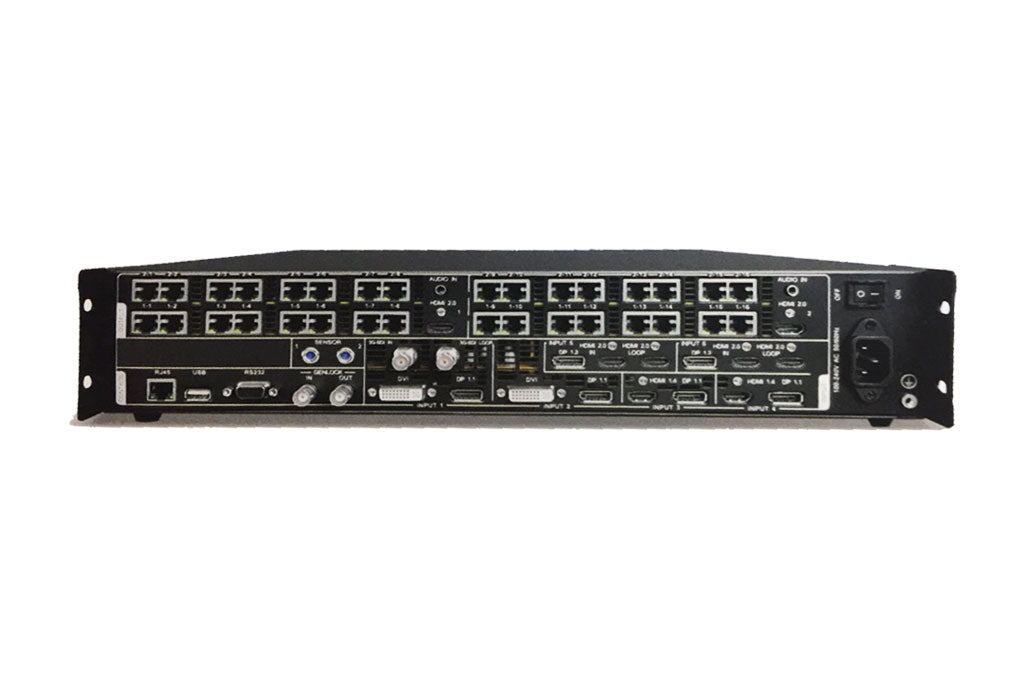

LED-F832: 18 million pixels with load, support 4 screens, HDR10,7680*2160@60Hz
32-channel Gigabit Ethernet output, 2-channel HDMI2.0 output, 2-channel HDMI2.0 LOOP, and 1-channel SDI LOOP,
4-channel DP1.1 input, 2-channel DP1.2 input, 2-channel HDMI2.0 input, 2-channel DVI input, 1-channel SDI input, 2-channel AUDIO input, 2-channel SENSOR input
8K*2K@60Hz splicing input
Supports LAN debugging and wireless debugging
Free route function
Support 4-screen display
Support for redundant backups
Supports touch screen operation
Support for HDR 10
Support for Genlock input/output
No need for computer debugging software, support for local fast screen settings
LED-F816: 10.4~16MP with load, support 4-screen, LAN control, 3840*2160@30Hz
16-channel network interface splicing output
Support network port output backup
4-channel HDMI splicing output
Support multiple cascade splicing function
Support for HDR10/HLG
LED-F812 10.4~16MP with load, support 4-screen, LAN control, 3840*2160@30Hz
12-channel network interface splicing output
Support network port output backup
4-channel HDMI splicing output
Support multiple cascade splicing function
LED-F810 6.5~8.8 million pixel with load, support 4-screen, LAN control, 7680*2600@30Hz
10-channel network interface splicing output
Support network port output backup
4-channel HDMI splicing output
Support multiple cascade splicing function

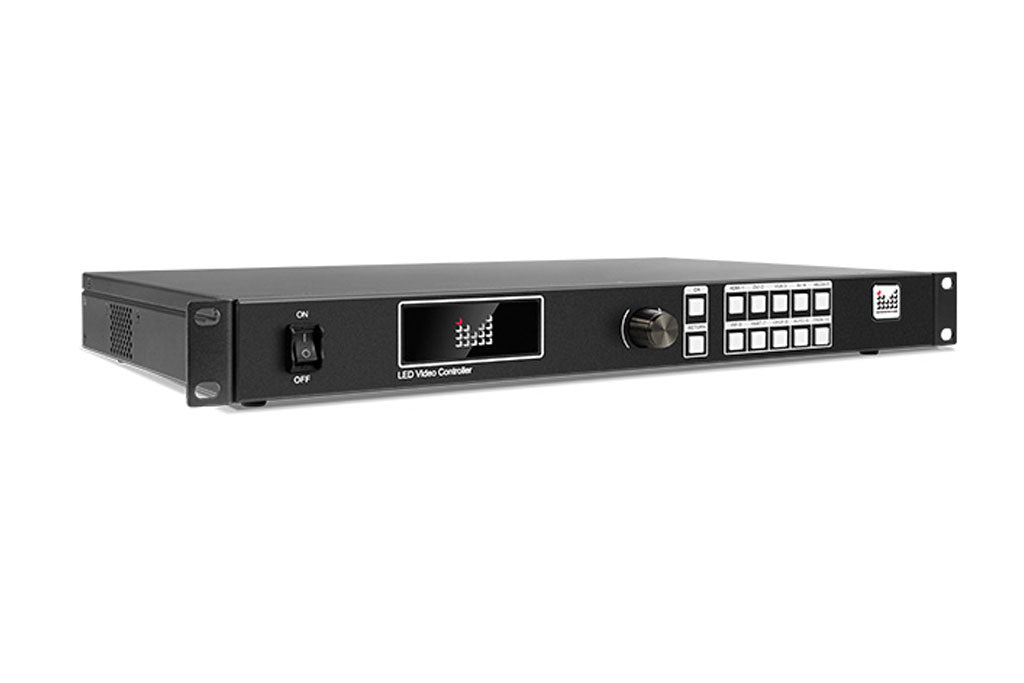

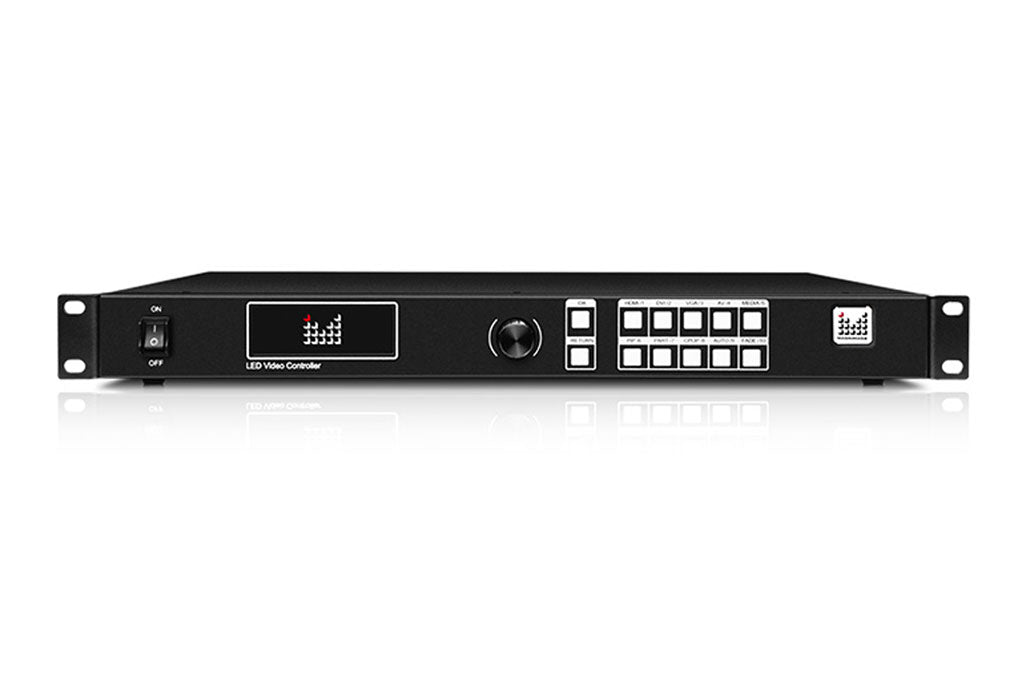

LED-F808: 5.2~8 million pixel band-load, support 4-screen, LAN control, 3840*1080@60Hz
8-channel Gigabit Ethernet output, 1-channel DVI LOOP output, standalone with 5.2 megapixels.
1 road DP1.1 input, 1 road HDMI1.4 input, 2 road DVI input, 1 road SDI input, 1 road AUDIO input
Support 4-screen display
Supports LAN debugging and wireless debugging
Free route function
Support for redundant backups
No need for computer debugging software, support for local fast screen settings

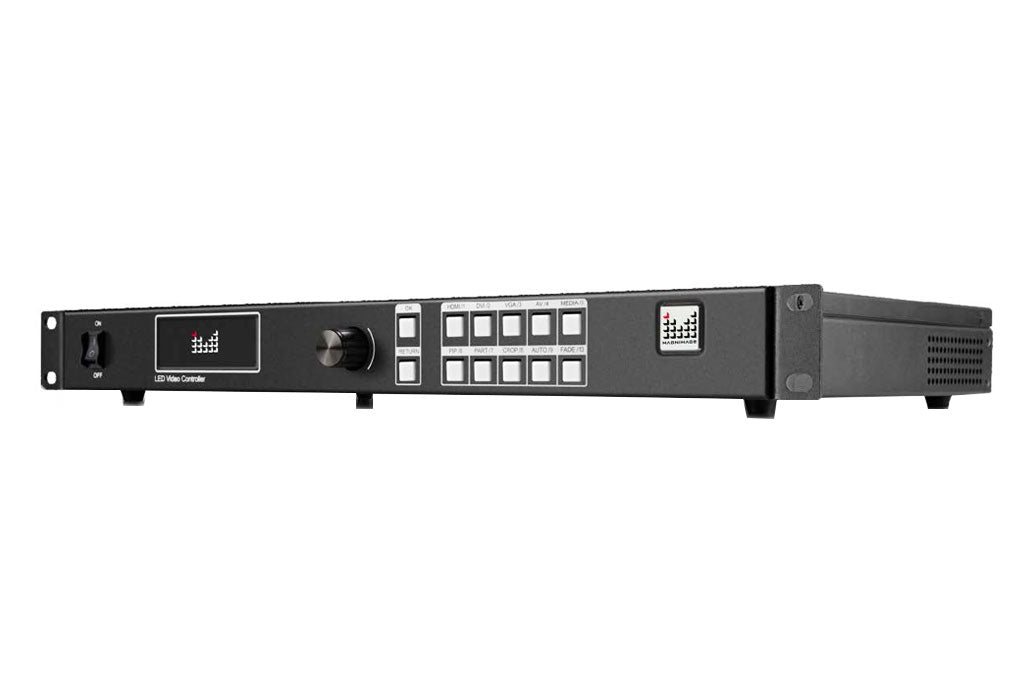

LED-F806: 3.9~6 Megapixel with band, support 4-screen, LAN control, 3840*1080@60Hz
6-channel Gigabit Ethernet output, 1-channel DVI LOOP output, 3.9 megapixels on stand-alone machine
1 road DP1.1 input, 1 road HDMI1.4 input, 2 road DVI input, 1 road SDI input, 1 road AUDIO input
Support 4-screen display
Supports LAN debugging and wireless debugging
Free route function
Support for redundant backups
No need for computer debugging software, support for local fast screen settings
LED-F804: 3.9 Megapixel with band, LAN control, 3840*1080@60Hz
LED-F802: 1.3~2.0 Megapixel with band, LAN control, 1920*1080@60Hz
32-channel Gigabit Ethernet output, 2-channel HDMI2.0 output, 2-channel HDMI2.0 LOOP, and 1-channel SDI LOOP,
4-channel DP1.1 input, 2-channel DP1.2 input, 2-channel HDMI2.0 input, 2-channel DVI input, 1-channel SDI input, 2-channel AUDIO input, 2-channel SENSOR input
8K*2K@60Hz splicing input
Supports LAN debugging and wireless debugging
Free route function
Support 4-screen display
Support for redundant backups
Supports touch screen operation
Support for HDR 10
Support for Genlock input/output
No need for computer debugging software, support for local fast screen settings
LED-F816: 10.4~16MP with load, support 4-screen, LAN control, 3840*2160@30Hz
16-channel network interface splicing output
Support network port output backup
4-channel HDMI splicing output
Support multiple cascade splicing function
Support for HDR10/HLG
LED-F812 10.4~16MP with load, support 4-screen, LAN control, 3840*2160@30Hz
12-channel network interface splicing output
Support network port output backup
4-channel HDMI splicing output
Support multiple cascade splicing function
LED-F810 6.5~8.8 million pixel with load, support 4-screen, LAN control, 7680*2600@30Hz
10-channel network interface splicing output
Support network port output backup
4-channel HDMI splicing output
Support multiple cascade splicing function
LED-F808: 5.2~8 million pixel band-load, support 4-screen, LAN control, 3840*1080@60Hz
8-channel Gigabit Ethernet output, 1-channel DVI LOOP output, standalone with 5.2 megapixels.
1 road DP1.1 input, 1 road HDMI1.4 input, 2 road DVI input, 1 road SDI input, 1 road AUDIO input
Support 4-screen display
Supports LAN debugging and wireless debugging
Free route function
Support for redundant backups
No need for computer debugging software, support for local fast screen settings
LED-F806: 3.9~6 Megapixel with band, support 4-screen, LAN control, 3840*1080@60Hz
6-channel Gigabit Ethernet output, 1-channel DVI LOOP output, 3.9 megapixels on stand-alone machine
1 road DP1.1 input, 1 road HDMI1.4 input, 2 road DVI input, 1 road SDI input, 1 road AUDIO input
Support 4-screen display
Supports LAN debugging and wireless debugging
Free route function
Support for redundant backups
No need for computer debugging software, support for local fast screen settings
LED-F804: 3.9 Megapixel with band, LAN control, 3840*1080@60Hz
LED-F802: 1.3~2.0 Megapixel with band, LAN control, 1920*1080@60Hz
