Linsn Y8 Series 2-in-1 LED Display Controller Y8-308 Y8-312 LED Video Processor
Linsn Y8 Series 2-in-1 LED Display Controller Y8-308 Y8-312 LED Video Processor
Y8 2-in-1 processor is a 4K LED display control device developed by Linsn. Single device with a maximum load of 7.8 million pixels, support for a variety of video signal interfaces, up to 12 Gigabit Ethernet port output. According to the output network port and load can be divided into:
Model Layers Ports Capacity
Y8-308 3 layers,random layout 8 ports 5.2 million
Y8-312 3 layers,random layout 12 ports 7.8 million
- 1. Support a complete digital input interface, including 3 HDMI1.4, 1 DVI, 1 SDI (optional).SDI (optional).
- 2. Support up to 12 Gigabit network port output.
- 3. the widest bandwidth of a single device with 15360 pixels, the highest bandwidth of 7680 pixels.
- 4. support screen scaling.
- 5. support scene preset.
- 6. support EDID management;
- 7. support network cable and Type-C interface debugging;
- 8. Support schedule setting
- 9. Support U disk and cloud backup data.
- 10. Support U disk and cloud recovery data;
- 11. Support authorization license function;
- 12. Output network port connection detection display;
Y8 Series Y8-308/Y8-312 LED Controller Front Panel
No. Interface Function
1 LCD screen Used to display the menu and the current working status of the device.
2 Knob Adjustment Under the menu interface, rotate the knob left or right to scroll to select submenu or set submenu parameters, click to confirm;
3 Menu key Press to enter the menu interface;
4 Esc key Press to exit the current interface or state;
5 Del key Delete;
6 Freeze key Press to enter the static interface;
7 Scene key Quickly enter the scene interface;
8 HDMI1/1 key Select HDMI1 Input/Digit 1;
9 HDMI2/2 key Selects HDMI2 input/digit 2;
10 HDMI3/3 key Select HDMI3 input/digit 3;
11 DVI/4 key Selects DVI input/digit 4;
12 SDI/5 key Selects SDI input/digit 5;
13 S1/6 key Quickly selects scene 1/digit 6;
14 S2/7 key Quickly selects scene 2/digit 7;
15 S3/8 key Quick selection of scene 3/number 8;
16 S4/9 key Quickly selects scene 4/number 9;
17 /0 key Press to enter the brightness screen/number 6;
18 Sound key Press to enter the sound interface;
19 Type-C port Type-C connection debugging;
20 USB port USB, upgrade function;
21 Switch Power switch
Y8 Series Y8-308/Y8-312 LED Controller Back Panel
No. Interface Function
1 Power interface Input power port
2 CTRL Control network port;
3 MONITOR Monitor port;
4 AUDIO_IN Audio input port;
5 AUDIO_OUT Audio output port;
6~10 Video Inputs - 3xHDMI1.4: Maximum resolution 3840x2160@30Hz, Supports customized resolution.
- 1xDVI: Maximum resolution 1920x1080@60Hz,
Supports customized resolution.
- 1x3G-SDI (optional customization): Maximum resolution 1920x1080@60Hz.
11 LED OUT 12 network port output, connected to the receiver card,a single network port supports a maximum of 650,000 pixels; (according to different models, the number of network ports is different)

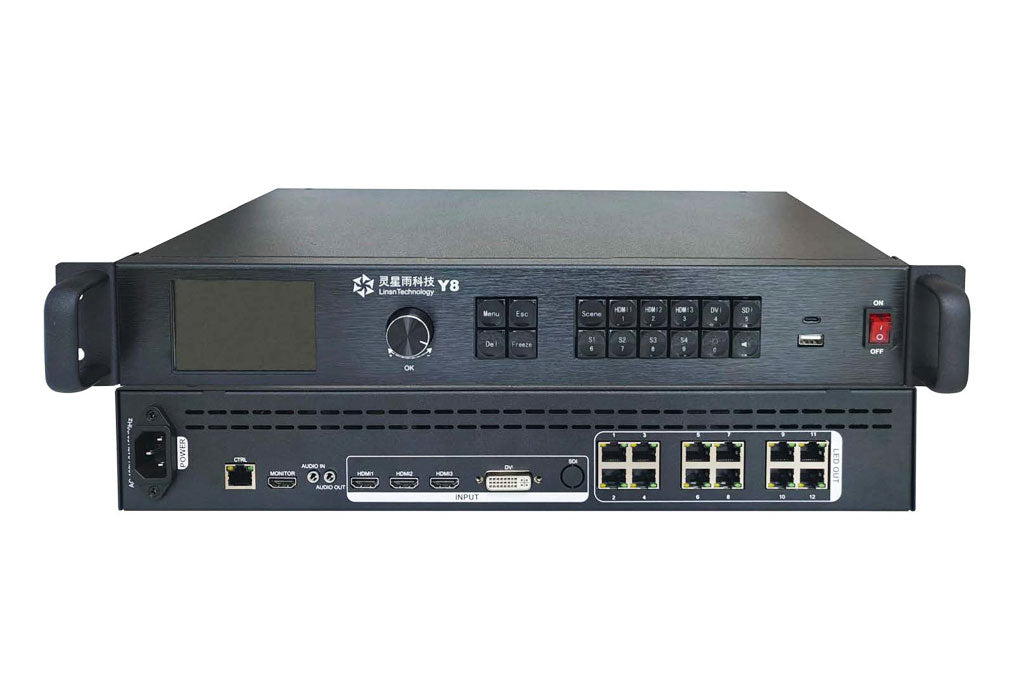

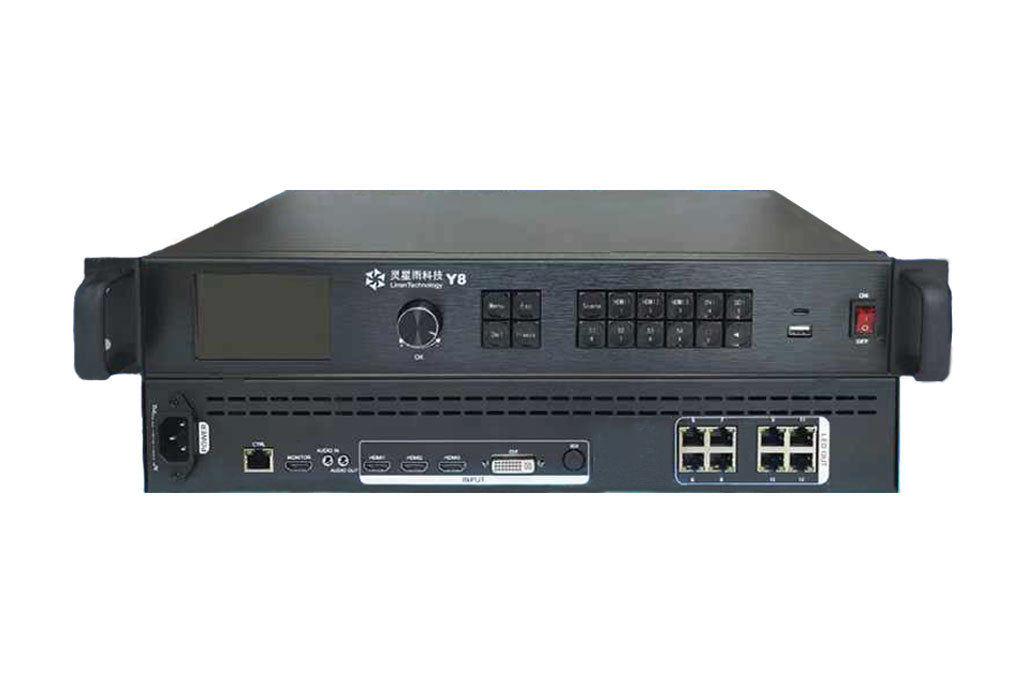

Y8 Series Y8-308/Y8-312 2-in-1 LED Controller Appearance
Parameter
Input:AC 100-240V, 50/60Hz
Maximum power:20W
Temperature:-20℃~70
Humidity: 0%RH~95%RH
Weight: equipment weight 3.3kg
Device size: 482mm×255mm×66.4mm
Materials
Materials
