Linsn TS08 TS12 TS16 LED Sending Box LED Video Wall Controller

TS08 TS12 TS16 is a large transmission box for the Star Rain 8~16 network port. It supports monochrome, two-color, full-color display. The maximum load supports 2.6 million pixels. An external brightness sensor can be used to automatically adjust the brightness, which can be controlled in multiple stages.

It has the following features:

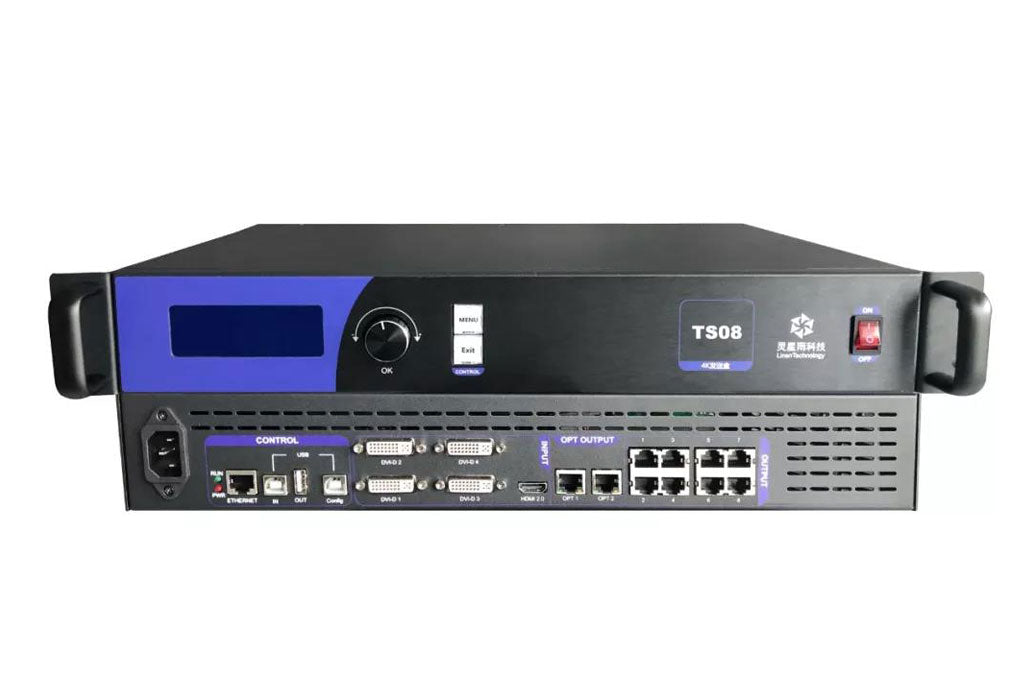

TS08

Support for a complete digital input interface
Support 8-channel Gigabit Ethernet port output
Single maximum load 4096x2160@60Hz
Support dual USB2.0 communication interface, USB debugging and cascading
Supports Linsn full range of receiving cards and multi-function cards

On-load: single maximum load 4096x2160@60Hz, single network port support: maximum width 15360 up to 8192
Interface: Input DVIx4 HDMIx1 output RJ45x8

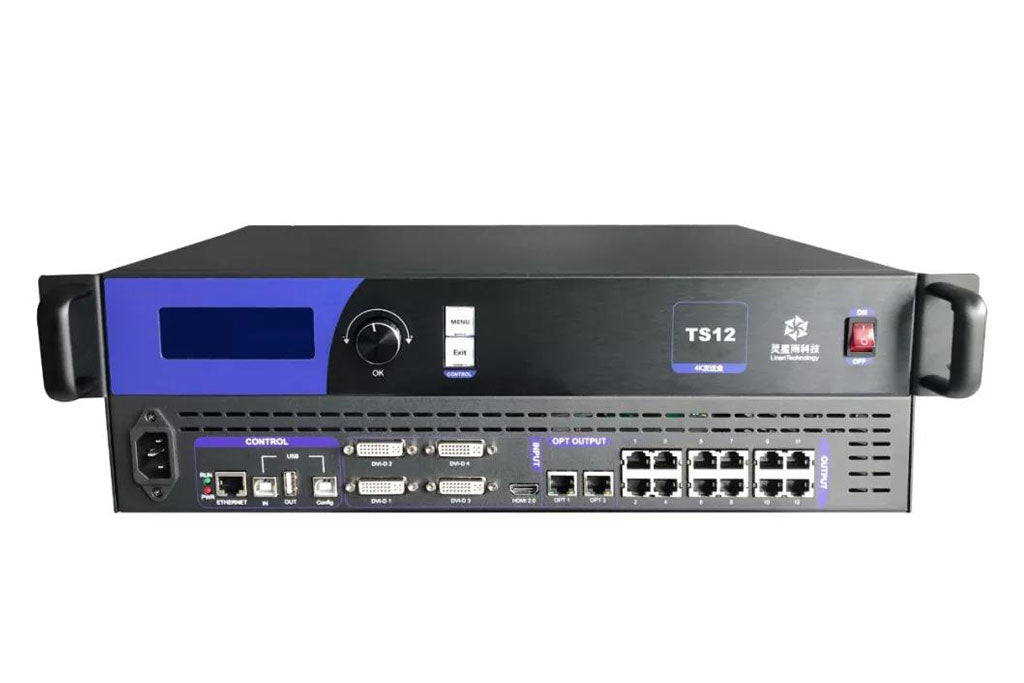

TS12

Support for a complete digital input interface
Support 12-channel Gigabit Ethernet port output
Single maximum load 4096x2160@60Hz
Support dual USB2.0 communication interface, USB debugging and cascading
Supports Linsn full range of receiving cards and multi-function cards

On-load: single maximum load 4096x2160@60Hz, single network port support: maximum width 15360 up to 8192
Interface: Input DVIx4 HDMIx1 output RJ45x12

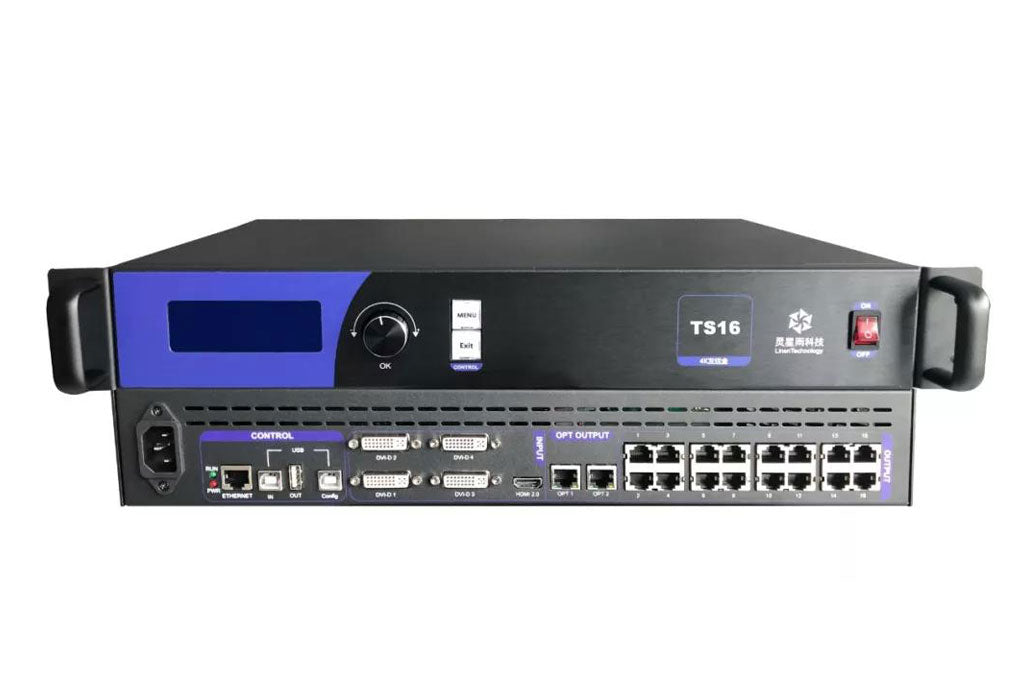

TS16

Support for a complete digital input interface
Support 16-channel Gigabit Ethernet port output
Single maximum load 4096x2160@60Hz
Support dual USB2.0 communication interface, USB debugging and cascading
Supports Linsn full range of receiving cards and multi-function cards

On-load: single maximum load 4096x2160@60Hz, single network port support: maximum width 15360 up to 8192
Interface: Input DVIx4 HDMIx1 output RJ45x16
