Linsn MINI913A MINI913K LED Receiving Card LED Mini Receiving Card
Linsn MINI913A MINI913K LED Receiving Card LED Mini Receiving Card
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
Unit price
/
per

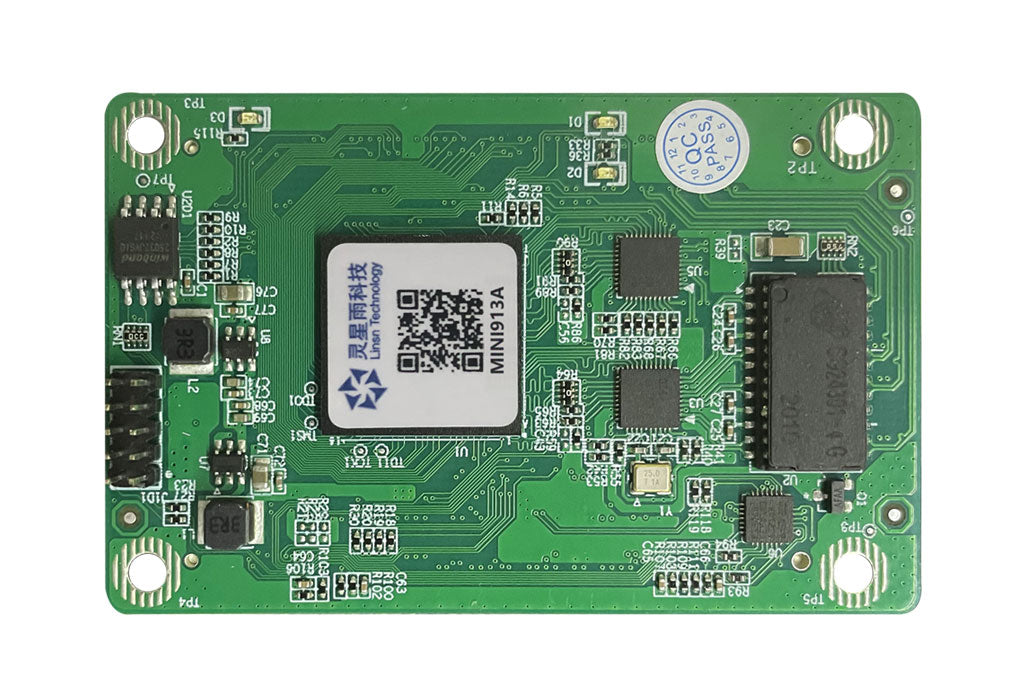

Linsn MINI913A LED Receiver Card
Linsn Mini913A is a high-end and full-featured ultra-small size mini-receiver card. Compared with traditional receiver card, Mini913A uses high-density BTB connector. It is more flexible and it adapts to a variety of electronic circuit structure, achieving a card suitable for all applications, which will considerably reduce the types of purchasing receiver card.The system, specific circuits and program design of Mini913A, can effectively reduce the electromagnetic radiation and effectively help products easily pass through the EMC test. Specific features are as follows:
- 1. Single card can support 32- group RGB data output mode;
- 2. Supports 64-group serial data output mode;
- 3. Realize high refresh and high gray level effect
- 4. Supports general driver IC and PWM IC;
- 5. Maximum supports 512X512 pixels;
- 6. Use 18-bit signal processor, maximum supporting 18-bit (260,000) gray (each of red, green and blue);
- 7. Supports single-card color space conversion;
- 8.Supports configuration file read back;
- 9.Supports network cable BER test;
- 10.Supports hot backup with dual receiver cards, dual power supplier, etc;

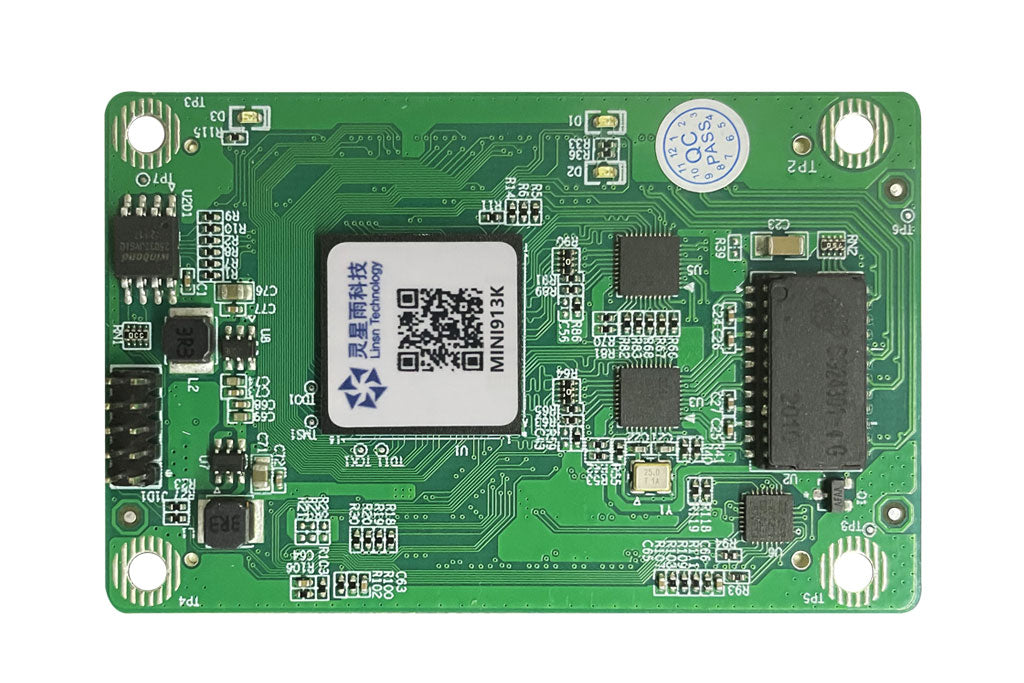

Linsn MINI913K LED Receiver Card
Linsn Mini913K is a high-end and full-featured ultra-small size mini-receiver card. Compared with traditional receiver card, Mini913K uses high-density BTB connector. It is more flexible and it adapts to a variety of electronic circuit structure, achieving a card suitable for all applications, which will considerably reduce the types of purchasing receiver card.The system, specific circuits and program design of Mini913M, can effectively reduce the electromagnetic radiation and effectively help products easily pass through the EMC test. Specific features are as follows:
- 1.Single card can support 32- group RGB data output mode;
- 2.Supports 64-group serial data output mode;
- 3.Realizes high refresh and high gray level effect;
- 4.Supports general driver IC and PWM IC;
- 5.Maximum supports 512X512 pixels;
- 6.Use 18-bit signal processor, maximum supporting 18-bit (260,000) gray (each of red, green and blue);
- 7.Supports single-card color space conversion;
- 8.Supports configuration file read back;
- 9.Supports faulty pixel detection(requires dedicated ICs);
- 10.Supports network cable BER test;
- 11.Supports flat-cable detection;
- 12.Supports hot backup with dual network cables, dual power supplier, etc;
- 13.Allows to save calibration data on flash drive IC on module;
- 14.Supports temperature and humidity monitor;
- 15.Supports smoke detection;
- 16.Supports voltage detection;
- 17.Supports door status(open/close) and fan speed detection;
- 18.Supports LCD monitor display function;
Further Information:
MINI913A
Linsn MINI913A LED Receiver Card Specification
