Linsn LED Receiving Card RV907A RV907M LED Display Controller

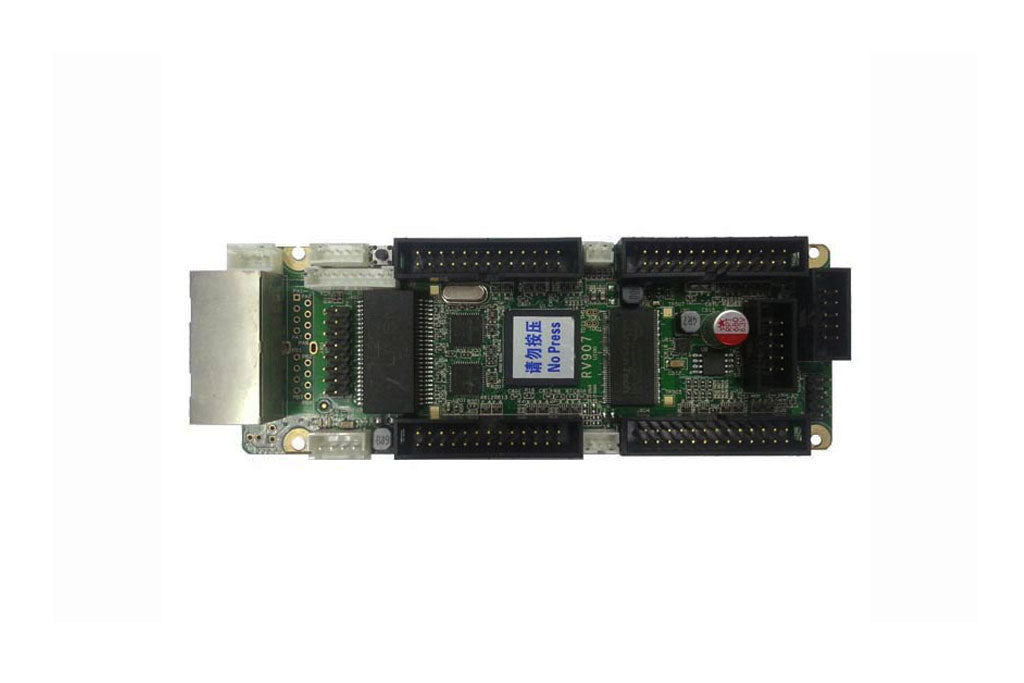

Linsn RV907A LED Receiving Card

Full color receiving card RV907/917/927/937 is designed specifically for rental LED screen. Not only be compatible with generation RV807/817/827/837 completely, but also meet the needs of led lighting and led curtain. RV907 has the following features:
1) Single card can output 16 sets of RGBR' data;
2) Single card can output 20 sets of RGB data.
3) Single card can output 24 sets of RGB data.
4) Single card can output 32 sets of serial data.
5) A single card supports a maximum of 1024 x 256 pixel points.
6) Each port provides VCC pin, which can take power directly from the power supply of the unit board.
7) support for temperature detection.
8) support case door opening and closing detection.
9) support two-way fan speed detection.
10) support humidity detection (additional humidity module is required)
11) support smoke detection (additional smoke sensor module is required)
12) Support 3-channel voltage detection (1 channel for receiving card voltage, 2 channels for external voltage);
13) support point-by-point brightness correction, single-card chromaticity space conversion
14) support network line error test.
15) support dual-receiver card hot backup.
16) support most of the chips of high brush high gray
17) Comply with EU RoHs standard.
18) Comply with the EU CE-EMC Class B standard.

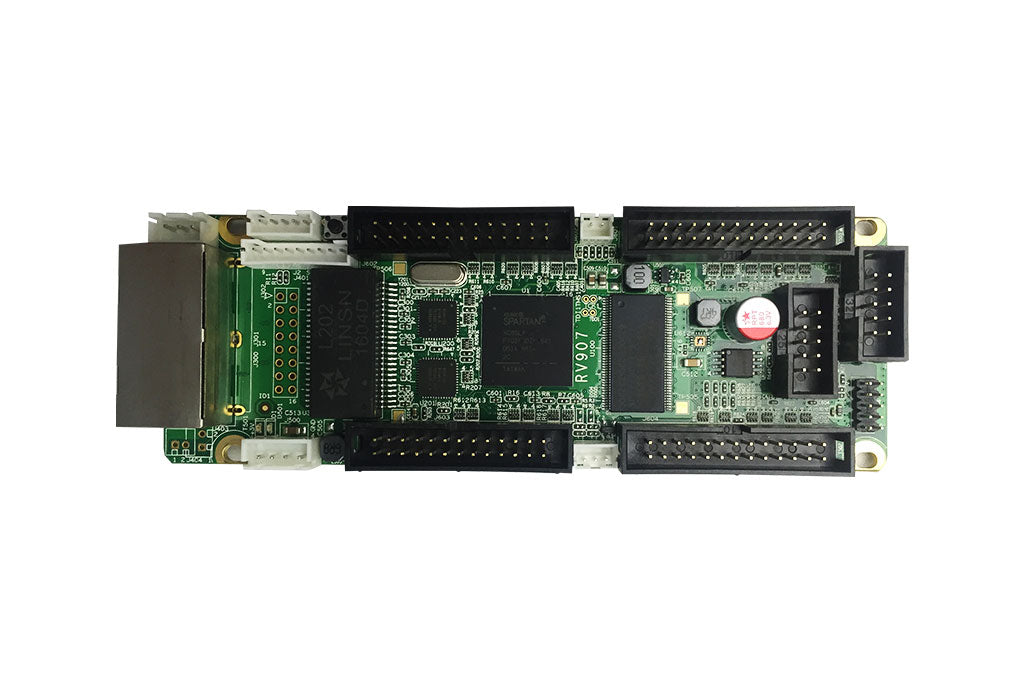

Linsn RV907M LED Receiving Card
