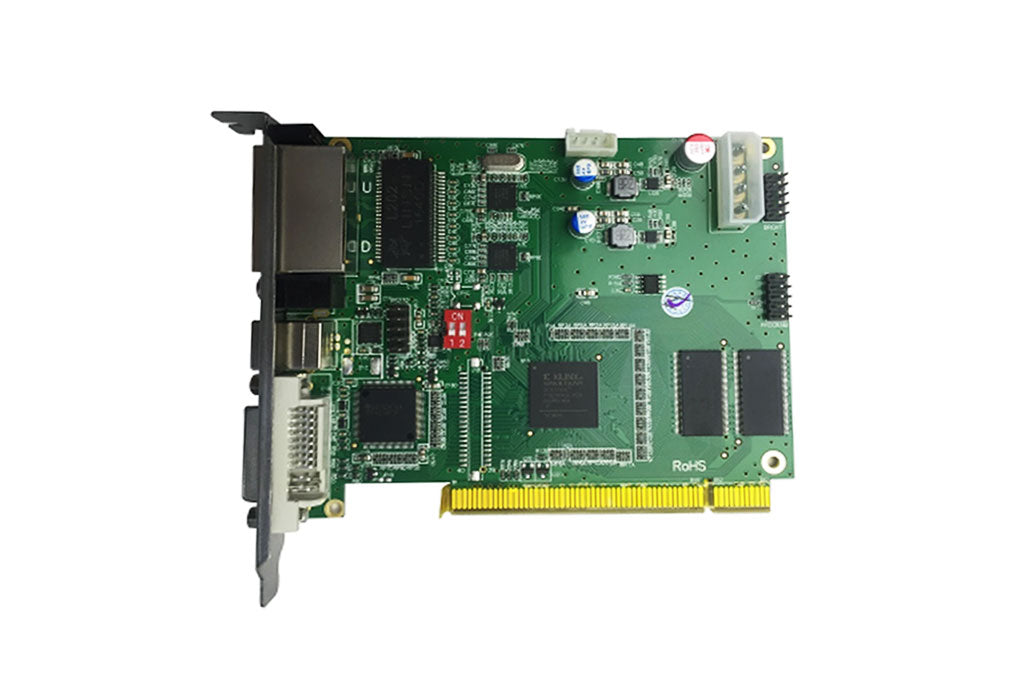

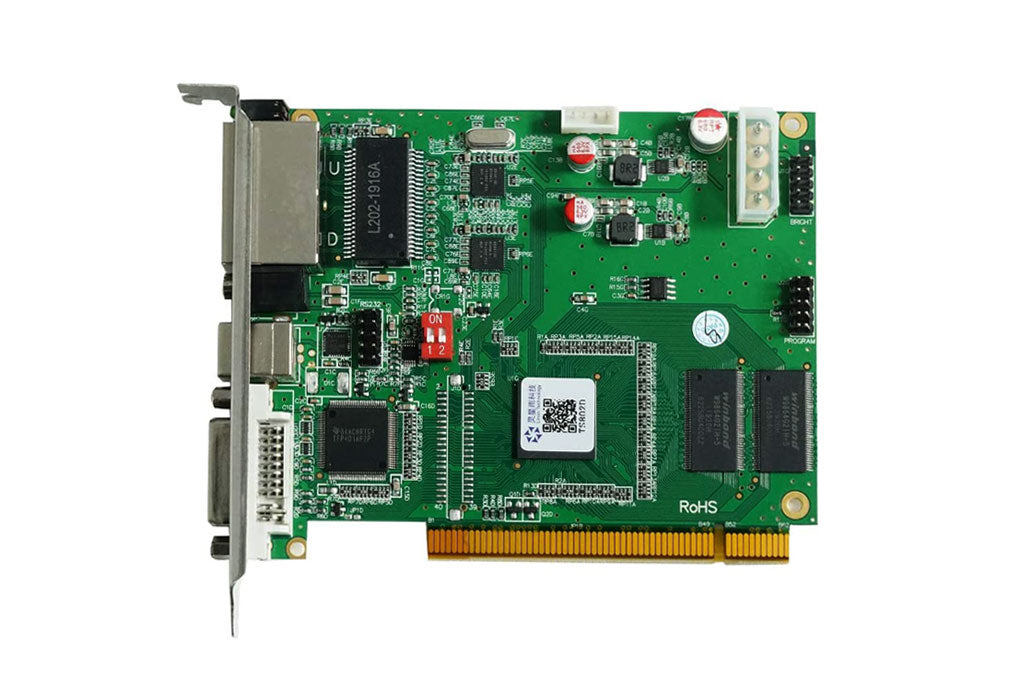

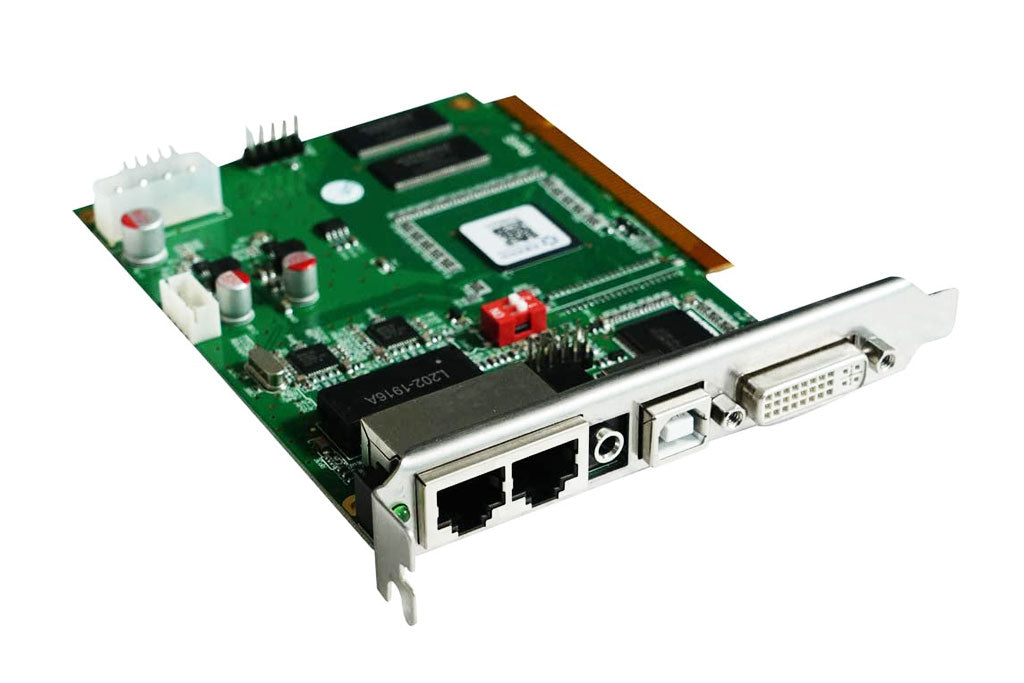

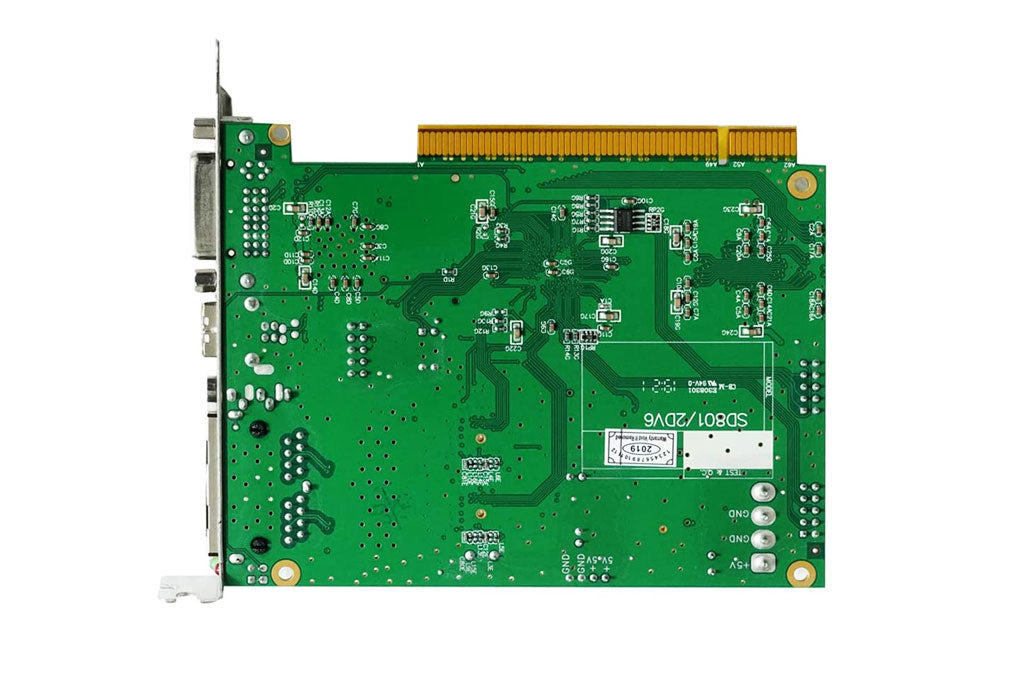

Linsn LED Display Controller TS802D LED Sending Card

Linsn LED Display Controller TS802D LED Sending Card

Regular price $90.00 USD
Regular price $150.00 USD Sale price $90.00 USD
Sale Sold out
Shipping calculated at checkout.

Features of LINSN TS802D LED Sender Card for LED Panel:
1)TS802D sender card max supports 2048*640
2) Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024 1440*900 1440*1080 1600*1200 1680*1050
1728*1296 1920*1080 1920*1200 2048*1152 2048*1280
3) Audio Transmission Function
TS802D sender card sends audio data using network cable, and Function board outputs audio signals to the display. Double 24bits 64KHZ hi-fi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect.
4) Cascade function
Through the dig switch on TS802D sender card, several TS802D sender cards can be easily cascaded to support a super large led display
5) Sending card U/D port flexibility for carrying half width or half height
For example, TS801D can max support 1280*1024 with two ports
A single network output port supports 1280*512 or 640*1024
6) Sender card rotation function
In Sender setting, sender card has 0, 90, 180, 270 degree rotation function
7) Sender card zoom in/out function
In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out
8)Supporting 10-bit colors
The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.
The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL.
9) Multi-display synchronous and combination functions.
One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play.

Further Information:
TS802D
Linsn TS802D LED Video Controller Specification
