LED Display Screen Repair Tool Hongsheng LED SMD2525 SMD2121 SMD1515 1000 pcs

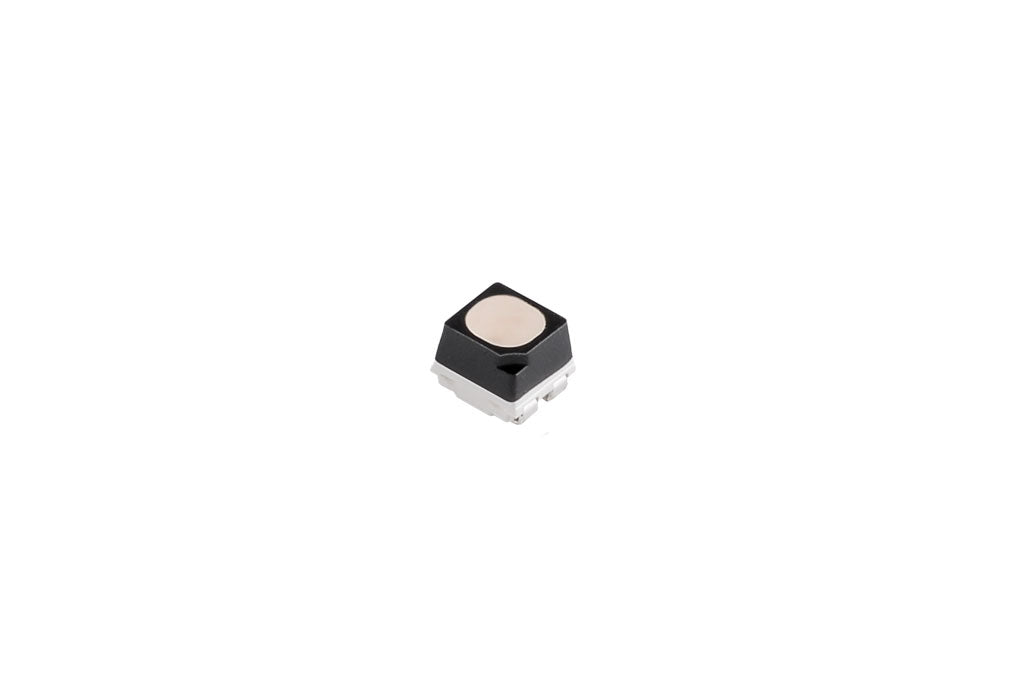

SMD2525

Surface screen printing, side brush , good consistency
Adding pin bending design , effectively prevent infiltration moisture, increase the reliability, pin inside, valid pin, soldering reflection problems.
Matt surface treatment, non reflective; spray gel, luminous surface is more soft, the "point light source" change to "surface light source".
High cup and low foot suitable for potting processing and cover design. Use less glue if reduced the exposed pin height.

① Waterproof IPX8, improve outdoor waterproof and dust-proof performance. (Quoted standard: IEC-60529 International Electrical Commission)
② （MSL1）Product muggy sensitive level: Grade one，Our product classified as the “Muggy insensitive element”, no need moisture proof package and dehumidify before SMT.(Quoted standard: IPC/JEDEC J-STD-020D.1 Joint industrial standard)
③ Product pass the thermal shock test, the CIE between the materials excellent match, apply to any outdoor conditions. (Stress Test Qualification For Automotive Grade Discrete Semiconductors: AEC-Q101 )

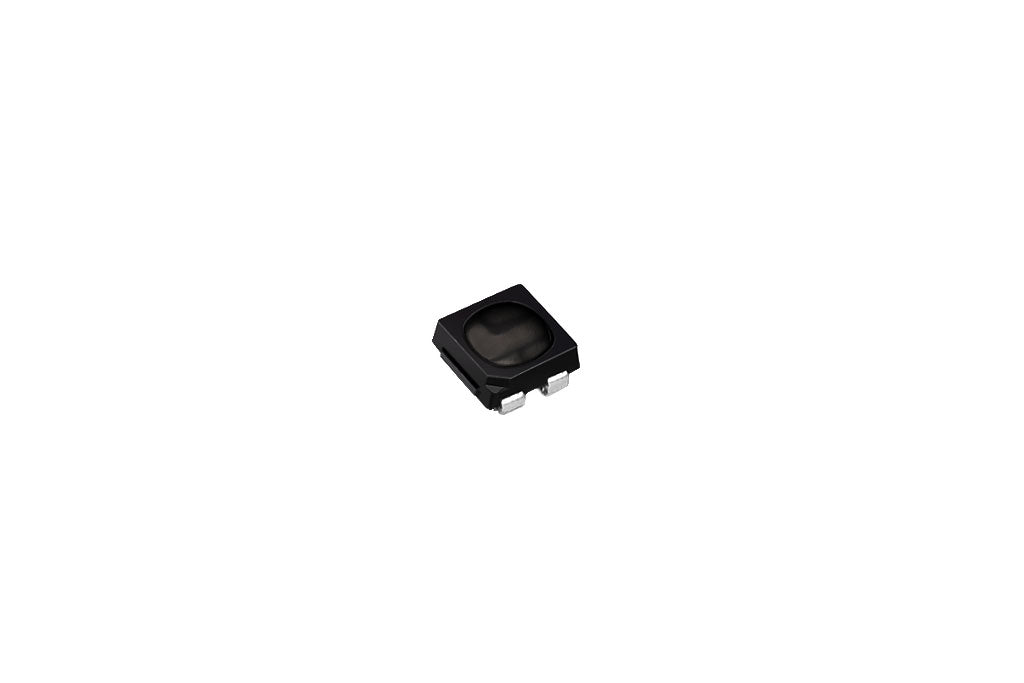

SMD2121

Bracket black
Improved display contrast and high resolution screen visuals
Colloid blackening
Light more softer, contrast more higher.
Matt surface
Effectively inhibit reflex and better viewing.

SMD1515

Bracket black
Improved display contrast and high resolution screen visuals
Colloid blackening
Light more softer, contrast more higher.
Matt surface
Effectively inhibit reflex and better viewing.

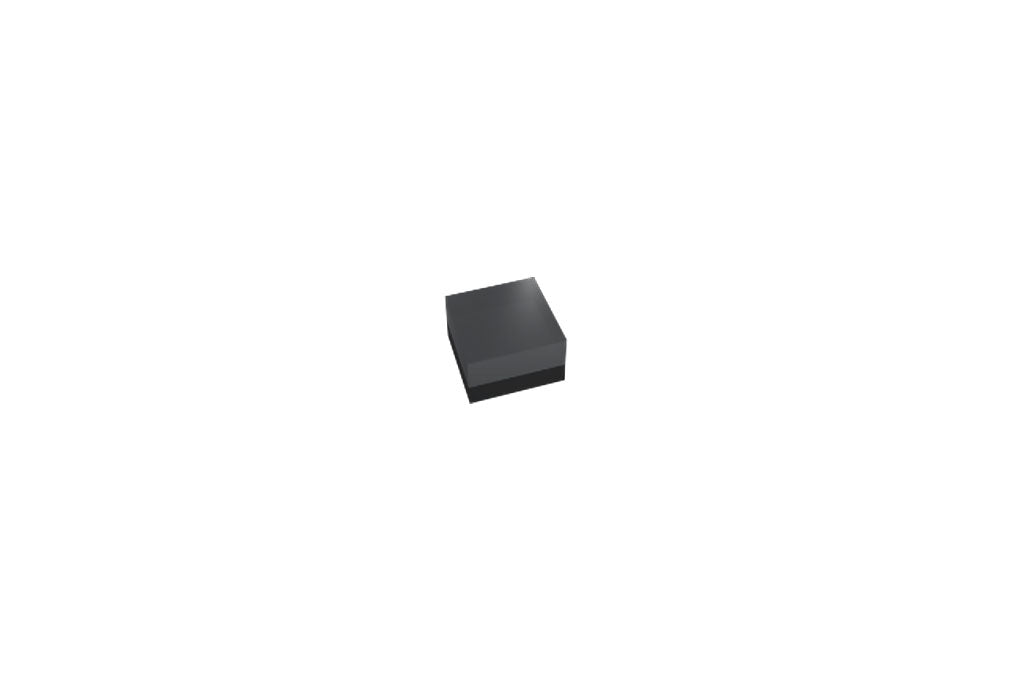

SMD1010

High air tightness
The Hummingbird series, avoid the moisture into the channel , completely eliminate moisture enter in case of the light failure and current leakage etc.
Easy welding
The pad area is neat and easy welding, avoid lamp dim brightness and failure caused by false soldering. Solved and improved the materials drop rate on machine process.
High thermal conductive
Using conductive metal-filled technology , the thermal conductivity is 27 times higher than traditional one, less light decay, more longer life span.
