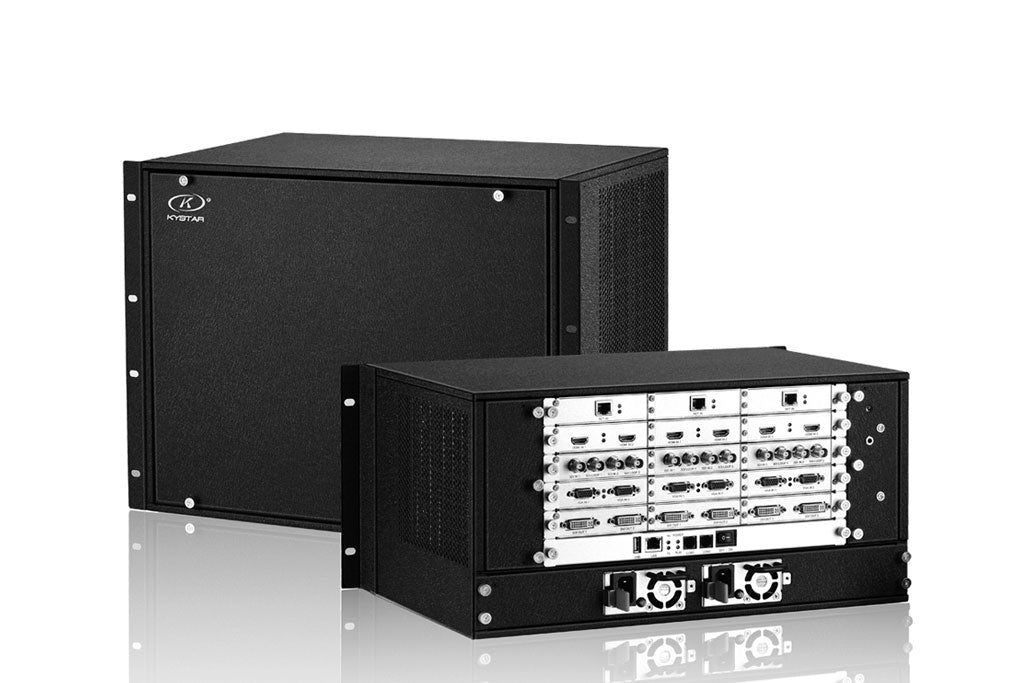

Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform

Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform

Regular price $3,650.00 USD
Regular price $5,000.00 USD Sale price $3,650.00 USD
Sale Sold out
Shipping calculated at checkout.

Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform

KS9000, as a high performance multi-picture mosaic processor specially designed for LED display, can easily drive super large resolution LED displays and provide multiple superior functions covering multi-picture processing, image-text caption overly, seamless scene and signal calling.Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform
● LED Multi-screen mosaic process, allowing free splicing, trans-conductance, overlay, roam and zoom.
● Unlimited screens for a single output, realizing free display of all input signals.
● Custom resolution, single output perfect display horizontal maximum 4000 pixels, vertical maximum 2000 pixels.
● CrossInt mosaic processing technology, effectively eliminating mosaic dislocation and desynchronization.
● Flexible board design with a single board supporting blending of diversified signals.
● Seamless switch between channel signals or even entire template plans.
● Support up to 200 modes and overlay of multiple image-text captions.
● Support HD base map and allowing source materials to be prestored in the equipment.
● Support input signal character overlay, realizing signal mark easily.
● Based on FPGA array, pure hardware architecture, no system crash risk, and 24*365 not-stop operation.

Outstanding Windowing Capability

Multi-picture Layout
Common mosaic processors limit the number of screens for a single output.
Any output channel of KS9000 can display all input sources with unlimited number of image displays in a single output and all signals can be overlaid freely.
Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform
Pre-monitoring of all signals by a single monitor easily, with perfect collaboration between large and small screens.Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform

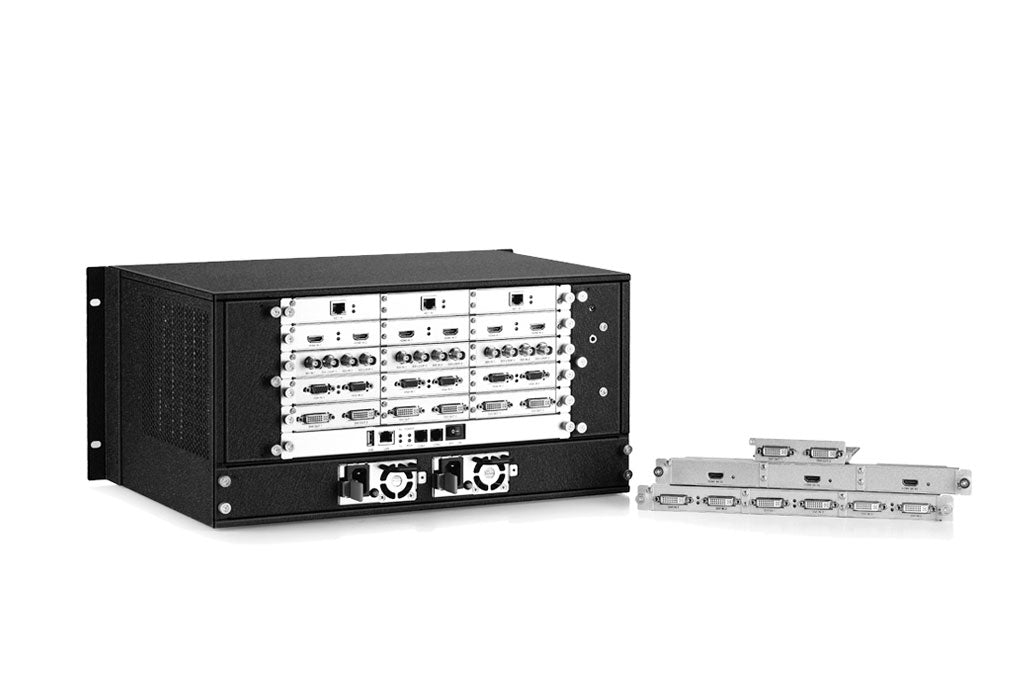

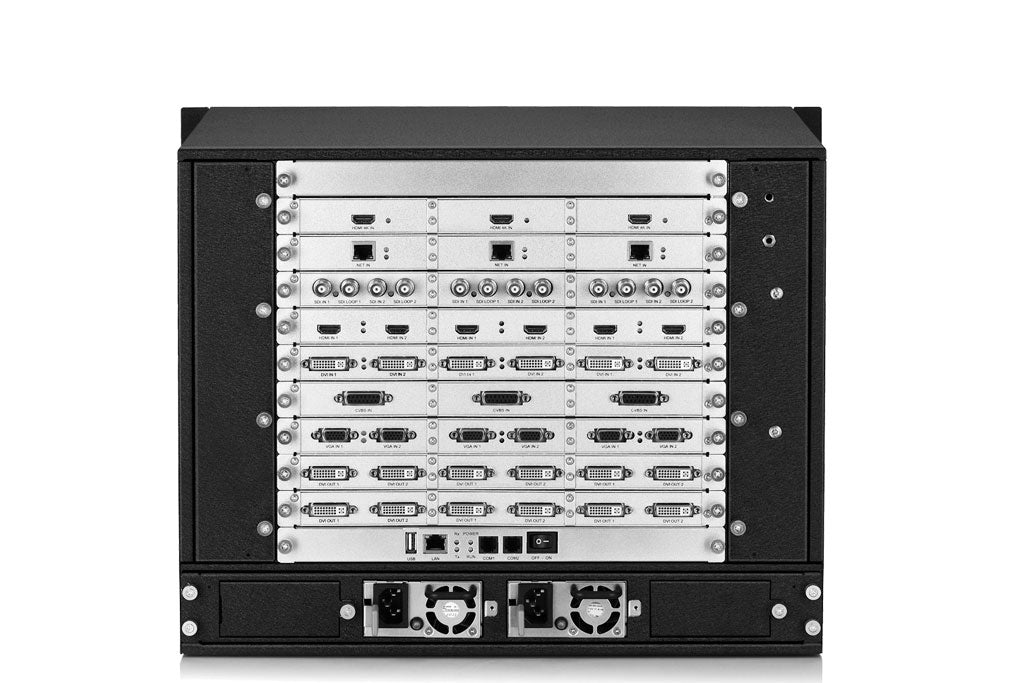

Flexible Board Design

Mixed Input Board
KS9000 adopts board design; users can change board by yourself. Moreover, each input board of KS9000 is not subject to single signal. so users can choose different type signals which can be integrated in one input board. It improves the configuration of the product effectively.Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform
Multi-power Redundancy
KS9000 supports multi-power redundancy, with up to 4 powers equipped, powerfully ensuring its 24 X 365 continuous operation.Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform

4K UHD board and EDID management

UHD Overwhelms the 4K EraKystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform
EDID management: The resolution of LED display is nonstandard normally (e.g. 3664*1792).The management function of KS9000 enables users to customize the input and output resolution so as to achieve point to point display.

Perfect Splicing Effect

CrossInt Splicing Technology
The splicing of LED displays is often non-standard, nonuniform or different size ones, which may result in dislocation or out-sync etc. KS9000 adopts CrossInt technology designed for small pixel LED displays and solves these problems easily.Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform

HD Base Map and Image-Text Overlay

Base map and overlay: Ultra HD picture can be preserved in the KS9000 and used as point to point background to enhance the display effect. Moreover, KS9000 supports editable characters and picture overlay, which can be used for adding caption and LOGO etc.Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform
Characters overlay: Characters can be input to each channel of KS9000 and showed on the above of picture. The characters go with the signal switches.Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform

Superior Seamless Switch

Signal and mode seamless switch
The superior switch ability of KS9000 is benefit from the powerful processing engineer. It is not only guarantees the instant seamless switch of the single window, but also enables the instant seamless switch under the layout mode change. There is no black screen, flicker or jam.Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform
Template call: The preset parameters of KS9000 can be saved as different user-defined templates so as to realize quick switch on different scenes.

Convenient WiFi Control

KYSTAR software and WIFI control
KS9000 is configured with WIFI control module. Notebook, tablet PC etc. can be used to make set up and control for the KS9000 by KYSTAR software,which enhance the usability of the product significantly.Kystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform
KSYSTAR Control SoftwareKystar Pyramid KS9000 LED Multi-screen Splicing Processing Platform
