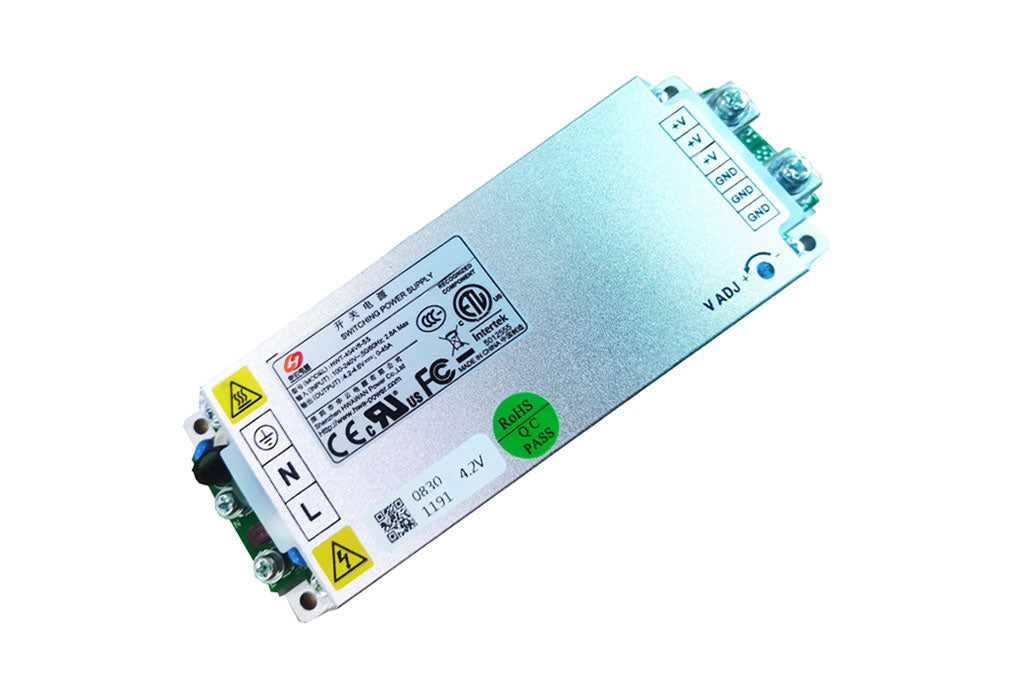

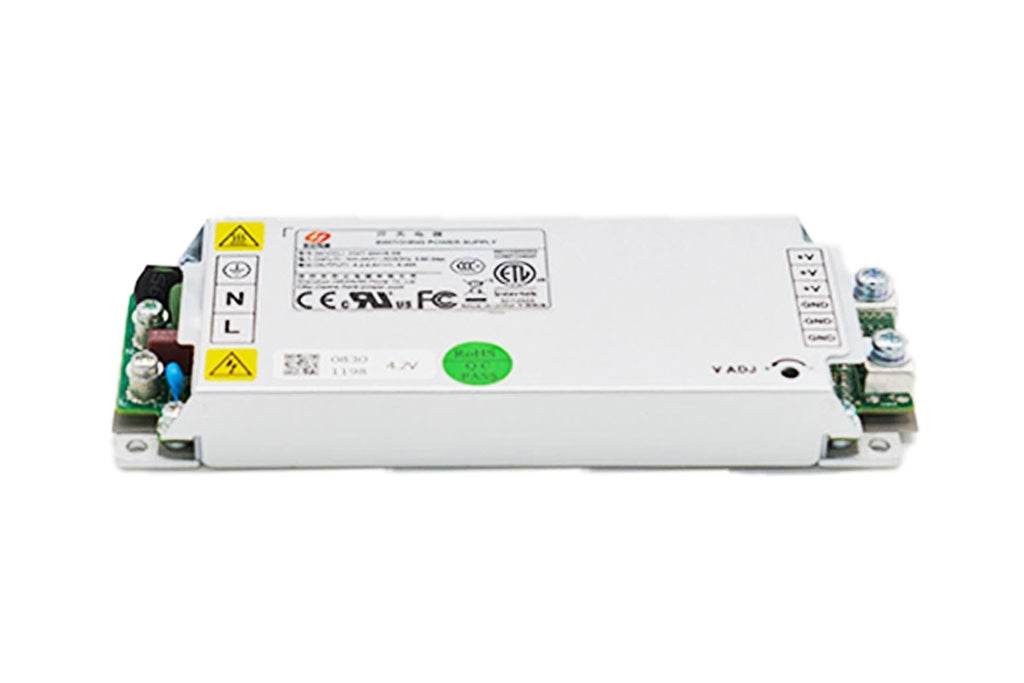

HWAWAN LED Displays Power Supply HWT-454V6-SS Features:
HWT-454V6-SS is an ultra-thin power supply designed for LED display products, rated output of 4.6V / 45 A.The power supply has the following characteristics:
Small size:149mm*55mm*19mm(L*W*H)
Light weight : ≤255g
High efficiency:92%(@Input 230VAC,Output4.6V/45A)
Small Leakage current:1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range:-40~+70℃(+50 ℃ ~ +70 ℃ linear de-rating)
Wide Input voltage range:90VAC~264VAC
Power factor: ≥0.95
Compliance with CE、CB、FCC、ETL、CCC、UL certifications
View More
HWAWAN HWT-454V6-SS LED Power Supply Specification
