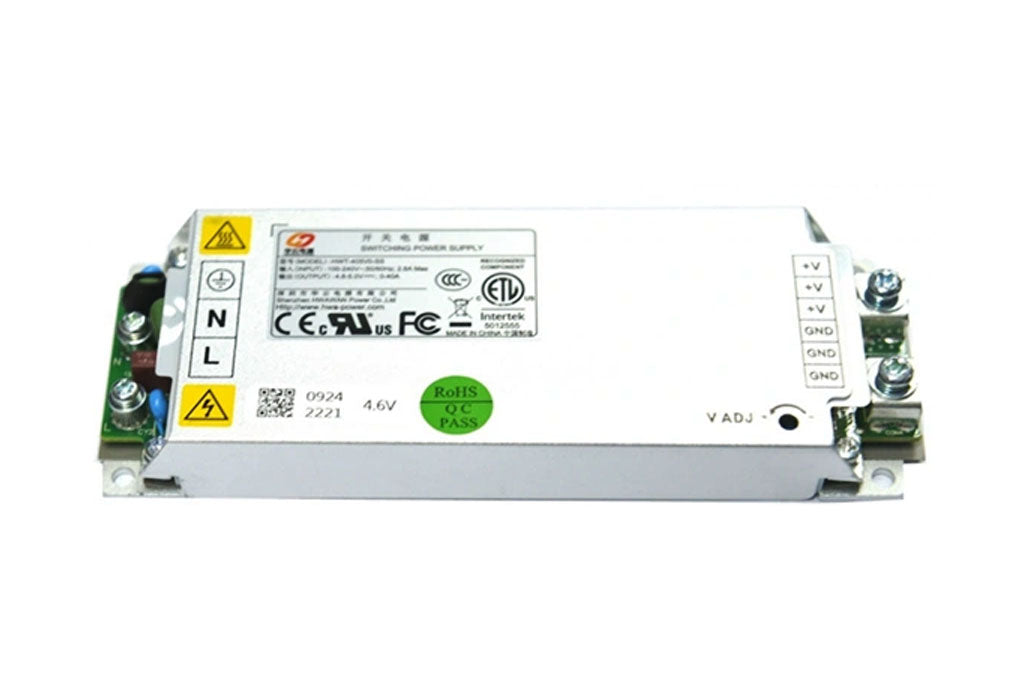

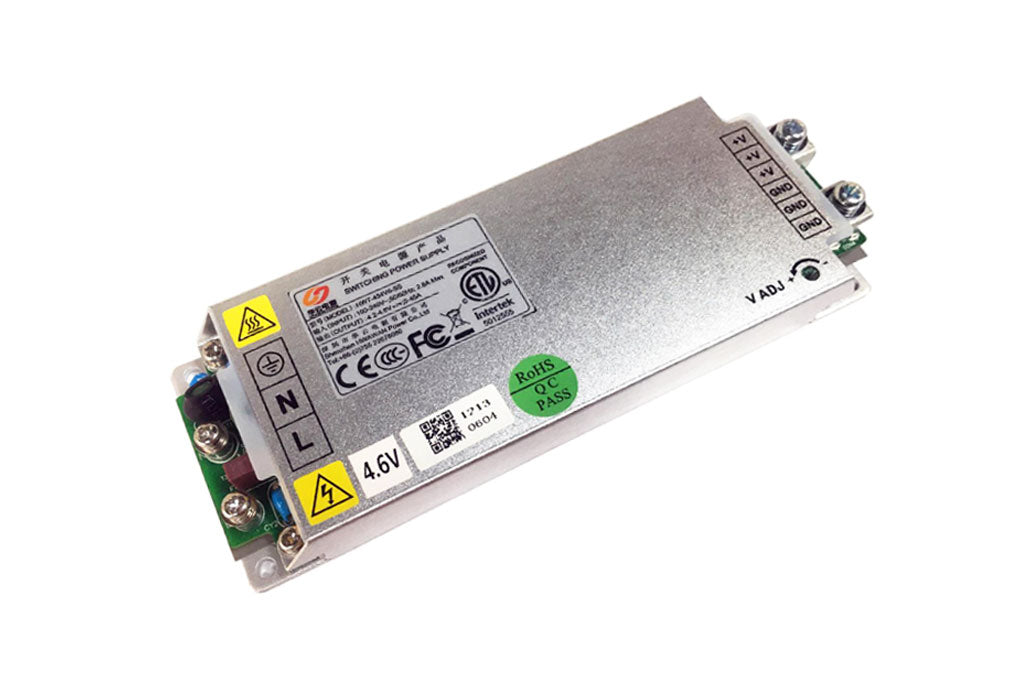

HWAWAN LED Displays Power Supply HWT-405V0-SS
HWAWAN LED Displays Power Supply HWT-405V0-SS
Couldn't load pickup availability
HWAWAN LED Displays Power Supply HWT-405V0-SS Features:
HWT-405V0-SS is an ultra-thin power supply specially designed for LED display products with rated output 5.0V/40A。 The power supply has the following characteristics
Small overall dimension: 149mm * 55mm * 19mm (L * W * H)
Light weight: ≤ 255g
High efficiency: 92% (@ 230VAC input, 5.0V/40A output)
Low leakage current: ＜ 1mA
The output voltage is adjustable from 4.6V to 5.0V
Conducted and radiated interference: EN55032 CLASS A
Wide working temperature range: - 40 ℃~+70 ℃ (+50 ℃~+70 ℃ linear derating, refer to the derating curve)
Input voltage range: 90VAC~264VAC
Power factor: ≥ 0.94
Comply with CE, FCC, ETL, CCC and UL. CB certification
View More
HWAWAN HWT-405V0-SS LED Power Supply Specification
