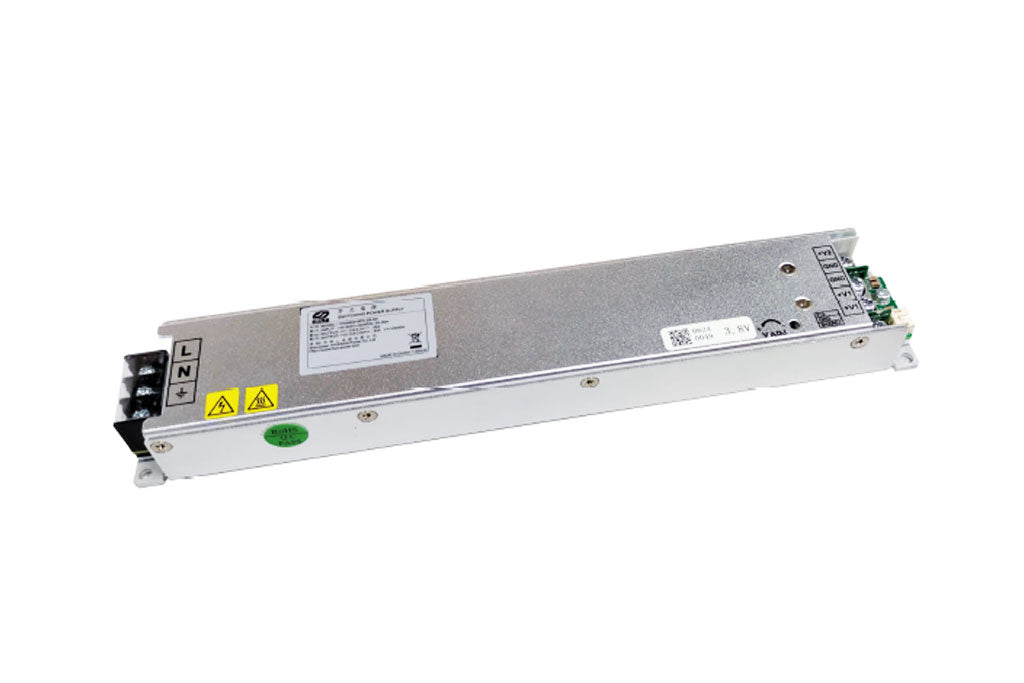

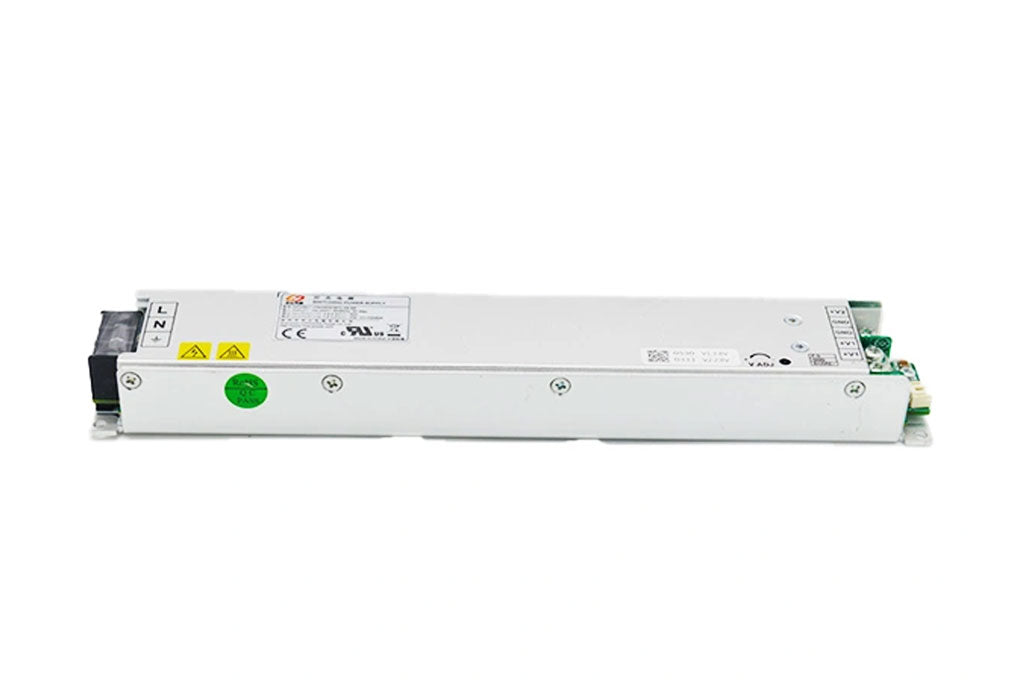

HWAWAN LED Displays Power Supply HWA903V8FC-2S-SS

HWAWAN LED Displays Power Supply HWA903V8FC-2S-SS

Regular price $55.00 USD
Regular price $80.00 USD Sale price $55.00 USD
Sale Sold out
Shipping calculated at checkout.

HWAWAN LED Displays Power Supply HWA903V8FC-2S-SS Features:
HWA903V8FC-2S-SS is a High-efficiency power supply with dual outputs,Rated output:①3.8V/55A, 2.8V/35A,②3.8V/45A, 2.8V/45A,designed for LED display products. The power supply has the following characteristics:

The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the power supply
Small size:260mm*46mm*26.3mm(L*W*H)
Light weight : ≤570g
High efficiency:89%(@Input: 230VAC, Outputs: full load )
Small Leakage current:<1mA
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 2.8V to 3.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range:-40~+70℃(+50℃ ~ +70℃ linear de-rated)
Wide Input voltage range:90VAC~264VAC
Power factor: ≥0.95
Compliance with UL, CE,CB certifications
