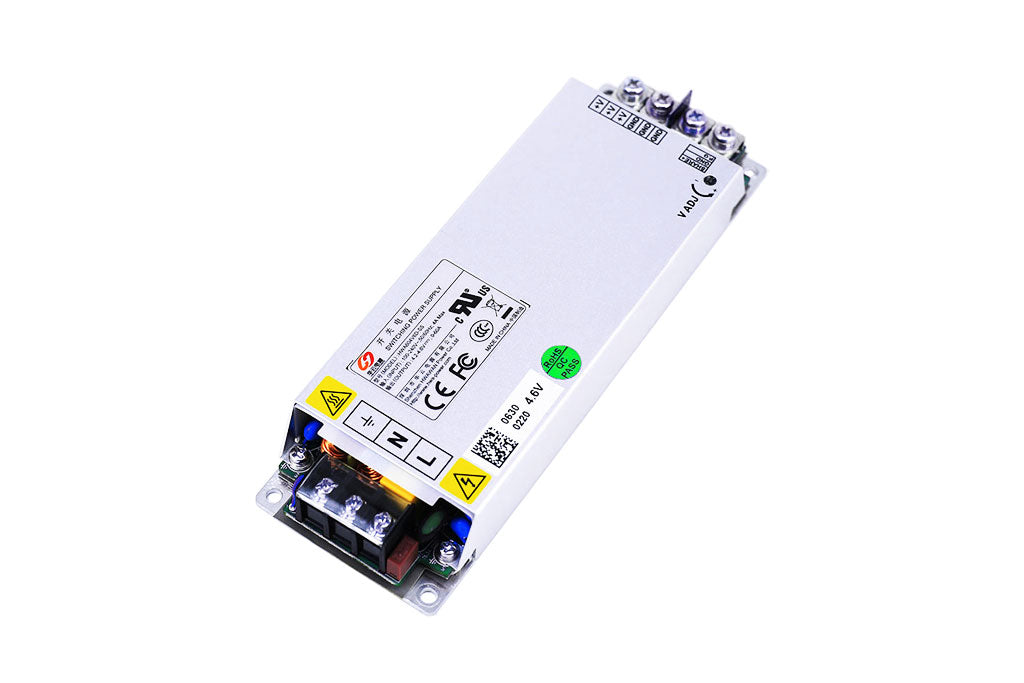

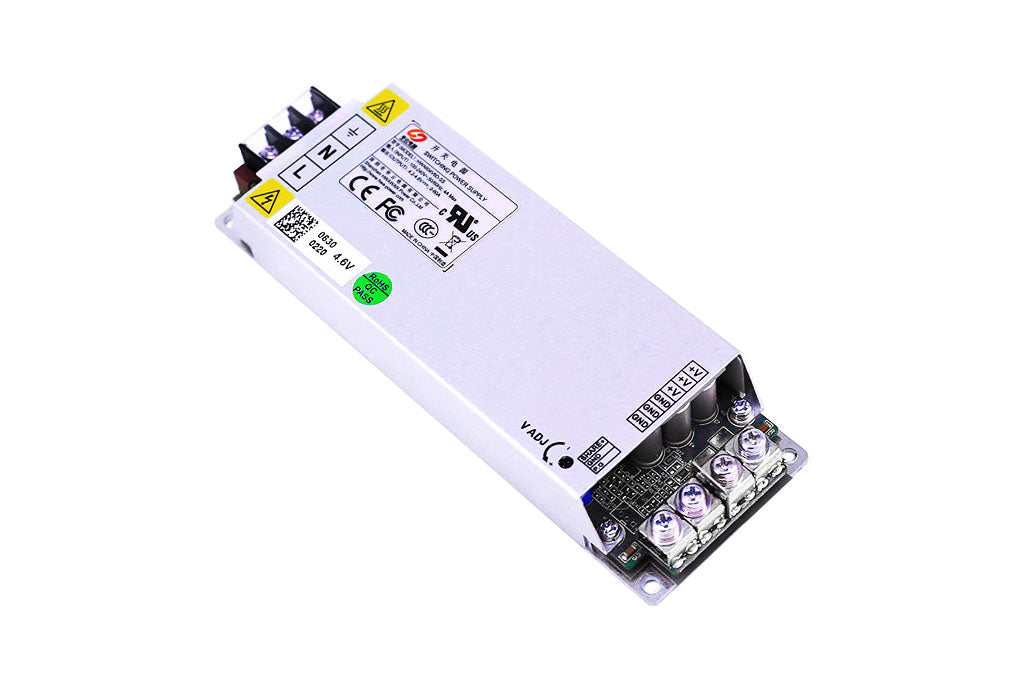

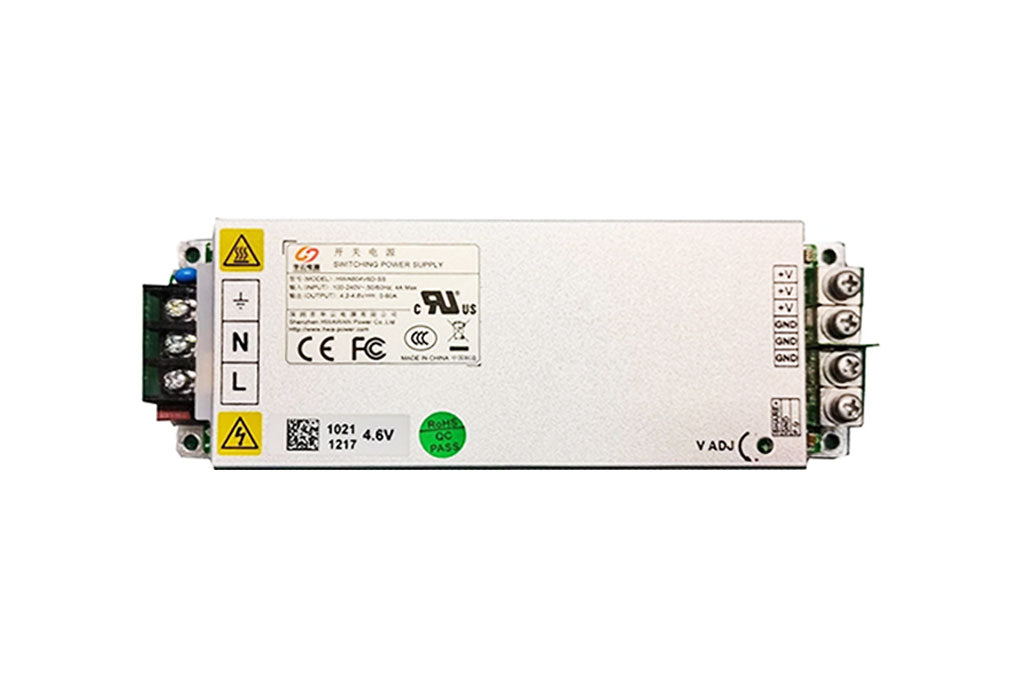

HWAWAN LED Displays Power Supply HWA604V6D-SS

HWAWAN LED Displays Power Supply HWA604V6D-SS Features:

HWA604V6D-SS is a High-efficiency power supply with a rated output of 4.6V / 60 A, designed for LED display products. The power supply has the following characteristics:

Small size：167mm*55mm*26mm(L*W*H)
Light weight : ≤350g
High efficiency：91.5% Max
Small Leakage current：<1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.94
Compliance with UL, CE, CCC, FCC, CB certifications

View More
HWAWAN HWA604V6D-SS LED Power Supply Specification
