Huidu

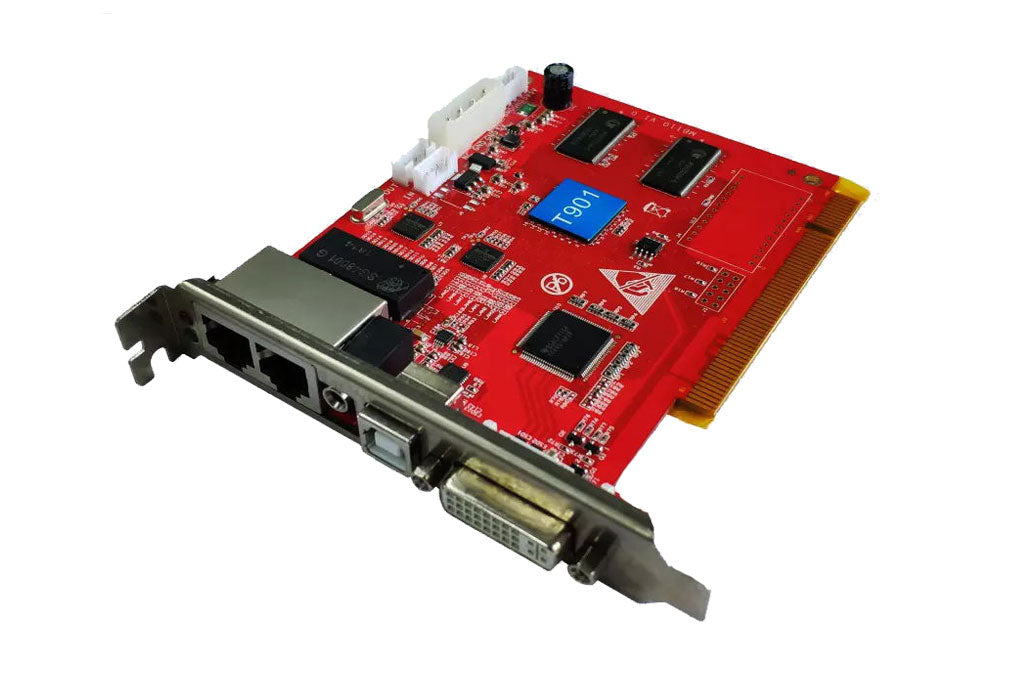

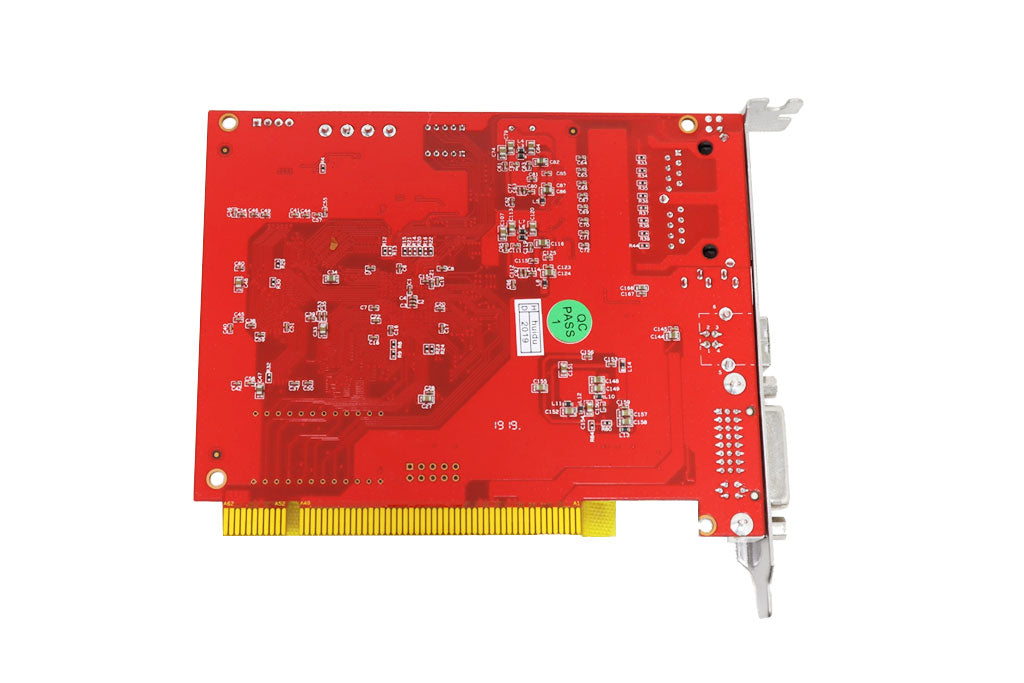

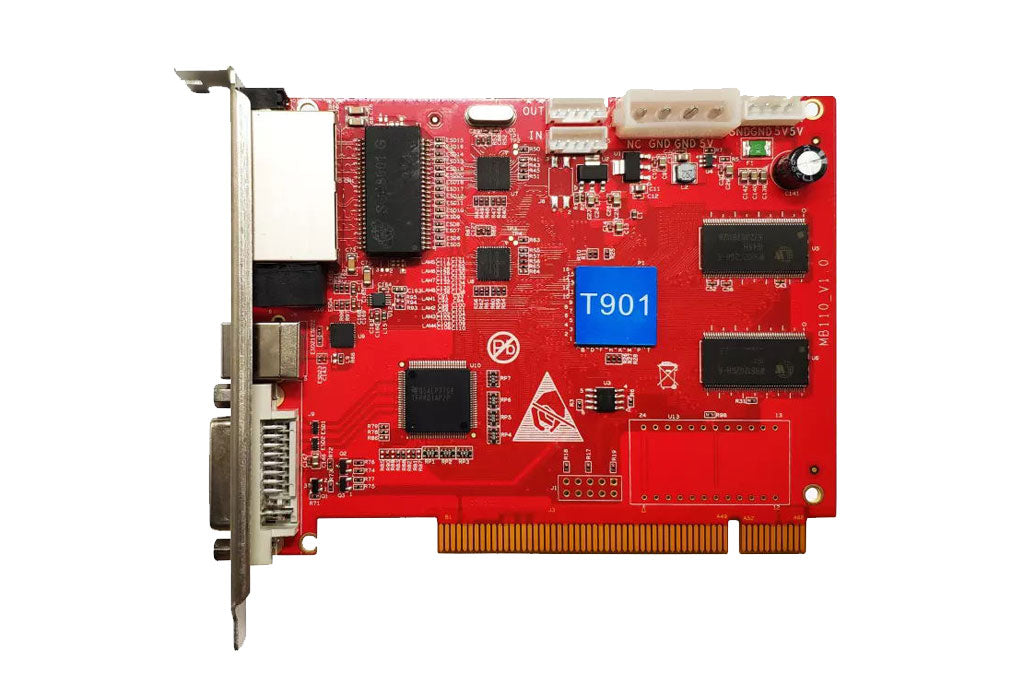

Huidu LED Display Controller HD-T901 LED Sending Card

Huidu LED Display Controller HD-T901 LED Sending Card

Regular price $78.00 USD
Regular price $150.00 USD Sale price $78.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Huidu HD-T901 is a synchronous sending box with one DVI signal input, 2 Gigabit network, the maximum load capacity is 1.3 million pixels, widest 3840 pixels, highest 2048 pixels, support multiple device splicing control LED screen.

  • 1. Support 1~64 scan, compatible with indoor and outdoor full color and single color module.
  • 2. Control range: 1.3 million pixels, the widest 3840 (need video processor), and the highest 2048.
  • 3. One DVI video input.
  • 4. Supports up to 65536 grayscale level.
  • 5. Support cascading with serial port to configure multiple sending cards, support sending card cascade to control screen in high resolution.

Huidu HD-T901 Synchronous Sending Card Parameters:

Function Parameters
Module type Compatible with indoor and outdoor full   color and single color module;



Support PWM   chips and conventional chip

scanning method Supports   any scanning method from static to 1/64 scan
Control range 1.3 million pixels (1280*1024@60Hz)



Note:width more than1920 pixels, it need used with video processor.

Grayscale Support   0-65536 level adjustable
Program update DVI   synchronous display
Temperature of working environment -20℃-80℃
interface Input: 5V power supply terminal, DVIx1, USB 2.0   x1, PCI finger x1, serial cascade x1, Audio x1



Output: 1000M RJ45 x2, serial for cascadingx1

Power 5W

Huidu HD-T901 Synchronous Sending Card Connection Diagram:

Upgraded programs by laptops, mobile phones with Wi-Fi connection or use U-disk for upgrade programs.

Huidu HD-T901 Synchronous Sending Card Connection DiagramHuidu HD-T901 Synchronous Sending Card Connection Diagram
