Huidu R Series LED Receiving Card HD-R708 R712 R716 LED Display Controller

Huidu R Series LED Receiving Card HD-R708 R712 R716 LED Display Controller

$12.50 USD
$45.00 USD $12.50 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

HUB75E Port Receiving Card HD-R712
R712 is an LED display receiving card that supports both synchronous and asynchronous control system, no need HUB adapter board. It is equipped with 12*HUB75E interface onboard, with a good stability, the maximum loading capacity is 131,072 pixels.

  • 1. Integrated with 12 lines HUB75E port
  • 2. Ultra loading capacity, conventional chip recommended 128*768 pixels, PWM chip recommended 256*512 pixels
  • 3. Support data group exchange and data group offset setting
  • 4. Support any scan module within static~1/128 scan
  • 5. Support multi-card cascade, arbitrary order
  • 6. Support data group exchange and data group offset setting

      HUB75E Port Receiving Card HD-R712 Dimensions:
      HUB75E Port Receiving Card HD-R712 Dimensions
      HUB75E Port Receiving Card HD-R712 Connection Method:
      HUB75E Port Receiving Card HD-R712

      Features Parameters
      With   sending card Dual-mode   sending box, Asynchronous sending card, Synchronous sending card, Video   processor of VP series.
      Module type Compatible with all common IC module, supported most PWM IC module.
      Scan mode Supports any scanning   method from static to 1/128 scan
      Communication method Gigabit Ethernet
      Control range Maximum loading capacity: 262,144 pixels  (512*512)



      Recommended loading capacity: conventional chip 128*1024 pixels, PWM   chip 256*1024 pixels

      Note: The actual loading capacity is related to the number of HUB   ports/module resolution.
      Multi-card connection Receiving card can be   put in any sequence
      Gray scale 256~65536
      Smart setting A few simple steps to complete the smart settings,   through the screen layout can be set to go with any alignment of the screen   unit board
      Test functions Receiving card integrated screen test function,   Test display brightness uniformity and display module flatness.
      Communication distance Super Cat5, Cat6 network cable within 80 meters
      Port DC 5V Power*2, Gbps Ethernet port*2, HUB75E*12
      Input voltage 4.0V-5.5V
      Power 5W


      HUB75E Port Receiving Card HD-R612
      The R612 is a dedicated receiving card for the module with LS9929/9919 chip.
      It can also be used as a conventional receiving card with a limit control range
      of 128*1024.
      R500(2*HUB50pin), R508(8*HUB75), R512(12*HUB75), R516(16*HUB75), R612(12*HUB75)
      Work with Huidu sending cards Ax,A60x, A30/A30+, Cx5, Cx0,A3, T901/T901B, VP210, VP410.
      Parameter Comparison Receiving Card HD-R Series

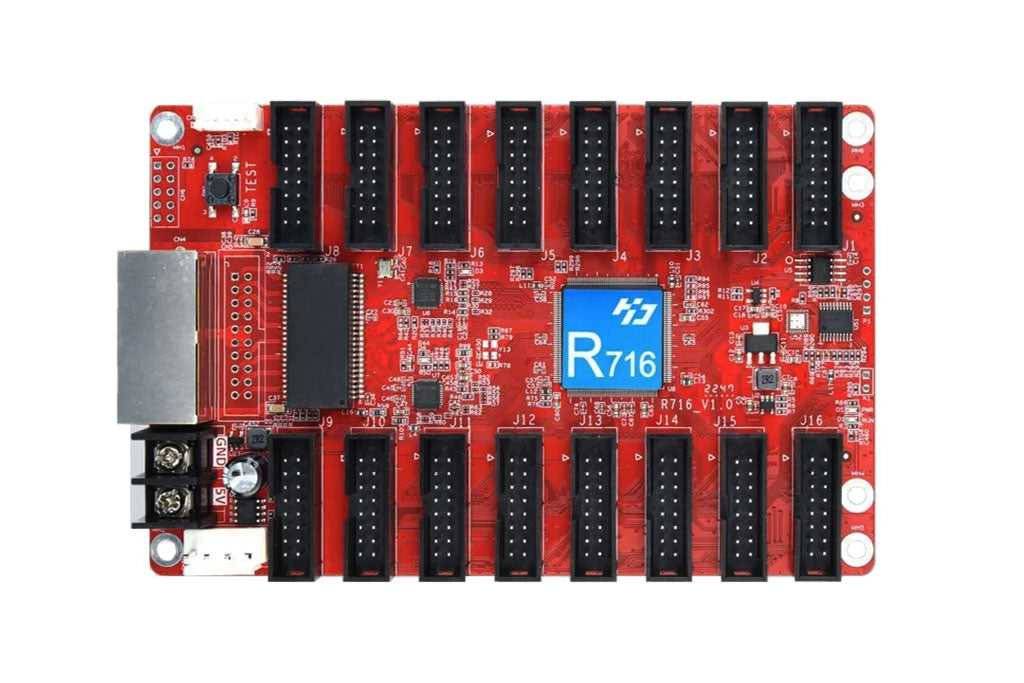

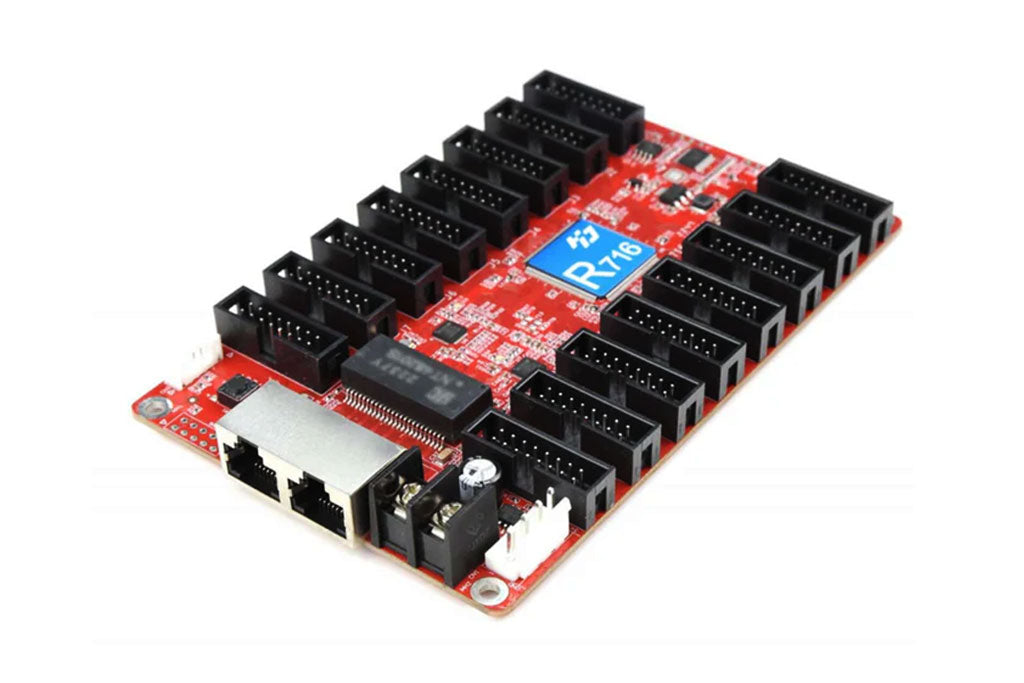

      HUB75E Port Receiving Card HD-R716
      HD-R716 is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 16 lines HUB75E port.

      • Integrated with 16 lines HUB75E port
      • Support regular chips and PWM chips
      • Support static module, any scan mode within 2~64 scan
      • Support data group exchange and data group offset setting
      • Smart settings, draw points, trace points, etc.
      • Support multi-card cascade, arbitrary order
      • Recommended loading range: 128*768/ 128*1024

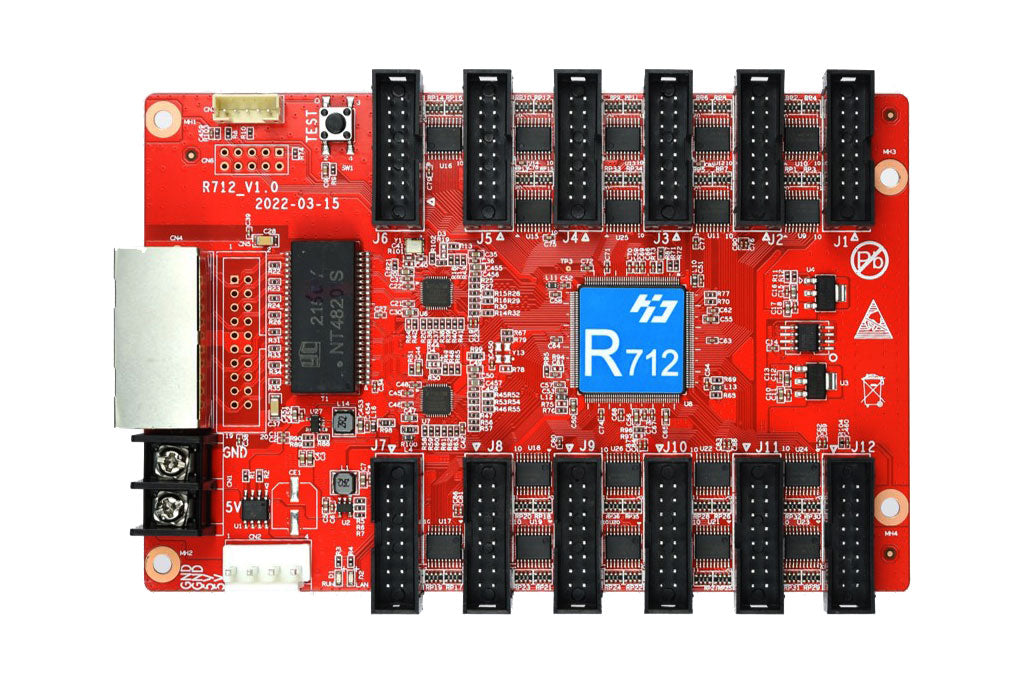

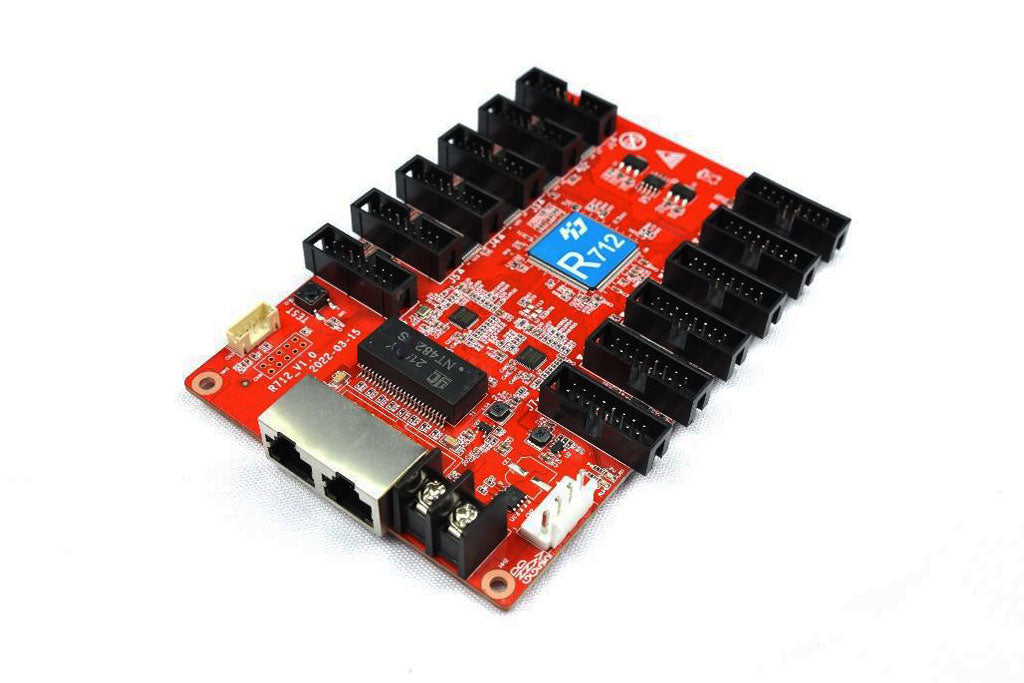

      HUB75E Port Receiving Card HD-R712
      HD-R712 is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 12 lines HUB75E port.

      • Integrated with 12 lines HUB75E port
      • Support regular chips and PWM chips
      • Support static module, any scan mode within 2~64 scan
      • Support data group exchange and data group offset setting
      • Smart settings, draw points, trace points, etc.
      • Support multi-card cascade, arbitrary order
      • Recommended loading range: 256*512/ 128*768

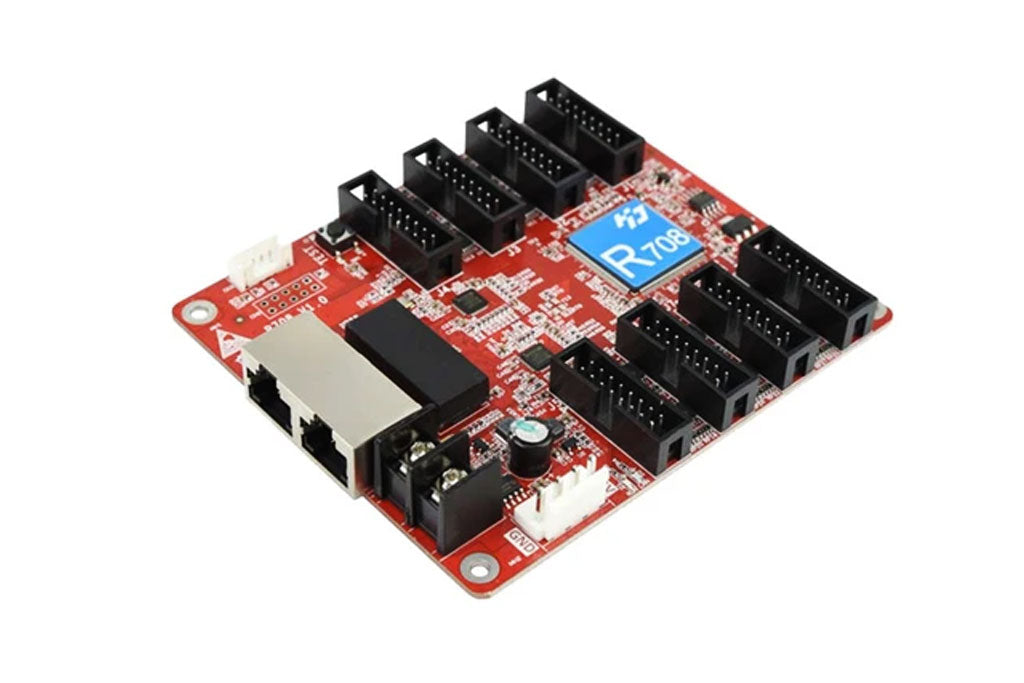

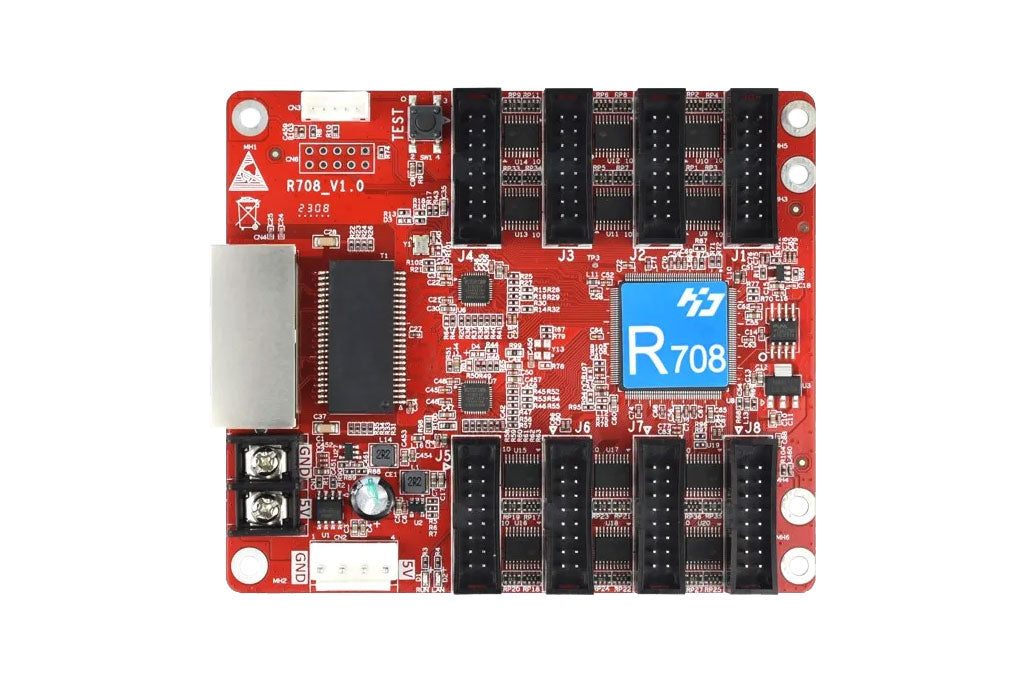

      HUB75E Port Receiving Card HD-R708
      HD-R708 is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 8 lines HUB75E port.

      • Integrated with 8 lines HUB75E port
      • Support regular chips and PWM chips
      • Support static module, any scan mode within 2~64 scan
      • Support data group exchange and data group offset setting
      • Smart settings, draw points, trace points, etc.
      • Support multi-card cascade, arbitrary order
      • Recommended loading range: 128*512


      Further Information:
      HD-R712/R716/R708
      Huidu HD-R712 LED Receiving Card Specification
      Huidu HD-R716 LED Receiving Card Specification
      Huidu HD-R708 LED Receiving Card Specification
