Huidu

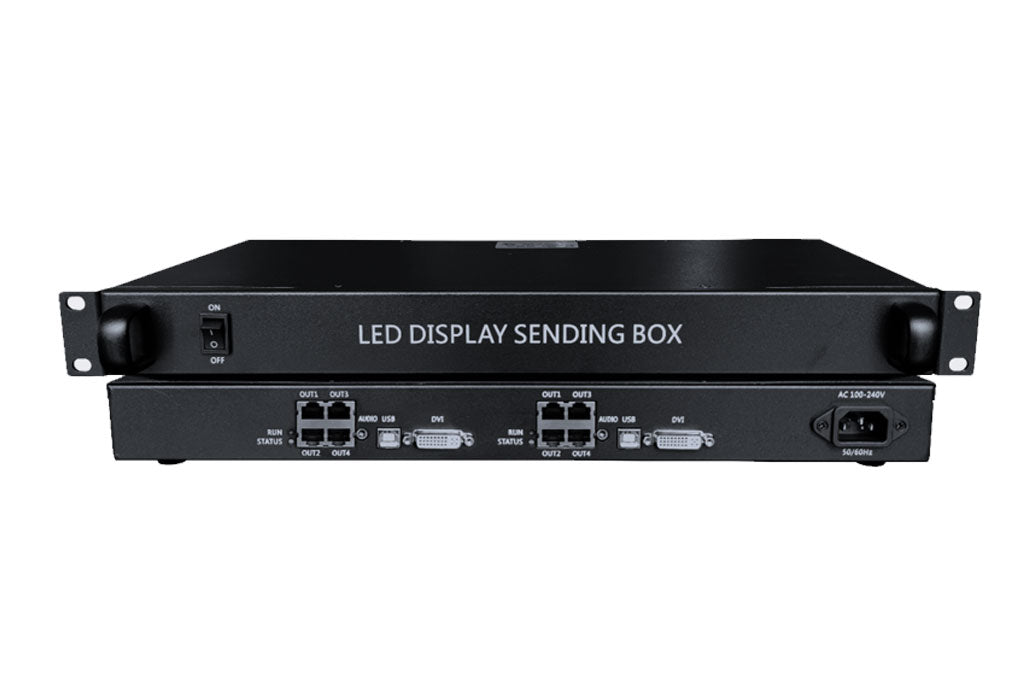

Huidu HD-T902x1 T902x2 LED Sending Box LED Display Screen Controller

Huidu HD-T902x1 T902x2 LED Sending Box LED Display Screen Controller

Regular price $190.00 USD
Regular price $300.00 USD Sale price $190.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Synchronous Sending Box HD-T902x2

HD-T902x2 is a synchronous sending box with one DVI signal input, 8 Gigabit network, the maximum load capacity is 5.2 million pixels, widest 7680 pixels, highest 4096 pixels, support multiple device splicing control LED screen .

  • 1. Support 2 dual channel stereo input;
  • 2. Four DVI video signal input;
  • 3. USB-B control interface;
  • 4. Cascading multiple units control super LED screen;
  • 5. Built-in 110V~220V AC to 5V DC transformer;
  • 6. 4 network port output, maximum load capacity 5.2 million pixels.

Huidu HD T902x2 Synchronous Sending Box Connection Diagram:

Synchronous Sending Box HD-T902x2

Huidu HD-T902x2 Synchronous Sending Box Parameters:

Function Parameters
Control range Connect with video processor maximum control 5.2 million pixels (2560*2048@60Hz)



Widest 7680,   Highest 4096

Program update DVI synchronous display
Audio output Standard 3.5mm interface dual channel   stereo input
Audio input Need to cooperate with multi-function card   to achieve audio output
Communication type USB-B type interface, Gigabit network port
Play box interface Input: AC 110~220V 50/60Hz   power terminal *1, DVI *2, USB 2.0 *2, dual channel Audio* 2



Output: 1000M RJ45 *8

Operating Voltage 4.5V~5.5V,Input voltage AC 110~220V
Debugging software HDSet
Player software HD Show(not necessary)
Power 20W


Synchronous Sending Box HD-T902x1

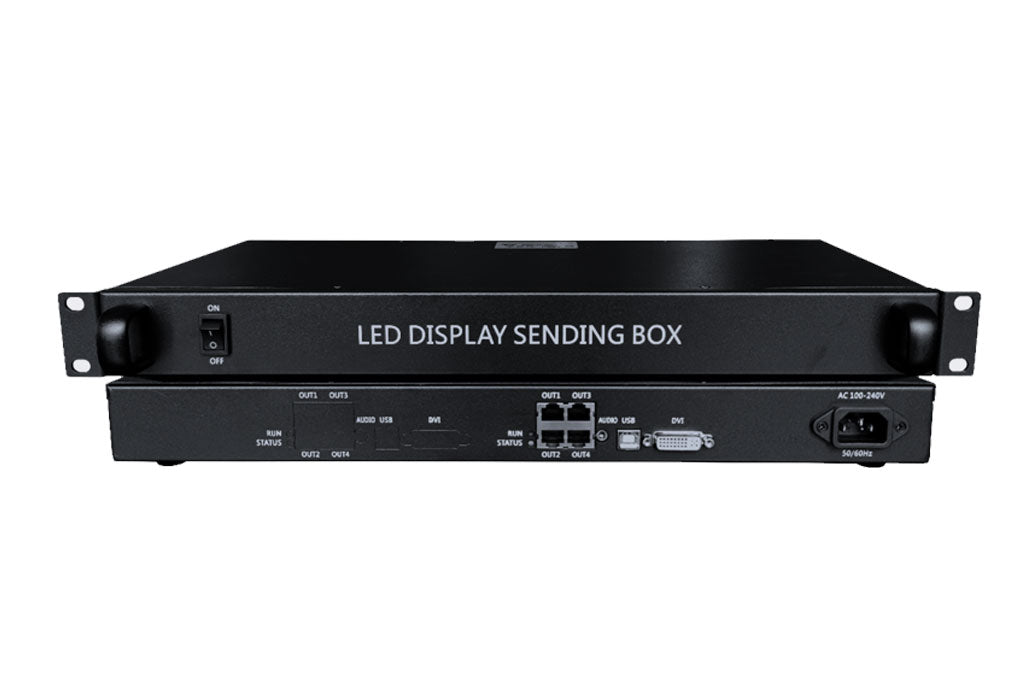

HD-T902x1 is a synchronous sending box with one DVI signal input, 4 Gigabit network, the maximum load capacity is 2.6 million pixels, widest 3840 pixels, highest 2048 pixels, support multiple device splicing control LED screen .
  • 1. Support 1 dual channel stereo input;
  • 2. Two DVI video signal input;
  • 3. USB-B control interface;
  • 4. Cascading multiple units control super LED screen;
  • 5. Built-in 110V~220V AC to 5V DC transformer;
  • 6. 4 network port output, maximum load capacity 5.2 million pixels.

Further Information:
Huidu HD-T902x2
Huidu HD-T902x2 LED Controller Specification

Huidu HD-T902x1
Huidu HD-T902x1 LED Controller Specification
