Huidu HD-T16 T08 LED Sending Box LED Display Screen Controller

Huidu HD-T16 T08 LED Sending Box LED Display Screen Controller

$270.00 USD
$600.00 USD $270.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

Synchronous Sending Box HD-T16

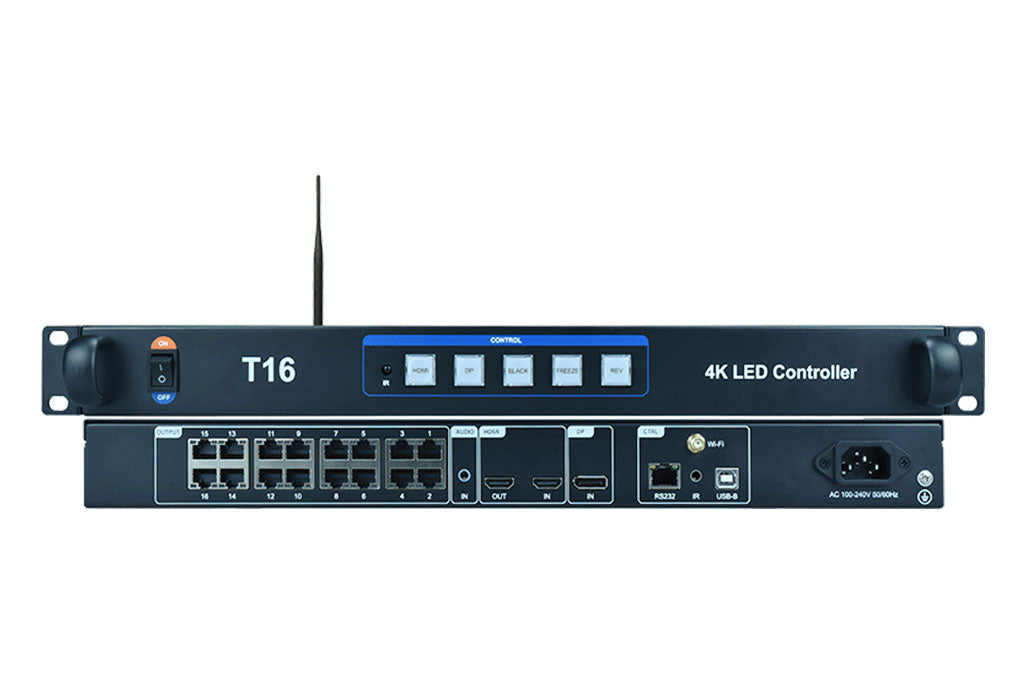

HD-T16 is a synchronous sending box with one DVI signal input, 16 Gigabit network, the maximum load capacity is 8.84 million pixels, widest 8192 pixels, highest 4096 pixels, support multiple device splicing control LED screen .

  • 1. Support 2 dual channel stereo input；
  • 2. Four DVI video signal input；
  • 3. USB-B control interface；
  • 4. Cascading multiple units control super LED screen；
  • 5. Built-in 110V~220V AC to 5V DC transformer；
  • 6. 16 network port output, maximum load capacity 8.84 million pixels.

Huidu HD T16 Synchronous Sending Box Connection Diagram：

Synchronous Sending Box HD-T902x2

Huidu HD-T16 Synchronous Sending Box Parameters:

Function Parameters
Control range Connect with video processor maximum control 8.84 million pixels (2560*2048@60Hz)



Widest 8192,   Highest 4096
Program update DVI synchronous display
Audio output Standard 3.5mm interface dual channel   stereo input
Audio input Need to cooperate with multi-function card   to achieve audio output
Communication type USB-B type interface, Gigabit network port
Play box interface Input: AC 110~220V 50/60Hz   power terminal *1, DVI *2, USB 2.0 *2, dual channel Audio* 2



Output: 1000M RJ45 *16
Operating Voltage 4.5V~5.5V，Input voltage AC 110~220V
Debugging software HDSet
Player software HD Show（not necessary）
Power 20W


Synchronous Sending Box HD-T08

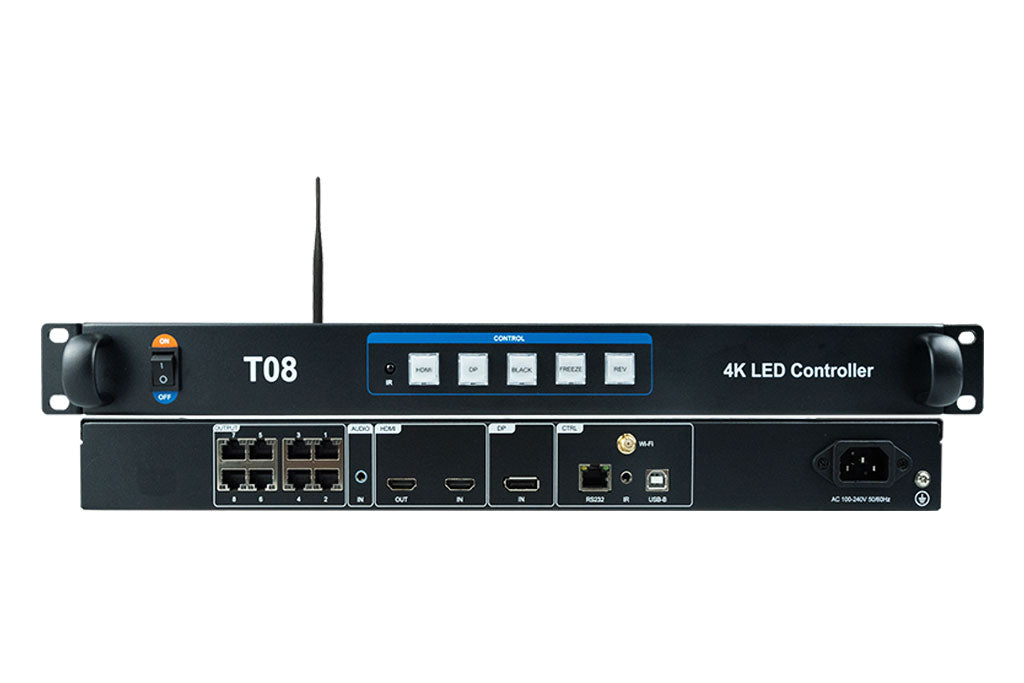

HD-T08 is a synchronous sending box with one DVI signal input, 8 Gigabit network, the maximum load capacity is 5.2 million pixels, widest 8192 pixels, highest 2048 pixels, support multiple device splicing control LED screen .
  • 1. Support 1 dual channel stereo input；
  • 2. Two DVI video signal input；
  • 3. USB-B control interface；
  • 4. Cascading multiple units control super LED screen；
  • 5. Built-in 110V~220V AC to 5V DC transformer；
  • 6. 8 network port output, maximum load capacity 5.2 million pixels.

Further Information:
Huidu HD-T16
Huidu HD-T16 LED Controller Specification
Huidu HD-T08
Huidu HD-T08 LED Controller Specification
