Huidu

Huidu Asynchronous LED Display Controller HD-C16L C08L LED Multimedia Card

Huidu Asynchronous LED Display Controller HD-C16L C08L LED Multimedia Card

Regular price $98.00 USD
Regular price $2,000.00 USD Sale price $98.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number
Small & Medium LED Screen Conttrol Card HD-C16L/C08L
HD-C16L/08L Full Color Asynchronous Controller System is a LED control system that supports mobile APP control, Web remote control and offline play HD Video.

Input:
1. Supports 1 100M communication network port, used for debugging parameters, sending programs and accessing the Internet;
2. Supports 1 USB communication interface, which can be used to update programs and expand capacity;
3. Supports 1 dedicated interface for temperature sensor, 1 dedicated interface for GPS sensor and 1 universal sensor input interface.

Output:
1. The maximum control range is 650,000 pixels, a single card can load 20W pixels, and a cascade can load 65W pixels; the widest discount supports 8192 pixels
Pixels (width>1920 triggers discount), supports up to 1920 pixels;
2. Equipped with 1 Gigabit output network port as standard, which can be directly cascaded to the HD-R series receiving card to control the display;
3. Onboard 12 HUB75E interfaces;
4. 1 channel TRS 3.5mm standard two-channel audio output.

Function:

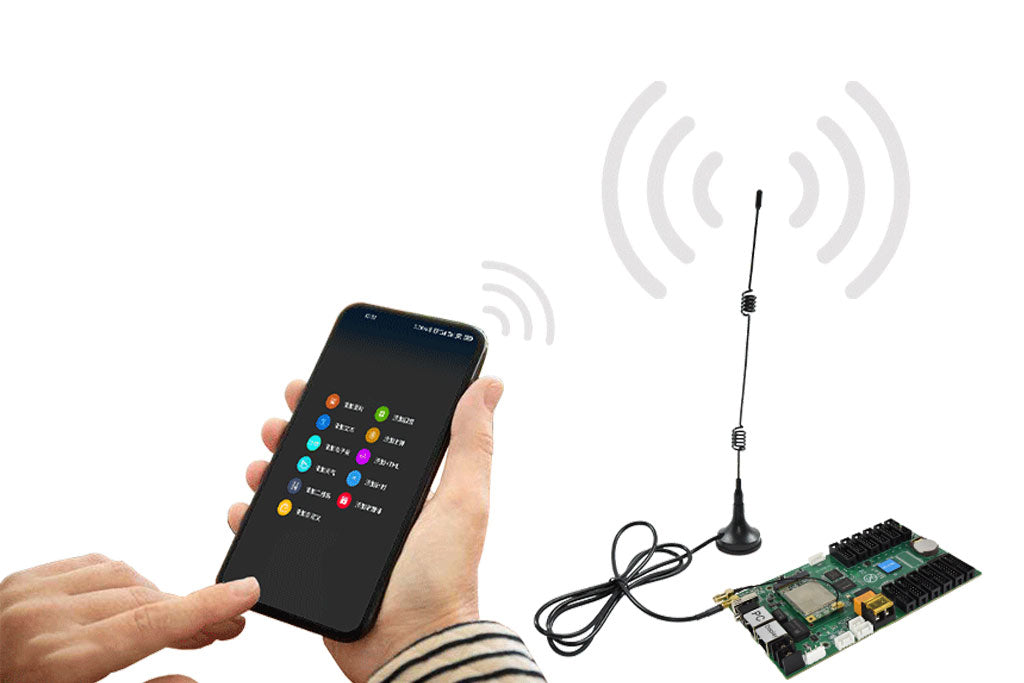

1. Comes standard with 2.4GHz Wi-Fi and supports mobile APP wireless control (supports Wi-Fi-AP, Wi-Fi-STA mode);
2. Onboard 1-way relay can remotely control the power supply;
3. Supports 2-channel video window playback (up to 2-channel 1080P);
4. Support 4G access to Xiaohui Cloud platform to realize remote machine management on the Internet (optional);
5. Support UART communication;
6. Supports 1 channel RS-232 or RS-485 communication (optional).

Huidu HD-C16L/C08L LED Screen Control Card  Control Mode:
  1. Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.
  2. Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.

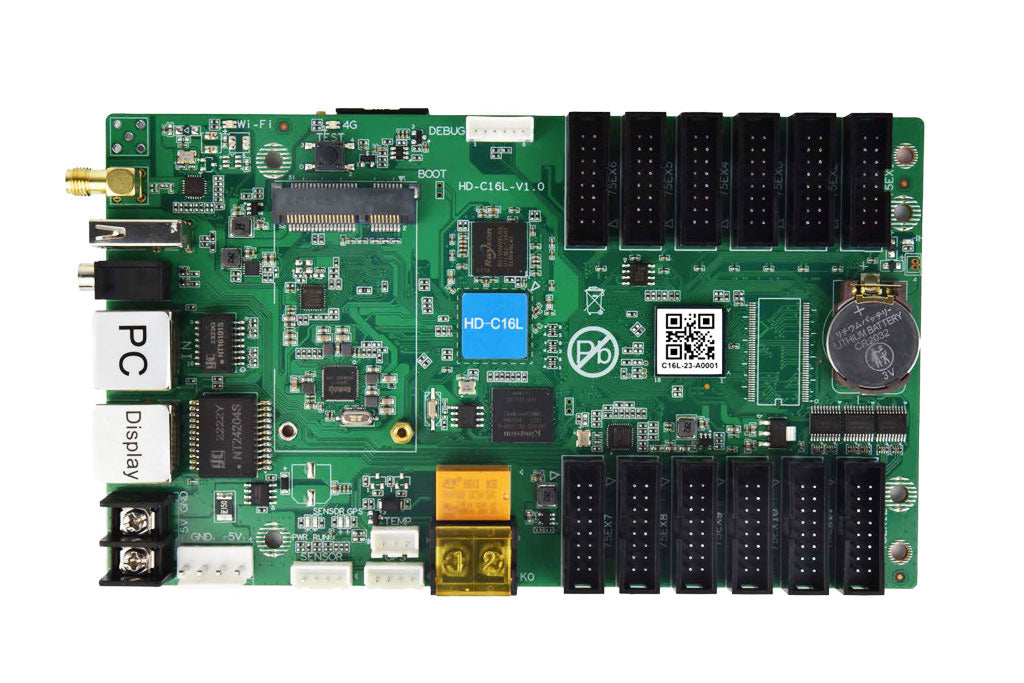

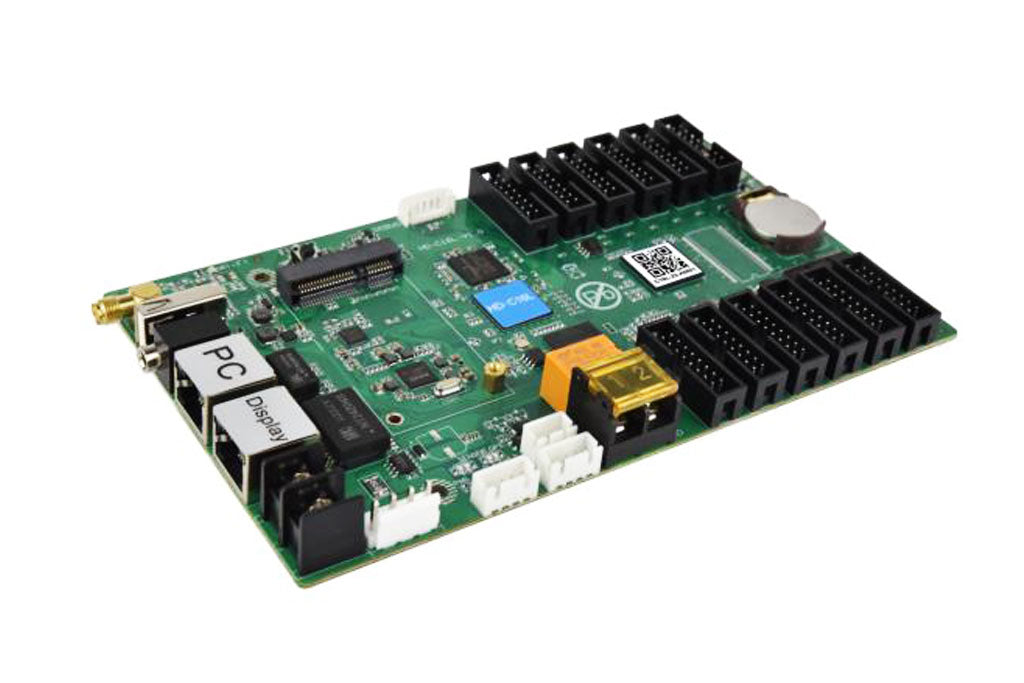

LED Multimedia Card C16L

Loading Capacity :650,000 pixels(1024 * 512), widest 8192, highest 1024
Processing Capacity :4GB storage, Indefinite  expanding of U-disk memory.;
Wi-Fi :√
4G :√(Optional)

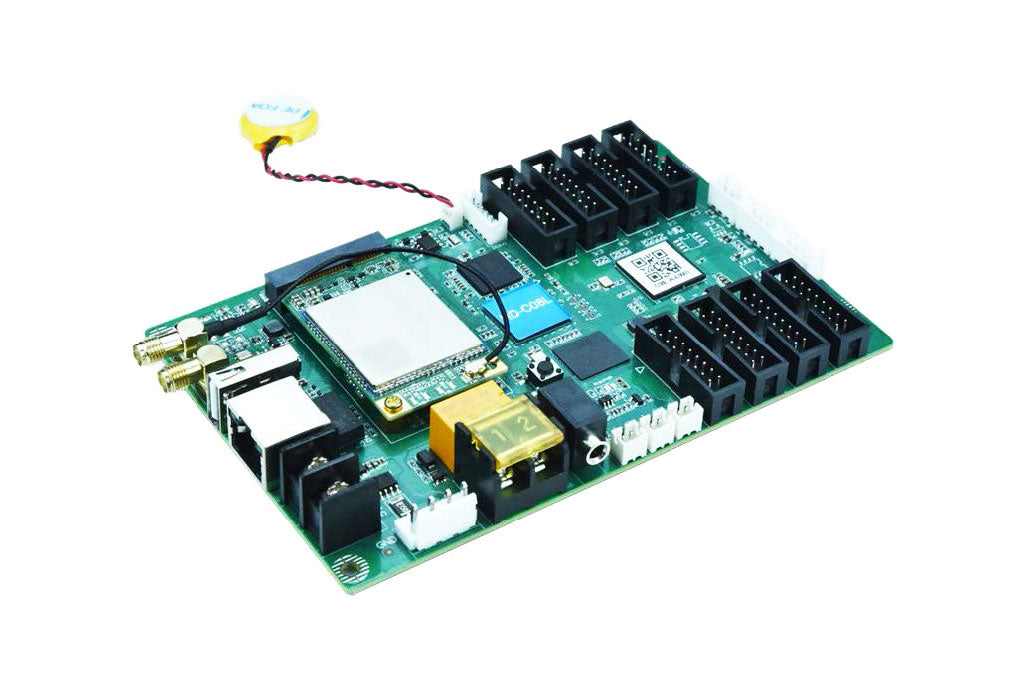

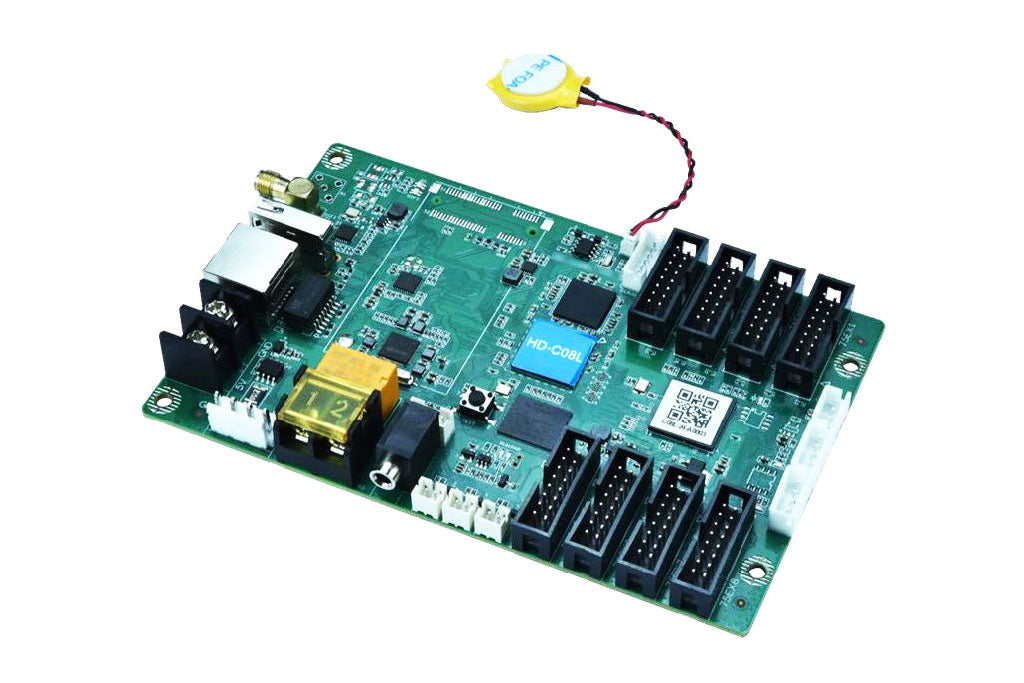

LED Multimedia Card C08L

Loading Capacity :196,608 pixels(384 * 320), widest 8192, highest 512
Processing Capacity :4GB storage, Indefinite expanding of U-disk memory.;
Wi-Fi :√
4G:√(Optional)


Further Information:

Huidu HD-C16L
Huidu HD-C16L LED Controller Specification
Huidu HD-C16L LED Controller User Manual
Huidu HD-C08L
Huidu HD-C08L LED Controller Specification
Huidu HD-C08L LED Controller User Manual
