Huidu 26PIN LED Receiving Card HD-R507T LED Display Controller

Huidu 26PIN LED Receiving Card HD-R507T LED Display Controller

$18.00 USD
$45.00 USD $18.00 USD
Sale Sold out
Shipping calculated at checkout.

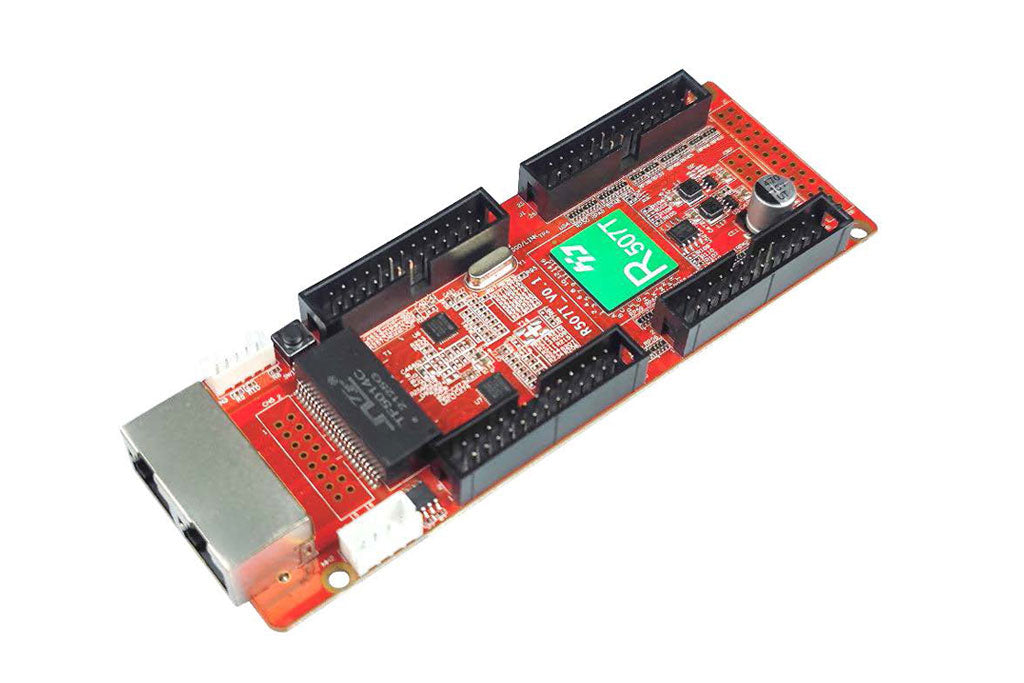

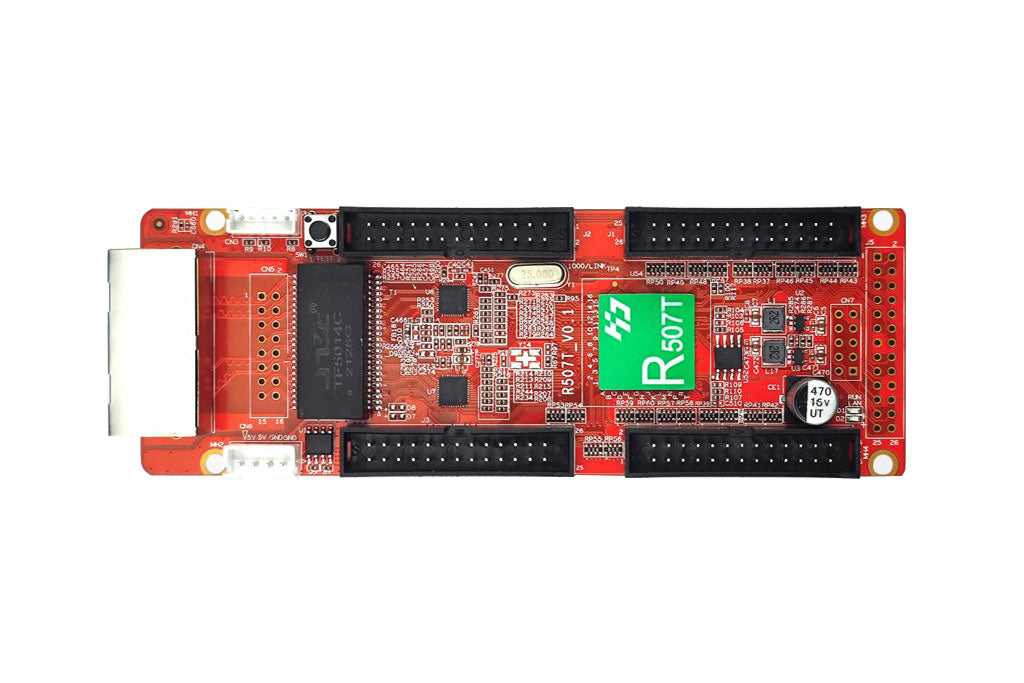

Mini Receiving Card HD-R507T
HD-R507T is a mini receiving card for fine pixel pitch LED screen, it has 4 lines 26 pin HUB ports, support 24 group RGB parallel data. R507T work with asynchronous controller, synchronous controller and all-in-one video processor.

  • Support regular chips and PWM chips
  • Support static module, any scan mode within 2~64 scan
  • Support data group exchange and data group offset setting
  • Support multi-card cascade, arbitrary order
  • The maximum loading range: 128*1024
    Functions Parameters
    With sending card Dual-mode sending box，Asynchronous   sending card, Synchronous sending card, Video processor of VP series.
    Module type Supports transparent screen modules for all normal chips and mainstream   PWM chips.
    Scan Mode Support any scanning method   from static to 1/64, support extraction and empty point setting.
    Communication Gigabit Ethernet port
    Control Range Maximum loading capacity: 131,072 pixels (128*1024)



    Recommend loading width≤128 pixels
    Multiple cards cascaded Receiving   cards can be arbitrarily Sort, synchronized in nanoseconds
    Gray Scale Support   256~65536 (adjustable)
    Smart setting A few   simple steps to complete the smart setting, and the display module can be   matched with any wiring mode through the screen body routing setting.
    Communication distance 80 meters by CAT5 or CAT6 RJ45   Cable
    Port 2 ways of 5V DC power supply, Gigabit   Ethernet*2, 26PIN HUB*4
    Input voltage 4.2V-5.5V
    Power 5W


    Further Information:
    HD-R507T
    Huidu HD-R507T LED Receiving Card Specification
