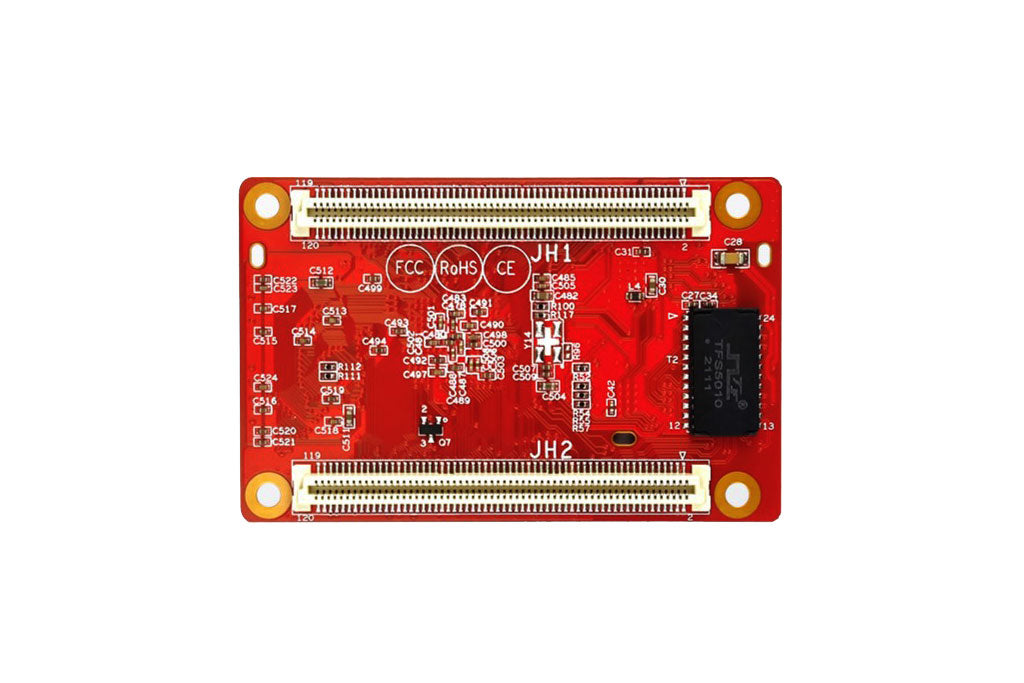

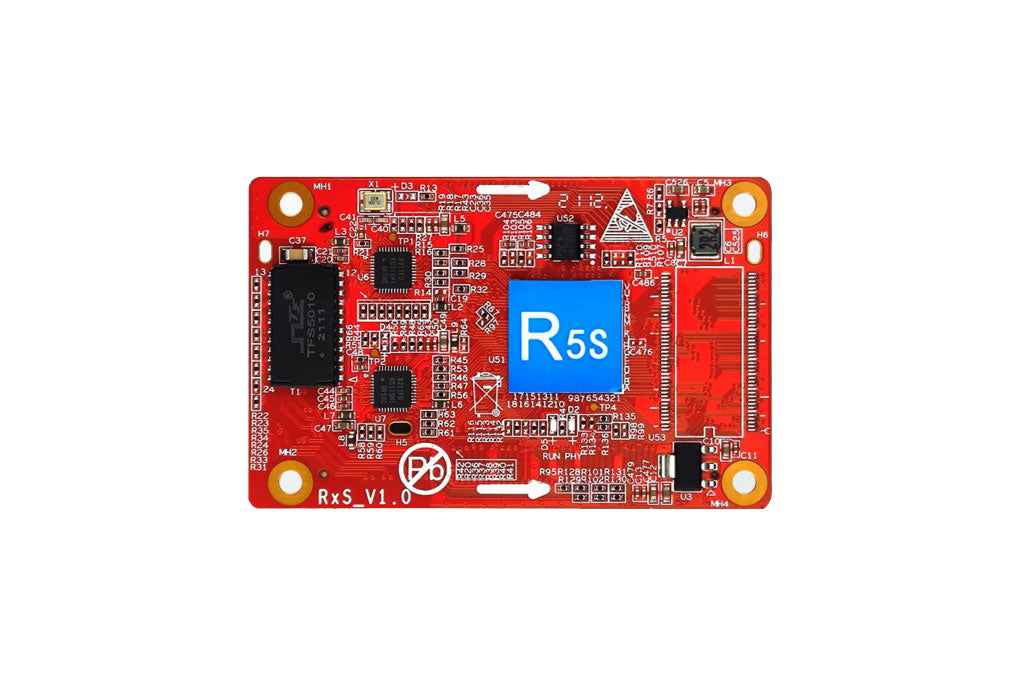

Huidu 120PIN LED Receiving Card HD-R5S LED Display Controller

Huidu 120PIN LED Receiving Card HD-R5S LED Display Controller

$16.00 USD
$35.00 USD $16.00 USD
Sale Sold out
Shipping calculated at checkout.

Receiving Card HD-R5S for Transparent Screen and Fine Pixel Pitch LED Display
HD-R5S is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, used for transparent screen and fine pixel pitch LED screen.

  • Integrated with 2 lines 120PIN HUB port
  • Support regular chips and PWM chips
  • Suitable used for transparent screen and fine pixel pitch LED screen
  • Support static module, any scan mode within 2~64 scan
  • Support data group exchange and data group offset setting
  • Smart settings, draw points, trace points, etc.
  • Support multi-card cascade, arbitrary order
  • Recommended loading range: 128*768
    Function Parameters
    With sending card Dual-mode sending box，Asynchronous sending   card, Synchronous sending card, Video processor of VP series.
    Module type Supports transparent   screen modules for all normal chips and mainstream PWM chips.
    Scan Mode Support any scanning method from   static to 1/64, support extraction and empty point setting.
    Communication Gigabit Ethernet port
    Control Range Recommend：98,304 pixels (128*768)
    Multiple cards cascaded Receiving cards can be arbitrarily Sort, synchronized in nanoseconds
    Gray Scale Support 256~65536 (adjustable)
    Smart setting A few simple steps to complete the smart setting, and the display module   can be matched with any wiring mode through the screen body routing setting.
    Communication distance Super category 5 ,   Super category 6 network cable is within 80 meters
    Port 120PIN*2
    Input voltage 4V-6V
    Power 5W

    Further Information:
    HD-R5S
    Huidu HD-R5S LED Receiving Card Specification
