Hecoos Server Performing Arts Process Design System xR/AR Virtual Production

Hecoos Server Performing Arts Process Design System xR/AR Virtual Production

Regular price $56,000.00 USD
Regular price $145,000.00 USD Sale price $56,000.00 USD
Sale Sold out
Shipping calculated at checkout.

Hecoos Server

Realize the seamless connection between design and live show
Hecoos Server is a powerful, stable multimedia server that meets all the requirement of hecoos system. Server case is designed with ergonomics, comfortable to use. Rigid material structure, solid and stable. Built-in Hecoos software, let the rehearsals seamlessly adapt on-site execution. Within every procedure from project setting to implement,hecoos Server will let the user control the workflow completely, maximize the efficiency, create fantastic visual experience.
  • Powerful Rendering Capacity
Achieve any polygon segmentation and reorganization, LED screen shaped stitching and creative display by using rectangle slicing and polygon slicing.
Powerful video decoding and 2D/3D rendering capabilities
Powerful non-linear rendering engine, real-time high-performance 2D/3D graphics rendering, support OpenGL, DirectX. Supported format covering almost all current video formats, more than 30 kinds of video encoding including sequence frames can be played smoothly.
Support ultra-resolution video
Supports unlimited resolution (4K, 8K) video and image decoding, enabling the point-to-point display of LED display and projection at any resolution.
  • Operation Mode
Master/backup mode
In the event of a master server failure, the backup server will seamlessly be switched to ensure the program implement.
Cooperative commissioning
In actual installation project, engineers can implement commissioning process simultaneously. Divide commissioning work and save time.
Multiple cooperation server online
Multiple server cascade, use controller server to edit program in hecoos software, and use display server to output video signal. With the increasing of the display server, the port for video output increasing, therefore increase the display device number.
  • Output Control
Control multiple devices simultaneously
Support keyframe to send DMX command, use DMX 512 protocol to adapt devices (Robotic arms, lifting platform), control multiple devices motion and posture simultaneously.
Support more video console, matrix, keyboard trigger
Send control command in timeline to achieve synchronization of playing and video console switching.
  • Projection Back-calculation & 3D Mapping
3D Mapping
Support import 3D model from other software. 3D Mapping is based on unfolding UV or perspective projection to generate visual content. Use projection back-calculation to map the content on the object surface, demonstrate spatial visualization.
Projection back-calculation
Use projection calibration, set adjust the point to feedback the relative spatial relationship between projector and target object or in the real scene to the server. Achieve mapping process and adjust offset for projection mapping on irregular objects or complex stage quickly.
Automatic generate fusion band
Generate fusion band by automatically calculate fusion area, to completely joint for multiple projectors.
  • External System Adaption
Overlay AR technology
Import the media with a transparent channel into hecoos Studio to simulate overlap effect to actual picture by mapping it on transparent screen, demonstrate diversified broadcast effect.
Optical track
Use infrared induction camera to capture target object’s motion path, to achieve the simultaneous movement between actual object and model on the software, reveal the image precisely.
  • Signal Capture
Support NDI network capture
Support up to 10 channels 1920×1080 screen capture for ultra-low latency and ultra-high resolution picture.
Support 4K capture card
Achieve 4K PPT/camera live capture and output.

Hardware Hecoos Server Performing Arts Process Design System xR/AR Virtual Production


Voltage: 100-240V,50-60Hz,13 amps
Redundant power supply operation power: 800W @ 110V(normal)、1000W @ 110V(max)
Chassis specifications: 4U 19” rank mount
operating system: Windows 10 Pro
CPU: Inter Core I9 9900X 3.5GHz
Memory: 32GB DDR4 RAM
Solo System Display Memory Requirements: 16G
Solo pixel Memory Requirements: 1920*1080*16
Support: Artnet
System hard disk: 2TB SSD
Maximum number of SSD hard disks: 4
Supports physical cascade expansion mode, which is unlimited in number
Supporting Optitrace Infrared Tracking System
Back lighting
With PCI-E Extended Connector
Network interface: 1 x GB LAN ,10 X GB LAN

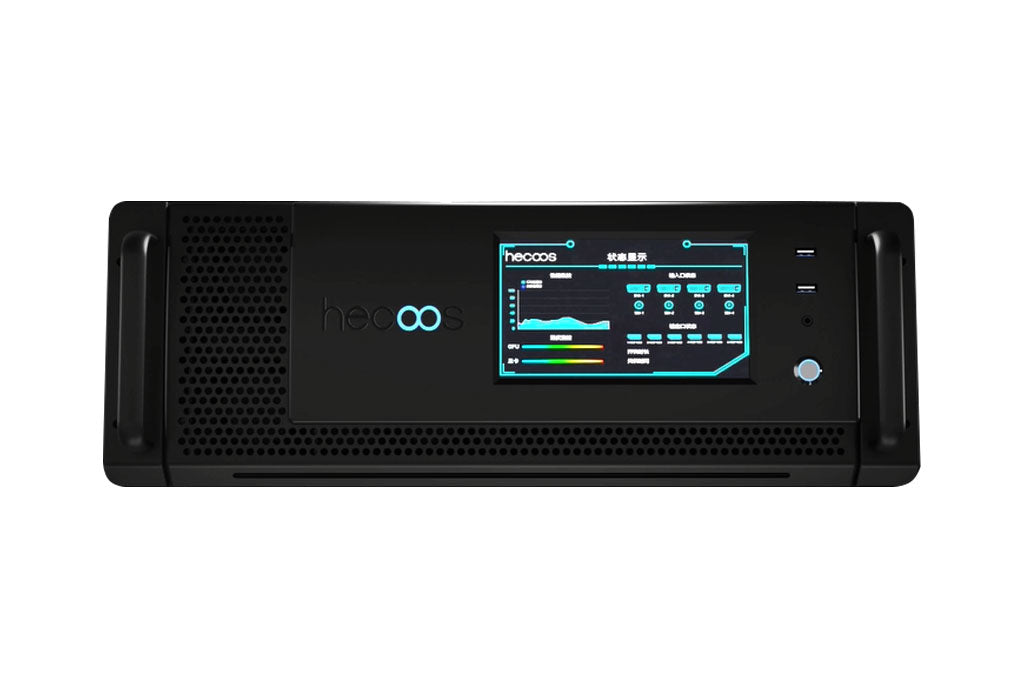

Text display with OLED status (detailed description)
Rack Dimensions: 430(W)* 178(H)* 634(D)

Environmental Tolerances

Temperature: -35°C(40°-95°)
Humidity: 5%-95%(non-condensing)
Altitude: 0-8850 ft(0-2700m)

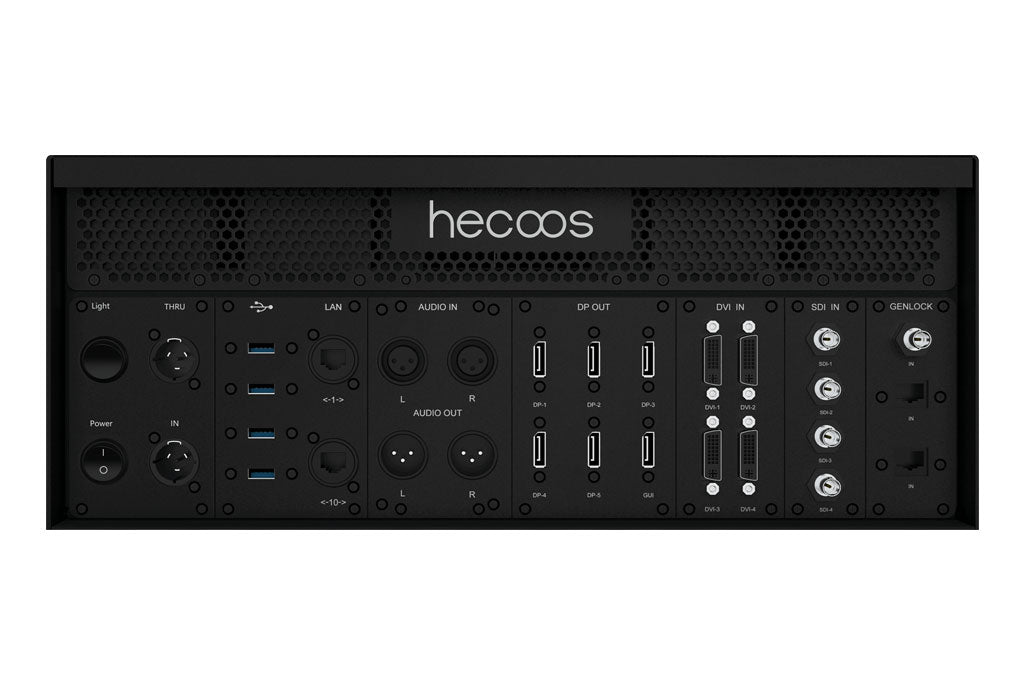

I/O Specification

Video output
6 x DisplayPort 1.2
Maximum Resolution of Independent Output Channel (4096 x 2160)

Video input
Supporting real-time input of camera video signal
4 x HD-SDI / 4 x DVI

Front panel 2 x USB 3.0 rear panel 4 xusb 3.0
Video Synchronization Phase Lock: BNC GenIock

Audio&Video Input/Output
2 x Balanced XLR Output
2 x Balanced XLR Input

Original Fittings
Mechanical keyboard
Power cord
Loop outlet
DP to DVI adapter x6
SM DP line x4

After Sale
Free use and upgrade of software for life
Two year warranty for server hardware
Free remote technical support

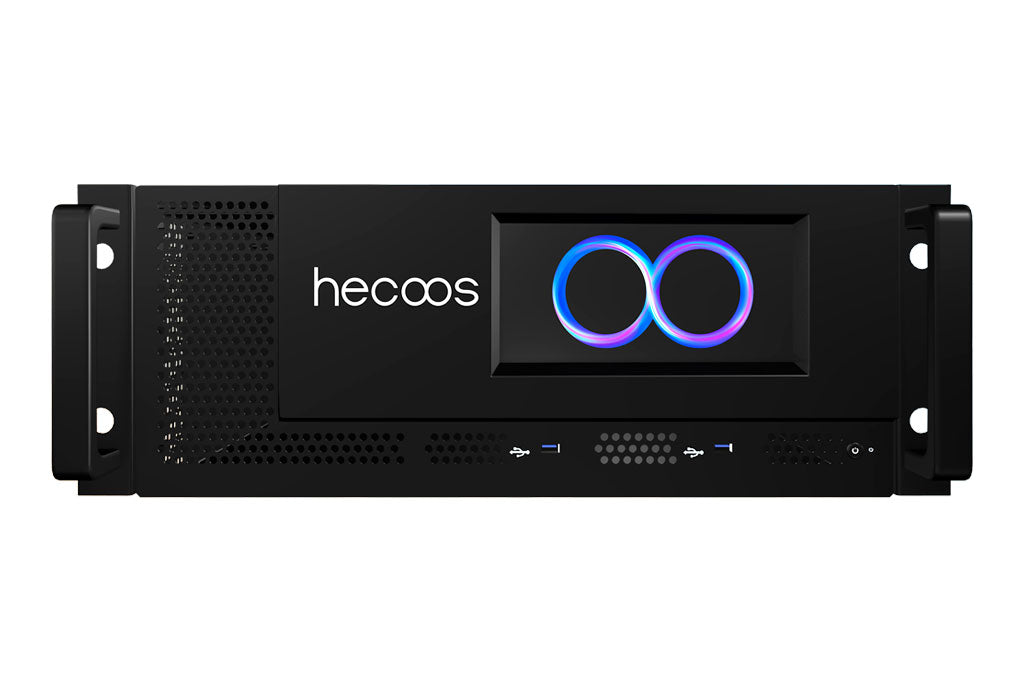

Hecoos Server

Hecoos Server Case

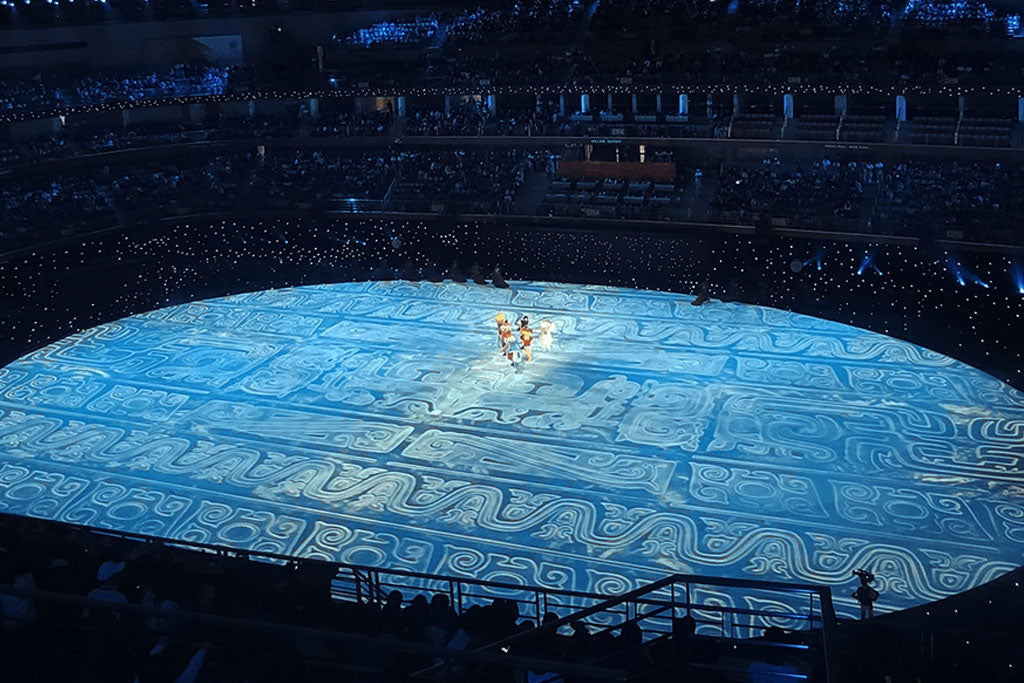

64th European Singing Contest

Further Information:
Hecoos Software Download
Hecoos Quick User Guide
