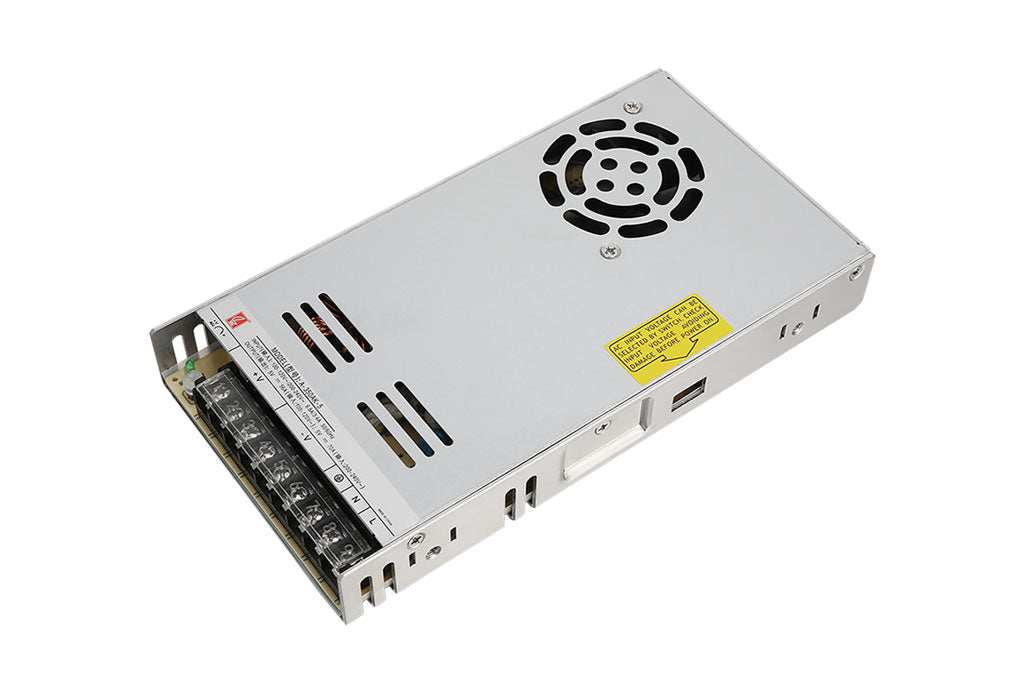

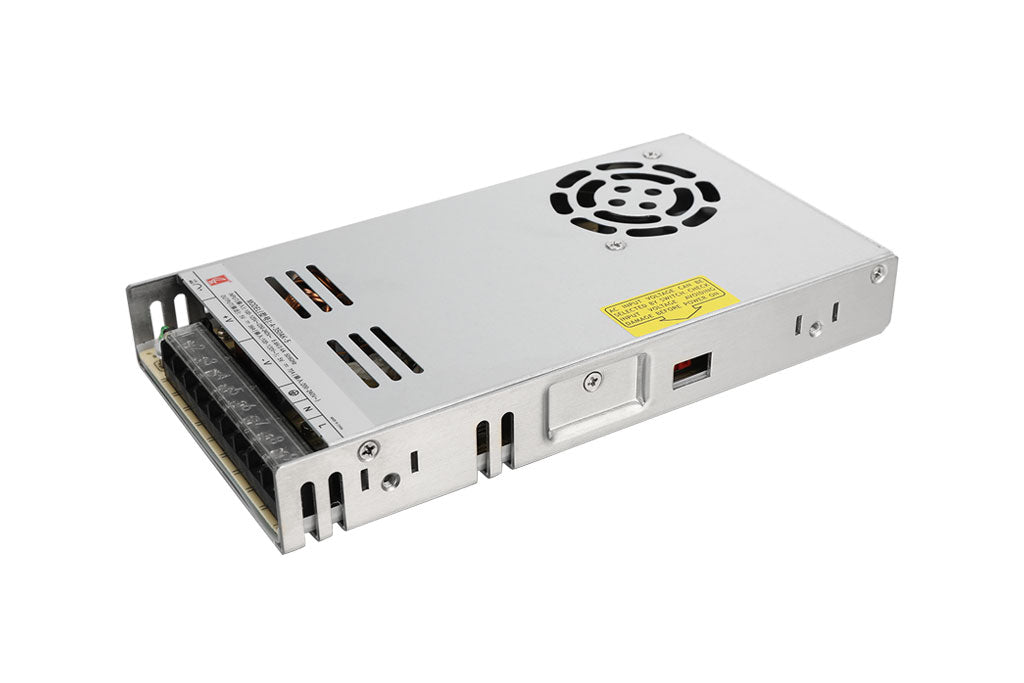

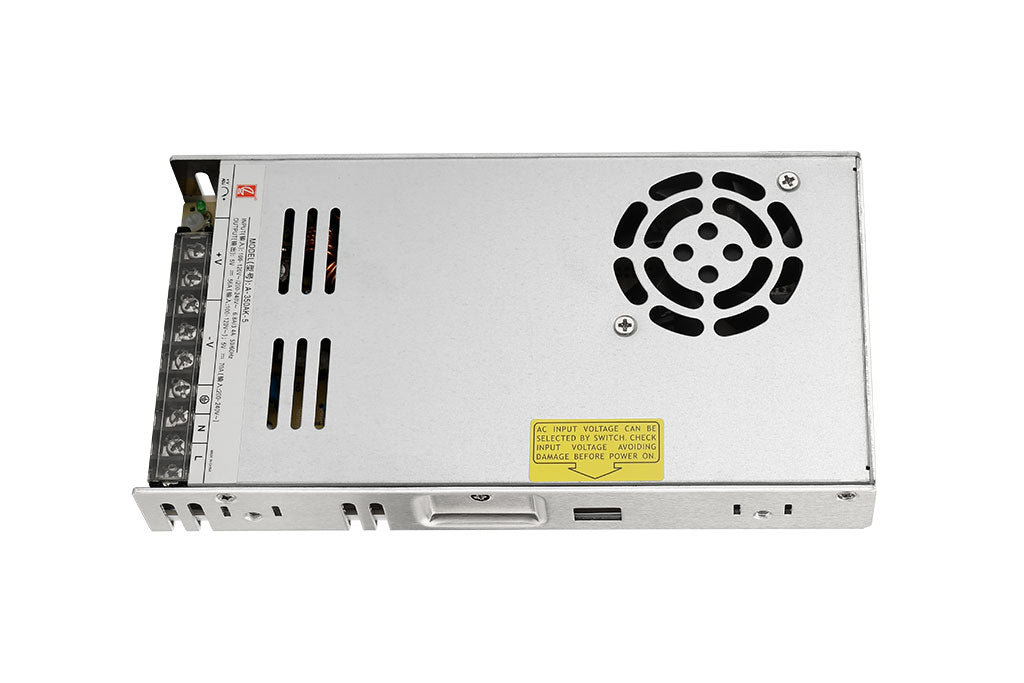

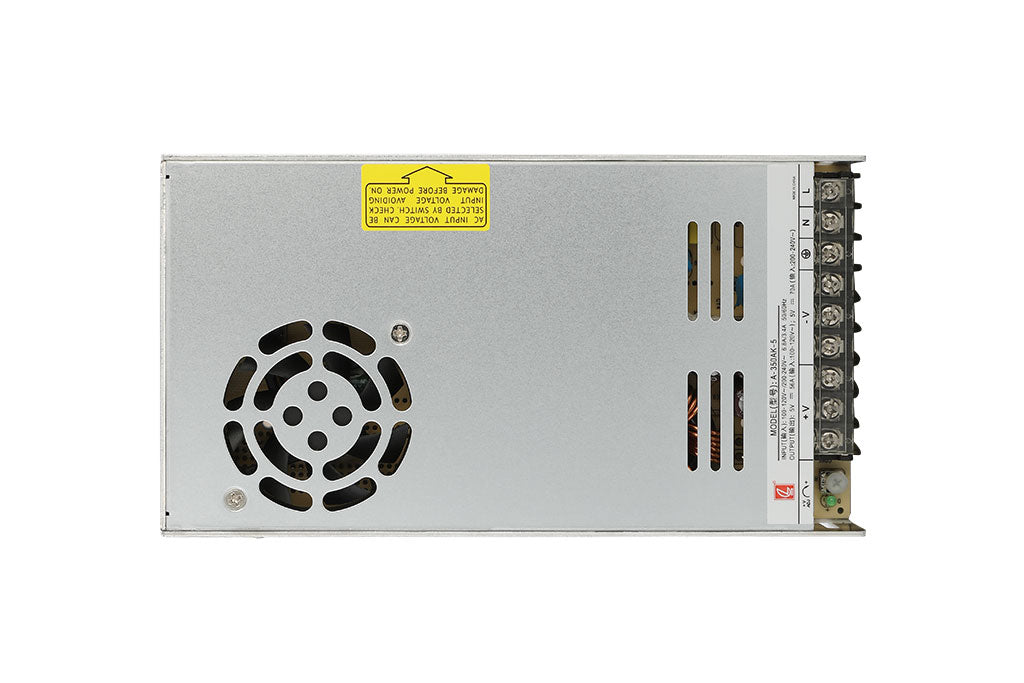

CZCL LED Displays Power Supply A-350AK-5 5V70A Low Profile Switching LED Power Supply

CZCL A-350AK-5  5V70A LED Displays Switching Power Supply

1. Switching LED Power Supply: 100~120VAC，200~240VAC Switching LED Power Supply

2.high reliability Quality, High standart quality elements parts are adopted, 100% full load high temperature aging tested.

3. Anti-dust, Anti-Moisture, Anti-Static

4. Protection: overload and short cirtuit protection

5. 2 Year Warranty

6. Low Profile: 218X117X30.5mm

7.Large load capacity: 350w output power.

CZCL A-350AK-5 5V70A 350W Low Profile Switching LED Displays Power Supply Parameters:

input voltage:100~120VAC，200~240VAC/47~63H Switch-able

Protection:undervoltage,Overload,Short circuit

Output power:350W Max
Working temperature:-30~+60℃

Power factor:0.80@230Vac

Overload Protection: 110%-140% Cut Down Output, After reset input.

Insulation voltage:I/P-O/P:3.0KVac

Safety standards:GB4943，UL60950-1，EN60950-1

I/P-FG:1.5KVac;O/P-FG:0.5KVac,1min

Dissipate heat: Air cold

EMC Standards:: GB9254，EN55022

Inrush current: 60A/230VAC

Leakage current:0.30mA@230Vac

Size:218x117x30.5mm

View More
CZCL A-350AK-5 LED Displays Power Supply Specification
