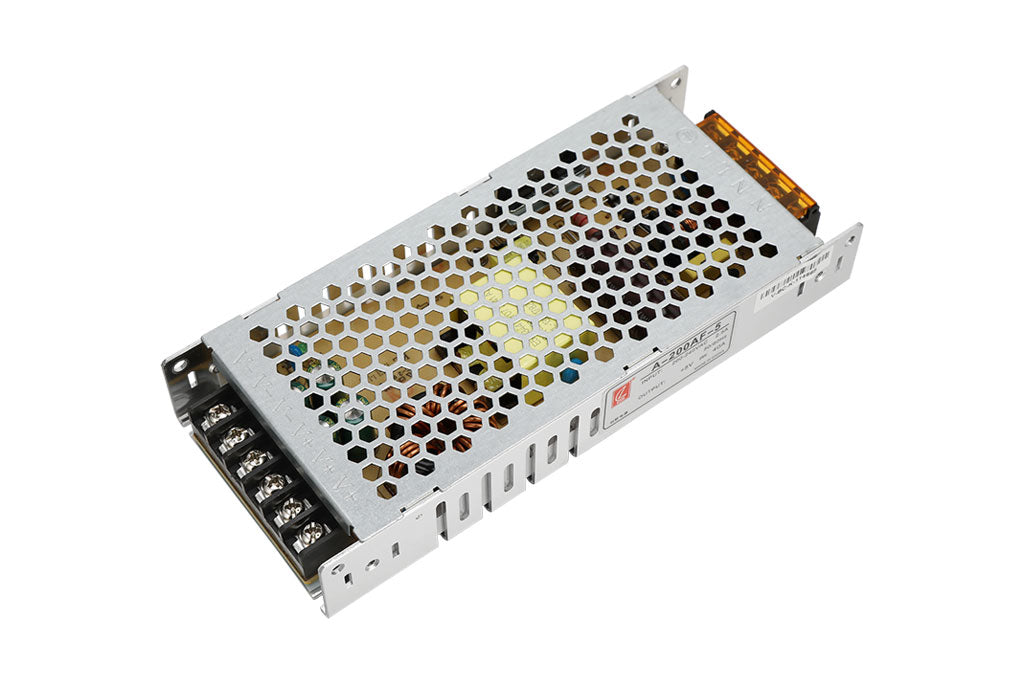

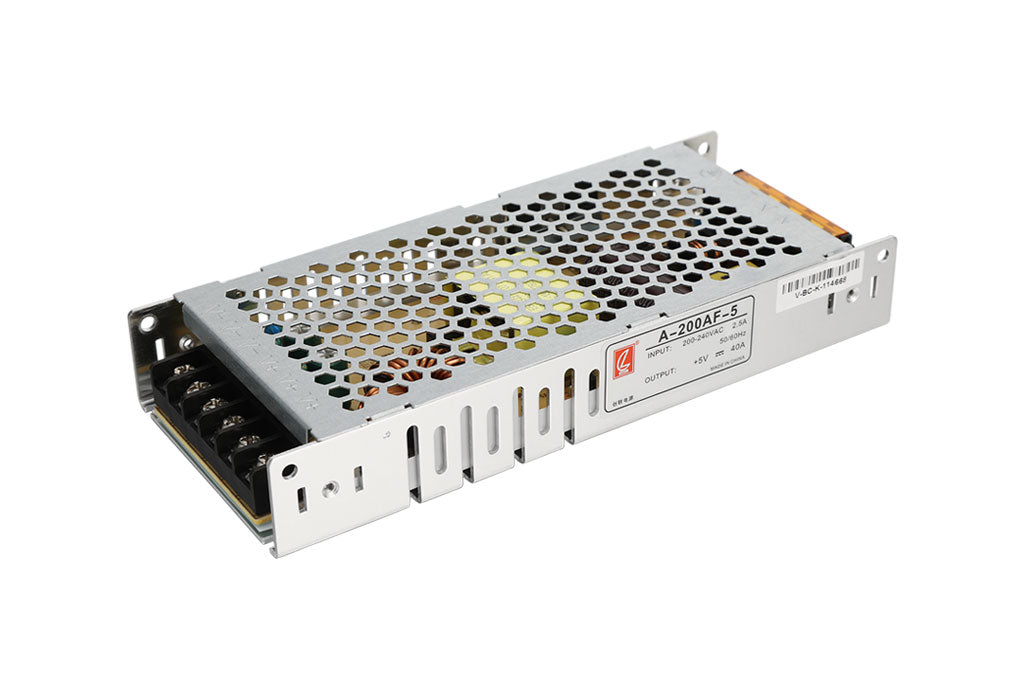

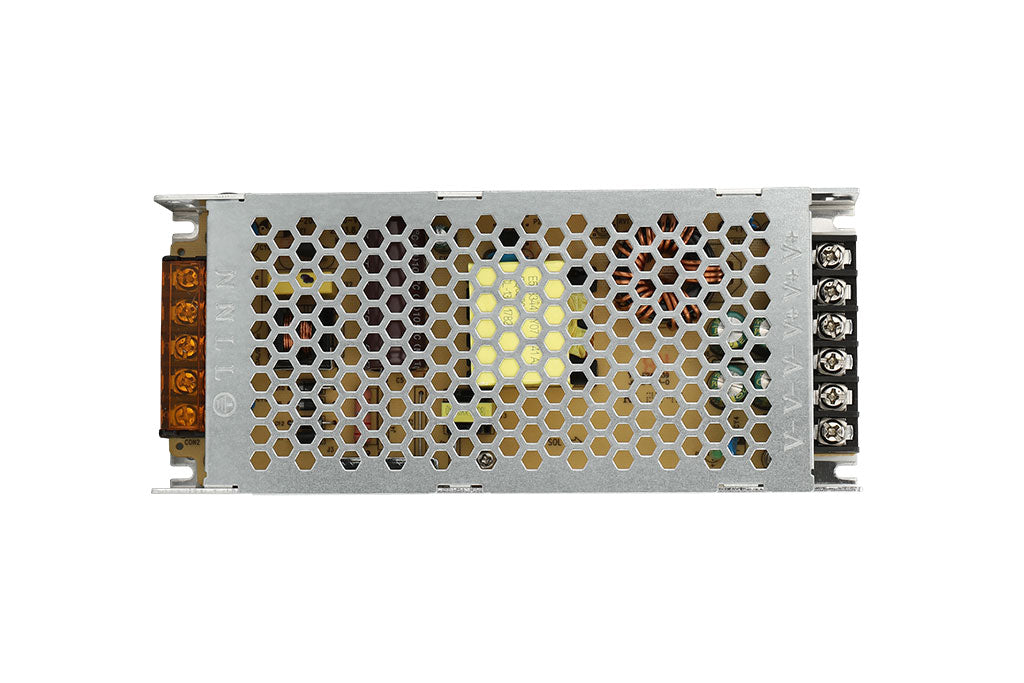

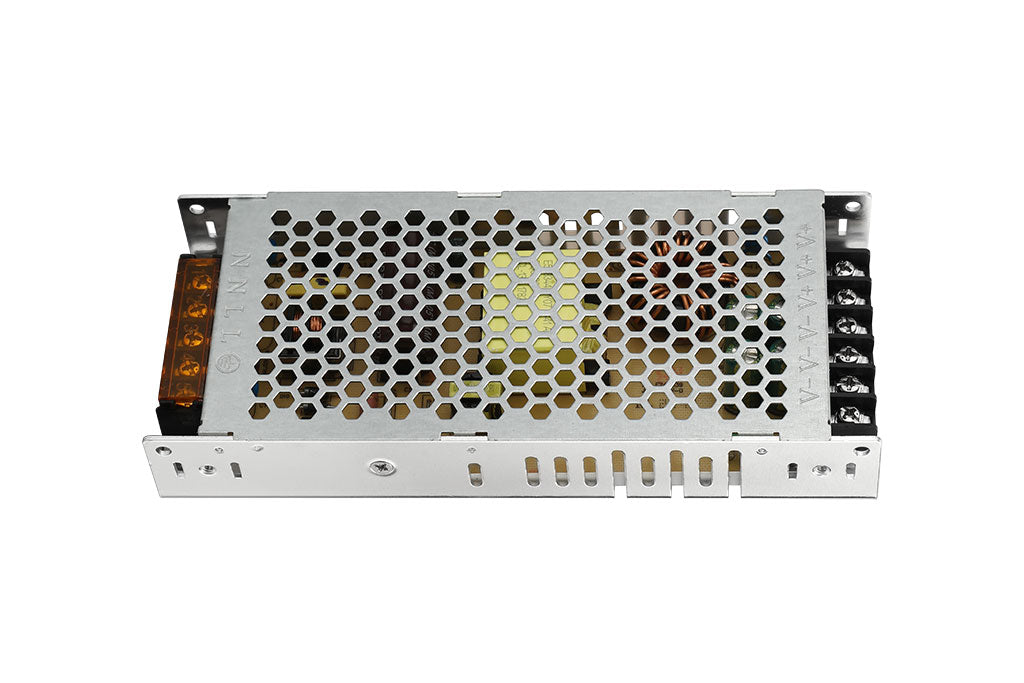

CZCL LED Displays Power Supply A-200AF-5 5V40A Low Profile LED Power Supply

CZCL LED Displays Power Supply A-200AF-5 5V40A Low Profile LED Power Supply

Regular price $24.00 USD
Regular price $35.00 USD Sale price $24.00 USD
Sale Sold out
Shipping calculated at checkout.

CZCL A-200AF-5 5V40A 200W Low Profile LED Displays Power Supply Features:

1.Low Profile: Slim Body design can be fixed in compact Die-cast aluminum rental LED Cabinet.

2.high reliability Quality, High standart quality elements parts are adopted, 100% full load high temperature aging tested.

3. Anti-dust, Anti-Moisture, Anti-Static

4. Protection: overload and short cirtuit protection

5. 2 Year Warranty

CZCL A-200AF-5 5V40A 200W Low Profile LED Displays Power Supply Parameters:

Input voltage:200-240Vac,47-63Hz
Protection:undervoltage,Overload,Short circuit
Output power:200W Max
Working temperature:-30~+60℃
Power factor:0.50@230Vac
Storage temperature:-40℃~+100℃,20~95%RH
Insulation voltage:I/P-O/P:3.0KVac
Safety standards:GB4943,UL60950-1,EN60950-1
I/P-FG:1.5KVac;O/P-FG:0.5KVac,1min
Dissipate heat:cold
EMC Standards:: GB9254,EN55022
Protecting Time: 50ms, 20ms over load
Leakage current:0.30mA@230Vac
Size:190×84×30
