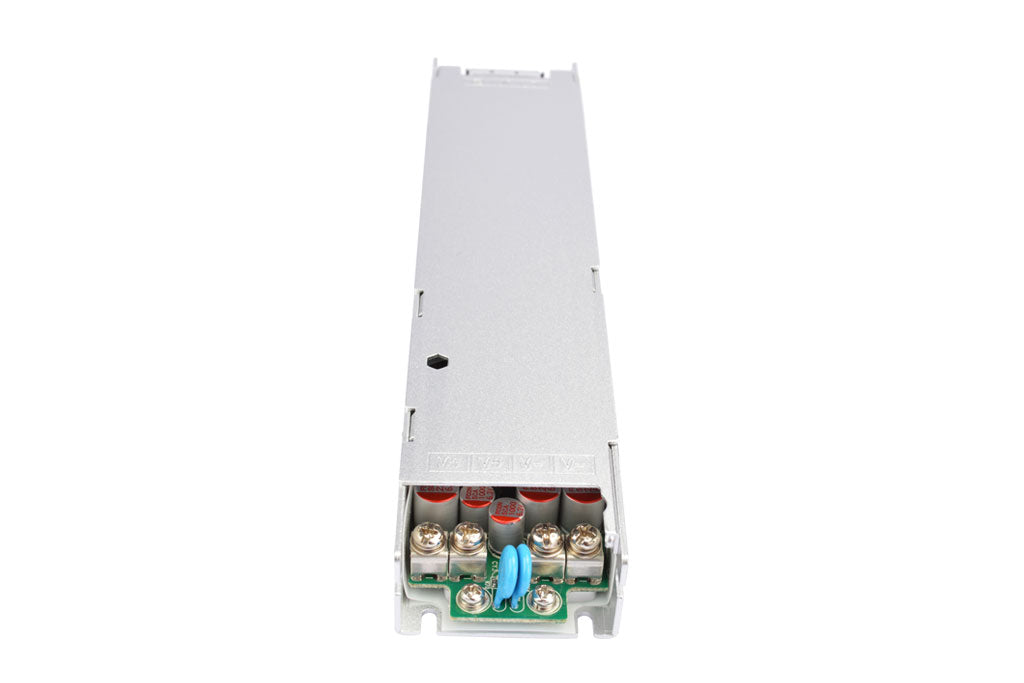

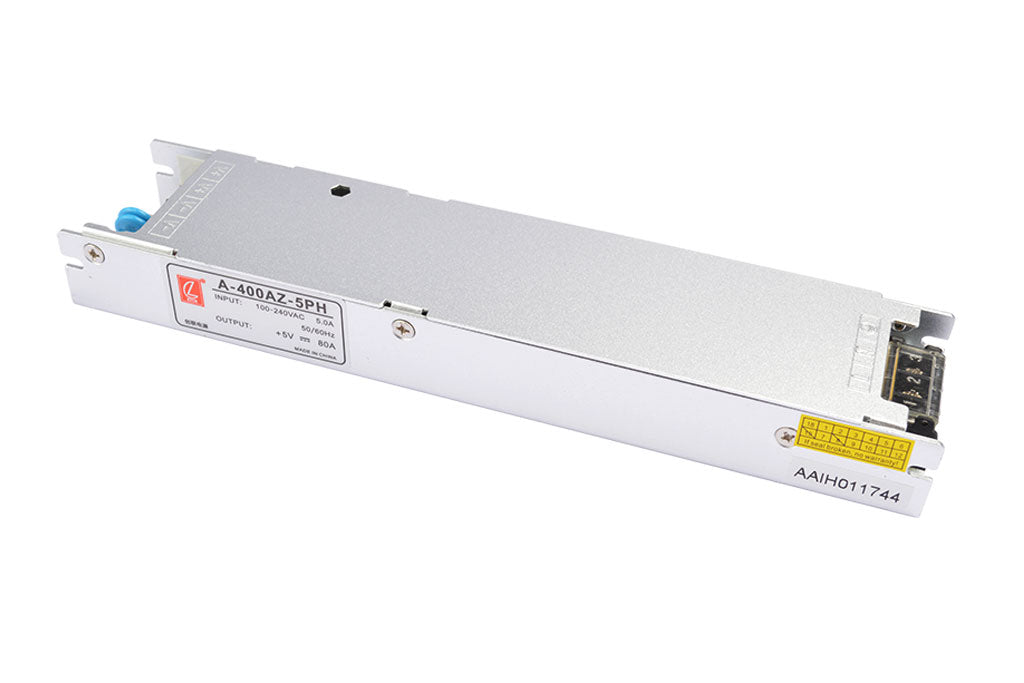

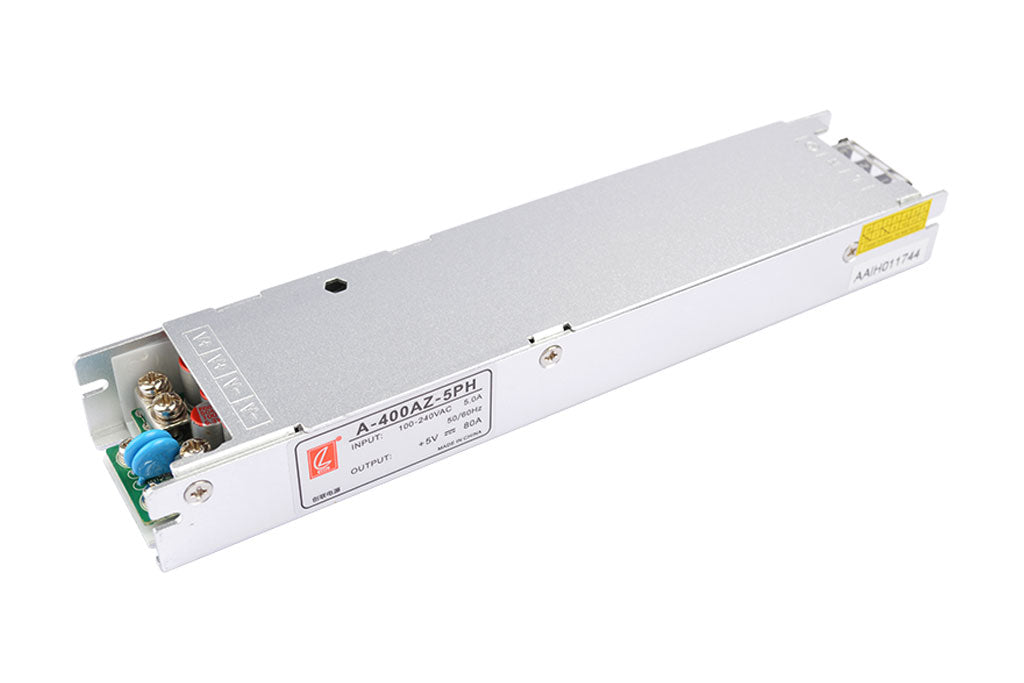

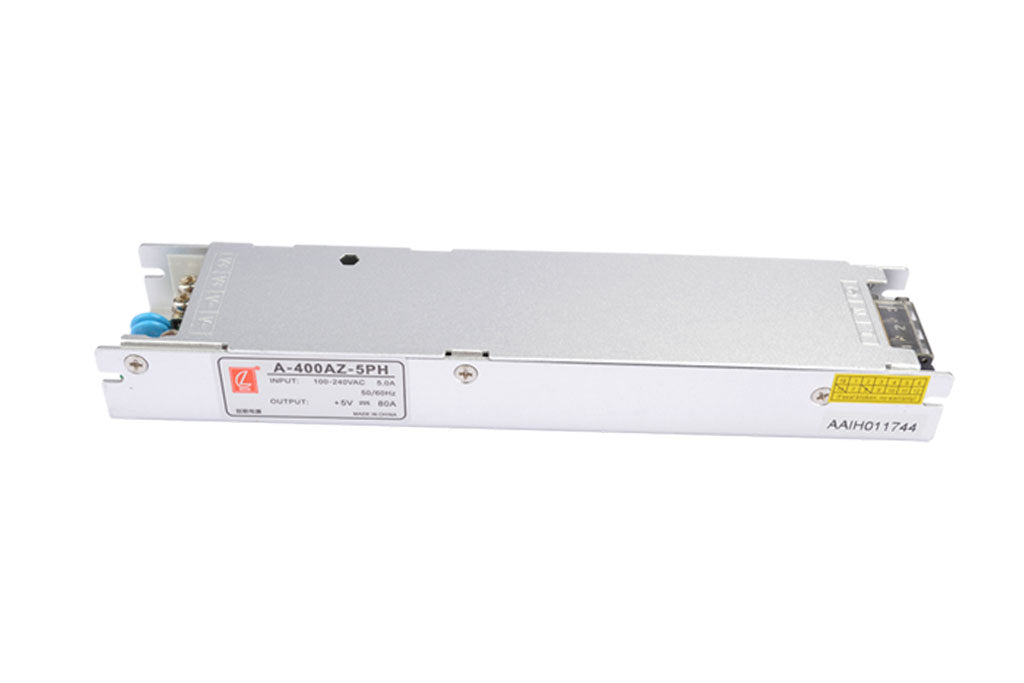

CZCL LED Displays Power Supply A-400AZ-5PH 5V40A Low Profile Switching LED Power Supply
CZCL LED Displays Power Supply A-400AZ-5PH 5V40A Low Profile Switching LED Power Supply
Regular price
$42.00 USD
Regular price
$100.00 USD
Sale price
$42.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
CZCL A-400AZ-5PH 400W LED Display Drive Power Supply
A-400AZ-PH series product is a 400W fan-less LED display power supply with PFC function design. The input voltage range is 90-264VAC, and the output voltage is 2.8V, 3.3V, 3.8V, 4.2V, 4.5V, 5V, etc. It can be applied to LED display fields such as LED display screen and LED indicator light etc. This series of products are designed for ultra-thin PFC function, with a height of only 31mm, which can meet the requirements of various cabinets. Super high efficiency, compact shell design and good heat dissipation ensure the long-term stable work of this series of products.
Application fields:
Narrow Pitch LED Display,Transparent LED Display,Glass LED Display etc
A-400AZ-PH series product is a 400W fan-less LED display power supply with PFC function design. The input voltage range is 90-264VAC, and the output voltage is 2.8V, 3.3V, 3.8V, 4.2V, 4.5V, 5V, etc. It can be applied to LED display fields such as LED display screen and LED indicator light etc. This series of products are designed for ultra-thin PFC function, with a height of only 31mm, which can meet the requirements of various cabinets. Super high efficiency, compact shell design and good heat dissipation ensure the long-term stable work of this series of products.
- Standard slim case,height:31mm
- Input Volt:90~264VAC
- With PFC function
- Working temp:-30~+70℃(refer to output derating curve)
- Fan-less,cold by air
- Protection:Short circuit/Overload
- 100% aging test
- High-efficiency,high reliability
- 2 years warranty
- Size:220*48*25.4mm
Application fields:
Narrow Pitch LED Display,Transparent LED Display,Glass LED Display etc
