CZCL LED Displays Power Supply A-200FBK-5PN 5V40A N+1 Backups LED Power Supply
CZCL LED Displays Power Supply A-200FBK-5PN 5V40A N+1 Backups LED Power Supply

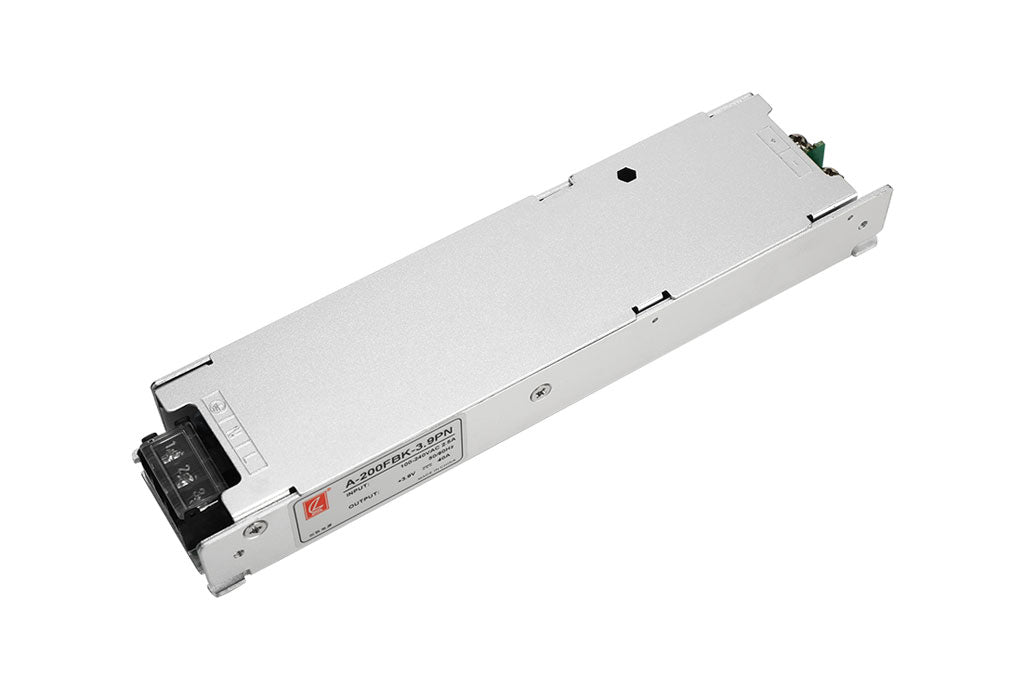

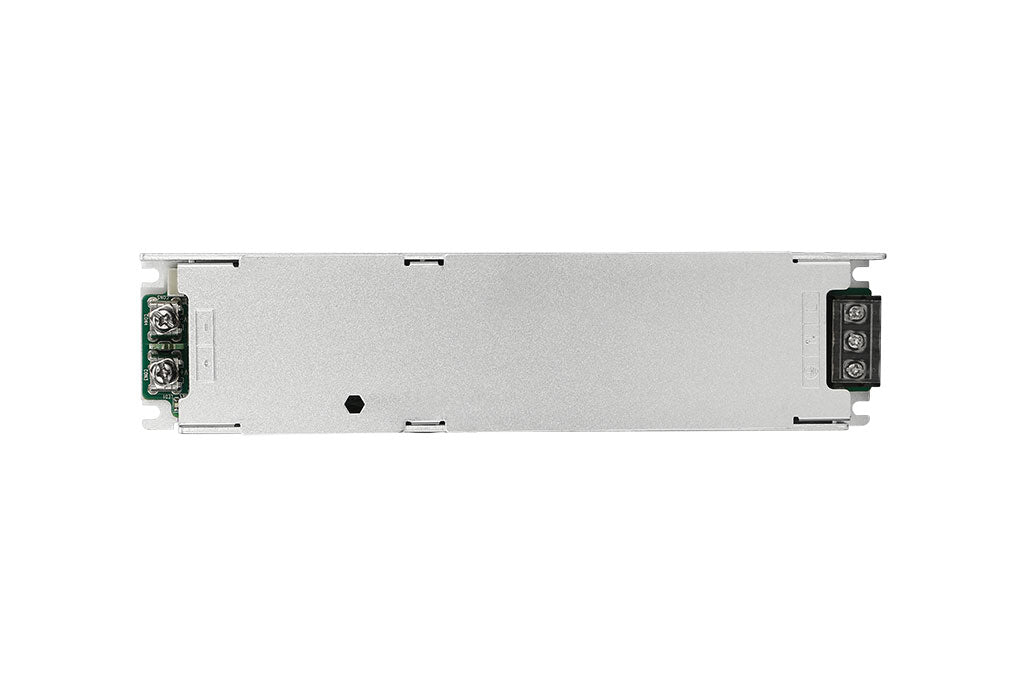

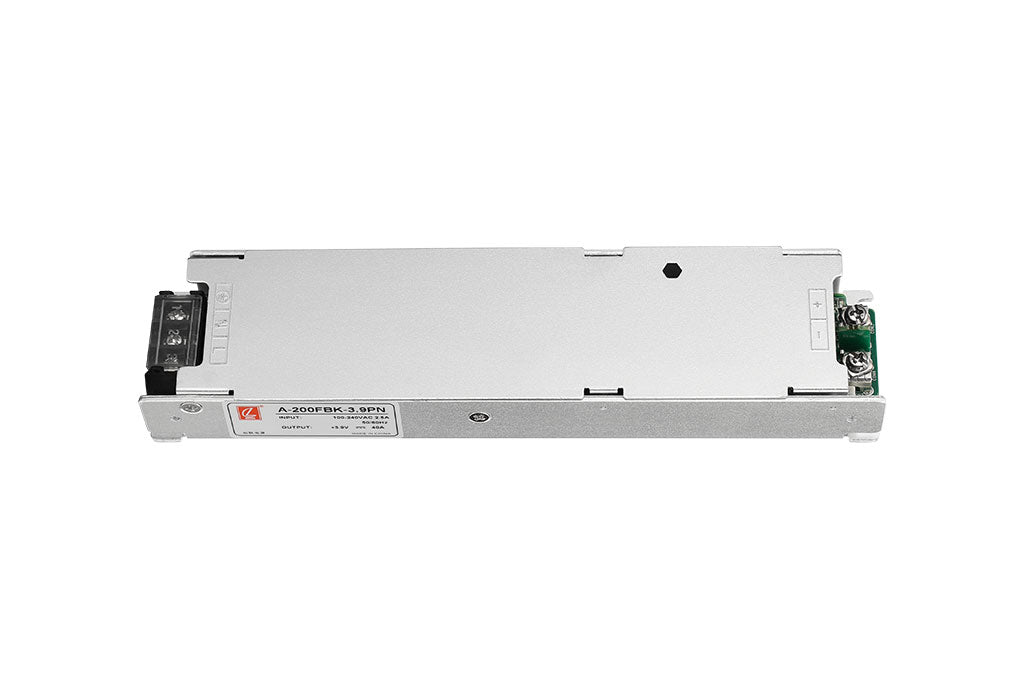

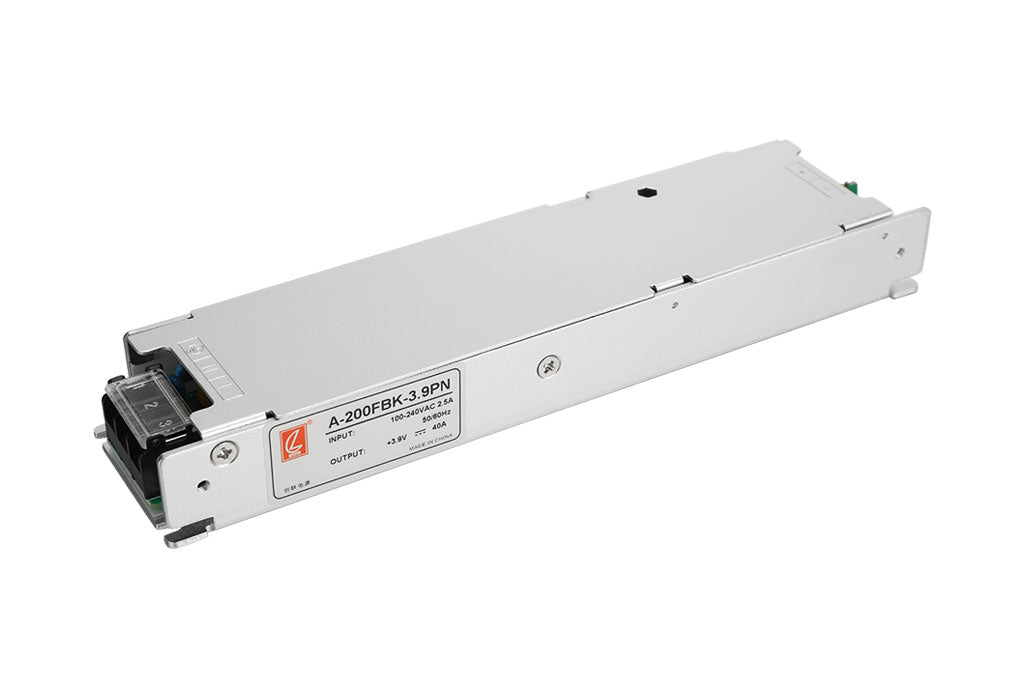

CZCL A-200FBK-5PN 200W LED Display Drive Power Supply
A-200FBK-PN series is a 200W fanless design LED display driver power supply, input voltage range: 90~264VAC, output voltage 3.8V, 4.2V, 4.5V, 5V, etc., which can be applied to LED display, LED indicator and other LED display fields, this series of products is ultra-thin with PFC and equalization design, the height of only 26.4mm, can be adapted to a variety of box size requirements. This series of products is ultra-thin with PFC and equalization design, the height is only 26.4mm, can be adapted to a variety of box size requirements. Ultra-high efficiency, compact shell design, good heat dissipation, to ensure that this series of products can work stably for a long time.
- Standard slim case,height:30mm
- Input Volt:90~264VAC
- Working temp:-20~+70℃(refer to output derating curve)
- Fan-less,cold by air
- Protection:Short circuit/Overload
- 100% aging test
- High-efficiency,high reliability
- 2 years warranty
- Size: 210*50*26 mm
Application fields:
HD LED Display,Transparent LED Display,Glass LED Display etc
Further Information:
CZCL A-200FBK-5PN
CZCL A-200FBK-5PN LED Power Supply Specification
