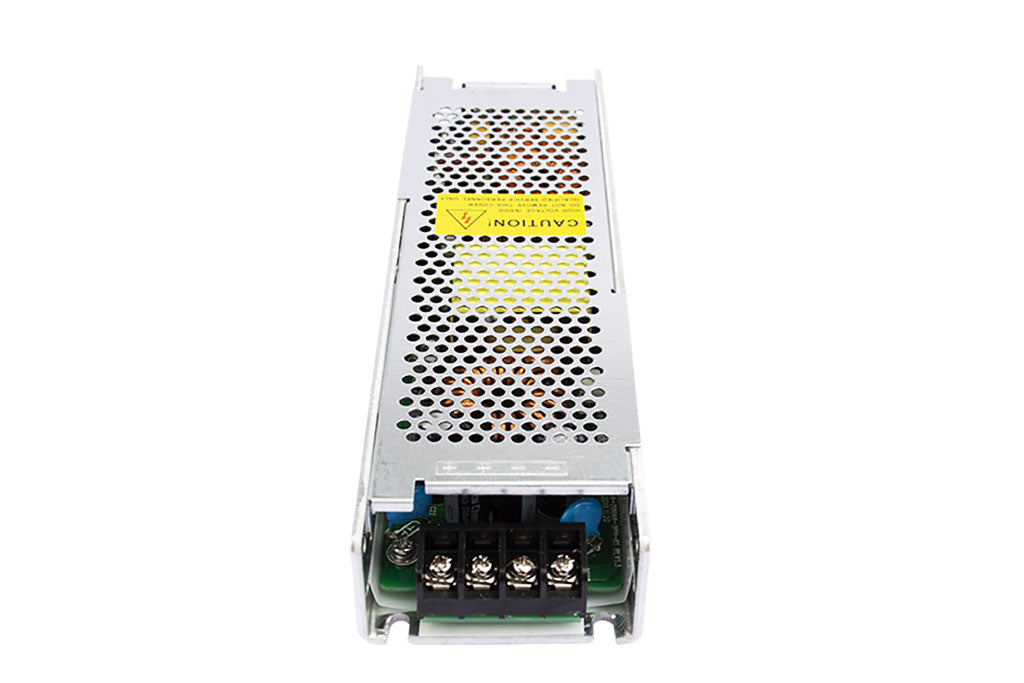

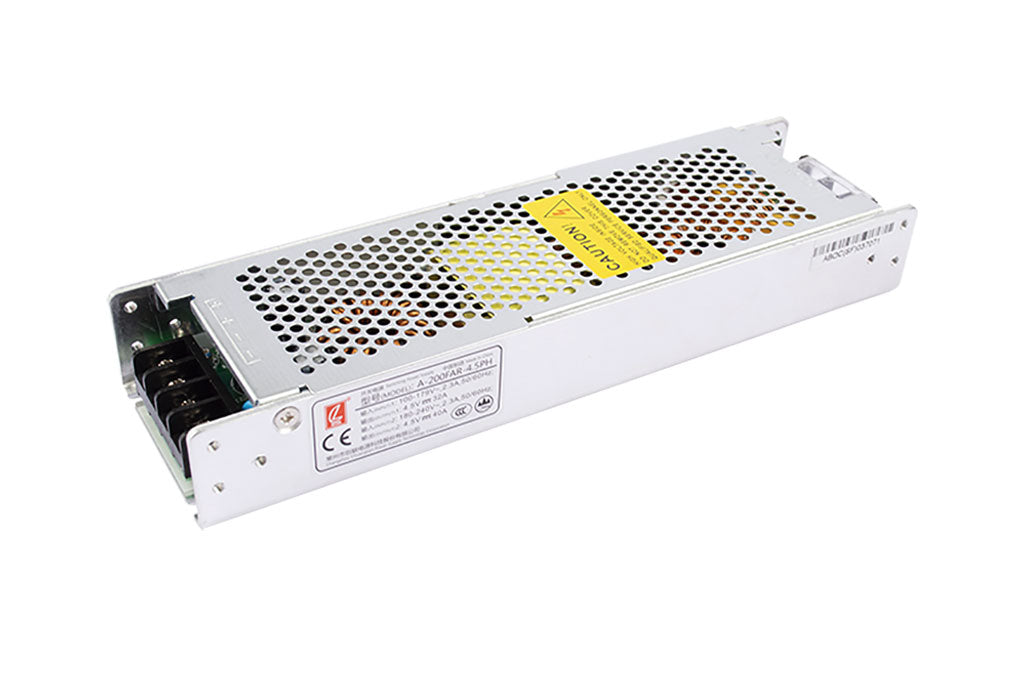

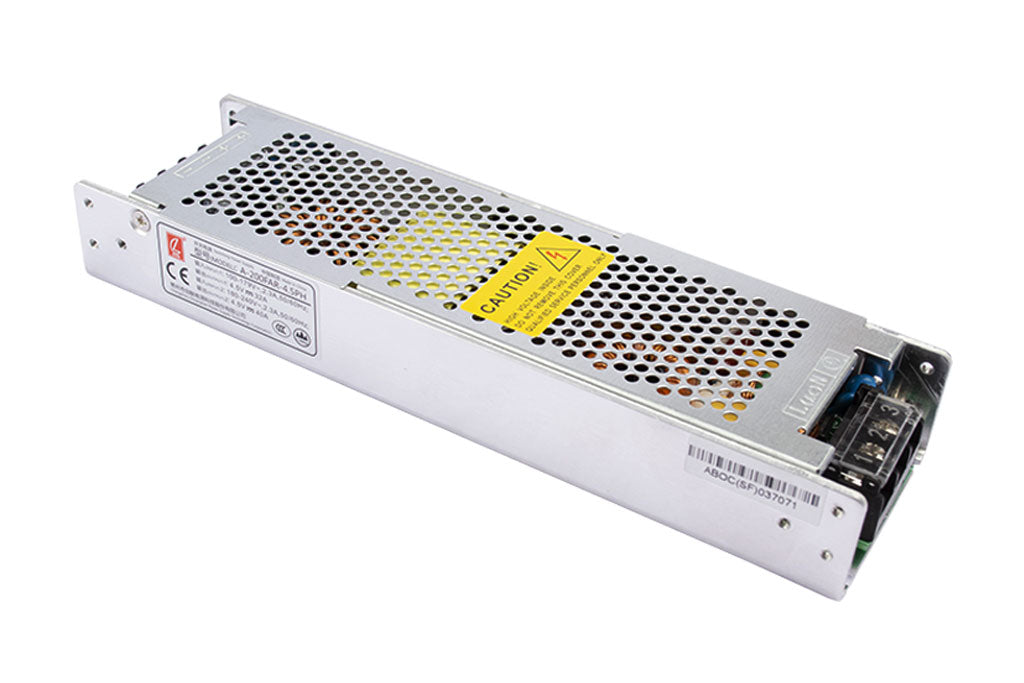

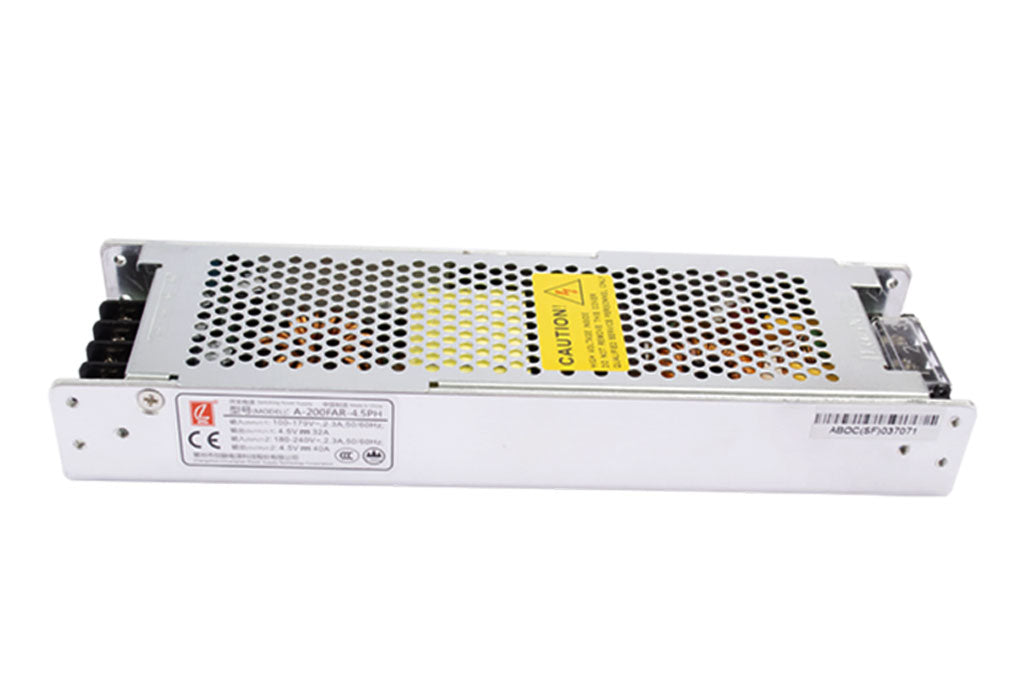

CZCL LED Displays Power Supply A-200FAR-5PH 5V40A Low Profile Switching LED Power Supply

CZCL A-200FAR-5PH 200W LED Display Drive Power Supply

A-200FAR-PH series product is a 200W fan-less LED display power supply with PFC function design. The input voltage range is 90-264VAC, and the output voltage is 2.8V, 3.3V, 3.8V, 4.2V, 4.5V, 5V, etc. It can be applied to LED display fields such as LED display screen and LED indicator light etc. This series of products are designed for ultra-thin PFC function, with a height of only 31mm, which can meet the requirements of various cabinets. Super high efficiency, compact shell design and good heat dissipation ensure the long-term stable work of this series of products.

• Standard slim case,height:31mm
• Input Volt：90～264VAC
• With PFC function
• Working temp:-30~+70℃（refer to output derating curve）
• Fan-less,cold by air
• Protection:Short circuit/Overload
• 100% aging test
• High-efficiency,high reliability
• 2 years warranty

Application fields:
HD LED Display,Transparent LED Display,Glass LED Display etc

Further Information:
CZCL A-200FAR-5PH
CZCL A-200FAR-5PH LED Power Supply Specification
