CZCL LED Displays Power Supply A-200FAU-5PN 5V40A N+1 Backups LED Power Supply

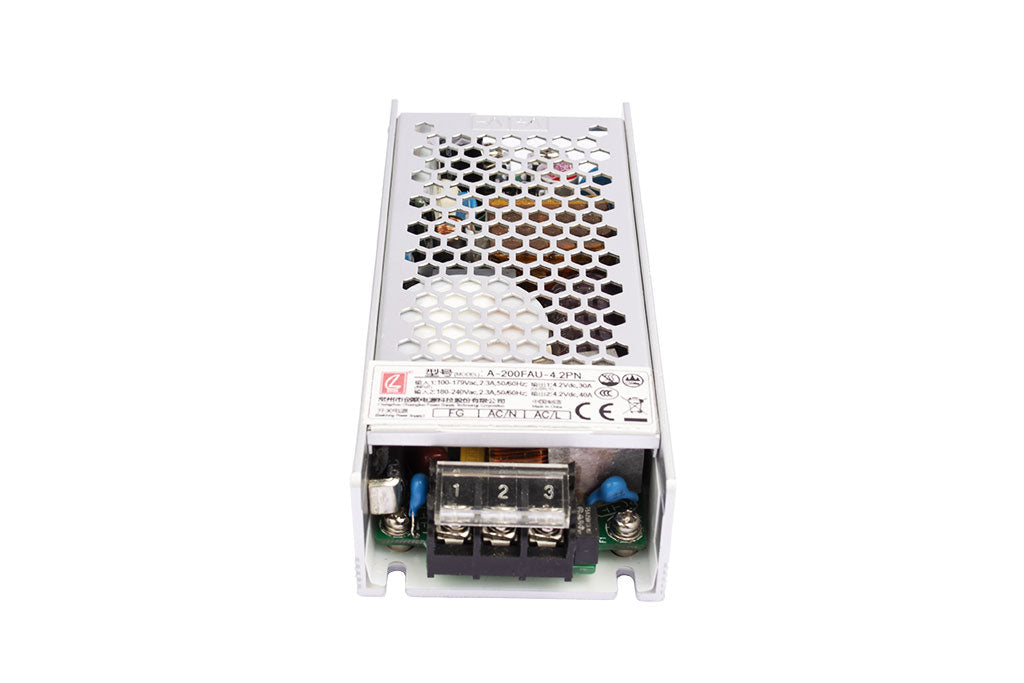

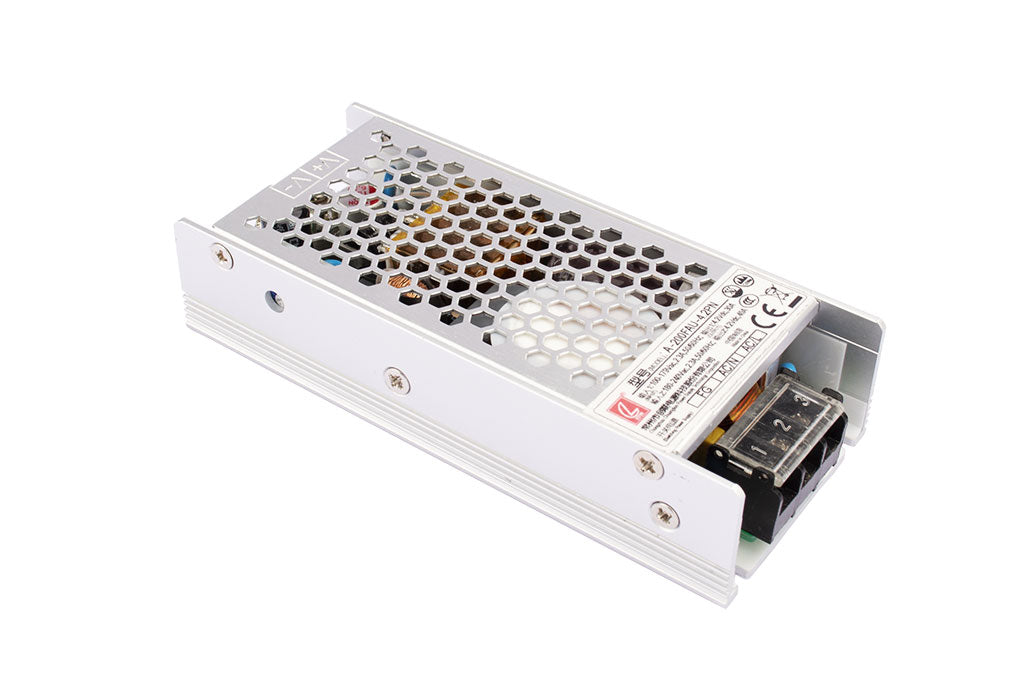

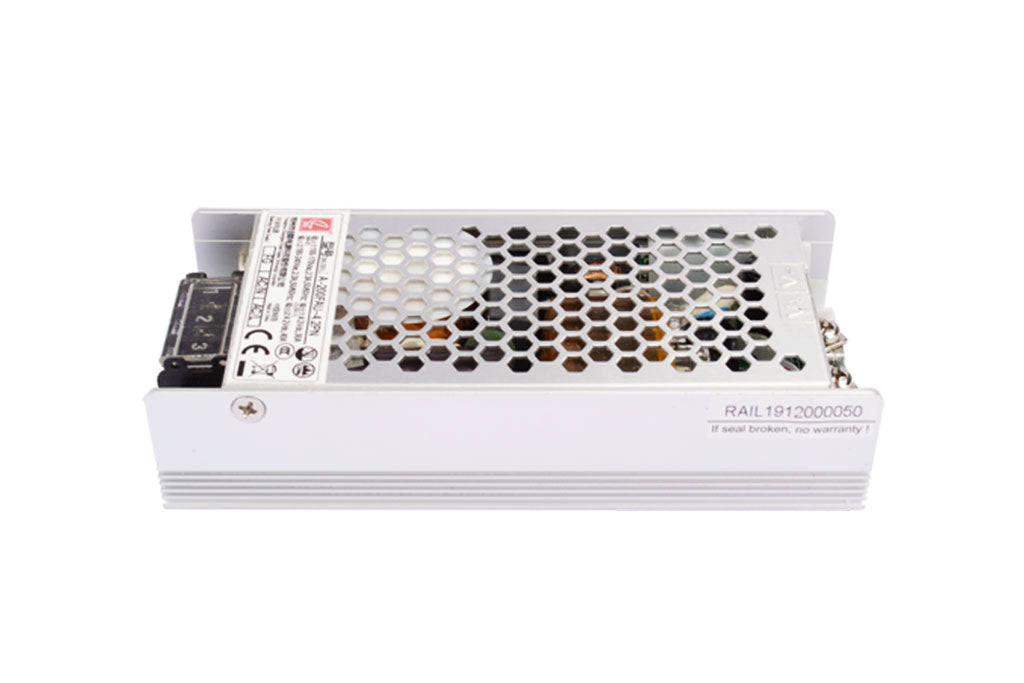

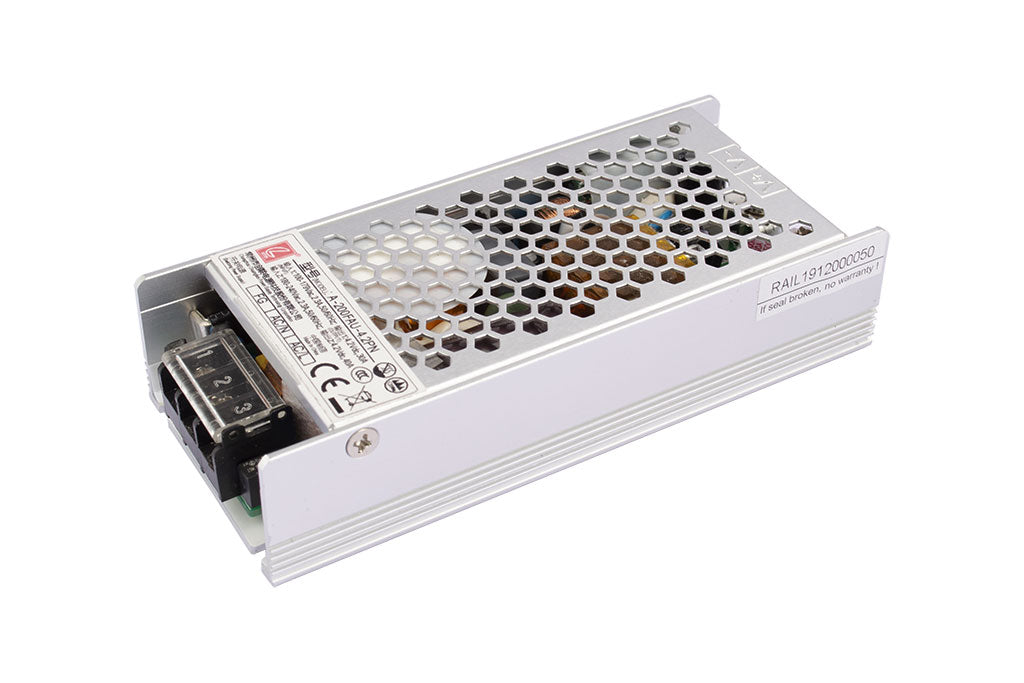

CZCL A-200FAU-5PN 200W LED Display Drive Power Supply

A-200FAU-PN is Led display power supply without fans. The input voltage rang is 90～264VAC and output voltages are 2.8V、3.3V、3.8V、4.2V、4.5V、4.5V、4.6V、4.8V、5V and so on. It can be applied to Led display、LED indicator light and other Led display fileds. This series of products are ultra-thin with PFC and current sharing design, with a height of only 29mm. It can adapt to a variety of box size requirements. Super high efficiency, compact shell design and good heat dissipation ensure the long-term stable work of this series of products.

• Standard slim case,height:29mm
• Input Volt：90～264VAC
• With PFC function
• Working temp:-40~+65℃（refer to derating curve）
• Cooling by free air convection
• Protections: short circuit/overload/ overvoltage
• 100% full load burn-in test
• High-efficiency,high reliability
• 2 years warranty
• Size:130*55*29mm

Application fields: LED high definition screen、LED transparent、LED grille screen and so on.

Further Information:
CZCL A-200FAU-5PN
CZCL A-200FAU-5PN LED Power Supply Specification
