Colorlight S-Series LED Display Controller S2 LED Sending Card

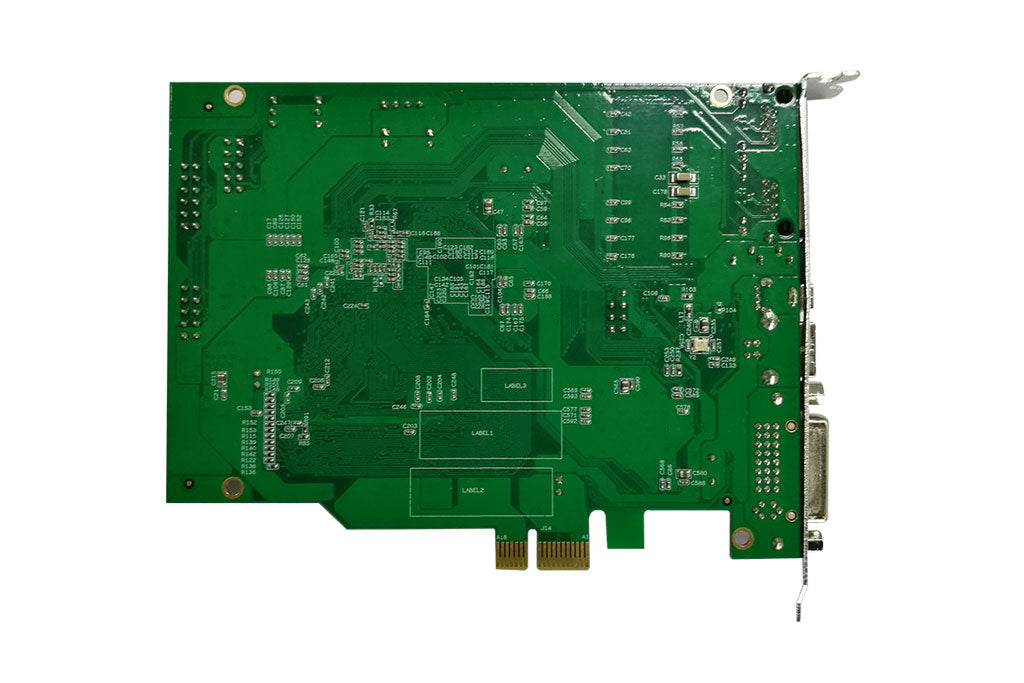

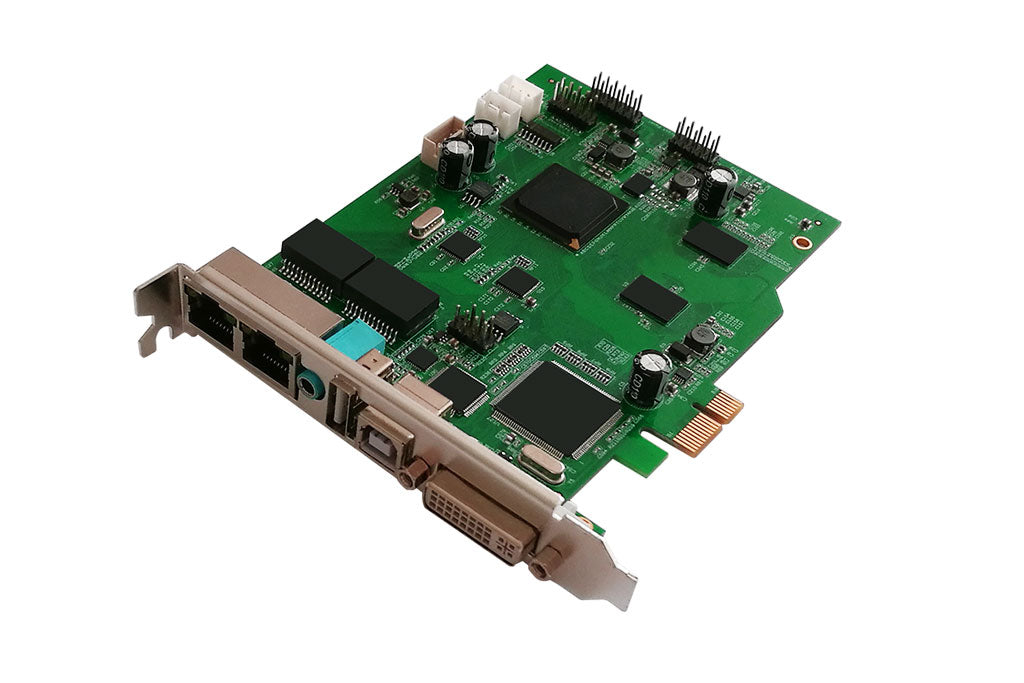

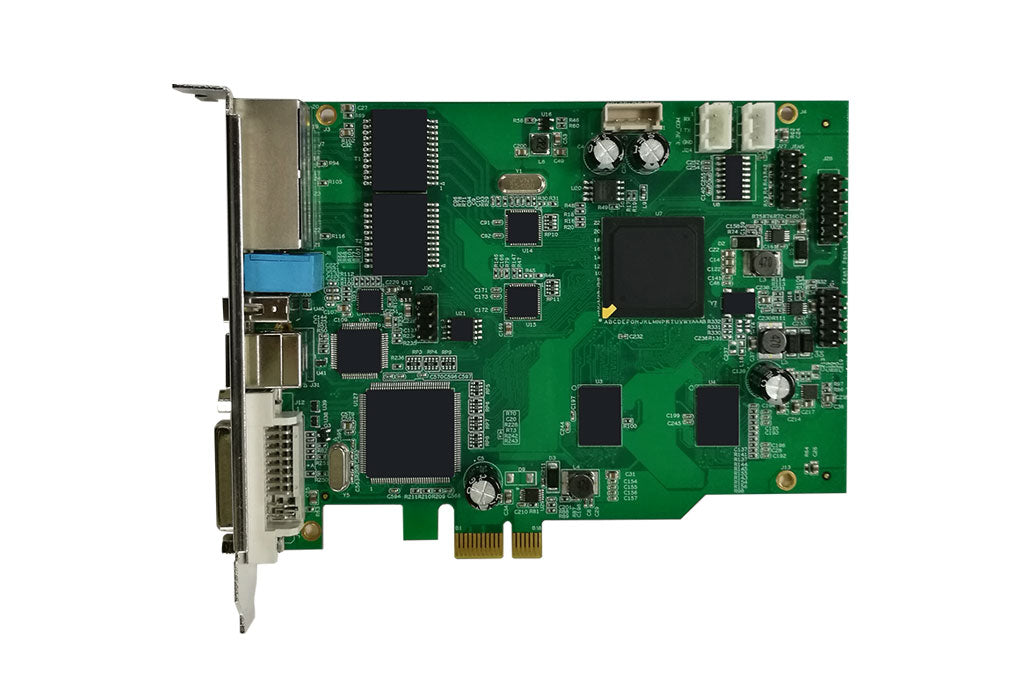

S2 Sending Card

As a new generation of sending card, S2 has updated its core chips, and the performance significantly improved. It adopts dual USB2.0 as the communication interface to achieve high speed communication between the PC and sending cards. S2 realizes cascading between multiple cards and much more convenient. Moreover, it equips PCI-E 1X interface, which is more versatile. S2 can be applied to small display perfectly.

·DVI signal input port
·Audio input port with synchronous transmission via Ethernet cable
·Maximum input resolution: 1920*1200 pixels
·Loading capacity: 1.31 million pixels; Maximum Width: 2560 pixels, Maximum Height: 2560 pixels
·2 Gigabit Ethernet port outputs support screen arbitrary splicing
·Dual USB ports for high speed configuration and easy cascading
·Improved grayscale performance at low brightness
·Equipped with 1*PCI-E interface for increased versatility
·Wide working voltage with DC 3.8~12V
·Compatible with all series of Colorlight receiving cards

Video Source Interface
Interface Type	DVI
Receiving Resolution	1920*1200 pixels
Frame Rate	60Hz, support auto-adjustment

Output Interface
Quantity	2 ports
Control Area	Each net port is 1280*512 pixels (or equivalent area). 2 net ports are 1280*1024 pixels (or equivalent area) Single card max width up to 2560 pixels, and 2560 pixels in height
Transmission Distance	CAT5≤140M；CAT6≤170M；Optical fiber: No limitation
Net Port Cascading	Up-down or left-right cascading defined by user
Transmission Mode	Frame mode (Gigabit Ethernet) with CRC

Connection equipment
Receiving Card	Compatible with all series of Colorlight receiving card
Peripherals	Multifunction card, optical fiber transceivers, gigabit switcher

Specification
Size	140*105 mm
Input Voltage	DC 3.8V-12V
Rated Power Consumption	6W
Weight	100g

External interfaces
Configuration Port	USB
Real-time Configuration	Support
Brightness and Chromaticity Adjustment	Support
Smart Detection System	DVI interface detection
Real-time Clock	Includes real-time clock

More functions
Multi-Screen Control	Multiple screens with different sizes can be controlled simultaneously
Background Playing	Support background playing (Extended mode)
Audio Transmission	Support
BER Detection	Ethernet cable quality and malfunction detection
