Colorlight

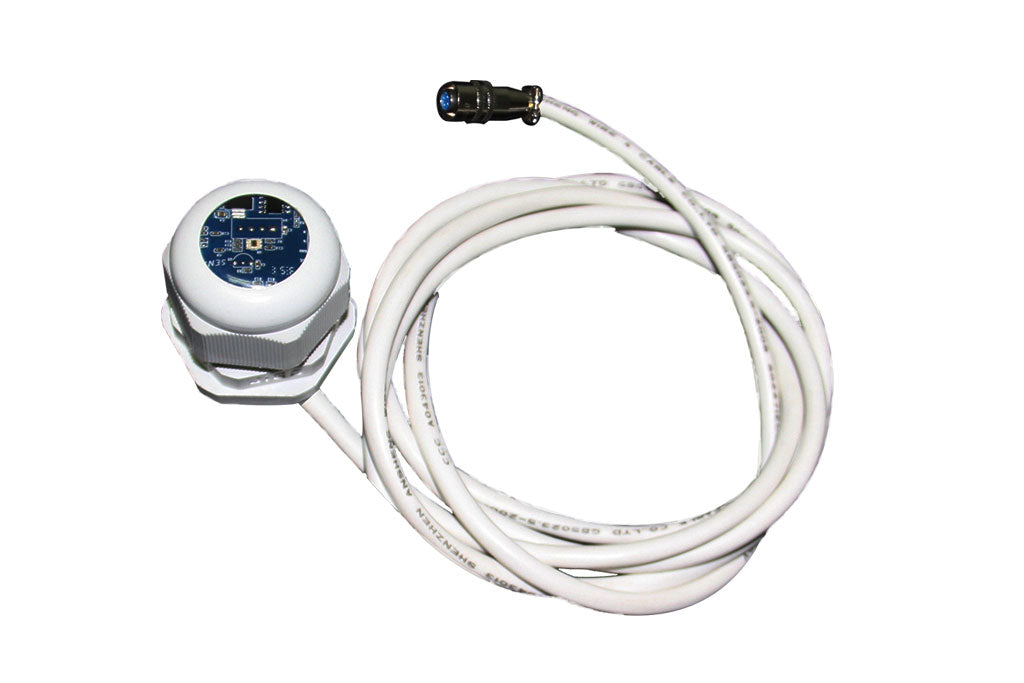

Colorlight LED Display Accessories Ambient Brightness Sensor SSRL29 SSRL16

Colorlight LED Display Accessories Ambient Brightness Sensor SSRL29 SSRL16

Regular price $75.00 USD
Regular price Sale price $75.00 USD
Sale Sold out
Shipping calculated at checkout.
Model Number

SSR-L29 Brightness Sensor

Monitor environmental brightness, and auto adjust the brightness of LED display according to environmental brightness value and brightness adjustment strategy set up before, to achieve the aim of environmental protection and ensuring best viewing effect(photo eye control system);

·Connect with iM9 multifunction card with 4 optional extended interfaces;
·Standard wire length: 5 meter, can be lengthened;
·For outdoor use, three proofing properties included;
·Do not require an external power supply;
·Appearance size: Ǿ45*50.
Specification
Rated voltage 5V
Working temperature -20℃~75℃
Working humidity 0—99%
Brightness range 0—65535 lux


SSR-L29 Brightness Sensor

Monitor environmental brightness, and auto adjust the brightness of LED display according to environmental brightness value and brightness adjustment strategy set up before, to achieve the aim of environmental protection and ensuring best viewing effect;

·Connect with iM9 multifunction card with 4 optional extended interfaces;
·Standard wire length: 5 meter, can be lengthened;
·For outdoor use, three proofing properties included;
·Do not require an external power supply;
·Appearance size: Ǿ45*50.
Specification
Rated voltage 5V
Working temperature -20℃~75℃
Working humidity 0—99%
Brightness range 0—65535 lux
