Colorlight K Series K10 K9+ K8 K5+ LED Receiving Card LED Display Controller

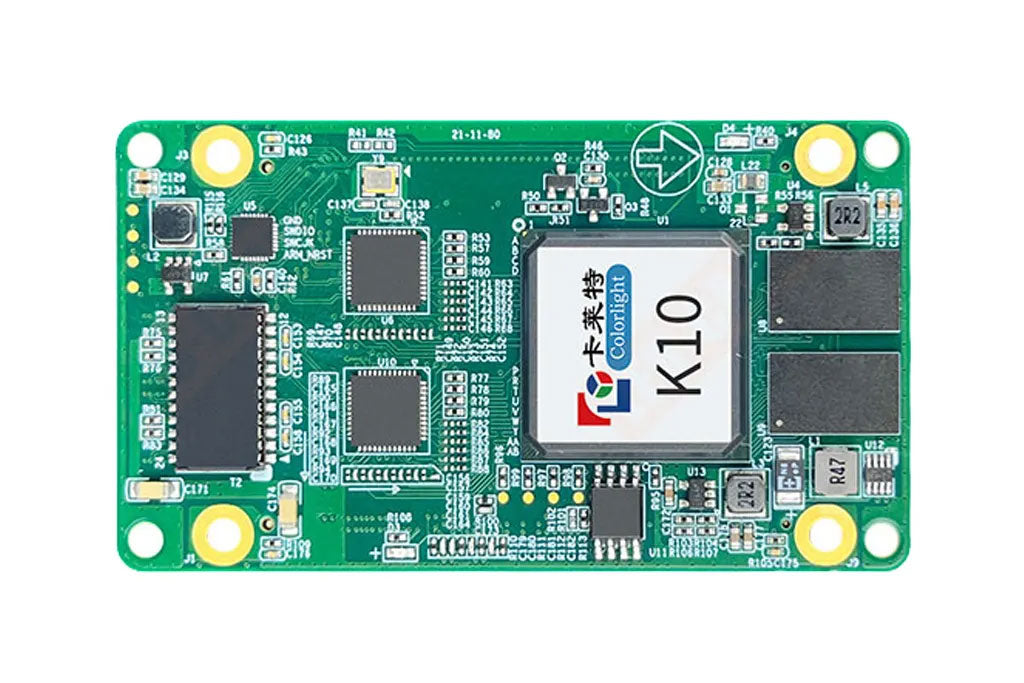

K10 LED Receiving Card
Colorlight K10 is a high-end receiving card developed for fine-pitch LED screens featuring large load capacity and up to 32 parallel data groups or 64 serial data groups. Due to its small form factor, K10 is best fit into concise cabinets.
With high-density connectors, it can achieve dustproof and shockproof effect, result in its high stability and reliability.
K10 not only has all the functions of mainstream receiving cards, but also a series of practical and powerful features helping high-end displays to maximize video performance with stunning clarity. K10 can be perfectly used in high-end renta ls as well as fine- itch fix-installed LED screens.

• 12bit color depth


  12bit video source delivers 68 billion colors for marvelous visual effects.
• Infi-bit grayscale extension


  Dramatically increase the grayscale level of the screen, showing more low-gray detail, and presenting a more realistic image.
• Grayscale refinement


  Using the colorimeter, each grayscale is accurately measured and calibrated,eliminating gray scale color cast for a smooth grayscale transition.
• Independent RGB Gamma adjustment


  Through the software, the red, green and blue Gamma are independently adjustable for correcting the color jump and cast,effectively controlling the low gray unevenness and white balance drift of the display, so as to make the picture more realistic.
• Gamut adjustment


  Select output mode according to the color space of video source and image to ensure color accuracy,so as to solve the problem of color distortion caused by the difference of the display color gamut.
• HDR


  Support HDR10/HLG. Built-in color management module enables user-defined adjustment of the PQ photoelectric conversion curve based on the screen color characteristics to present the best display effect.
• Advanced softedge


  Independent softedge coefficient, fast processing, applicable to fixed installation and leasing, quickly eliminates splicing bright and dark lines.
• Multi-grayscale calibration


  Compared with conventional calibration, Multi-grayscale calibration solves low gray blocks and color temperature offset problem caused by the nonlinear brightness change of fine pitch cabinet.
• High frame rate


  With the frame rate multiplication of the sender, it can output 120Hz, 144Hz or even 240Hz high frame rate pictures.The higher the frame rate, the smoother the picture, eliminating the phenomenon of smearing while maintaining the low latency of the system.
• SHUTTERLOCK


  With SHUTTERLOCK you can adjust LED screen refresh rate to precisely match the camera's shutter speed, so that the camera captures the perfect picture.
• Module design


  Module design assists to set up triangle, trapezoid, circle, fan and other irregular shaped LED modules and cabinets in a breeze.
• Parameter & Calibration coefficient redundancy


  Store factory parameters and calibration coefficients in receiving card and restore with one button.
• Firmware upgrade without power restart


  No need to restart power supply after upgrading receiving card firmware.

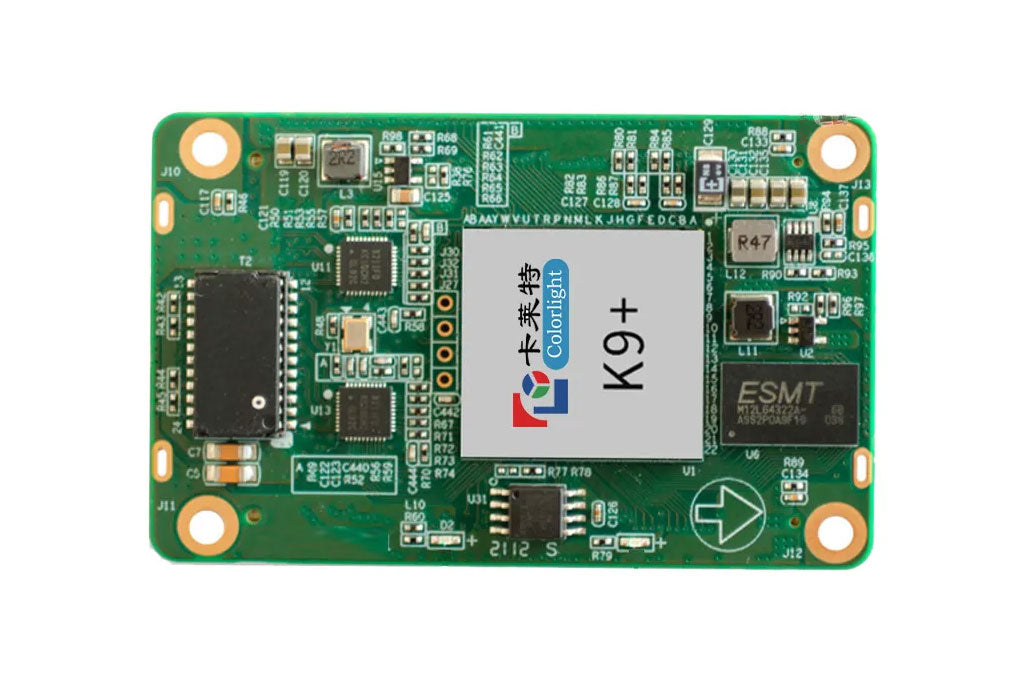

K9+ LED Receiving Card
Colorlight K9+ is a high-end receiving card developed for fine-pitch LED screens featuring large load capacity and up to 32 parallel data groups or 64 serial data groups. Due to its small form factor, K9+ is best fit into concise cabinets.
With high-density connectors, it can achieve dustproof and shockproof effect, result in its high stability and reliability.
K9+ not only has all the functions Of mainstream receiving cards, but also a series of practical and powerful features helping high-end displays to maximize video performance with stunning clarity. K9+ can be perfectly used in high-end renta ls as well as fine- itch fix-installed LED screens.

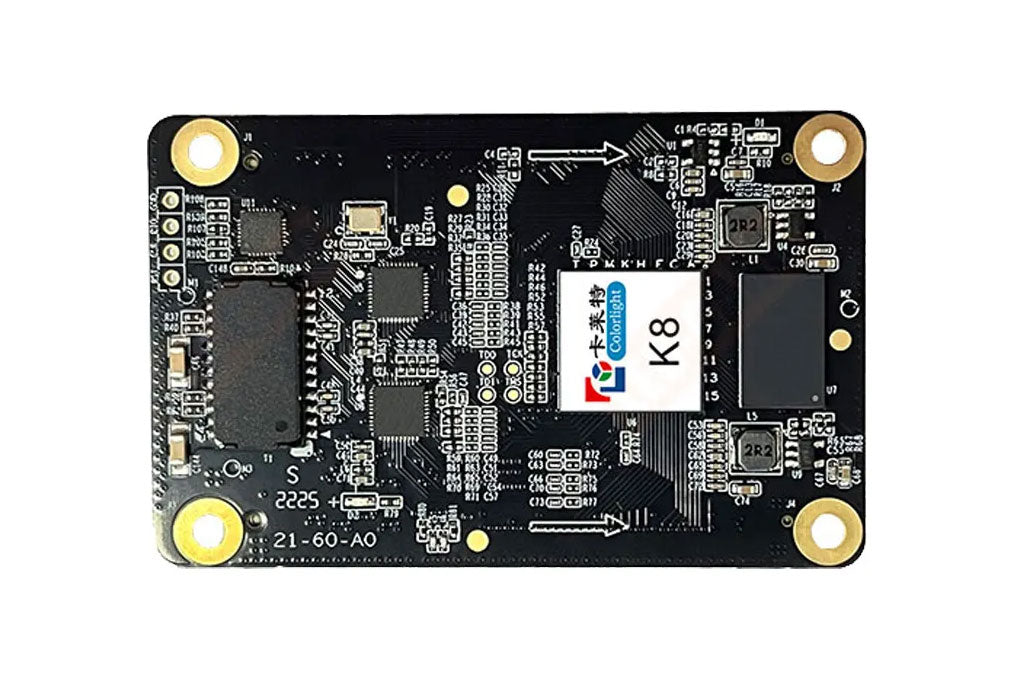

K8 LED Receiving Card

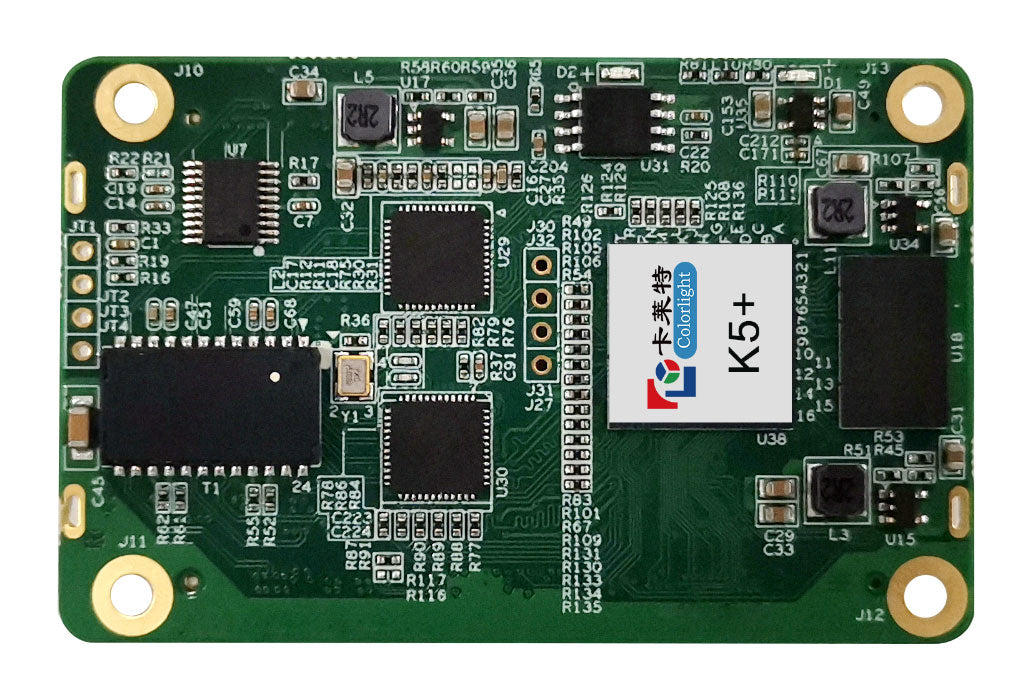

K5+ LED Receiving Card
K5+ receiving card is a small full-featured high-end receiving card from Carlet, measuring only 70×45mm.
K5+ uses a small-sized hardware design for small cabinet spaces and small-pitch applications; it uses a high-density connector interface for dust and shock resistance, high stability and high reliability.
K5+ has all the functions of the current mainstream receiving card, and also developed a series of practical and powerful functions for high-end display, bringing value-added points to customers' products and enhancing product added value.
· Single card supports 32 sets of RGB signal parallel output;
· Single card with a maximum load of 512 × 256 pixels;
· Support high-precision brightness and chromaticity integration point-by-point correction;
· Support low light and high gray;
· Support color temperature adjustment;
· Support any pumping, drawing, and pumping;
· Support fast upgrade and fast send correction factor;
· Support smart module: store correction coefficient, module parameters, etc.
· Support box temperature, humidity, power status, voltage monitoring and fan control;
· Support network cable status monitoring;
· Support any scan type between 1~64 scans;
· Support DC 3.3V~6.0V ultra wide working voltage;
· Support Carlet's full range of sending devices.

Further Information:
K10/K9+/K8/K5+
Colorlight K10 LED Receiving Card Specification
Colorlight K9+ LED Receiving Card Specification
Colorlight K8 LED Receiving Card Specification
Colorlight K5+ LED Receiving Card Specification
