Colorlight I Series LED Display Controller I5A I5A-907 I5A-905 LED Receiving Card

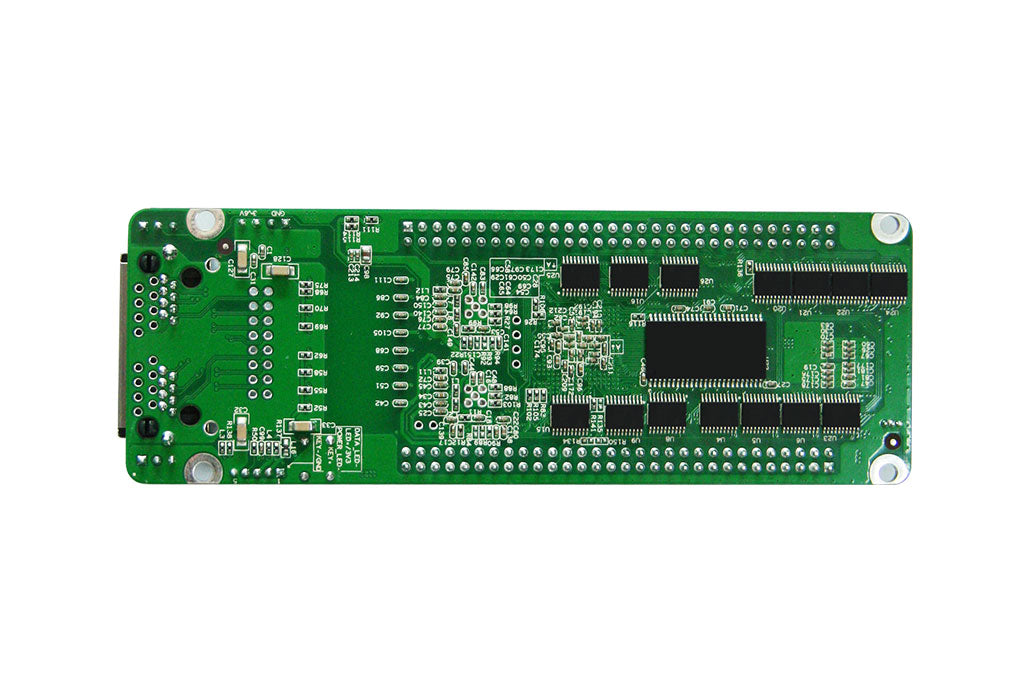

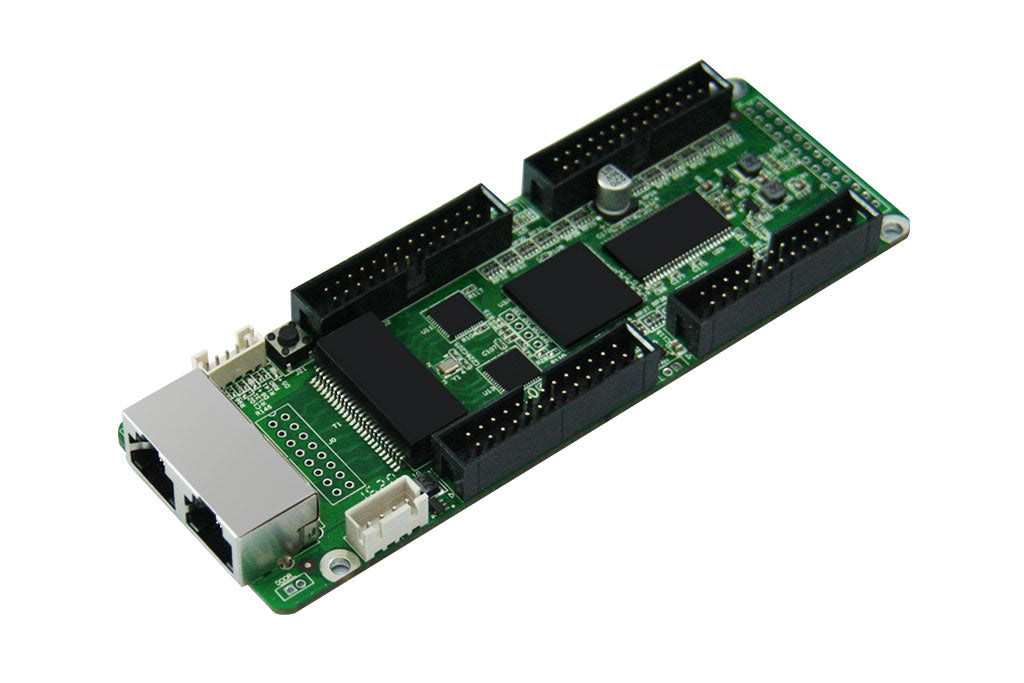

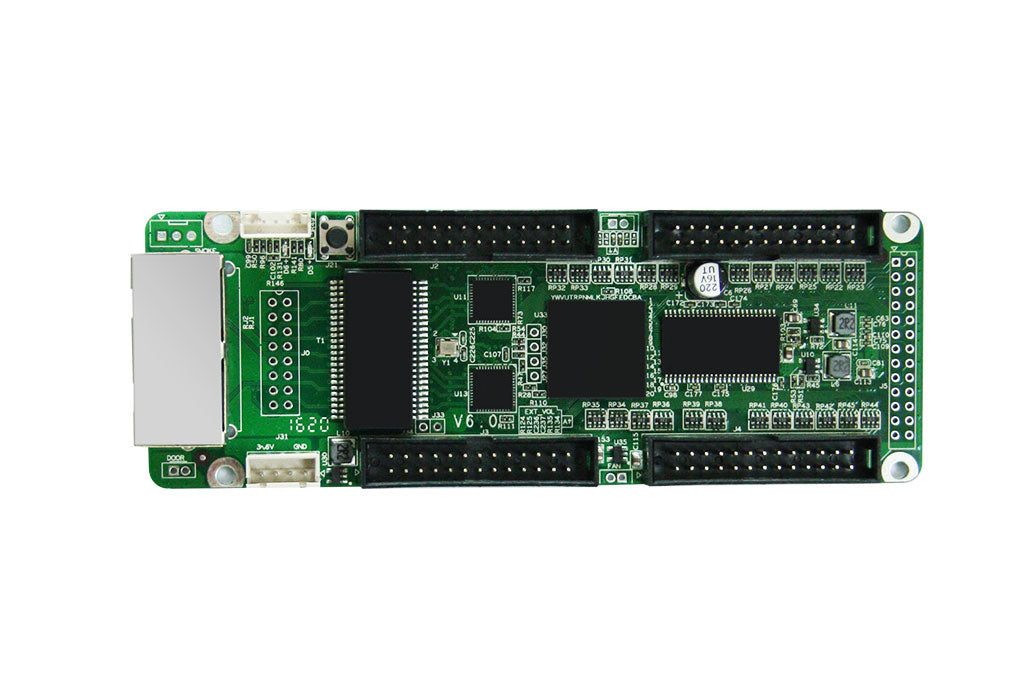

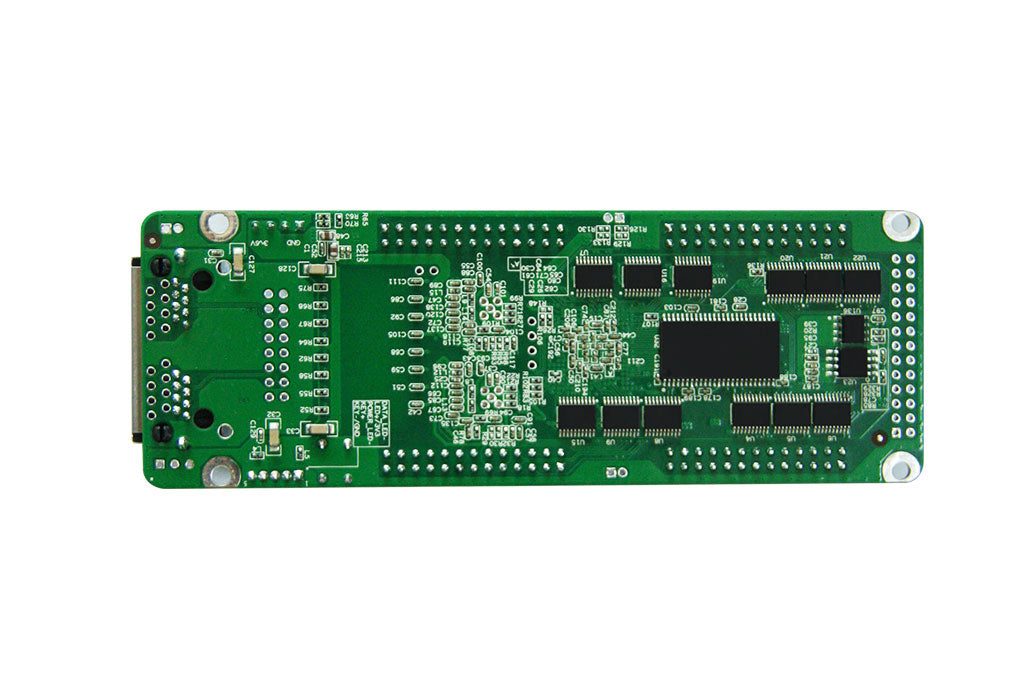

I5A-907 LED Receiving Card

i5A-907 is specially designed for the compact and portable LED displays, such as LED color screen or casting aluminum cabinet, etc. It inherits all the advantages and features i5A series had, adopts a new generation image processing core, and greatly improve the display effect; adopts a new generation of system architecture, and possesses more intelligent function and more stable system. Make its size and interfaces perfectly suit for LED color screen and casting aluminum display.

·Tiny size, special designed for the compact structure designs, like color screen and casting aluminum cabinet.
·Power supply from pin board without the need of external power supply, enhance hardware stability.
·New processing core, perfect in display effect.
·High refresh rate, high gray scale and high brightness with conventional chips.
·Perfect performance under lower grayscale status.
·Better detail processing: Partial dark at row, reddish at low gray, shadow problems can be solved.
·Support the effective display at first grayscale value.
·Support 14 bits high-precision point-by-point calibration in the Brightness and chromaticity.
·Support conventional chips, PWM chips and lighting chips, etc.
·Support any scan mode from static to 1/32 scan.
·Support any pumping point and data arbitrary offset, and realize various freeform display, spherical display, diamond display, creative display, etc.
·Support 16 groups RGBR’ signal output and 24 groups RGB in maximum.
·Large load capacity.
·Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
·Wide working voltage range with DC 3.3 -6V.
·Support dual receiving card backup, loop backup, and dual-machine backup, etc.
·Compatible with S series Sender, Z series Sender and C series Sender, etc.

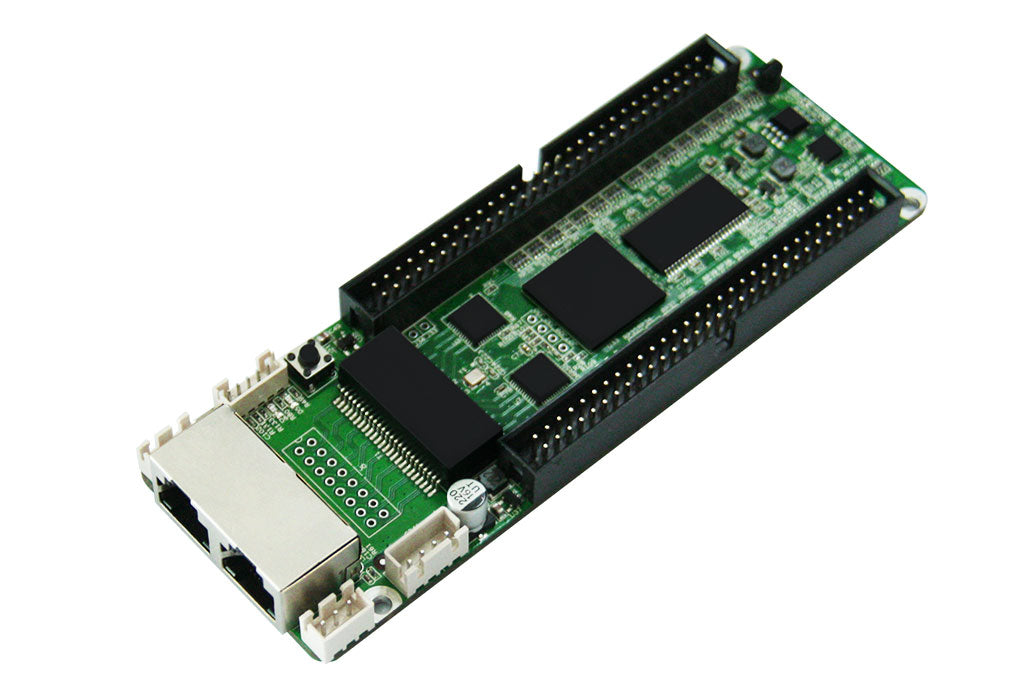

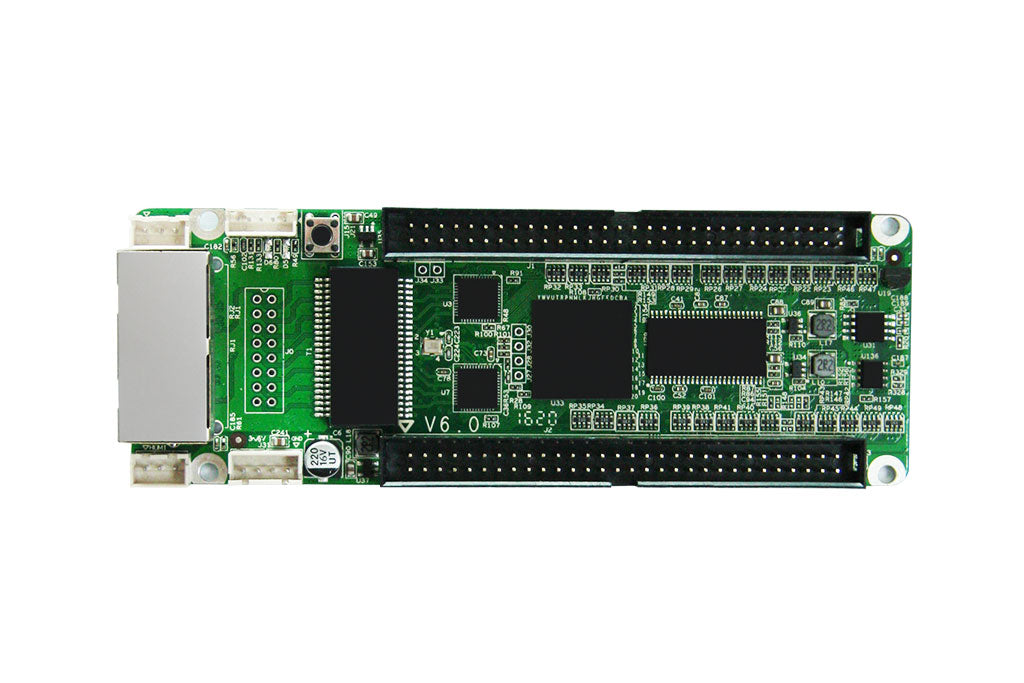

I5A-905 LED Receiving Card

i5A-905 is specially designed for the compact and portable LED displays, such as LED color screen or casting aluminum cabinet, etc. It inherits all the advantages and features i5A had. Meanwhile, i5A-905 possesses Colorlight unique dual receiving card backup technique, to support one cabinet with two receiving cards, mutual backup, more reliable in the key moment.

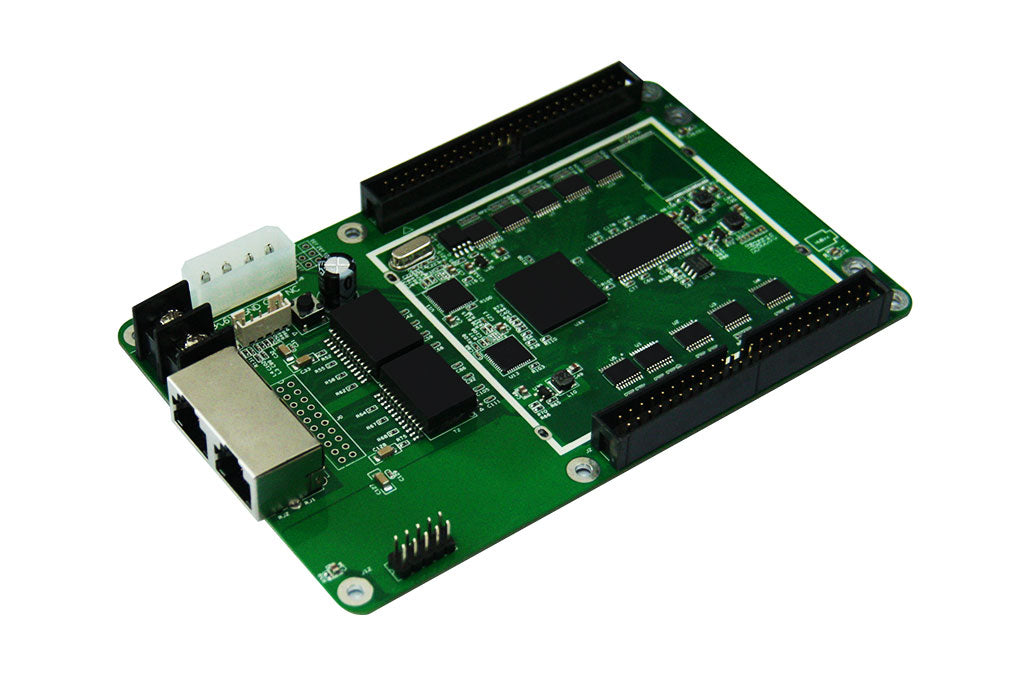

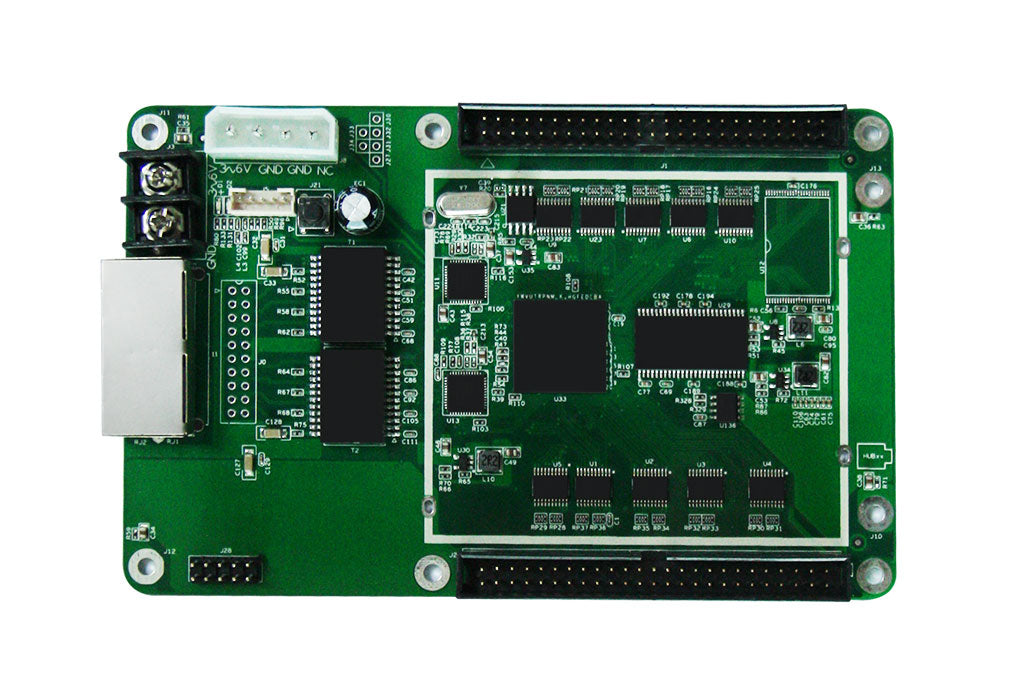

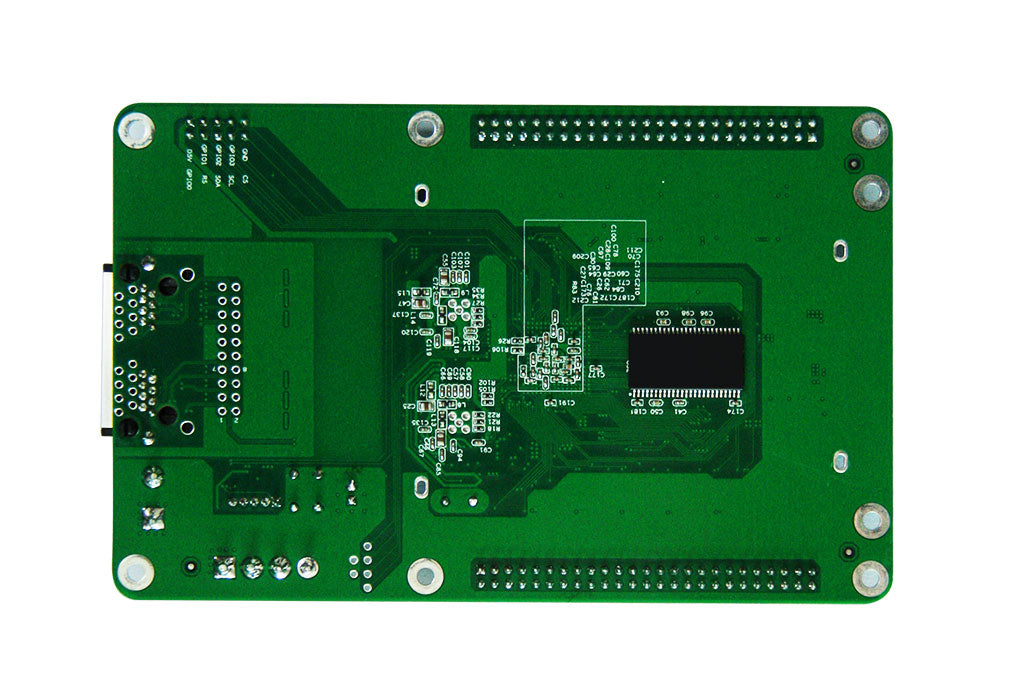

I5A LED Receiving Card

i5A adopts a new generation of image processing core, it supports higher level of color input and gray level output, which creates more delicate images; Great improvement has been done onto low gray scale aspect, which enhances its display effect; Higher refresh rate makes display images more stable. i5A adopts a new generation of system architecture, it supports a range of more intelligent and high-end functions like program arbitrary switching, external connect to LCD display module, etc.
