Colorlight I Series LED Display Controller 5A-75E 5A-75B LED Receiving Card

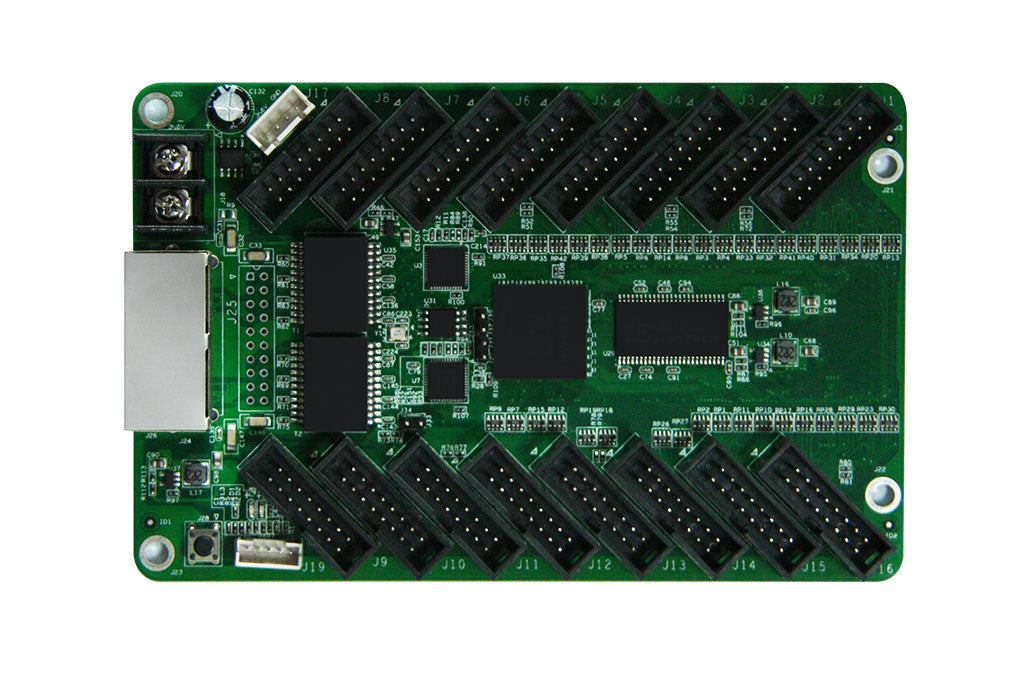

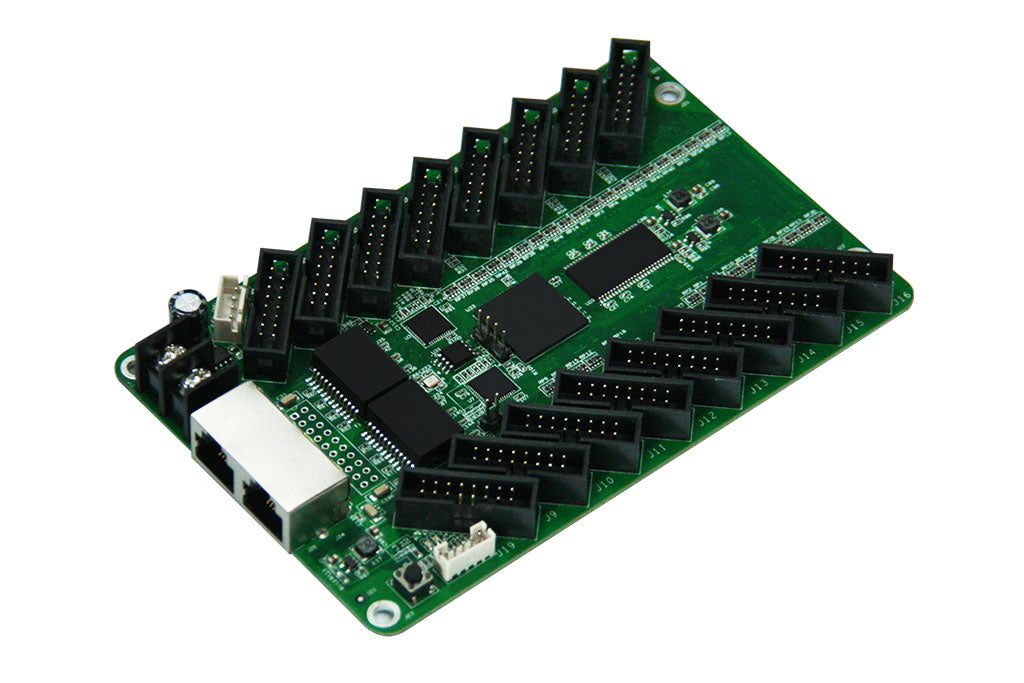

5A-75E LED Receiving Card

5A-75E receiving card is Colorlight special introduced high performance product that designed for customers to save cost, reduce points of fault. Based on 5A receiving card, 5A-75B integrates the most common HUB75 interfaces, which is more reliable and more economical on the premise that ensures high-quality display.

·Integrated HUB75 interface, more convenient with less cost.
·Reduce the plug connectors, and reduce malfunction, lower failure rate.
·Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
·Perfect performance under lower grayscale status.
·Better detail processing: Partial dark at row, reddish at low gray, shadow problems can be solved.
·Support 14 bits high-precision point-by-point calibration in the Brightness and the chromaticity.
·Support conventional chips, PWM chips and lighting chips.
·Support any scan mode from static to 1/32 scan.
·Support any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display, etc.
·Support 32 groups of RGB signal output.
·Large load capacity.
·Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
·Wide working voltage range with DC3.3~6V.
·Support reserve connection protection.
·Compatible with Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc.

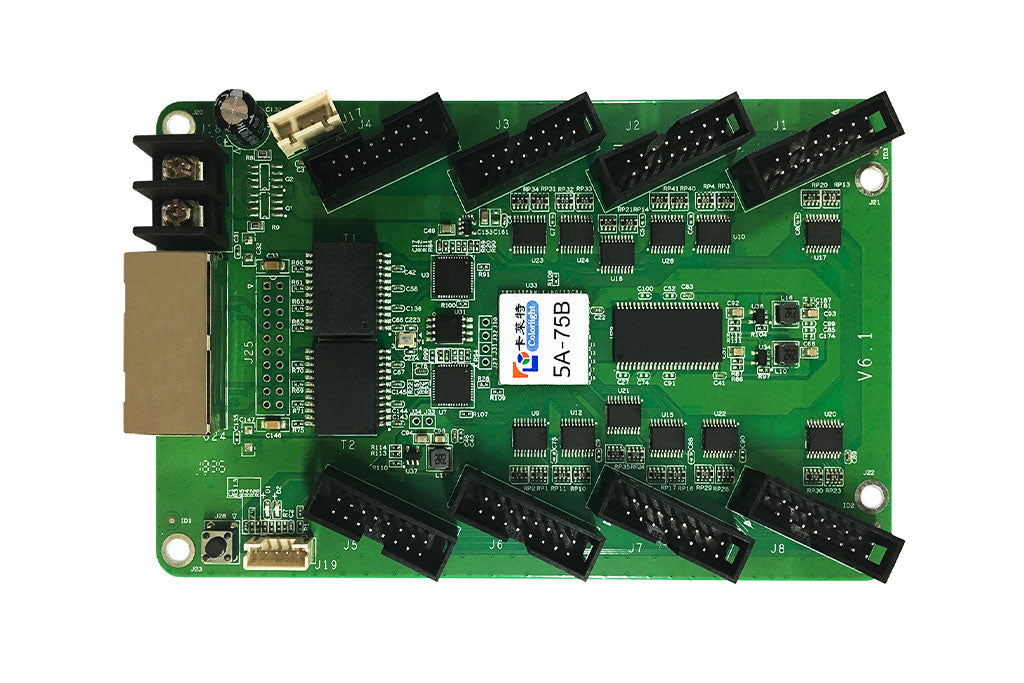

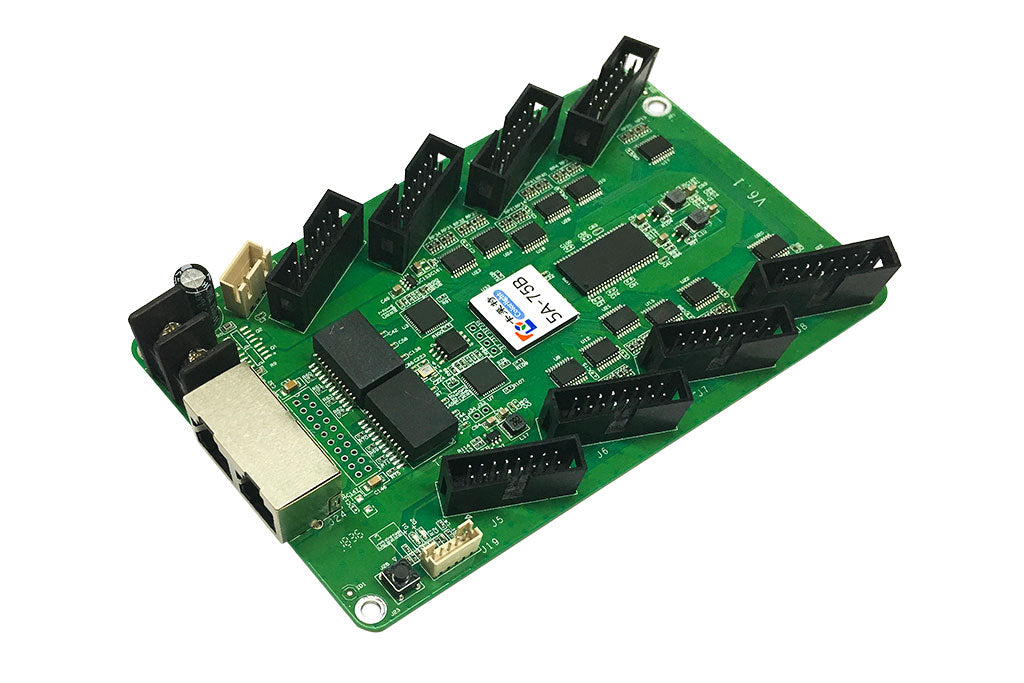

5A-75B LED Receiving Card

5A-75B receiving card was Colorlight special introduced high performance product that designed for customers to save cost, reduce points of fault and failure rate.Based on 5A receiving card, 5A-75B integrates the most common HUB75 interfaces, which is more reliable and more economical on the premise that ensure high-quality display.

·Integrated HUB75 interface, more convenient with less cost.
·Reduce the plug connectors, and reduce malfunction, lower failure rate.
·Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
·Perfect performance under lower grayscale status.
·Better detail processing: Partial dark at row, reddish at low gray, shadow problems can be solved.
·Support 14 bits high-precision point-by-point calibration in the Brightness and the chromaticity.
·Support conventional chips, PWM chips and lighting chips.
·Support any scan mode from static to 1/32 scan.
·Support any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display, etc.
·Support 16 groups of RGB signal output.
·Large load capacity.
·Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
·Wide working voltage range with DC3.3~6V.
·First adopt all components face up configuration to reduce damage.
·Compatible with Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc.
