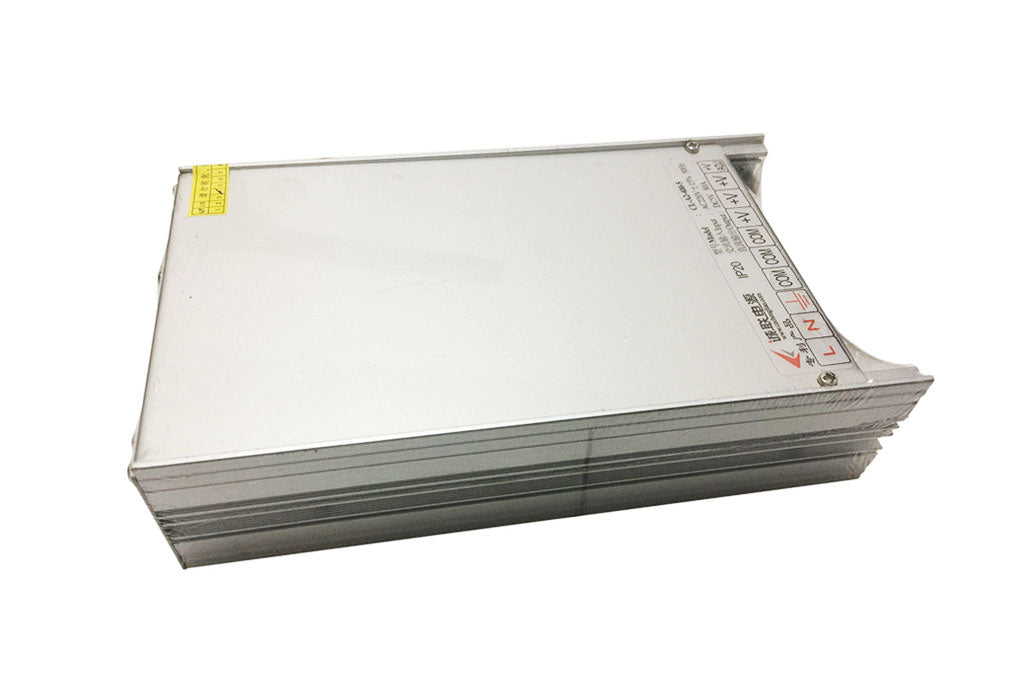

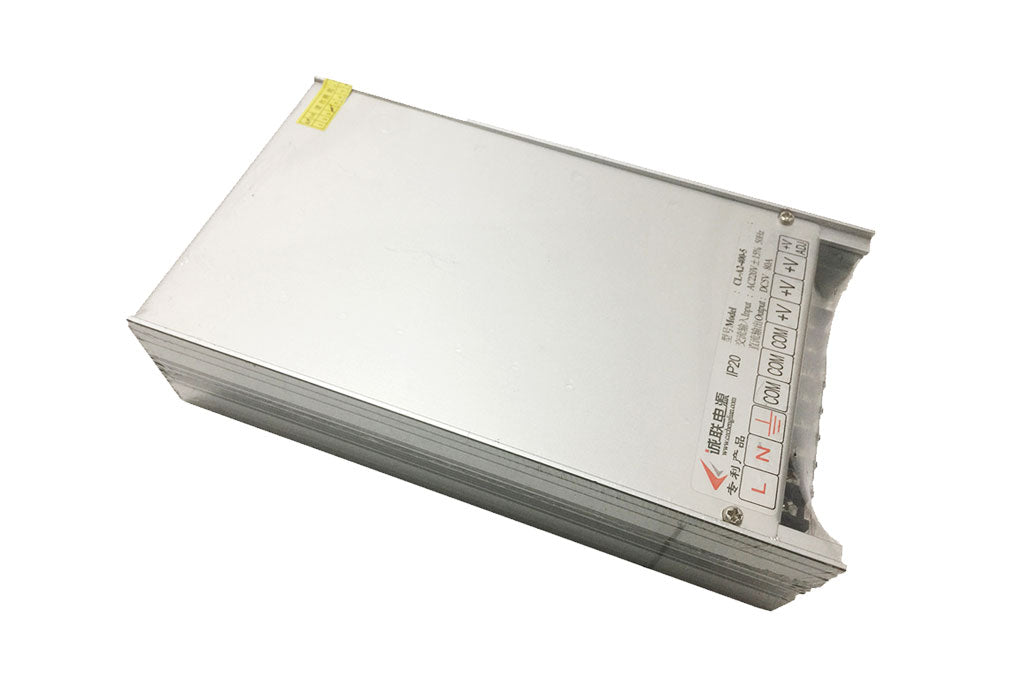

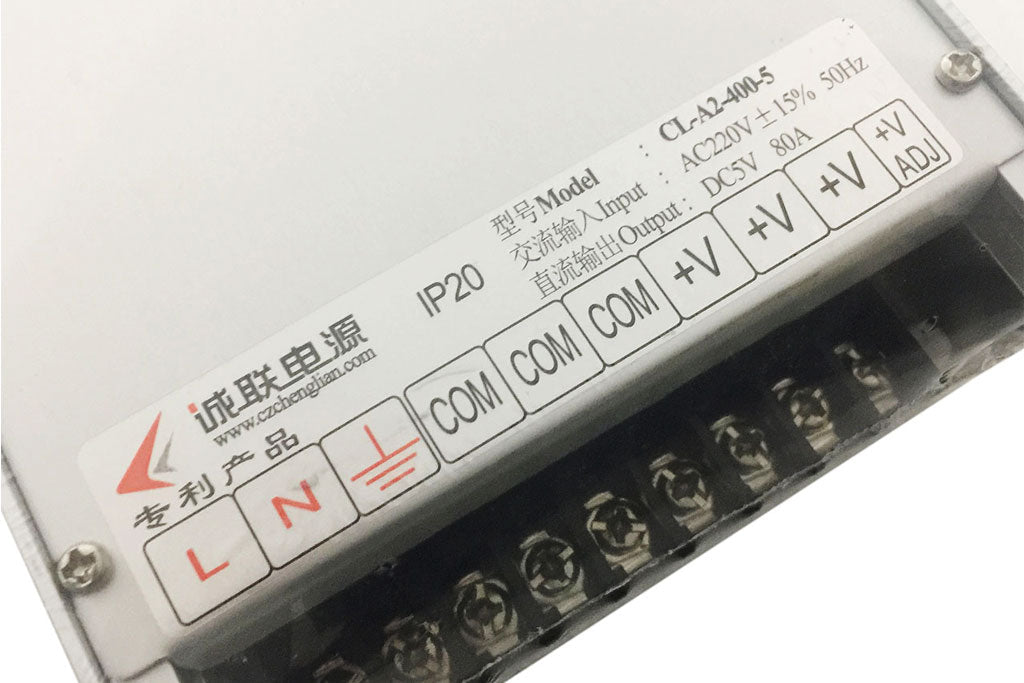

CL LED Displays Power Supply A2-400-5 5V80A Standard Size LED Power Supply

CL-A2-400-5 5V80A Standard Size LED Power Supply Features:

Input Parameter:

• Input Voltage Range: 190～264Vac
• Input Frequency Range:  47-63HZ
• AC Current: ≤3.5A(AC220V)/6A（AC110V）
• Input inrush current<80A(220Vac input, 25℃  cold start)

Output Parameter:

• Dc Voltage Range:5 V
• Rated Current: 60A
• Max power: 300W
• Ripple & Noise: ≤150mVp-P
• Efficiency (Typ):≥74% Vin=220Vac,25℃, rated load
• Voltage Tolerance:±2%
• Power on delay time<2S

Protection：

• OCP(105-125A)
• SCP(LOCKOU, auto recovery after restart)
• OTP(65℃-75℃, auto recovery after temperature is down)

Safety&EMC：

• EN60950-1,EN55022
• Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
• Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
• Leakage current<0.75mA(AC240V)

Others:

• Working Temperature:-30℃ ～ +60℃
• Cooling: ventilate by DC fan, double Fan
• Working Humidity:5%～90%RH
• Storage temperature: -20℃～+85℃

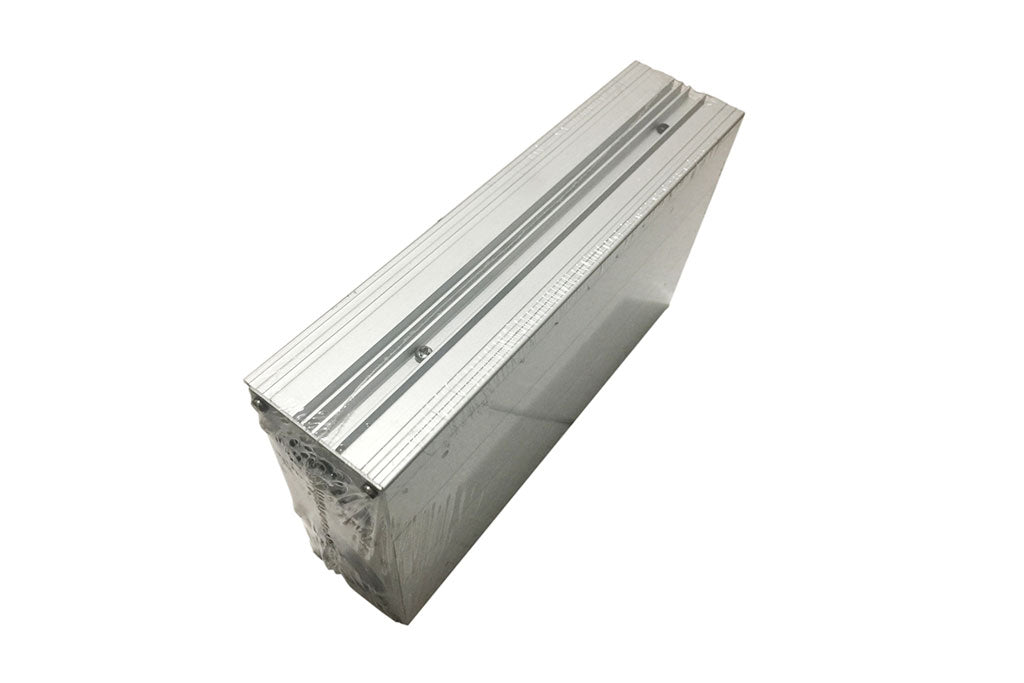

• Dimension (L*W*H):202(199)×114×49.5mm
• Carton Dimension: 63*28*26CM
• Packing:20PCS/ 18KG/CTN/0.05CBM
• MTBF:50K hours (MIL-HDBK-217F (25 )
