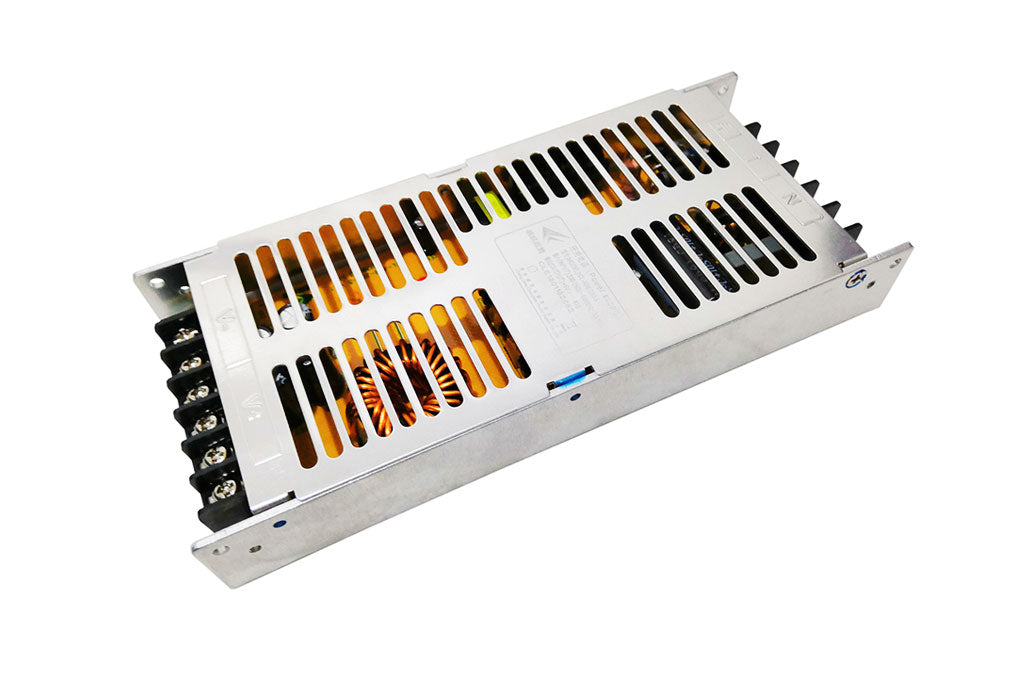

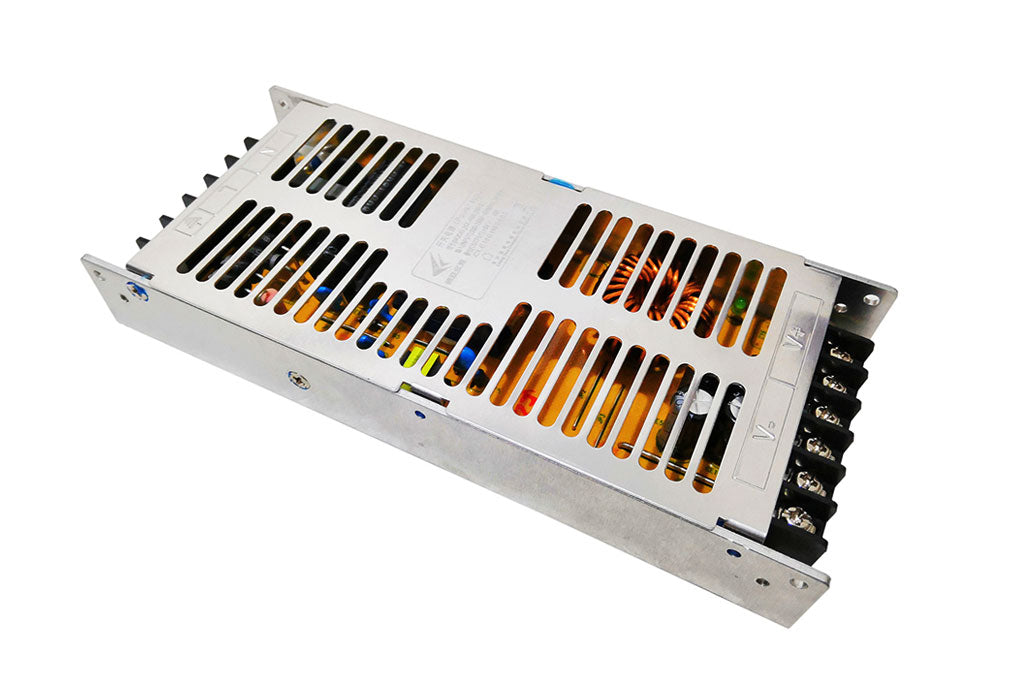

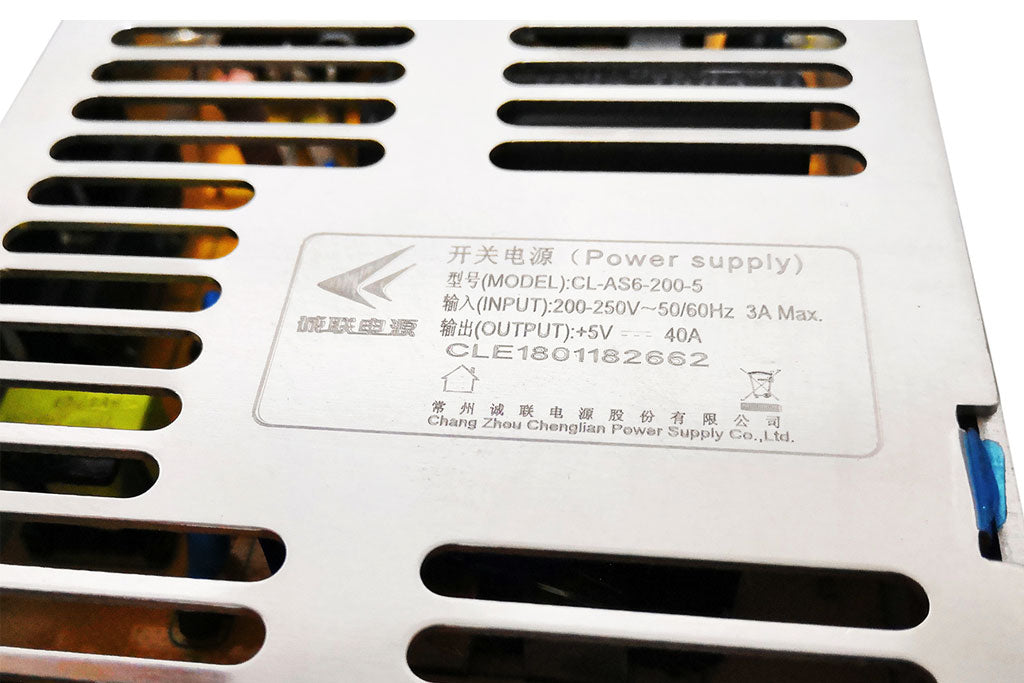

CL LED Displays Power Supply AS6-200-5 5V40A LED Power Supply

CL LED Displays Power Supply AS6-200-5 5V40A LED Power Supply

Regular price $28.00 USD
Regular price Sale price $28.00 USD
Sale Sold out
Shipping calculated at checkout.

CL-AS6-200-5 5V40A Standard Size LED Power Supply Features:

Input Parameter:

  • Input Voltage Range: 200~264Vac
  • Input Frequency Range:  50/60
  • AC Current: ≤3.0A(100Vac, full load)
  • Input inrush current<110A

Output Parameter:

  • Dc Voltage Range:5 V
  • Rated Current: 40A
  • Max power: 200W
  • Ripple & Noise: ≤300mVp-P
  • Efficiency (Typ):≥87.5% Vin=220Vac,
  • Voltage Tolerance:±2%
  • Power on delay time<5S

Protection:

  • OCP(48-65A)
  • SCP(Hiccup mode, auto recovery after fault condition is removed)

Safety&EMC:

  • EN60950-1,EN55022
  • Hi-pot: I/P-O/P: 2.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
  • Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
  • Leakage current<0.75mA(AC240V)

Others:

  • Working Temperature:-10℃ ~ +50℃
  • Cooling: ventilate by air convection
  • Working Humidity:5%~90%RH
  • Storage temperature: -20℃~+85℃
  • Dimension (L*W*H):190*81.5*30.5m
  • Carton Dimension: 42*28*20cm
  • Packing:32PCS/ 16KG/CTN/0.04CBM
  • MTBF:50K hours (MIL-HDBK-217F (25 )
