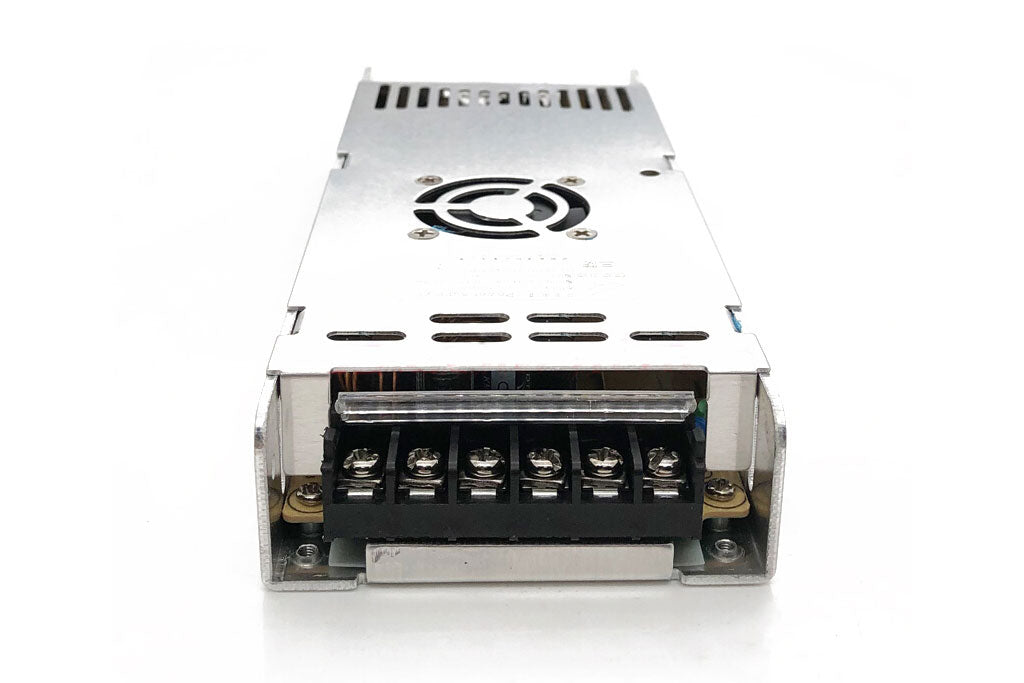

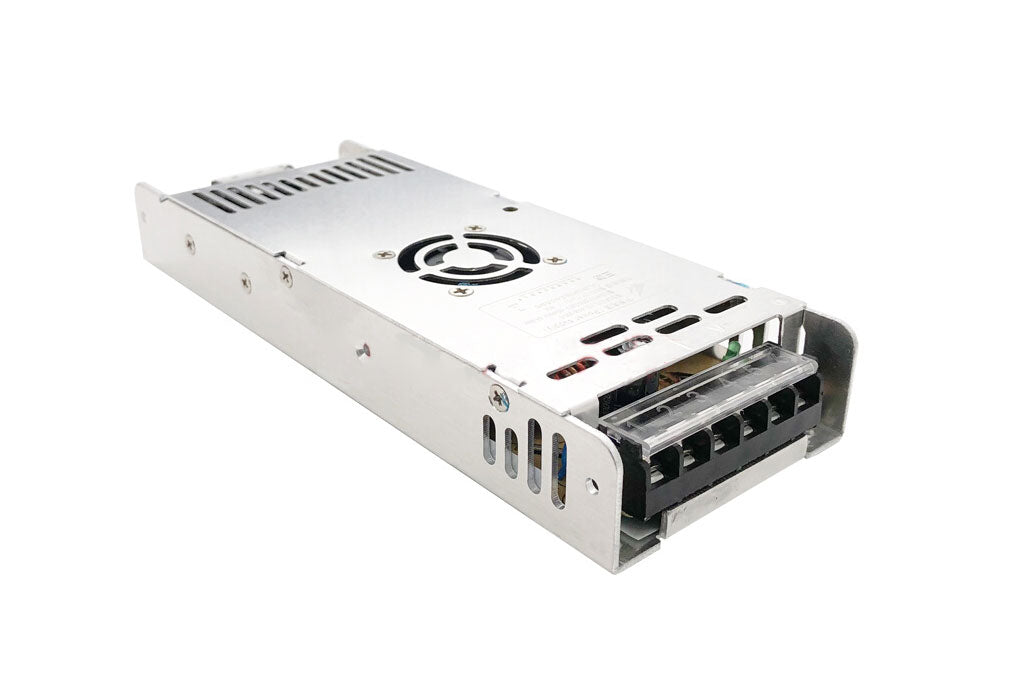

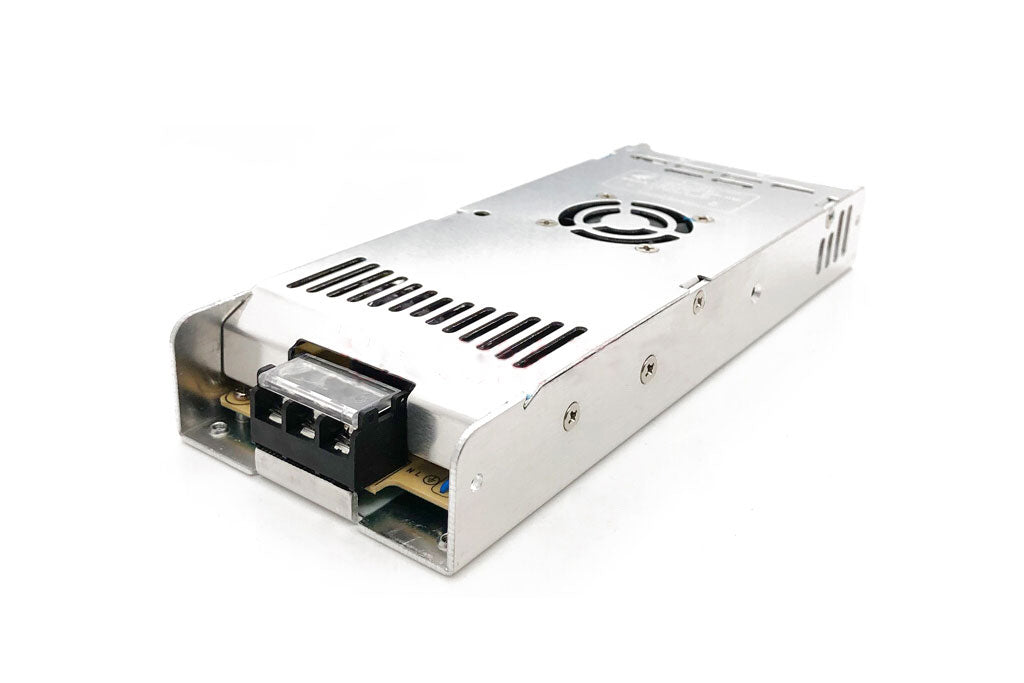

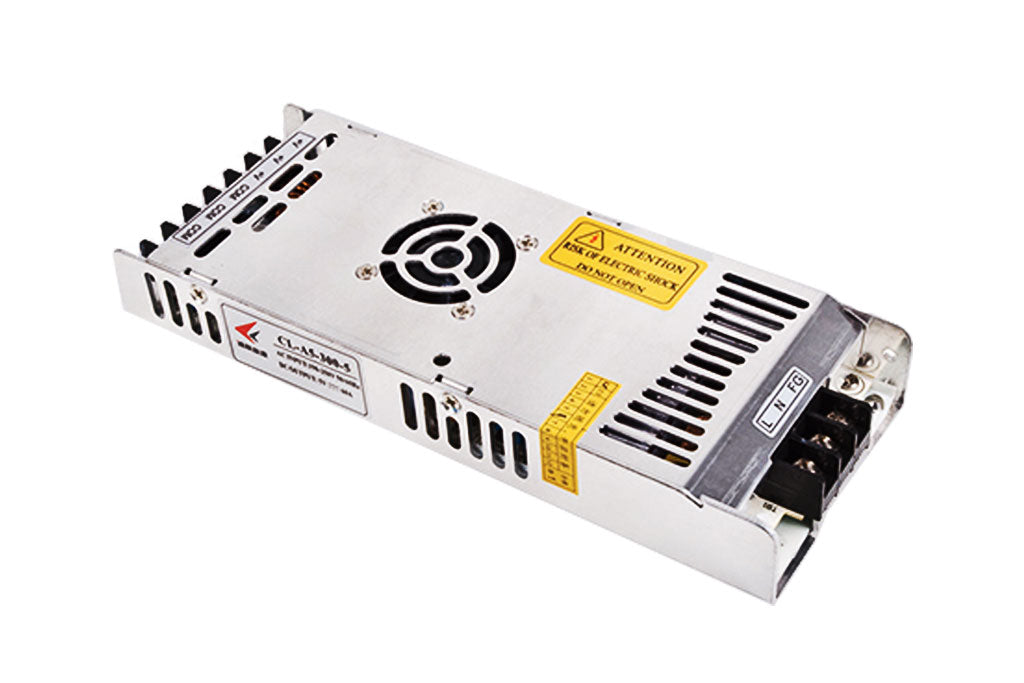

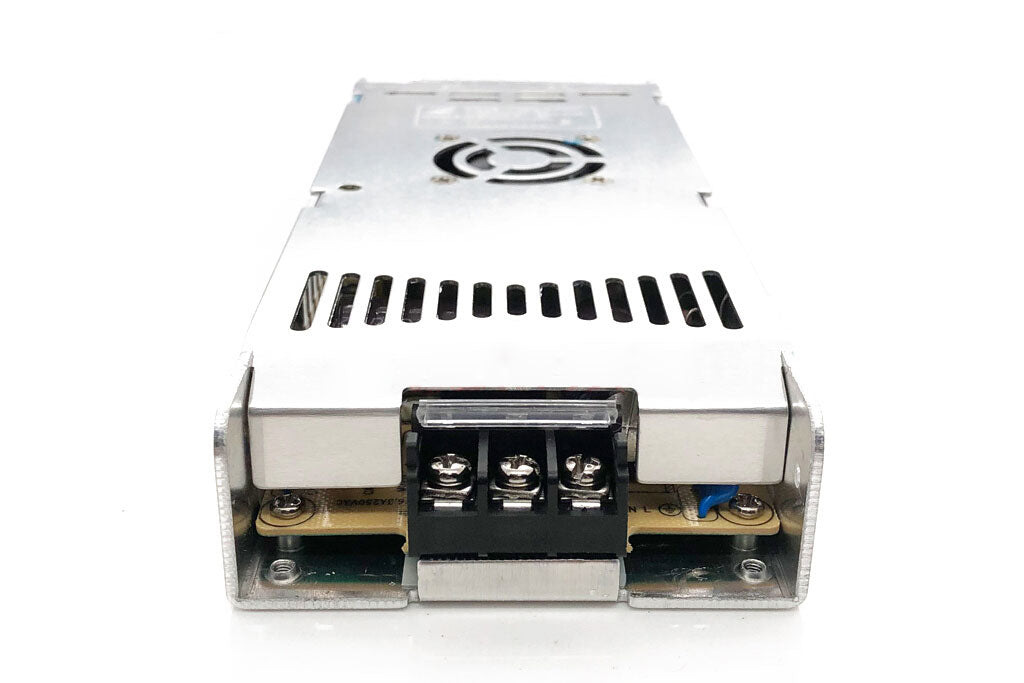

CL LED Displays Power Supply AS5-300-5 300W LED Power Supply

CL LED Displays Power Supply CL-AS5-300-5 Features:

Input Parameter:

• Input Voltage Range: 200～264Vac
• Input Frequency Range:  47-63HZ
• AC Current: ≤5.0A(AC220V)/6A（AC110V）
• Input inrush current<110A(220Vac input, 25℃  cold start)

Output Parameter:

• Dc Voltage Range:5 V
• Output voltage adjustment range: 4.8V-5.2V
• Rated Current: 60A
• Max power: 300W
• Ripple & Noise: ≤300mVp-P
• Efficiency (Typ):≥81.5% Vin=220Vac,25℃, rated load
• Voltage Tolerance:±2%
• Power on delay time<5S

Protection：

• OCP(70-95A)
• OVP(5.5V-6.5V)
• OTP(60℃~80℃, auto recovery after the temperature is down)
• SCP(Hiccup mode, auto recovery after restart)

Safety&EMC：

• EN60950-1,EN55022
• Hi-pot: I/P-O/P: 2.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
• Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
• Leakage current<0.75mA(AC240V)

Others:

• Working Temperature:-20℃ ～ +70℃
• Cooling: ventilate by DC Fan
• Working Humidity:5%～90%RH
• Storage temperature: -20℃～+85℃
• Dimension (L*W*H):212×82×31.5mm
• Carton Dimension: 42.3*27.3*27.5CM
• Packing:30PCS/ 16.5KG/CTN/0.03CBM
• MTBF:50K hours (MIL-HDBK-217F (25 )
