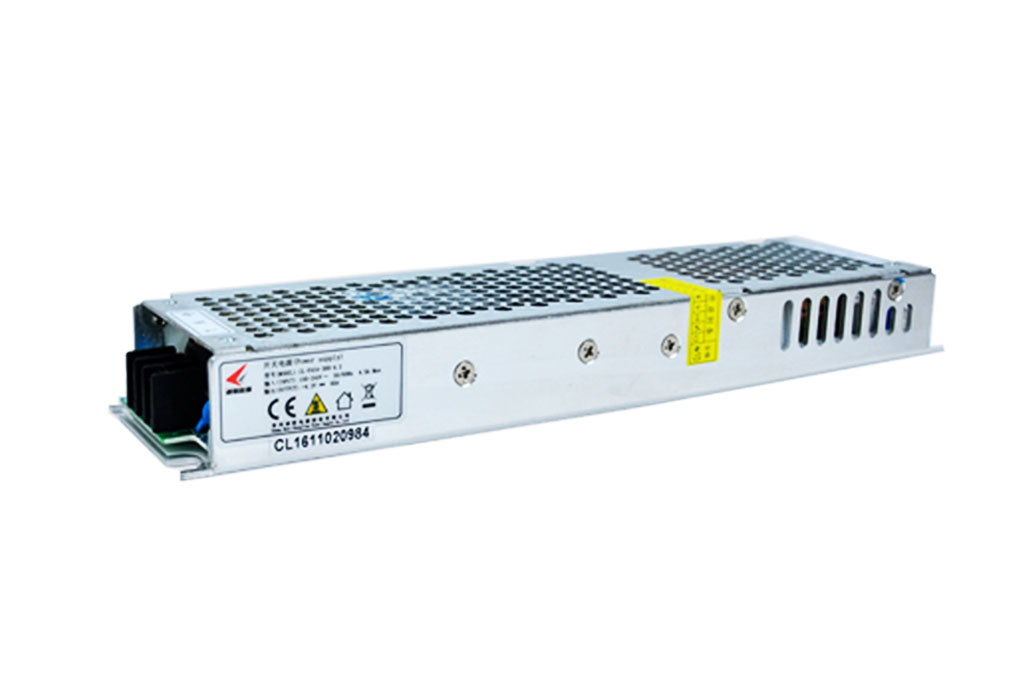

CL LED Displays Power Supply AS2-400-5 80A 400W LED Power Supply

CL-AS2-400-5 5V80A Standard Size LED Power Supply Features:

Model NO:

• CL-AS2-400-5,  5V 80A 400W
• CL-AS2-400-4.5,  4.5V 80A
• CL-AS2-400-4.2,  4.2V 80A

Input Parameter:

• Input Voltage Range: 190～250Vac
• Input Frequency Range:  50/60HZ
• AC Current: ≤3.5A(AC220V)/6A（AC110V）
• Input inrush current<80A(220Vac input, 25℃  cold start)

Output Parameter:

• Dc Voltage Range:5 V
• Rated Current: 80A
• Max power:400W
• Ripple & Noise: ≤300mVp-P
• Efficiency (Typ):≥88% Vin=220Vac,25℃, rated load
• Voltage Tolerance:±2%
• Power on delay time<2S

Protection：

• OCP(>90A)
• SCP(Hiccup, auto recovery after fault condition is removed)
• OVP
• OTP

Safety&EMC：

• EN60950-1,EN55022
• Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
• Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
• Leakage current<0.75mA(AC240V)

Others:

• Working Temperature:-30℃ ～ +70℃
• Cooling: ventilate by Air convection
• Working Humidity:5%～90%RH
• Storage temperature: -20℃～+85℃
• Dimension (L*W*H):252×64×30mm
• Carton Dimension: 42.3*27.3*27.5cm
• Packing: 20PCS/ 18KG/CTN/0.03CBM
• MTBF:50K hours (MIL-HDBK-217F (25 )
