CL LED Displays Power Supply CLA-200-5 5V40A Low Profile LED Power Supply
CL LED Displays Power Supply CLA-200-5 5V40A Low Profile LED Power Supply
Couldn't load pickup availability

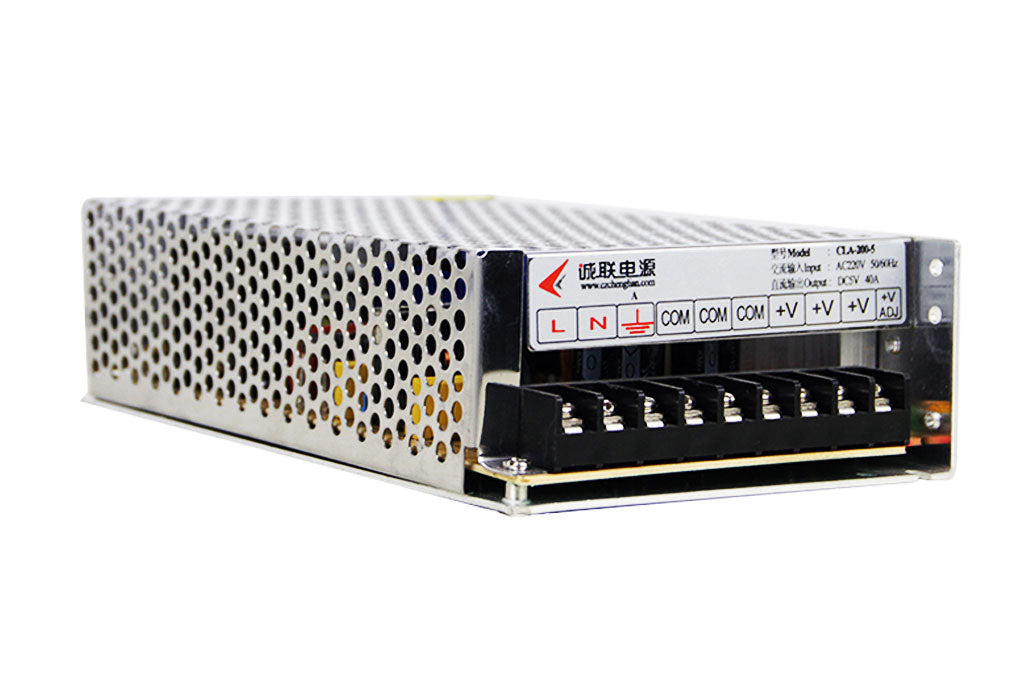

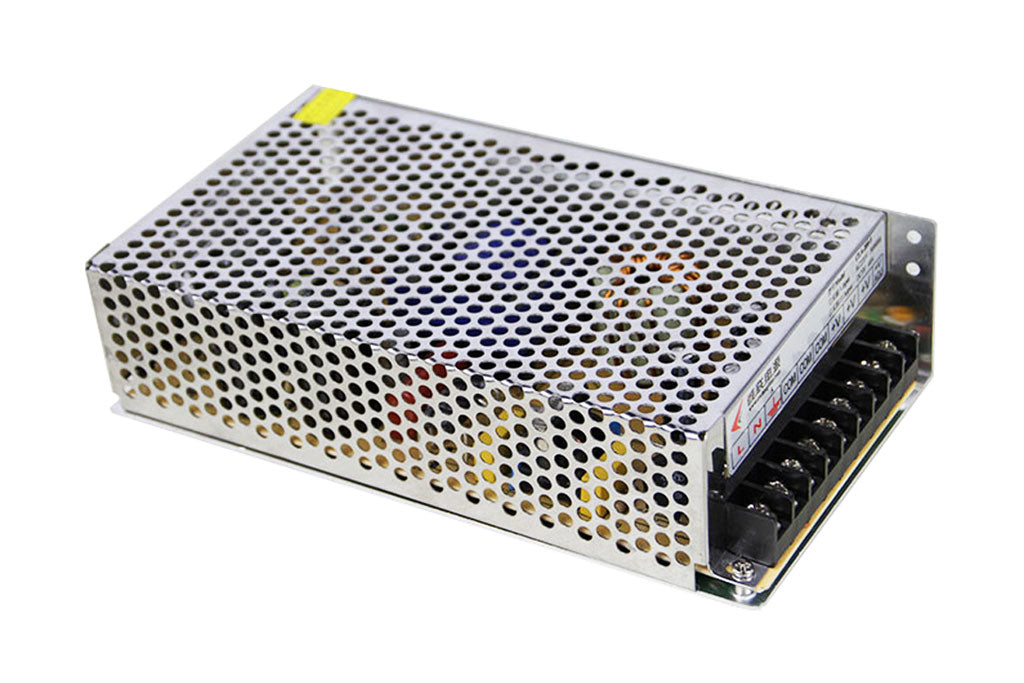

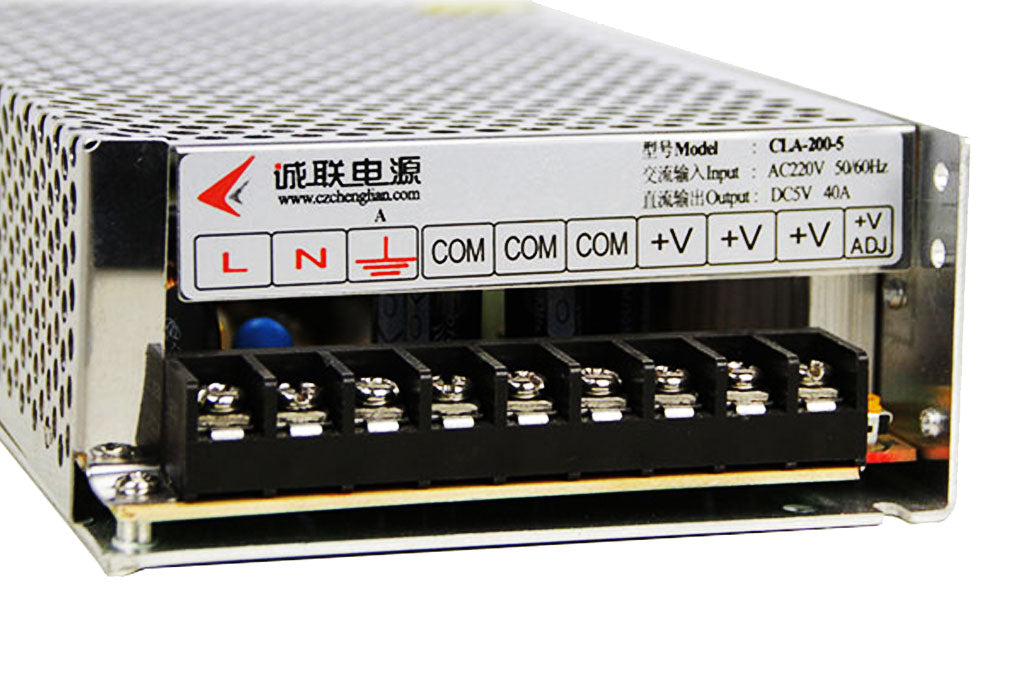

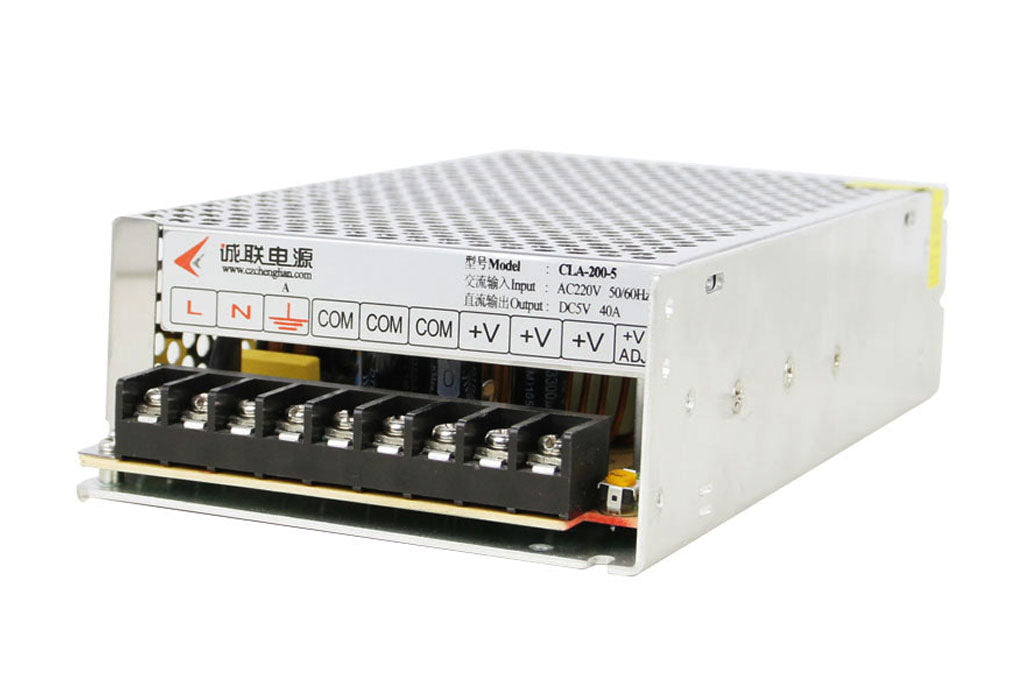

CLA-200-5 LED Display Panel Power Supply
Model NO:
- CLA-200-5, 5V 40A 200W
- CLA-200-4.5, 4.5V 40A
- CLA-200-4.2, 4.2V 40A
- CLA-200-3.8, 3.8V 40A
- CLA-200-3.3, 3.3V 40A
Input
Input Voltage Range: 90-132Vac, 190~264Vac switchable
Input Frequency Range: 50/60
AC Current: ≤1.8A(100Vac, full load)
Output:
Dc Voltage Range:5 V
Rated Current: 40A
Max power: 200W
Ripple & Noise: ≤150mVp-P
Efficiency (Typ):≥77% Vin=220Vac,
Voltage Tolerance:±2%
Power on delay time<2S
Protection:
OCP(50-60A)
SCP(Lock out, recovery after restart)
Safety&EMC:
EN60950-1,EN55022
Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
Leakage current<0.75mA(AC240V)
Others:
Working Temperature:-10℃ ~ +50℃
Cooling: ventilate by air convection
Working Humidity:5%~90%RH
Storage temperature: -20℃~+85℃
Dimension (L*W*H):199×110×50mm
Carton Dimension: 43*29.5*26.5CM
Packing:20PCS/ 15KG/CTN/0.04CBM
MTBF:50K hours (MIL-HDBK-217F (25 )
