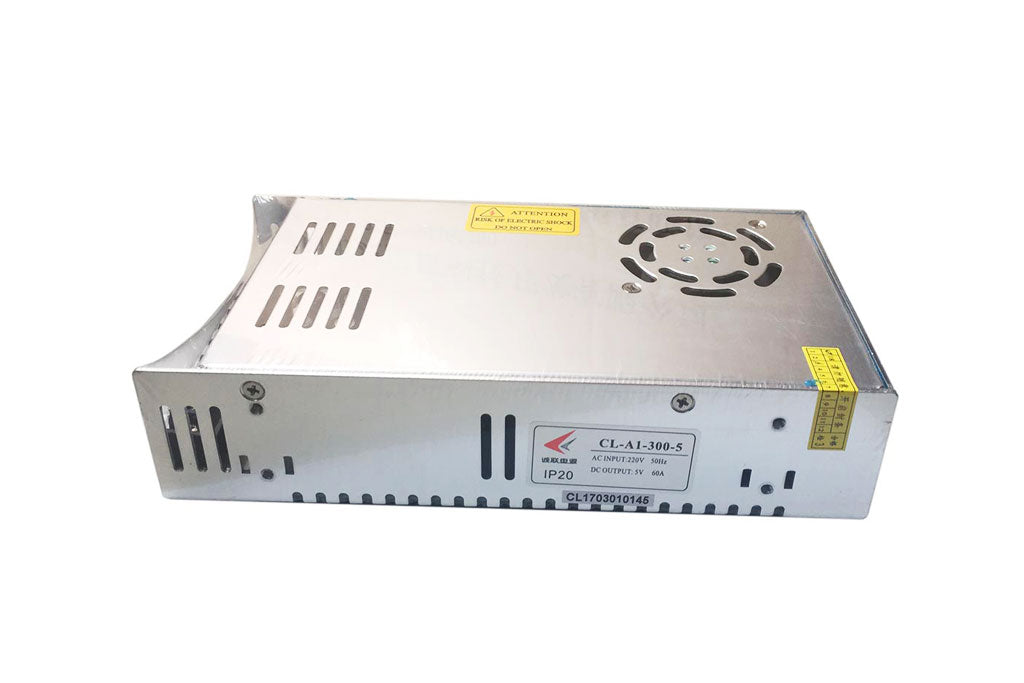

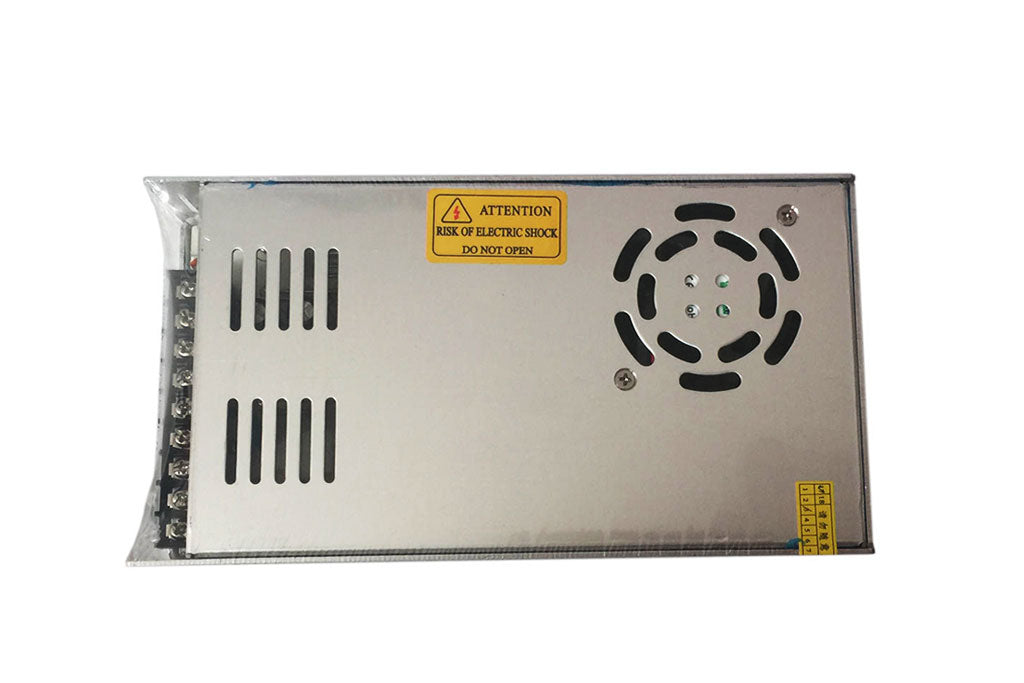

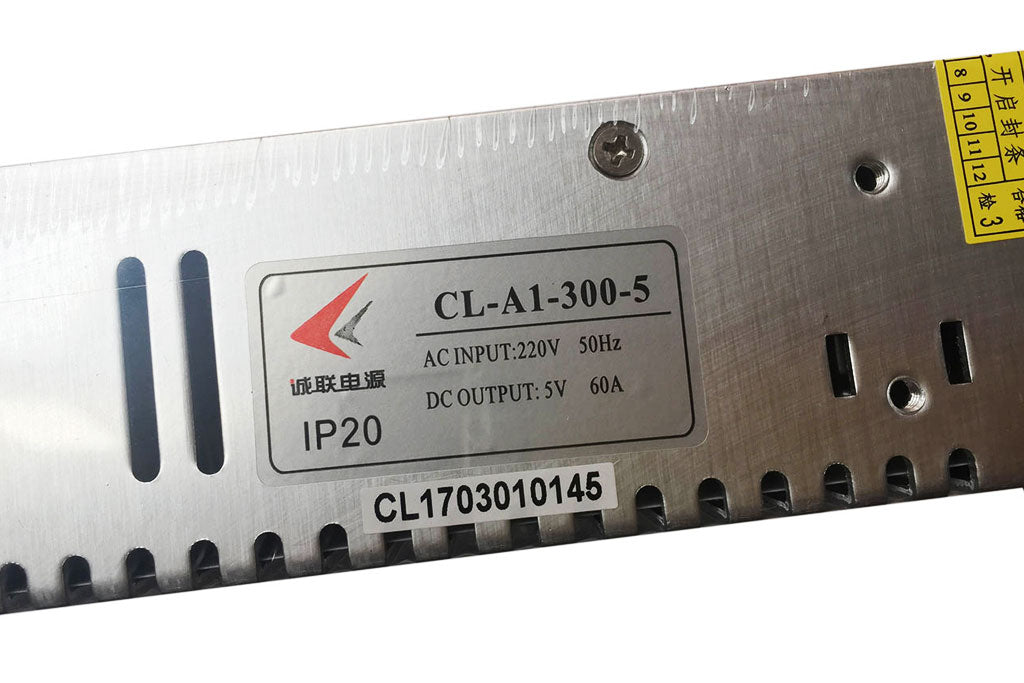

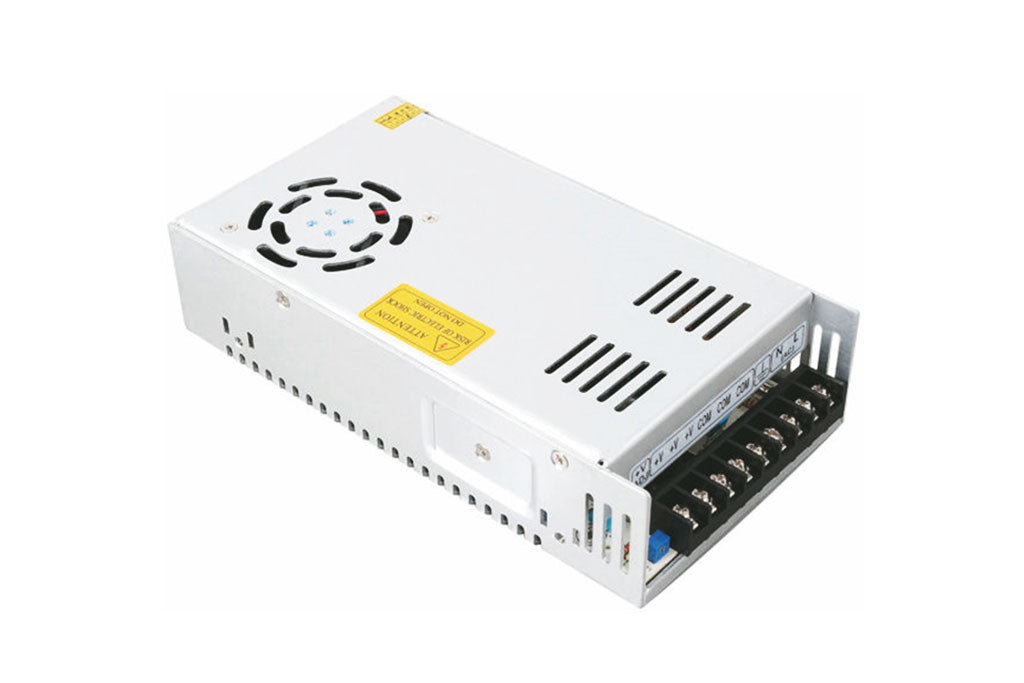

CL LED Displays Power Supply A1-300-5 5V60A Standard Size LED Power Supply

CL LED Displays Power Supply A1-300-5 5V60A Standard Size LED Power Supply

Regular price $38.50 USD
Regular price Sale price $38.50 USD
Sale Sold out
Shipping calculated at checkout.

CL-A1-300-5 5V60A Standard Size LED Power Supply Features:

Input Parameter:

  • Input Voltage Range: 100-125Vac OR 180~264Vac Switchable
  • Input Frequency Range:  47-63HZ
  • AC Current: ≤2.7A(AC220V)/6A(AC110V)
  • Input inrush current<80A(220Vac input, 25℃  cold start)

Output Parameter:

  • Dc Voltage Range:5 V
  • Rated Current: 60A
  • Max power: 300W
  • Ripple & Noise: ≤150mVp-P
  • Efficiency (Typ):≥75% Vin=220Vac,25℃, rated load
  • Voltage Tolerance:±2%
  • Power on delay time<3S

Protection:

  • OCP(75-85A)
  • OTP(68℃~78℃, auto recovery after the temperature is down)
  • SCP(LOCKOU, auto recovery after restart)

Safety&EMC:

  • EN60950-1,EN55022
  • Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
  • Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
  • Leakage current<0.75mA(AC240V)

Others:

  • Working Temperature:-10℃ ~ +60℃
  • Cooling: ventilate by DC Fan
  • Working Humidity:5%~90%RH
  • Storage temperature: -20℃~+85℃
  • Dimension (L*W*H):215×115×50mm
  • Carton Dimension: 63*28*26CM
  • Packing:20PCS/ 16.5KG/CTN/0.05CBM
  • MTBF:50K hours (MIL-HDBK-217F (25 )
