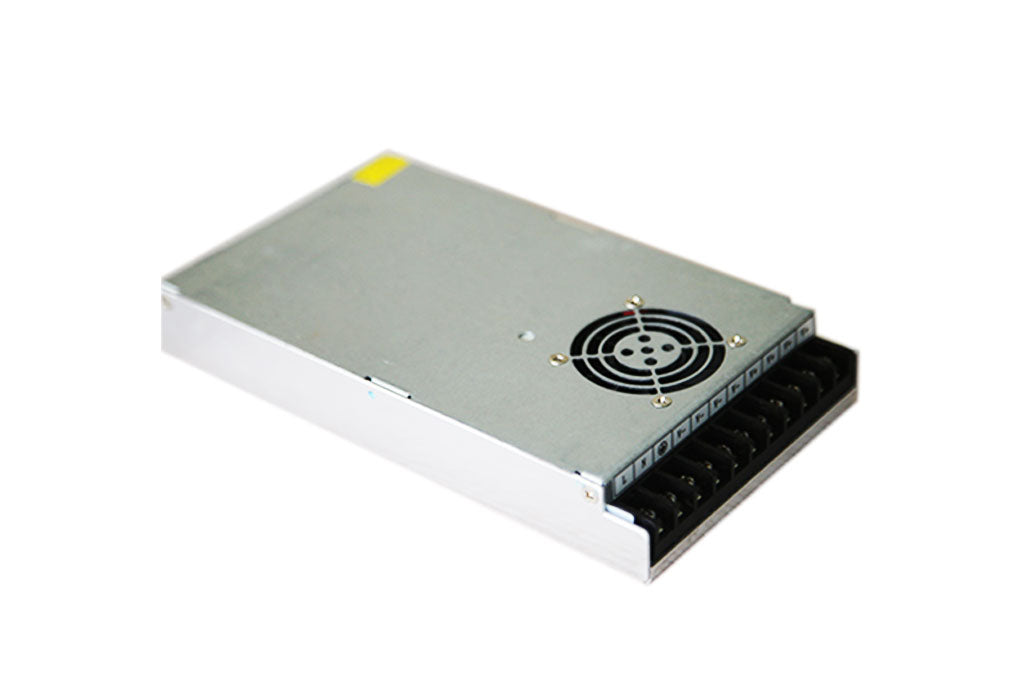

CL LED Displays Power Supply 400W PAS1-400-5 series

CL LED Displays Power Supply 400W PAS1-400-5 series

Regular price $30.00 USD
Regular price Sale price $30.00 USD
Sale Sold out
Shipping calculated at checkout.

CL LED Displays Power Supply 400W PAS1 series Features:

Input Parameter:

  • Input Voltage Range: 90~264Vac
  • Input Frequency Range: 47~63HZ(Typ 50/60)
  • Max AC Current: <7A, 100Vac, full load
  • Inrush current: ≤90A, 240V, Full load, 25℃
  • PF >0.95(AC100~240Vac, full load)
  • Leakage Current:I/P-O/P:≤0.25mA, I/P-F/G:≤3.5mA (Vin=250Vac 60HZ)

Output Parameter:

  • Dc Voltage Range: 5V(4.5V/4.2V/3.8V/2.8V is available too)
  • Rated Current: 0-80A
  • Max power:400W
  • Ripple & Noise: ≤200mVp-P
  • Efficiency (Typ): 84%(Typ 86%) Vin=110V Full load,25℃,  86%(Typ 90.5%) Vin=230V, full load, 25℃
  • Voltage Tolerance:±2%
  • Line Regulation: ±1%
  • Load Regulation:±2%

Protection:

  • Over voltage protection: 5.4-6.0V
  • Over current protection: 85-110A
  • Over temperature protection: 65-85℃,  full load 25℃.
  • Short circuit protection,Hiccup mode, recovers automatically after fault condition is removed
  • Under voltage protection: 60-85Vac, recovery value: 65-90Vac

Safety Standards:

  • UL60950, IEC/EN60950, GB4943.1-2011

EMC:

  • FCC Part 15 B,EN55022, EN61000-3-2, GB9254, GB17625

EMI:

  • EN61000-4-2,3,4,5,6,8,11, EN55024
  • Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S , I/P-FG:1.5KVAC/ 10mA/ 60S , O/P-F/G: 500Vdc/10mA/ 60S
  • Isolation Resistance:I/P-O/P:≥10MΩ@ 500Vdc,I/P-F/G:≥10MΩ@ 500Vdc,O/P-F/G:≥10MΩ@ 500Vdc
  • Leakage current: I/P-FG: ≤3.5mA , I/P-O/P:≤0.25mA (240Vac/60Hz)

Others:

  • Working Temperature:-30℃ ~ +60℃
  • Working Humidity:5%~90%RH
  • Storage temperature: -40℃~+80℃
  • Ventilation by DC fan
  • Dimension (L*W*H): 195*115*30mm
  • Carton Dimension: 40*31*18.5 cm
  • Packing:16PCS/16.7KG/0.04CBM
  • MTBF:150K hours (MIL-HDBK-217F (25℃ )
  • 3 years warranty
